Mercia Garden Products 03DTSHRA1008FGC42TW-V2 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHRA1008FGC42TW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHRA1008FGC42TW-V2

Summary of Contents for Mercia Garden Products 03DTSHRA1008FGC42TW-V2

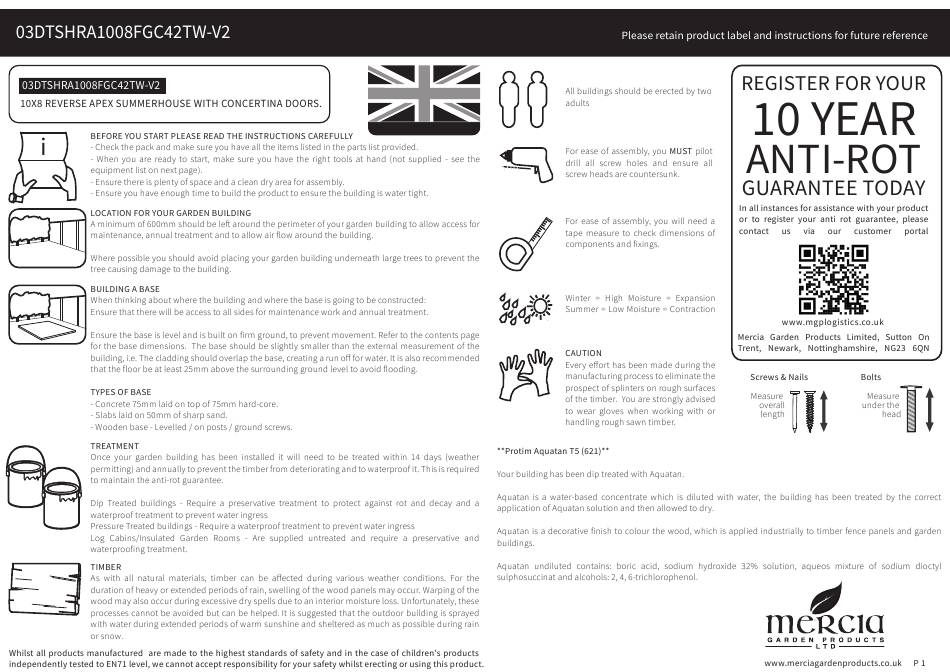

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 03DTSHRA1008FGC42TW-V2 Overall Dimensions: Green Label Blue Label White Label Width = 3010mm Depth = 2489mm Height = 2670mm Base Dimensions: Width = 2912mm Depth = 2350mm Roof QTY 2 Master Door QTY 1 Secondary Door QTY 1 Plain Door QTY 2...

  • Page 5: Missing Parts

    End View Pre Assembly Floor Block - 28x28x400mm QTY 8 Before assembling remove the transportation blocks from the bottom of each panel. F2828-400mm End View Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer.
  • Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts needed - No. 10 QTY 1 base ready to install your building onto. No. 11 QTY 1 No. 25 QTY 8 Step 1 IMPORTANT: Pre-drill before xing screws.
  • Page 7 Step 3 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 28 QTY 2 Parts needed - No. 1 QTY 1 No. 29 QTY 1 No. 2 QTY 2 No. 30 QTY 6 With the framing face upwards, Attach the press lock (No.
  • Page 8 Step 6 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 7 QTY 2 No. 22 QTY 8 Place the assembled oor panels (No. 7) face down onto a rm and level base. Position four Floor Blocks (No.
  • Page 9 Step 10 Step 12 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 2 Parts Needed - No. 4 QTY 1 No. 3 QTY 1 No. 3 QTY 1 No. 4 QTY 1 No.
  • Page 10 Step 14 Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 14 QTY 4 Align the ridge bar (No. 12) between the Place the panel framing (No. 14) gables and secure to the central uprights along the top of the panel at the with 2x30mm screws per bracket (No.
  • Page 11 Step 18 Step 20 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 19 QTY 2 Parts Needed - No. 15 QTY 4 No. 16 QTY 2 Fix the roof support blocks (No. 19) to No.
  • Page 12 Step 21 Step 22 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No 8 QTY 2 No. 9 QTY 2 Before fully xing the roof, check by eye to see that the walls are straight by standing to Place the Roof Panels (No.
  • Page 13 Step 23 Step 25 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 31 QTY 2 Parts Needed - No. 32 QTY 1 Cut the felt (No. 32) into three strips On the inside of the building, position one U-Channel (No. 31) evenly over the measuring: 3110mm (L) x 1000mm (W).
  • Page 14 Step 26 Step 27 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 17 QTY 11 Parts Needed - No. 18 QTY 4 No. 24 QTY 2 Locate the cover trims (No. 17) to each corner of the building and across each Locate the Fascias (No.
  • Page 15 Step 29 Step 30 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 23 QTY 2 Parts Needed - No. 26 QTY 2 Fix the rain guards (No. 23) above each Attach the two turn buttons (No. 26) window, securing in place using to the secondary door at the top and 2x50mm screws per guard, ensuring to...
  • Page 16 Step 32 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 17 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
  • Page 17 ANY QUESTIONS? Scan code contact us via our customer portal.
