please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Adult assembly
CODE
DB-AM-CBG
G-11332X
DB-FP-CBG
G-11432X
PO :
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
A
Wood dowel - 4 pcs
Spare - 1 pc
B
JCB M6 X 2 1/2"( 65mm ) - 4 pcs
C
JCB M8 X 5/8"( 15mm ) - 8 pcs
ASSEMBLY INSTRUCTIONS
Before assembling your Daybed, please read through these
instructions carefully. Familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
ITEM
HARDWARE
D
Spare - 1 pc
E

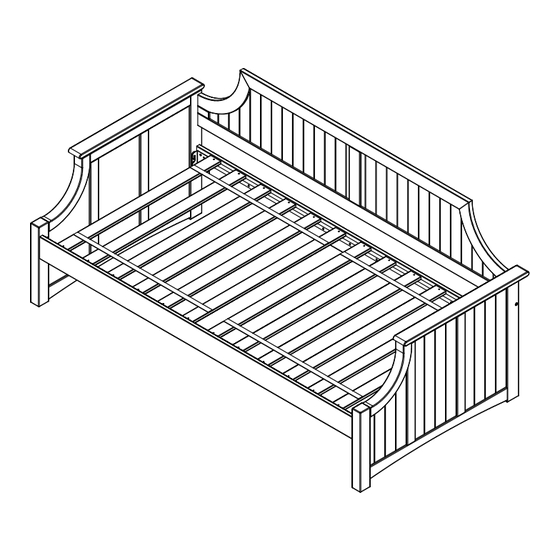

DAYBED
Wood Screw - 24 pcs
Spare - 1 pc
Barrel Nut - 4 pcs
Spare - 1 pc
F
Allen wrench M6 - 1 pc
G
Allen wrench M4 - 1 pc
READY
Allen wrench
Page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFi DB-AM-CBG
Summary of Contents for AFi DB-AM-CBG
- Page 1 ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Allen wrench Adult assembly CODE ITEM DB-AM-CBG G-11332X DB-FP-CBG G-11432X PO : HARDWARE NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
- Page 2 PARTS LIST HARDWARE 1 BOX G-11432X LEFT DAYBED ARM 1 PC G-11332X 1 BOX RIGHT DAYBED ARM 1 PC BACK PANEL 1 PC FRONT / BACK RAIL 2 PCS G-11432X 1 BOX SLAT KIT 2 SET Step 1 Attach the back panel (04) to the left and right daybed arm (02)(03), using wood dowels (A), JCB M6 X 2 1/2”(B) and barrel nut (E).
- Page 3 Step 2 Attach the front and back rail (05) to the Daybed arms as shown, using JCB M8 X 5/8” (C). Tighten with the Allen wrench (F). Adult assembly JCB M8 X 5/8” Allen wrench Step 3 Lay the slat kit (06) onto the rail assembly as shown, using wood screw (D).Tighten with the Phillips head screw driver (Customer supplied).
