instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
HEADBOARD PANEL 1 PC
2
LEFT LEG
1 PC
3
RIGHT LEG
1 PC
4
FOOTBOARD
1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3) to headboard panel (1),
using wooden dowels (A) and JCB (B).
Tighten with the Allen wrench (C).
B
B
B
A
A
To ensure lasting safety, we recommend that you periodically check

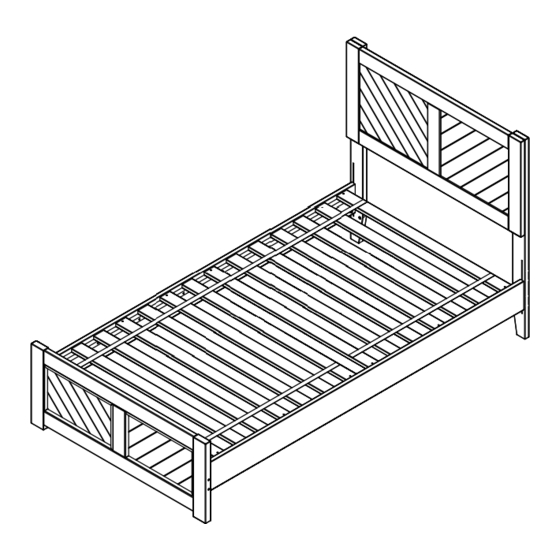

BED WITH MATCHING FOOTBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your bed, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
Wooden dowel - 4 pcs
Spare - 1 pc
B
1
A
A
3
PO:
Congratulations!
Your headboard is now assembled.
that all screws are tight and all parts are secure.
TWIN
B
JCB M6 X 40mm (1 1/2") - 6 pcs
B
B
2
HARDWARE
Spare - 1 pc
C
Allen wrench - 1pc
Spare - 1pc
CODE
ITEM
HBFB-CYN
R-29572X
READY
TO
ASSEMBLE
Adult assembly
Adult assembly
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for AFi HBFB-CYN
Summary of Contents for AFi HBFB-CYN
- Page 1 Step 1 Attach the legs (2) and (3) to headboard panel (1), using wooden dowels (A) and JCB (B). Tighten with the Allen wrench (C). CODE ITEM HBFB-CYN R-29572X Adult assembly Adult assembly Congratulations! Your headboard is now assembled. To ensure lasting safety, we recommend that you periodically check that all screws are tight and all parts are secure.
- Page 2 HARDWARE HEADBOARD BOX 1 FOOTBOARD SIDE RAILS BOX 2 Adult assembly SLAT KIT Step 1 Attach the side rails (04) to the headboard (02) and footboard (03) using the bed hook as shown below. UPPER LOWER Use the upper set of pins when using mattress only, storage drawers or Trundle bed.
- Page 3 SLAT KIT ASSEMBLY INSTRUCTION READY ( TWIN ) Before assembling your bed slat kit, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. Please note that you will require a Phillips screwdriver. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 PARTS LIST SLAT KIT...
- Page 4 TRUNDLE BED ASSEMBLY INSTRUCTIONS READY Before assembling your Trundle bed, please read through these instructions carefully. Familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Adult assembly Allen wrench CODE ITEM...
- Page 5 PARTS LIST HARDWARE 1 BOX SIDE CROSS RAIL 2 PCS FRONT PANEL 1 PC CENTER CROSS RAIL 1 PC SLAT KIT 2 SET FRONT RAIL 1 PC BACK RAIL 1 PC Step 1 Attach the side cross rails (05) and center cross rail (06) to the front and back rail (03)(04), using L bracket (C), JCB M6 X 1 5/8”(A).
- Page 6 Attach the front panel (02) to the front rail as shown, using JCB M6 X 5/8” (B). Step 2 Tighten with the Allen wrench (D). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Lay the slat kit (07) onto the rail assembly as shown, using JCB M6 X 1 5/8” (A). Tighten with the Allen wrench (D).
