Fortinet FortiADC 320F Series Quick Start Manual page 5

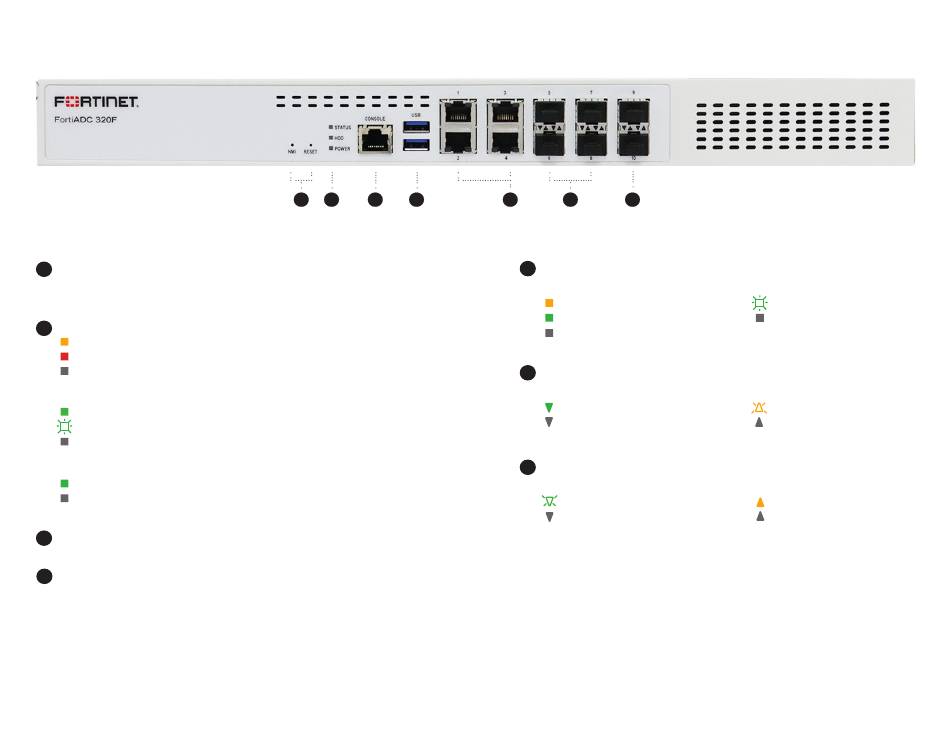

Front FAD-320F
1
NMI button press and hold for 3 secs to restore NMI output and reboot
RESET button press for system reset
2
STATUS
Amber: Operating normally
Red: Major error detected
Off: System is off
mSATA 120G internal storage
HDD
Green: Operating normally
Flashing Green: Storage in use
Off: Storage not in use
POWER
Green: Power detected
Off: Power not detected
3
CONSOLE (RJ45) CLI management
4
USB (3.0) x2 server support
8
1 2 3 4 5 6 7
5
Ports 1 to 4 (RJ45)
SPEED (Left LED)
Amber: 2.5 Gbps
Green: 1 Gbps
Off: 100 Mbps or not in use
6
Ports 5 to 8 (SFP)
SPEED (Left LED)
Green: 1 Gbps
Off: No link established
7
Ports 9 to 10 (SFP+)
LINK/ACT (Left LED)
Flashing Green: Data activity
Off: No link established
LINK/ACT (Right LED)
Flashing Green: Data activity
Off: No link established
LINK/ACT (Right LED)
Flashing Amber: Link established
Off: No link established
SPEED (Right LED)
Amber: 10 Gbps
Off: No link established
9
