QuickStart Guide

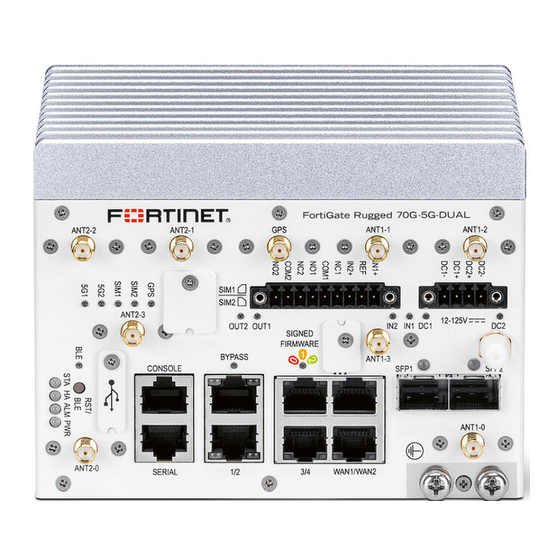

FortiGate Rugged 70G 5G Dual
FGR-70G-5G-DUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiGate Rugged 70G 5G Dual and is the answer not in the manual?

Questions and answers

Summary of Contents for Fortinet FortiGate Rugged 70G 5G Dual

  • Page 1 QuickStart Guide FortiGate Rugged 70G 5G Dual FGR-70G-5G-DUAL...
  • Page 2: Package Contents

    Package Contents Default Logins FortiGate Rugged 70G-5G-DUAL FGR-70G-5G-DUAL https://192.168.1.99 Username: admin Password: leave blank Fortinet Documents Library 1x FGR-70G-5G-DUAL 1x QuickStart Guide For a detailed administration guide, up-to-date hardware manuals and reference materials, visit https://docs.fortinet.com/ Support Resources Register for FortiGuard updates, cloud management, firmware upgrades, technical support and warranty coverage at https://support.fortinet.com...
  • Page 3: Power Installation

    Power Installation FortiGate Rugged 70G-5G-DUAL ANT2-2 ANT2-1 ANT1-1 ANT1-2 Warnings Wiring • The redundant DC inputs support negative ground (+12V to +125V DC) and positive ground (-12V to -125V DC), 3A Max • With the optional failover redundancy, if the primary DC input fails, the secondary DC input will supply power •...
  • Page 4 Dimensions 122.0mm 104mm 8.8mm (4.80in) (4.09in) (0.35in) 90mm (3.54in) 139mm (5.47in) 48.3mm (1.90in) With connectors 132.5mm (5.22in) The DIN plate thickness is 2.4mm (0.09in). 205mm (8.07in) 25mm (.98in)
  • Page 5 FortiGate Rugged 70G-5G-DUAL Digital I/O Connector Mounting ANT2-2 ANT2-1 ANT1-1 SIM1 SIM2 ANT2-3 12-125V OUT2 OUT1 IN1 DC1 SIGNED Connector Description FIRMWARE Normally Open 2 Terminal BYPASS ANT1-3 COM2 Common 2 Terminal CONSOLE SFP1 Normally Closed 2 Terminal Normally Open Terminal Rear Mounting Holes COM1 Common 1 Terminal...
  • Page 6: Microsd Card Slot

    Micro SD card. Micro SD card not included. ANT2-0, ANT2-1, ANT2-2, ANT2-3 & GPS. Refer to the Admin Guide for SD card details at https://docs.fortinet.com Dual 5G Nano SIM Slots SIM type is 4FF - Nano SIM. Industrial SIM cards recommended for extreme temperature environments.
  • Page 7 Setup FortiExplorer Go Enable Bluetooth on your mobile device for BLE. Speed (default): 9600 Data bits: USB Console Cable Stop bits: (available for purchase Parity: None Flow Control: None Console Port Management Computer FortiExplorer Go for your Follow the on-screen iOS device instructions FortiGate Cloud...
  • Page 8 Off: Not detected Amber: 4G/3G connected Off: Not connected Signed Firmware BIOS Security Level Controlled by Signed Firmware Switch, see Admin Guide at https://docs.fortinet.com Green: On Green: Security Level 2 (default) Off: Off Amber: Security Level 1 5G SIM slots (2x Nano 4FF) Red: Security Level 0 SFP1 &...
  • Page 9: Cautions And Warnings

    (2) this device must accept any interference received; including interference that may cause undesired operation. directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 10 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU UK Conformity Assessed (UKCA) – United Kingdom The product transmits within the frequency ranges and less than or equal to the power listed below:...
  • Page 11 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
