2. Slide the rail towards the front of the device until the inner rail metal clip clicks Cage Socket into the locked position. 3. Repeat steps 1 - 2 for the remaining rail. Lock Locks in place Note: Please see the following video for visual instructions: https://video.fortinet.com/latest/rack-mount-sliding-rail-installation...
C. Install the device B. Attach the outer rails Before installing the device ensure the inner rails are properly connected to the 1. Align the front of the outer rail with the front of the rack. 2. Push the mounting pins into the rack post holes. device and the outer rails are level and securely attached to the rack.
Page 6

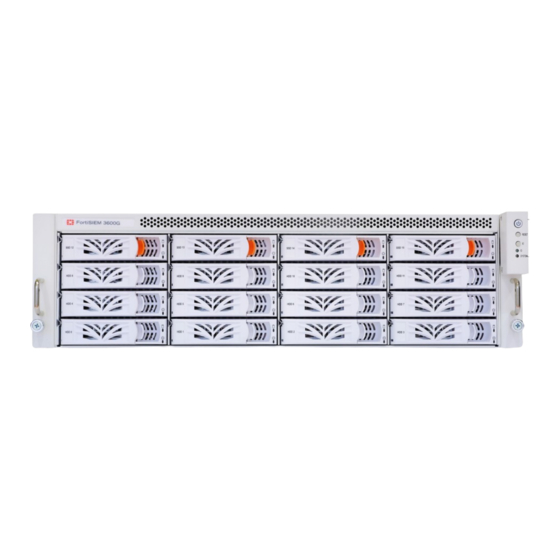

Front FSM-3600G Storage Slots 0 to 11 (HDD) Power Button 8TB per slot, RAID-50, 72TB usable capacity, hot-swappable Power On: Short press to power on/off; long press to force shutdown Storage Slots 12 to 15 (SSD) Power Off: System is off 3.84TB per slot, RAID 5, 11.5TB usable capacity, hot-swappable Reset Button Storage Status...
Page 7
Rear FSM-3600G SFP+ Activity LED (Ports 3 & 4) SFP+ Speed LED (Ports 3 & 4) SFP28 Activity LED (Ports 5 & 6) SFP28 Speed LED (Ports 5 & 6) Green: Link established, no activity Green: Link established, no activity Green: 10 Gbps Green: 25 Gbps Flashing...
The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 請依製造商說明書處理用過之電池 限用物質含有情況表 (RoHS Table) 請到以下 網址下載: https://www.fortinet.com/bsmi CAUTION: There is a danger of explosion if a battery is incorrect replaced. Replace only with the same or equivalent type.
