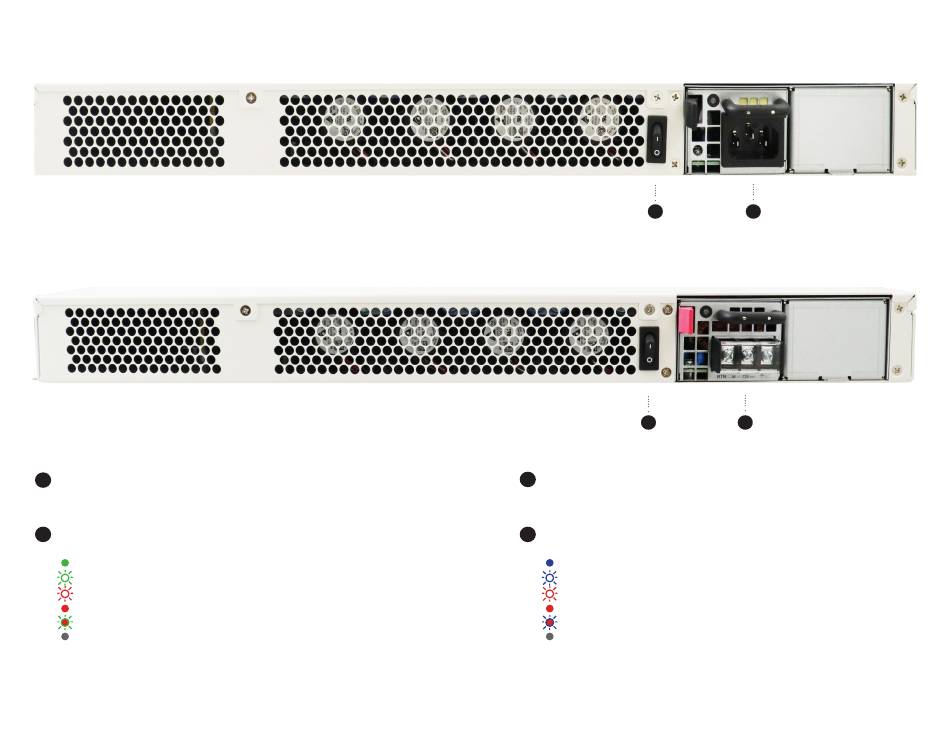

Rear FAD-420F
Rear FAD-420F-DC
1
FAD-420F Power Switch (toggle) on/off
2
AC Power Supply (1+0), Redundant, Hot-Swappable
100-240VAC, 6-3A, 50/60Hz (x2)
Green: Normal operation
Green: Standby mode
Flashing
Flashing
Red: PSU failure; secondary PSU in use if installed
Red: PSU failure
Flashing
Red/Green: PSU warning detected
Off: No power
14
1
3
3
FAD-420F-DC Power Switch (toggle) on/off
4
DC Power Supply (1+0), Redundant, Hot-Swappable
-48V to -60V DC, 450W Max (x2)
Blue: Normal operation
Blue: Standby mode
Flashing
Flashing
Red: PSU failure; secondary PSU in use if installed
Red: PSU failure
Flashing
Red/Blue: PSU warning detected
Off: No power
2
4
15
