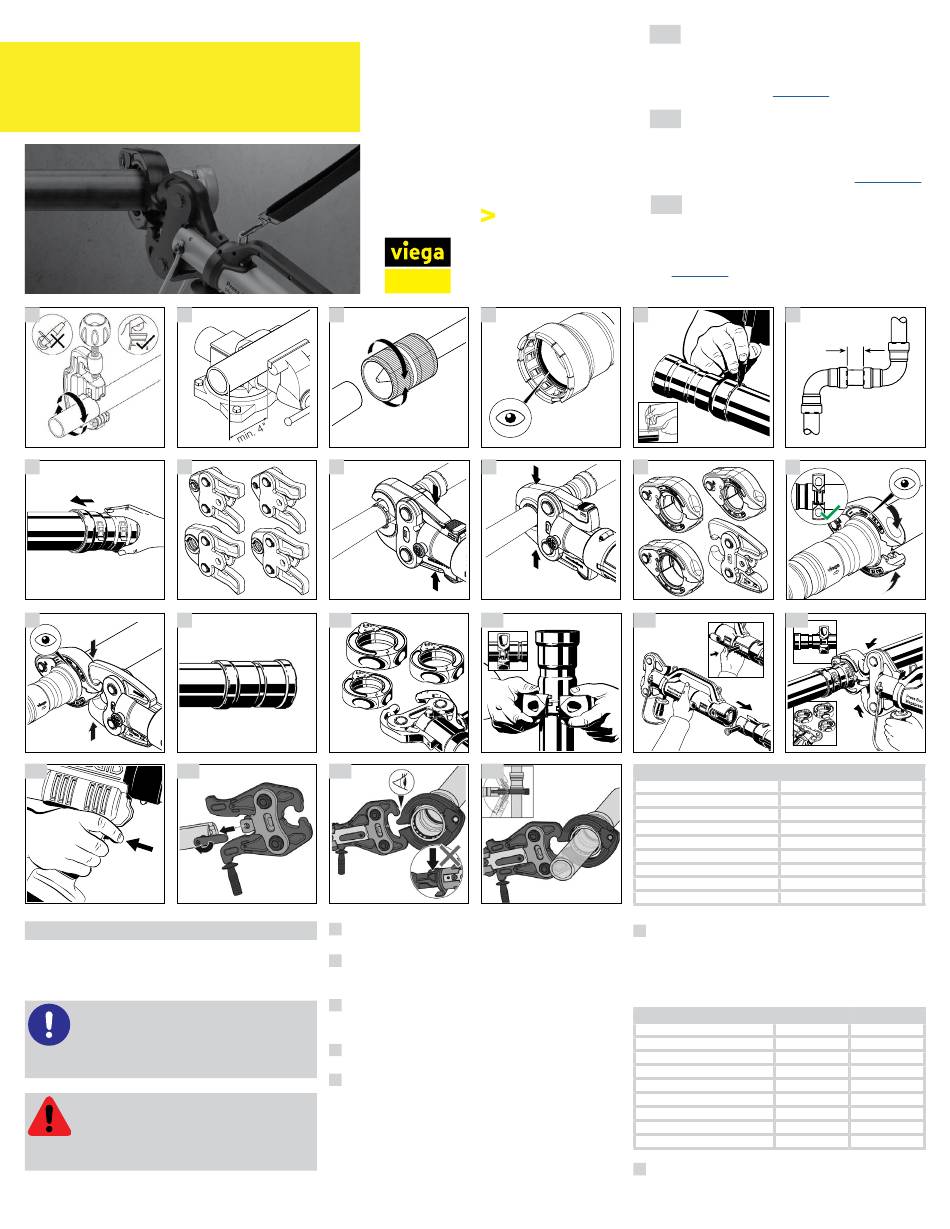

Viega MegaPress Product Instructions

Product Instructions
Viega MegaPress
®
MegaPress FKM ½" to 4" Fittings
1 2
6 7 8a
9c 9d
11c 12a
x2-3
EN
Viega MegaPress ½" to 2"and
MegaPress FKM ½" to 4" Fittings
Viega products are designed to be installed
by licensed and trained plumbing and
mechanical professionals who are familiar with
Viega products and their installation. Installation by
non-professionals may void Viega LLC's warranty.
DANGER!
Read and understand all instructions for
installing Viega MegaPress and MegaPress
FKM fittings. Failure to follow all instructions may result
in extensive property damage, serious injury, or death.
½" to 2"and
3
8b
10a
12b
Cut pipe square using displacement-type cutter or
1
fine-toothed saw.
Keep end of pipe a minimum of 4" away from
2
the contact area of the vise to prevent possible
damage to the pipe in the press area.
Remove burr from inside and outside of the
3
pipe and prep to proper insertion depth using a
preparation tool or fine-grit sandpaper.
Check seal, separator ring, and grip ring for
4
correct fit. Do not use oils or lubricants.
Mark proper insertion depth as indicated by the
5
Viega MegaPress Insertion Depth Chart. Improper
insertion depth may result in improper seal. It is
recommended that the depth marking be visible
on the completed assembly.
EN
This document is subject to updates. For the most current Viega
technical literature, please visit www.viega.us.
ES
Este documento está sujeto a actualizaciones. Para obtener la
documentación técnica más reciente de Viega, visite www.viega.us/es.
FR
Viega LLC
585 Interlocken Blvd.
Broomfield, CO 80021
Le présent document est soumis à des mises à jour. Pour consulter
les manuels techniques Viega les plus récents, reportez-vous au site
Web www.viega.ca.
Phone (800) 976-9819
www.viega.us
4 5
8c 9a
10b 11a
12c
Refer to the chart below for minimum distance
6
between fittings. To ensure a correct press, a
minimum distance between press fittings must be
maintained. Failure to provide this distance may
result in an improper seal.
Pipe Diameter (in)
While turning slightly, slide fitting onto the pipe to the
7
marked depth. End of pipe must contact stop.
Product Instructions
Viega MegaPress ½" to 2" and
MegaPress FKM ½" to 4" Fittings
Instrucciones del Producto
Accesorios MegaPress de Viega de
½" a 2" y MegaPress FKM de ½" a 4"
Instructions produit
MegaPress de Viega de ½ po à 2 po et
raccords MegaPress FKM de ½ po à 4 po
PI-MP 531440 0324 MegaPress ½ to 4 (EN ES FR)
