HP 28673A - AdvanceStack 10:10 LAN Bridge MB User Manual

Pci express gigabit server adapter.
Hide thumbs
HP NC1 12T PCI Express Gigabit Server Adapter
Part Number 509365-00A
March 2009 (First Edition)

Advertising

   Related Manuals for HP 28673A - AdvanceStack 10:10 LAN Bridge MB

   Summary of Contents for HP 28673A - AdvanceStack 10:10 LAN Bridge MB

  • Page 1: User Guide

    HP NC1 12T PCI Express Gigabit Server Adapter User Guide Part Number 509365-00A March 2009 (First Edition)

  • Page 2

    © Copyright 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Contents Technician notes ........................... 4 Where to go for additional help........................4 HP contact information ........................5 Introduction ..........................6 Overview ..............................6 UTP CAT5 cable ............................6 LED indicators ............................6 Installing an adapter ........................8 Installation overview ..........................8 Installing an adapter in a server ........................

  • Page 4: Technician Notes, Where To Go For Additional Help

    Technician notes WARNING: Only authorized technicians trained by HP should attempt to repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module-level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board.

  • Page 5: Hp Contact Information

    Select Download drivers and software (and firmware). Type the product name in the For product box and click Go. For example, type NC112T. Download the drivers, firmware, or documentation as needed. HP contact information For the name of the nearest HP authorized reseller: •...

  • Page 6: Introduction, Overview, Utp Cat5 Cable, Led Indicators

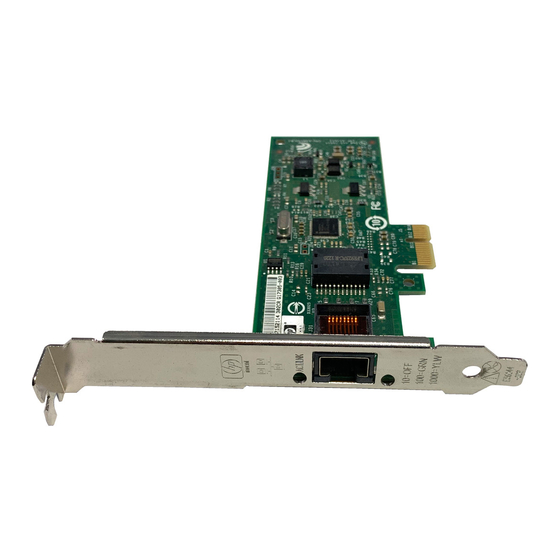

    Introduction Overview The HP NC112T PCI Express Gigabit Server Adapter is a high-performance PCI Express, single port, gigabit server adapter that delivers up to 1000Mbps Ethernet over twisted-pair (copper) category 5 or better cabling. It is powered by an Intel 82574L chipset. The NC112T adapter, which ships with a standard-height chassis bracket attached and also includes a low-profile chassis bracket, has a fully integrated controller capable of auto-negotiating a link at 10, 100, or 1000Mbps.

  • Page 7

    The NC112T LED indicators operate as described in the following table. LED indicator Status Description Activity/Link This mono-color green LED indicates that the link to the adapter is established. The adapter is receiving power and the cable connection is working. No link to the adapter is established.

  • Page 8: Installing An Adapter, Installation Overview

    Installing an adapter Installation overview This section describes installation precautions, how to install the adapter, and how to connect the network cable. WARNING: To reduce the risk of personal injury or damage to the equipment, consult the safety information and user documentation provided with the server before attempting the installation.

  • Page 9: Installing An Adapter In A Server, Installing A Low Profile Bracket

    Installing an adapter in a server See the HP ProLiant server documentation for additional information on how to safely install a PCI Express card in the server. CAUTION: If the server is not PCI Hot Plug compliant, power it down and unplug the power cord from the power outlet before removing the server access panel.

  • Page 10: Preventing Electrostatic Discharge, Connecting The Network Cable

    Remove the standard profile bracket and place the low profile bracket over the connector. Be careful not to damage the connector or bind the low profile bracket to the connector. Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts.

  • Page 11: Specifications, Hp Nc112t Pci Express Gigabit Server Adapter Specifications, Utp Cable Specifications

    Specifications HP NC112T PCI Express Gigabit Server Adapter specifications Specification Value Network Controller Chipsets Intel® 82574L Bus Type x1 PCI Express v1.1 (2.5 GTps) Bus Width One lane (x1) On-board Memory 32 KB Data Transfer Method Bus Master DMA Boot ROM Support Management Capabilities WOL, PXE 2.2, ACPI 1.0 (Note: WOL and PXE are set to the default of off) Power Requirement...

  • Page 12

    Maximum distances for Gigabit over copper cable are 100 meters (328 feet). To connect to the network, the NC112T uses the following cable for 1000Base-T transmission: • CAT5 UTP or better twisted-pair • 22-26 AWG, 100Ω @ 1 MHz • EIA/TIA 568a or EIA/TIA 568b Specifications 12...

  • Page 13: Regulatory Compliance Notices, Regulatory Compliance Identification Numbers, Federal Communications Commission Notice, Class B Equipment

    Regulatory compliance notices Regulatory compliance identification numbers For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number. The regulatory model number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to this regulatory model number.

  • Page 14: Declaration Of Conformity For Products Marked With The Fcc Logo, United States Only, Modifications

    EMC Directive 2004/108/EC Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family. This compliance is indicated by the following conformity marking placed on the product:...

  • Page 15: Japanese Class B Notice, Korean Class B Notice

    This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth). This marking is valid for EU non-harmonized Telecom products. *Notified body number (used only if applicable—refer to the product label) Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany Japanese class B notice Korean class B notice...

  • Page 16: Electrostatic Discharge, Preventing Electrostatic Discharge, Grounding Methods To Prevent Electrostatic Discharge

    Electrostatic discharge Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.

  • Page 17: Acronyms And Abbreviations

    Acronyms and abbreviations ACPI Advanced Configuration and Power Interface Canadian Standards Association direct memory access IEEE Institute of Electrical and Electronics Engineers light-emitting diode PCI Express Peripheral Component Interconnect Express Preboot Execution Environment unshielded twisted pair voltage direct-current Wake-on LAN Acronyms and abbreviations 17...

  • Page 18: Index

    Index adapter LEDs 6 technical notes 4 telephone numbers 5 bracket, low profile 9 UTP CAT5 cable 11 cable configuration 11 cable connectors 11 warnings 4 cables, networking 10 cautions 4 electrostatic discharge 10, 16 features 6 grounding methods 16 installation overview 8 installing adapters 9 low profile bracket 9...
