Avipas AV-2040 User Manual

4k 20x auto tracking ptz camera
Hide thumbs Also See for AV-2040:
Table of Contents

Advertisement

Quick Links

Download this manual
Model: AV-2040
4K 20X Auto Tracking PTZ Camera
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-2040 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avipas AV-2040

Summary of Contents for Avipas AV-2040

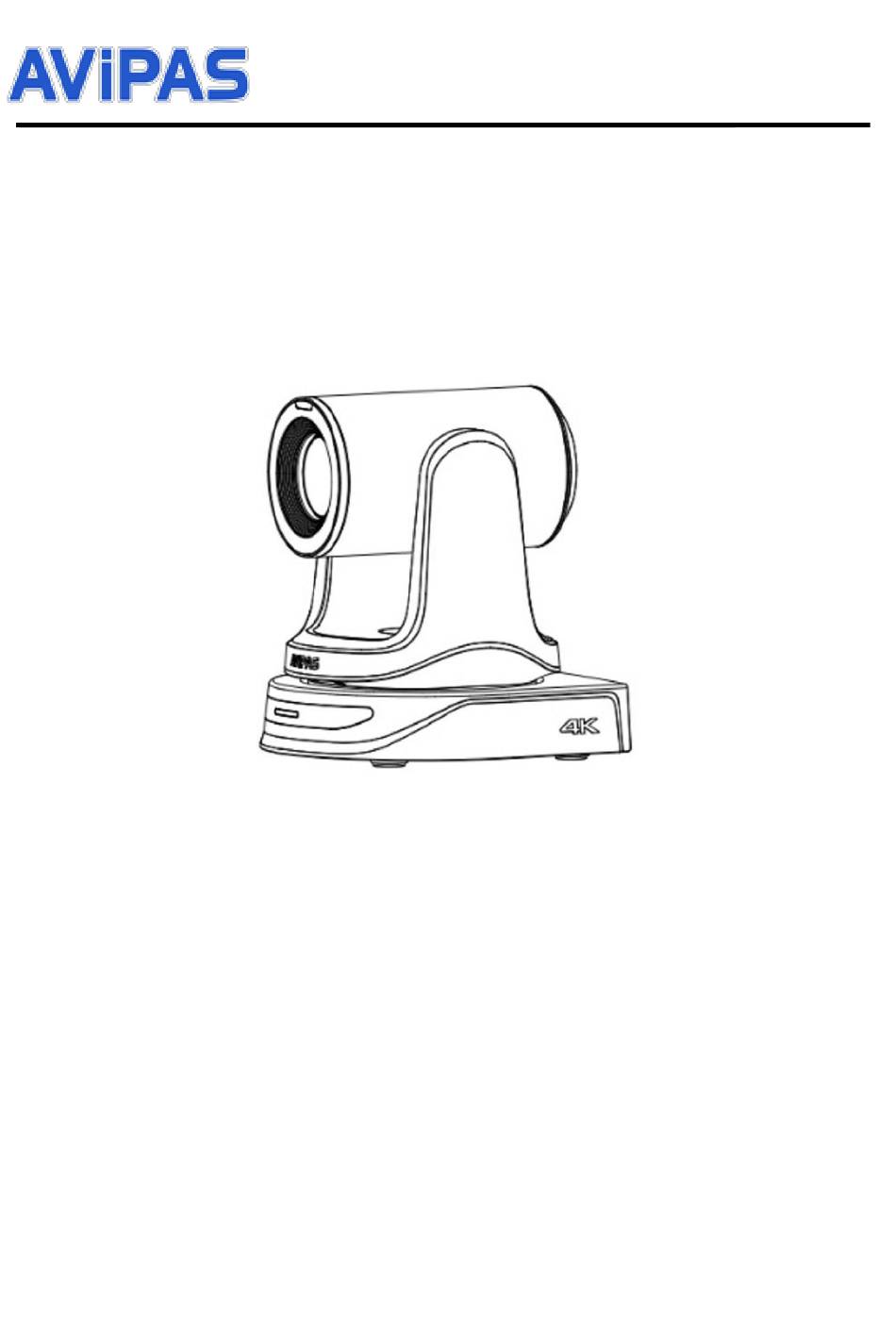

  • Page 1 Model: AV-2040 4K 20X Auto Tracking PTZ Camera User Manual V1.0...
  • Page 2 Preface Thank you for selecting AViPAS AV-2040 4K Auto Tracking PTZ Camera. This manual provides comprehensive information on the camera’s features, installation procedures, and operational guidelines. Please ensure you read this manual thoroughly before proceeding with the installation and use of the camera.

  • Page 3: Table Of Contents

    Table of Contents Safety Guides ................................1 Package Included ................................2 Camera Overview................................2 Product Highlights..............................2 Specifications .................................3 Camera Interface ................................5 Camera Installation ................................6 Camera Dimension (mm) ............................6 Mounting Brackets ..............................7 IR Remote Guide ................................9 Camera On-Screen Display (OSD) Menu ........................11 System Setting ..............................11 Exposure Setting ..............................12 Image Setting ..............................12 Quality Setting ..............................13...

  • Page 4: Safety Guides

    Safety Guides • Electric Safety: Installation and operation must accord with electric safety standards. • Use caution to transport: Avoid stress, vibration or soakage in transport, storage and installation. • Polarity of power supply: The power supply of this product is +12V, the max electrical current is 2A. •...

  • Page 5: Package Included

    Package Included When unpacked, check if all supplied accessories are included: Camera Power Adapter (US Standard) Power Cord (US Standard) RS232 Cable (9-Pin DB-9 Female to 8-Pin Mini-Din Male) USB 2.0 Cable (Type-A to Type-C) IR Remote Control User Manual Anti-Vibration Pad Camera Overview Product Highlights...

  • Page 6: Specifications

    Specifications Camera AV-2040B(Black) / AV-2040W(White) Sensor 1/1.8-inch Sony CMOS sensor, 8.42MP effective pixel Zoom 20x Optical Zoom, 8x Digital Zoom Lens f = 6.8mm ~ 120mm, F1.61 ~ F4.13 Minimum Illumination 0.5 Lux (50 IRE Max AGC, 1/30, F1.8) Horizontal Viewing Angle 58.5°...
  • Page 7 Shutter Speed 1/30s ~ 1/10000s Backlight Compensation On / Off Flip Horizontal On / Off Flip Vertical On / Off Gamma Support Off / Dynamic level adjustment IP Network Specification Video Encoding Standard H.264 / H.265 Video Streaming Mode First streaming, second streaming First Streaming Resolution 3840*2160P15~60;...

  • Page 8: Camera Interface

    16. Tally Light (RED on air, GREEN preview) * Camera Normal Working Mode: Solid Blue Color Light ** 5. Dial Switch Indication Note: Cameras are set to working mode by default, please DO NOT dial switch unless suggested by AViPAS Inc. Dial Switch SW-1...

  • Page 9: Camera Installation

    Camera Installation Camera Dimension (mm) Figure 1.2 Dimension Diagram Note: mm to inch conversion for Figure 1.2 143.5mm=5.60 inch 177.4mm=6.98 inch 162.4mm=6.39 inch 137.4mm=5.41 inch 167.5mm=5.60 inch 168.0mm=6.60 inch 84.00mm=3.31 inch 80mm=3.15 inch...

  • Page 10: Mounting Brackets

    1) Wall Mount Installation (Wall Mount Sold Separately) Note: Customers may select any wall mount bracket that is compatible with the installation requirements. Or choose from AViPAS wall mount brackets: AV-W22G (Black) or AV-W22W (White). Figure 1.3 Wall Mount Image Instructions: 1.
  • Page 11 2) Ceiling Mount Installation (Ceiling Mount Sold Separately) Note: Customers may select any ceiling mount bracket that is compatible with the installation requirements. Or select AViPAS ceiling mount bracket: AV-C20G (Black) or AV-C20W (White). Figure 1.4 Ceiling Mount Image Instructions: 1.

  • Page 12: Ir Remote Guide

    IR Remote Guide OWER Button Under working status, press the POWER button to enter standby mode. Press it again to switch to working mode. FREEZE（NOT Supported through USB output） Press FREEZE to freeze/ unfreeze the image. IRT (IR Transfer/IR Pass) Open/close the IR pass function.
  • Page 13 FOCUS: +/- Manually adjust focus, only valid under manual mode. ZOOM: +/- Manually adjust zoom. NAVIGATE KEY: ▲Up /▼Down/◄Left/►Right Under camera working mode, use navigate keys to pan/ tilt. On the camera On-Screen Display (OSD) menu, use navigate keys to select and enter submenu.

  • Page 14: Camera On-Screen Display (Osd) Menu

    1/20, Full Body **(1/6 is for Head and Shoulder, 1/12 is about full upper body) Note: *How to set up Tally Light, please visit our website www.avipas.com-> [Support]-> [How to materials]->[How to set up Tally] Or contact us at service@avipas.com to get more tech support.

  • Page 15: Exposure Setting

    Exposure Setting MENU SUB MENU DESCRIPTION/VALUE DEFAULT EXPOSURE MODE AUTO / MANUAL / AUTO SHUTTER / IRIS / BRIGHT 1/30s ~ 1/10000s, only valid AUTO SHUTTER under MANUAL and SHUTTER mode IRIS CLOSE ~ F14, only valid AUTO under MANUAL and IRIS mode EXPOSURE GAIN...

  • Page 16: Quality Setting

    Quality Setting MENU SUB MENU DESCRIPTION/VALUE DEFAULT 2D NOISE REDUCTION OFF / ON OFF / AUTO / 1 ~ 4. Increasing the value 3D NOISE REDUCTION AUTO can help in very noisy environments but setting it too high might result in a loss of QUALITY fine details.

  • Page 17: Video Format Setting

    Video Format Setting Note: • The IR remote can only change the video format for SDI and HDMI. • To change the video format for IP, use the Web UI. • To change the video format for USB, use the PC. •...

  • Page 18: Reset Setting

    MENU SUB MENU DESCRIPTION IR ADDRESS Camera IR Remote Control address: No. 1 CLIENT Default client end protocol: VISCA MODEL NO. Camera model number: AV-2040 INFO ARM VERSION ARM firmware version: 2.1B ISP VERSION Camera version: 579 RELEASE DATE Software release date: 20241016...

  • Page 19: Camera Web Ui

    Step 3: Click on [Edit] for “IP assignment”, select “IP settings” to [Manual], turn [IPv4] “ON”. According to Camera IP address: 192.168.1.188 192.168.1.170 (AV-2040 default IP address), to make PC IP address 192.168.1.XXX (first three segment must be the same, while 4 must be unique). 255.255.255.0 Change PC IPv4 address to: 192.168.1.170;...
  • Page 20 (Tip: Router address, the last digit must be number “1” See windows user’s page for the tips on how to find current camera IP address) Note: For more detailed tech support, please refer to: avipas.com-> [SUPPORT] -> “HOW TO” MATERIALS -> “Access camera via IP”.
  • Page 21 Camera Web UI Login 1). Web Page Login Open a web browser, input camera IP address. In this case, take AV-2040 as an example, the default AV-2040 IP address is 192.168.1.188. Then Login in page will appear, enter Username and Password:...

  • Page 22: Rtsp Streaming

    3). Settings Click “Settings” to enter camera settings interface: RTSP Streaming Configure the parameters according to the network settings. Note: stream name is: 554/stream/main For example：the default IP address of the camera is 192.168.1.188. To obtain video from streaming platform such as OBS Studio, VMix via RTSP stream, please use the URL below: Main stream: rtsp://192.168.1.188:554/stream/main Sub stream: rtsp://192.168.1.188:554/stream/sub...

  • Page 23: Video Transmission

    Video Transmission To set up RTMP, RTP Multicast and SRT connections. This is an indicator for RTMP streaming connection. “Red X” : No Connection To push RTMP stream directly to a server/ platform (public network) such as YouTube Live, Facebook Live, please make sure the camera’s IP configurations are set to be consistent with the public network, otherwise it will not connect to server successfully.

  • Page 24: Audio Setting

    Note: For more connection details, please refer to: avipas.com-> [SUPPORT] -> “HOW TO” MATERIALS -> How to live stream via RTMP(S)-AV-2040/2020/2010/2000 Series. Audio Setting To enable/disable embedded audio. Audio encoding mode can be selected (AAC, LPCM, OPUS). Parameters such as sampling rate, bit rate and volume can be adjusted.
  • Page 25 Focus: focus mode options, focus sensitivity, digital zoom. Exposure: exposure mode, shutter speed, gain, iris, brightness, anti-flicker. White Balance: white balance mode, red gain, blue gain, color temperature. Image: mirror(flip horizontally), flip(flip vertically), backlight compensation, freeze, Gamma, WDR (wide dynamic range).
  • Page 26 Image Quality: adjustment for brightness, sharpness, contrast, saturation. Noise Reduction: 2D/3D reduction. There is on/off option for 2D, and off/auto/1~4 selections. Video: set video output format.

  • Page 27: Auto Tracking Settings

    Auto Tracking Settings AV-2040 auto tracking camera adopts AI-based technologies to provide advanced tracking capabilities. Featuring both face and human body detection technologies that ensures optimal performance in various scenarios. Part 1. Auto Tracking Settings for presenter Note: You can change these settings when either tracking is enabled or not enabled •...
  • Page 28 • Target switching: when there are two people in the screen, you can switch the target between left and right person. Tips: when there are more than two people in the screen, zoom in one person as targeted presenter, then zoom out and switch between left or right people next to the initial target. Part 2.

  • Page 29: Network Settings

    front of the blackboard from left to right, the camera will stop following. This reduces distractions for students, allowing them to focus more comfortably on classroom activities. Steps for how to set up Board Positions: 1. Turn off “Auto Tracking” 2.

  • Page 30: Firmware Update

    5). Re-log in to check the firmware version to make sure the software upgrade is successful. 6). Reboot the camera is recommended. Note: For the latest firmware version, you may download from our website or contact us at service@avipas.com. System Settings System Mode: To select the system mode for the camera.
  • Page 31 Reset Options: To reset the camera to default settings. • Reset: reset camera image settings to factory default values • Reset/Reboot: reset all camera settings back to factory default settings and reboot the camera • If you want to keep the current camera IP address unchanged, check “Keep Current IP Unchanged.”...

  • Page 32: Login Settings

    Login Settings To set camera account login ID and password. System Time Settings To set the time zone and NTP enable.

  • Page 33: Uvc Control

    0Y 0Y 0Z 0Z 0Z 0Z F CT_PANTILT_RELATIVE_CONTROL 8x 01 06 01 pp qq rr ss FF CT_ZOOM_RELATIVE_CONTROL 8x 01 04 07 pp FF Serial Control AV-2040 could be controlled through RS232 and RS485 interface. Serial parameters are as below: Parameter Value Parameter Value Baud rate...
  • Page 34 2). RS232 Cable (included in box): 8-Pin Mini-Din(M) to DB-9(F) 3). Camera Daisy Chain Connection(M) Table Camera RS232 IN(F) Mini-Din(M) 4). Camera Mini-Din(M) to DB-9(F) Connection Table Mini Din(M) DB-9(F)

  • Page 35: Protocol Commands

    Protocol Commands VISCA Protocol Commands VISCA Return Command Ack/Completion Message Command Packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command Packet Note Syntax...
  • Page 36 Command Function Command Packet Note Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual 8x 01 04 38 03 FF One Push 8x 01 04 18 01 FF pqrs: Zoom Position (0(wide)~ 8x 01 04 47 0p 0q 0r 0s 0t 0u CAM_Zoom Focus...
  • Page 37 Command Function Command Packet Note pq: Image Bright Position (0~0x0F) CAM_ImageBright Direct 8x 01 04 A4 00 00 0p 0q FF AE_AUTO/AE_SHUTTER/AE _IRIS 8x 01 04 3D 02 FF Exposure Compensation ON/OFF 8x 01 04 3D 03 FF CAM_WDR Direct 8x 01 04 D3 pq FF pq: ExpComp Position (0~0x6) 8x 01 04 33 02 FF...
  • Page 38 Command Function Command Packet Note CAM_Freeze Freeze 8x 01 04 75 0p FF p: Freeze switch 3=OFF, 2=ON Preset p: Preset Freeze switch 3=OFF, CAM_Preset Freeze Set 8x 01 04 76 0p FF Freeze Set 2=ON Preset PT qq: Preset PT Speed 02~24 CAM_Preset PT Speed Set 8x 01 7E 01 0B 00 qq FF Speed Set...
  • Page 39 Command Function Command Packet Note 0p：0x01-ON 0x00-OFF 0q：0x01-line in rstu: samplerate 8x 01 04 D8 0p 0q 0r 0s 0t 0u m:volume 0~100 CAM_AudioSet Direct 0m 0n 0h 0i 0j FF h : encode mode 4:LPCM 5: ACC ij:bitrate*1000 50HZ 8x 01 04 23 01 FF 60HZ 8x 01 04 23 02 FF...
  • Page 40 Command Function Command Packet Note pqrs: Camera ID (=0000 to FFFF) CAM_ID Write 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to CAM_ID Write 8x 01 04 22 0p 0q 0r 0s FF FFFF) DHCP off DHCP off 8x 01 04 AE 00 FF DHCP control...
  • Page 41 Function Note Command Command Packet Menu OK Menu ok 8x 01 7E 01 02 00 01 FF SYS_Menu 8x 01 06 08 02 FF IR (remote commander) 8x 01 06 08 03 FF IR_Receive receive ON/OFF On/Off 8x 01 06 08 10 FF p: 0: OFF (LED off) 1: (LED green on) 2: (LED red on)
  • Page 42 VISCA Protocol Inquiry Command Command Command Packet Return Packet Note y0 50 02 FF CAM_Power Inq 8x 09 04 00 FF y0 50 03 FF Off (Standby) CAM_Zoom Pos Inq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_DZoom On Off Inq 8x 09 04 06 FF...
  • Page 43 Return Packet Note Command Command Packet CAM_Pre PT Speed Inq 8x 09 7E 01 0B FF y0 50 pp FF pp: 0x05~0x18 CAM_Pre Zoom Speed Inq 8x 09 7E 01 2B FF y0 50 pp FF pp: 0x01~0x07 y0 50 02 FF SYS_Menu Mode Inq 8x 09 06 06 FF y0 50 03 FF...
  • Page 44 Command Command Packet Return Packet Note CAM_AT_BlackBoard p: 1：position set 0： not 8x 09 04 3F 0F 0C FF y0 50 0p FF Position0_Inq(preset#252) CAM_AT_BlackBoard p: 1：position set 0： not 8x 09 04 3F 0F 0A FF y0 50 0p FF Position1_Inq(preset#250) 0p：0x01-ON 0x00-OFF 0q：0x01-line in...
  • Page 45 Command Command Packet Return Packet Note pqrs: Column (x size) mnxy: Line (y size) y0 50 0p 0q 0r 0s only support: Sub stream Resolution Inq 8x 09 04 C3 00 FF 0m 0n 0x 0y FF 720*480 640*480 640*360 y0 50 0p 0q 0r 0s pqrsmnxy: bitrate Sub stream Rate Inq...
  • Page 46 VISCA Pan Tilt Absolute Position Value Pan Angle VISCA Value Tilt Angle VISCA Value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA Pan Tilt Speed Value Pan (Degree/Second) Tilt (Degree/Second)

  • Page 47: Pelco-D Protocol Command List

    Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 48: Pelco-P Protocol Command List

    Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0...

  • Page 49: Maintenance And Troubleshooting

    First-time use, please connect the camera directly to your PC. Check if the computer is set to the network segment that is consistent with the IP address of the camera. For details, please refer to: avipas.com-> “SUPPORT” -> “HOW TO MATERIALS” -> Access camera via IP.

  • Page 50: Warranty And Support

    This Limited Warranty covers any defect in material and workmanship under normal use within the Warranty Period. AVIPAS Inc. will repair or replace the qualified products at no charge. AVIPAS Inc. provides a two (2)-year warranty (from the date of purchase) for this UHD Conference Camera.

  • Page 51: Company Information

    Company Information VER: 2024-09-23 (EN) AViPAS Inc. Address: 1700 Wyatt Drive, Suite #3, Santa Clara, CA 95054 Phone: 1-844-228-4727 Fax: (408) 228-8438 Email: info@avipas.com Website: http://www.avipas.com...
