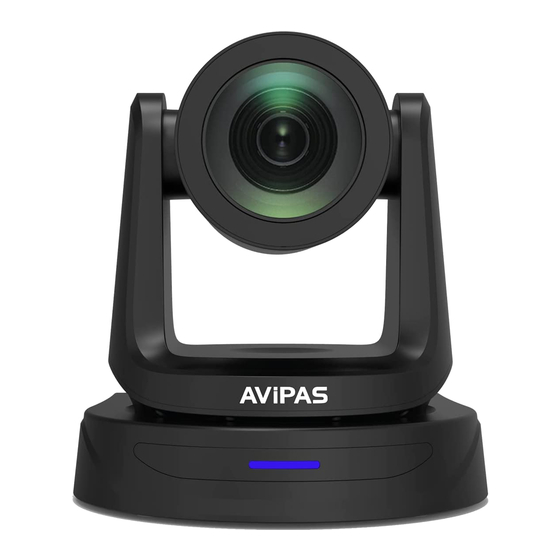

Avipas AV-2000W/G User Manual

20x ndi ptz camera with poe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model: AV-2000W/G
20x NDI PTZ Camera with PoE
User Manual
V1.0
Please read this user manual
thoroughly before using.
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-2000W/G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avipas AV-2000W/G

Summary of Contents for Avipas AV-2000W/G

  • Page 1 Model: AV-2000W/G 20x NDI PTZ Camera with PoE User Manual V1.0 Please read this user manual thoroughly before using. www.avipas.com...
  • Page 3 Preface Thank you for using this 20x NDI PTZ camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ...

  • Page 4: Table Of Contents

    CONTENT SAFETY GUIDES ............................1 PACKING LIST............................. 2 QUICK START .............................. 2 PRODUCT HIGHLIGHTS ..........................3 CAMERA SPECIFICATIONS ........................3 CAMERA INTERFACE..........................5 CAMERA DIMENSIONS..........................6 IR REMOTE CONTROLLER........................7 VISCA IN (RS232) PORT..........................9 OSD MENU..............................10 WEB SETTINGS ............................

  • Page 5: Safety Guides

    SAFETY GUIDES 1. Electric safety installation and operation must accord with electric safety standard. 2. Use caution to transport, avoid pressure, vibration or soakage during transport, storage and installation. 3. Polarity of power supply: The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug is shown as below.

  • Page 6: Packing List

    PACKING LIST When unpacked, check if all supplied accessories are included: Camera ··································································· 1pc Power Adapter ··························································· 1pc Power Cable ····························································· 1pc RS232 Control Cable ··················································· 1pc IR Remote Controller ·················································· 1pc User Manual ····························································· 1pc QUICK START 1. External interface: RS232 I/O, HDMI output, NDI|HX output, DC12V power, audio input. Please check all connections before powering on the device.

  • Page 7: Product Highlights

    Dial Switch Dial Switch SW-3 SW-4 Instruction SW-5 SW-6 Instruction reserve Undefined reserve Undefined reserve Undefined reserve Undefined PRODUCT HIGHLIGHTS  Adopts advanced ISP, 1/2.8-inch 2.4MP sensor, providing full HD video resolution.  High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view. ...
  • Page 8 Audio Interface Line-in Sensor 1/2.8” 2.4MP CMOS sensor Zoom f4.9~98mm, F1.5~3.0 View angle: 60°(Far)~3.23°(Near) Rotation Angle Pan: -170° ~ +170° Tilt: -90° ~ +90° Rotation Speed Pan: 0°~120°/s Tilt: 0°~80°/s Preset remote controller: 10; RS232&IP: 128; Accuracy: 0.1° Control Port RS232, NDI|HX Network Speed 1000M...

  • Page 9: Camera Interface

    CAMERA INTERFACE 1. Camera Lens 6. Tripod Screw Hole 11. RJ45 Output 2. Camera Base 7. Installation Hole 12. DC12V Power Jack 3. IR Receiver Panel 8. RS232 Control Input 13. Line-in Audio Input 4. Power Indicator Light 9. RS232 Control Output 5.

  • Page 10: Camera Dimensions

    CAMERA DIMENSION(MM)

  • Page 11: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, press POWER to enter standby mode. Press POWER again, camera will start self-initialization, then go back to HOME position. It will go to preset position 0 if the preset is set. FREEZE Press FREEZE to freeze/ unfreeze the image.
  • Page 12 FOCUS To manually adjust focus, only valid under manual mode. ZOOM To manually adjust zoom. NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate keys to pan/ tilt. Once entering the camera OSD menu, use navigate keys to select and enter submenu. OK /HOME KEY Under working mode, press OK to make the camera go back to its HOME position.

  • Page 13: Visca In (Rs232) Port

    VISCA IN/OUT （RS232 PORT） VISCA V_IN V_OUT RS485 A(+) IR OUT IR OUT B(-) VISCA IN &Mini DIN Connection VISCA IN & DB9 Connection Camera VISCA IN Mini DIN Camera VISCA IN Windows DB-9 A (+) A (+) IR OUT IR OUT B (-) B (-)

  • Page 14: Osd Menu

    OSD MENU 1. Under working mode, press MENU on the IR remote controller to enter the camera OSD menu: 2. Use navigate keys UP/DOWN to select from the main menu options. 3. Press RIGHT to enter any submenu; use UP/DONW to select the submenu; use LEFT/RIGHT to change current settings.
  • Page 15 EXPOSURE GAIN Gain level: 0~15, only valid under manual mode Default: AUTO BRIGHT Bright level: 0~27, only valid under bright priority mode Default: AUTO FLICK Anti-Flicker: 50HZ/60HZ/OFF Default: 50HZ BACKLIGHT ON/OFF Default: OFF GAMMA Gamma curve selection: 0~6 Default: 0 RETURN Return to previous menu WB MODE...
  • Page 16 1080P29.97 1080P25 After selecting the video format, press OK to confirm. 1080P24 1080P23.98 1080I60 1080I59.94 1080I50 720P60 720P59.94 720P50 720P30 720P29.97 720P25 RETURN Return to previous menu DHCP ON/OFF Use up/down/left/right navigation keys to select item, then use numeric keys to enter parameters. ADDRESS 192.168.001.188 Press MENU to exit and save settings.

  • Page 17: Web Settings

    WEB SETTINGS To preview the video output on a local screen, there’s no need to install additional media player plug-in. The web interface supports Chrome, Firefox, IE, Safari, Opera, etc. Login To access the camera interface, open a browser, in the address bar, input camera’s IP address (default IP address is 192.168.1.188), Default username: admin Default password: admin...
  • Page 18 Video Transmission: RTMP, NDI and SRT settings are available, as shown below: RTMP(S) syntax: stream URL + “/” + stream key. E.g., Server URL is rtmp://a.rtmp.youtube.com/live2, Stream key is 123456abcdefg, thus for RTMP Address, rtmp://a.rtmp.youtube.com/live2/123456abcdefg...
  • Page 19 Audio Setting: To enable/disable embedded audio. Audio encoding mode can be selected. Parameters such as sampling rate and bit rate can be adjusted. Image Parameter: To set focus, exposure, white balance, image quality, noise-reduction, etc. Ethernet: To set DHCP mode, IP address, Net mask, Gateway, DNS, HTTP Port, RTSP Port, Visca Over IP. Default settings are as follows:...
  • Page 20 DHCP Gateway 192.168.1.1 RTSP Port IP address 192.168.1.188 192.168.1.1 RTSP Encrypt Netmask 255.255.255.0 HTTP Port IP VISCA UDP 52381 Username/PSW admin ONVIF Port 8000 NDI Port 5961 Firmware upgrade: To update the camera ISP. Click Select File, in the dialog box, select the upgrade file. Click Upgrade to start the updating process. Do NOT power off or do any operation when upgrading.

  • Page 21: View Rtsp Stream Via Vlc

    System time: To set the time zone and NTP. VIEW RTSP STREAM VIA VLC Default RTSP main streaming URL: rtsp://192.168.1.188/stream/main Default RTSP sub streaming URL: rtsp://192.168.1.188/stream/sub Default RTMP main streaming URL: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming URL: rtmp://192.168.1.188:1935/app/rtmpstream1 VISCA OVER IP VISCA over IP means VISCA protocol transmits via IP.
  • Page 22 How to use VISCA over IP VISCA Command Commands are sent from controller to camera, and when camera receives the commands, it returns ACK. When the command is executed, a complete message will be returned. VISCA Inquiry Inquiry is sent from controller to camera, and when camera receives the command, it will return required message.
  • Page 23 Payload: According to Payload type, the following data will be saved. VISCA command: Save VISCA command packet  VISCA inquiry: Save VISCA message packet  VISCA reply: Save VISCA return packet  VISCA device setting command: Save VISCA equipment setting command packet. ...
  • Page 24 retransmission. Reply message ERROR Inquiry has been If the result by the reply message is for the inquiry (Abnormality in the performed. needed, retransmit by updating the sequence number.) sequence number. Error message Error message Command is not Eliminate the error cause. If normal performed.

  • Page 25: Newtek Tools Guide

    NEWTEK TOOLS GUIDE 1. Image Preview A. Download the NewTek NDI Tools via https://ndi.tv/tools/ and install it. Run the software and you’ll see the image below: B. Right click anywhere on the Studio Monitor screen, select the preview device: FHD VIDEO CONFERENCE CAMERA ->...

  • Page 26: Visca Protocol

    C. Take Zoom for example, select “NewTek NDI Video” as your camera, as shown below. This also works for other applications, such as GotoMeeting, Skype for Business, Hangouts, etc. VISCA PROTOCOL Part1 Camera Return Commands Ack/Completion Message Command Note Packet z0 41 FF Returned when the command is accepted.
  • Page 27 Returned when a command cannot be executed due to current Command Not z0 61 41 FF conditions. For example, when commands controlling the focus Executable manually are received during auto focus. Part 2 Camera Control Commands Command type function command AddressSet Broadcast 88 30 01 FF...
  • Page 28 Command type function command One Push AF 8x 01 04 18 01 FF pqrs: zoom position 8x 01 04 47 0p 0q 0r 0s CAM_ZoomFocus Direct (0(wide)~ 0x4000(tele)) 0t 0u 0v 0w FF tuvw:focus position Auto 8x 01 04 35 00 FF Indoor 8x 01 04 35 01 FF Outdoor...
  • Page 29 Command type function command Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position (0~ 0x11) Reset 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF Gain Setting (0~0x0F) CAM_Gain Down 8x 01 04 0C 03 FF Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon (0~0x0E)
  • Page 30 Command type function command CAM_Preset Speed p: Adjustment of direction Preset Speed Adj 8x 01 7E 01 1B 0p FF 3=down, 2=up CAM_PTSpeed PT Speed 8x 01 04 C1 00 00 0p 0q FF Pq: PT speed 0x05~0x18 CAM_ZoomSpeed Zoom Speed 8x 01 04 D1 00 00 0p 0q FF Pq: Zoom speed 0x01~0x07...
  • Page 31 Command type function command Menu Ok 8x 01 7E 01 02 00 01 FF Menu ok 8x 01 06 08 02 FF IR (remote commander) receive IR_Receive 8x 01 06 08 03 FF ON/OFF On/Off 8x 01 06 08 10 FF 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF...
  • Page 32 y0 50 03 FF OnePush mode y0 50 04 FF y0 50 05 FF Manual CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto...
  • Page 33 y0 07 7D 01 04 3F FF CAM_Memory y0 07 7D 01 06 01 FF Pan_tiltDrive ww: PanMaxSpeed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w wwww: PanPosition Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF...

  • Page 34: Pelco-D Protocol

    PELCO-D PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 35: Pelco-P Protocol

    Query Zoom Position 0Xff Address 0x00 0x55 0x00 0x00 Query Zoom Position Value Low 0Xff Address 0x00 0x5D Value High Byte Response Byte PELCO-P PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf...

  • Page 36: Warranty

    This Limited Warranty covers any defect in material and workmanship under normal use within the Warranty Period. AVIPAS Inc. will repair or replace the qualified products at no charge. AVIPAS Inc. provides a two (2)-year warranty (from the date of purchase) for this HD Conference Camera.
