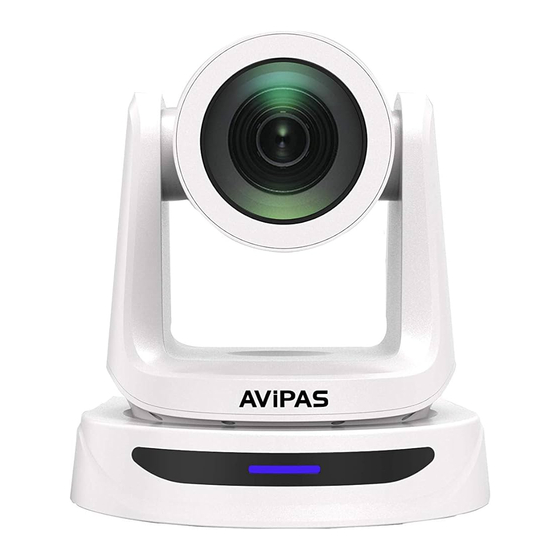

Avipas AV-2010 User Manual

20x usb2.0 ptz camera with poe+
Hide thumbs Also See for AV-2010:
Table of Contents

Advertisement

Quick Links

Download this manual

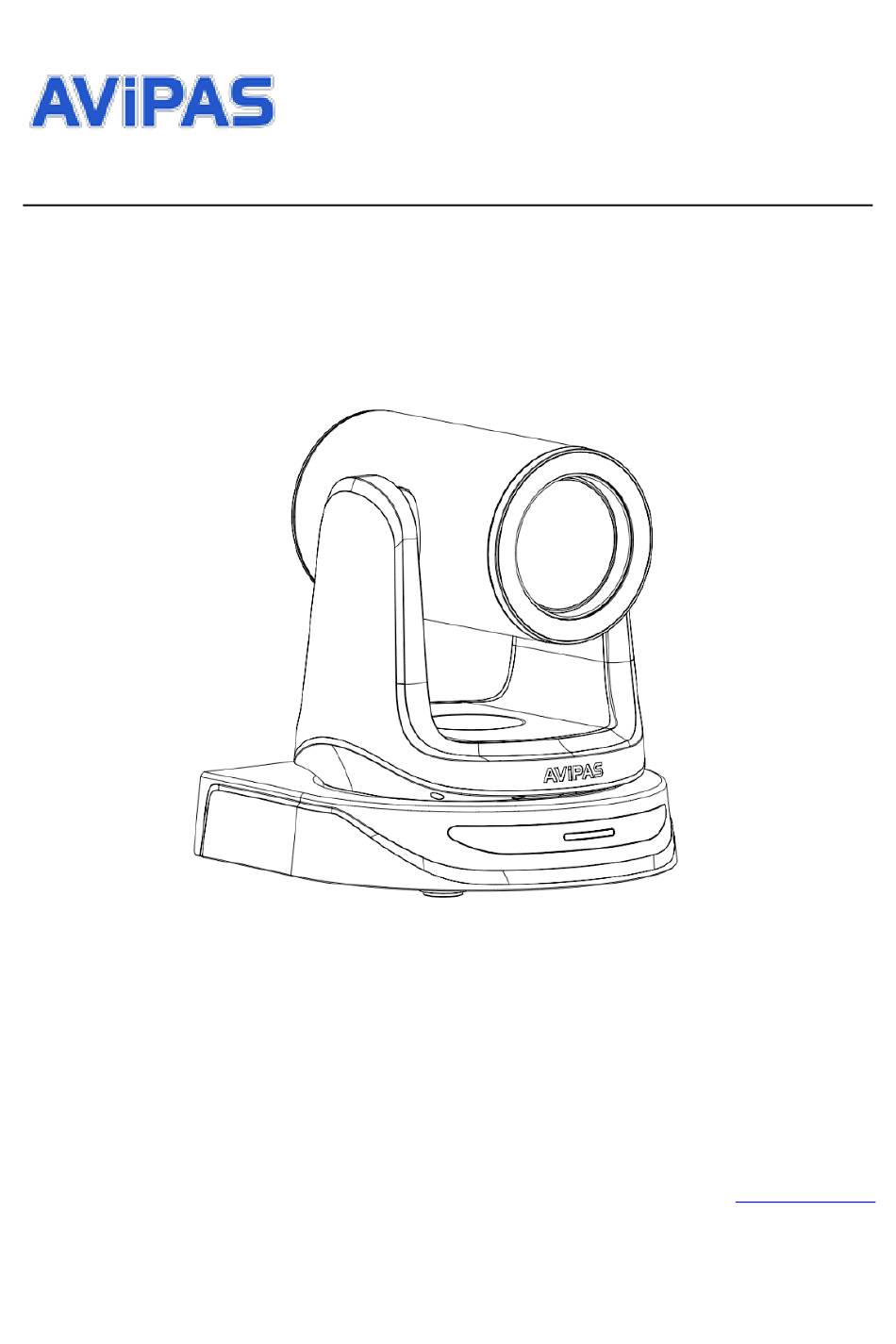

Model: AV-2010
20x USB2.0 PTZ Camera with PoE+
User Manual
V1.0
Please read this user manual
thoroughly before using.
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avipas AV-2010

Summary of Contents for Avipas AV-2010

  • Page 1 Model: AV-2010 20x USB2.0 PTZ Camera with PoE+ User Manual V1.0 Please read this user manual thoroughly before using. www.avipas.com...
  • Page 3 Preface Thank you for using this 20x USB2.0 PTZ camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ◼...

  • Page 4: Table Of Contents

    CONTENT SAFETY GUIDES ............................1 PACKING LIST............................. 2 QUICK START .............................. 2 PRODUCT HIGHLIGHTS ..........................3 CAMERA SPECIFICATIONS ........................3 CAMERA INTERFACE..........................5 CAMERA DIMENSIONS..........................6 IR REMOTE CONTROLLER........................7 VISCA IN (RS232) PORT..........................9 OSD MENU..............................10 UVC CONTROL ............................

  • Page 5: Safety Guides

    SAFETY GUIDES 1. Electric safety installation and operation must accord with electric safety standard. 2. Use caution to transport, avoid pressure, vibration or soakage during transport, storage and installation. 3. Polarity of power supply: The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug is shown as below.

  • Page 6: Packing List

    PACKING LIST When unpacked, check if all supplied accessories are included: Camera ··································································· 1pc Power Adapter ··························································· 1pc Power Cable ····························································· 1pc RS232 Control Cable ··················································· 1pc USB2.0 Cable ··························································· 1pc IR Remote Controller ·················································· 1pc User Manual ····························································· 1pc QUICK START 1.

  • Page 7: Product Highlights

    Dial Switch Dial Switch SW-3 SW-4 Instruction SW-5 SW-6 Instruction reserve Undefined reserve Undefined reserve Undefined reserve Undefined PRODUCT HIGHLIGHTS ▪ Adopts advanced ISP, 1/2.8-inch 2.1MP sensor, providing full HD video resolution. ▪ High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view. ▪...
  • Page 8 Zoom f4.9~98mm, F1.5~3.0 View angle: 60°(Far)~3.23°(Near) Rotation Angle Pan: -170° ~ +170° Tilt: -90° ~ +90° Pan: 0°~120°/s Tilt: 0°~80°/s Rotation Speed Preset remote controller: 10; RS232: 128; Accuracy: 0.1° Control Port RS232, RJ45 (VISCA over IP), USB2.0(UVC1.1) Network Speed 1000M Video encode H.264/H.265 (default: H.264)

  • Page 9: Camera Interface

    CAMERA INTERFACE 1. Camera Lens 6. Tripod Screw Hole 11. RJ45 Output 2. Camera Base 7. Installation Hole 12. DC12V Power Jack 3. IR Receiver Panel 8. RS232 Control Input 13. Line-in Audio Input 4. Power Indicator Light 9. RS232 Control Output 5.

  • Page 10: Camera Dimensions

    CAMERA DIMENSION(MM)

  • Page 11: Ir Remote Controller

    IR REMOTE CONTROLLER POWER Under normal working mode, press POWER to enter standby mode. Press POWER again, camera will start self-initialization, then go back to HOME position. It will go to preset position 0 if the preset is set. FREEZE （do NOT support USB output） Press FREEZE to freeze/ unfreeze the image.
  • Page 12 FOCUS To manually adjust focus, only valid under manual mode. ZOOM To manually adjust zoom. NAVIGATE KEY: UP/DOWN/LEFT/RIGHT Under working mode, use navigate keys to pan/ tilt. Once entering the camera OSD menu, use navigate keys to select and enter submenu. OK /HOME KEY Under working mode, press OK to make the camera go back to its HOME position.

  • Page 13: Visca In (Rs232) Port

    VISCA IN （RS232 PORT） VISCA V_IN V_OUT RS485 A(+) IR OUT B(-) VISCA IN &Mini DIN Connection Camera VISCA IN Mini DIN VISCA IN & DB9 Connection Camera VISCA IN Windows DB-9 A (+) IR OUT B (-) A (+) IR OUT B (-) VISCA Network Construction:...

  • Page 14: Osd Menu

    OSD MENU 1. Under working mode, press MENU on the IR remote controller to enter the camera OSD menu: 2. Use navigate keys UP/DOWN to select from the main menu options. 3. Press RIGHT to enter any submenu; use UP/DONW to select the submenu; use LEFT/RIGHT to change current settings.
  • Page 15 BRIGHT Bright setting:0~27, only valid under bright priority mode Default: AUTO FLICK Anti-Flicker setting:50/60HZ/OFF Default: 50HZ BACKLIGHT ON/OFF Default: OFF GAMMA Gamma curve selection Default: 0 RETURN Return to previous menu WB MODE Optional: ATW/MANU/SON./FL./AUTO/IDR./ODR./PUSH Default: ATW B_GAIN Blue gain level: 0~255, only valid under manual white balance mode Default: AUTO IMAGE R_GAIN...

  • Page 16: Uvc Control

    NETMASK 255.255.255.000 save settings. GATEWAY 192.168.001.001 RETURN Return to previous menu CAM RESET Reset camera parameters to default PTZ RESET Reset pan/tilt presets to default RESET ALL RESET Reset all parameters to default RETURN Return to the previous menu CONTROL VER Camera control firmware version CONTROL DATE Camera control firmware releasing date...

  • Page 17: Web Settings

    PU_BACKLIGHT_COMPENSATION_CONTROL 81 01 04 33 02/03 FF PU_POWER_LINE_FREQUENCY_CONTROL 8x 01 04 AA 00/01/02 FF CT_ZOOM_ABSOLUTE_CONTROL 8x 01 04 47 0p 0q 0r 0s FF CT_PANTILT_ABSOLUTE_CONTROL 8x 01 06 02 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z F CT_PANTILT_RELATIVE_CONTROL 8x 01 06 01 pp qq rr ss FF CT_ZOOM_RELATIVE_CONTROL...
  • Page 18 pan, tilt, zoom, focus, pan tilt speed, focus speed, zoom speed, preset position, etc. On the lower right corner of the preview image, you can select change the volume level. Full-size view and picture-in-picture mode are supported. Configuration Click “Setting” to enter camera configuration interface. Video Encode: Set image encoding mode for main stream and sub stream.
  • Page 19 Audio Setting: To enable/disable embedded audio. Audio encoding mode can be selected. Parameters such as sampling rate and bit rate can be adjusted. Image Parameter: To set focus, exposure, white balance, image, image quality, noise-reduction, etc. Ethernet: To set DHCP mode, IP address, Net mask, Gateway, DNS, HTTP Port, RTSP Port, Visca Over IP. Default settings are as follows:...
  • Page 20 DHCP Gateway 192.168.1.1 RTSP Port IP address 192.168.1.188 192.168.1.1 RTSP Encrypt Netmask 255.255.255.0 HTTP Port Visca Over IP 52381 Firmware upgrade: To update the camera ISP. Click Select File, in the dialog box, select the upgrade file. Click Upgrade to start the updating process. Do NOT power off or do any operation when upgrading.

  • Page 21: View Rtsp Stream Via Vlc

    VIEW RTSP STREAM VIA VLC Default RTSP main streaming URL: rtsp://192.168.1.188/stream/main Default RTSP sub streaming URL: rtsp://192.168.1.188/stream/sub Default RTMP main streaming URL: rtmp://192.168.1.188:1935/app/rtmpstream0 Default RTMP sub streaming URL: rtmp://192.168.1.188:1935/app/rtmpstream1 VISCA OVER IP VISCA over IP means VISCA protocol transmits via IP. This can be used to reduce RS232/RS485 cable headache (the controller used must support IP function).
  • Page 22 ⚫ Applied range: in the same segment, not suitable for bridge network. ⚫ To apply, enter camera OSD, choose VISCA option: OVER IP How to use VISCA over IP VISCA Command Commands are sent from controller to camera, and when camera receives the commands, it returns ACK.
  • Page 23 the sequence number to controller. Payload: According to Payload type, the following data will be saved. ⚫ VISCA command: Save VISCA command packet ⚫ VISCA inquiry: Save VISCA message packet ⚫ VISCA reply: Save VISCA return packet ⚫ VISCA device setting command: Save VISCA equipment setting command packet. ⚫...

  • Page 24: Visca Protocol

    Inquiry of the VISCA Reply message of the Inquiry has been performed Continue processing. device setting VISCA device setting by retransmission. command command Reply message of the ERROR(Abnormality in the Inquiry has been performed. If the result by the reply message is needed, retransmit VISCA device setting sequence number.) by updating the sequence number.
  • Page 25 Part 2 Camera Control Commands Command type function command AddressSet Broadcast 88 30 01 FF Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele (Standard)
  • Page 26 Command type function command Indoor 8x 01 04 35 01 FF Outdoor 8x 01 04 35 02 FF OnePush 8x 01 04 35 03 FF 8x 01 04 35 04 FF Manual 8x 01 04 35 05 FF Sodium lamp 8x 01 04 35 08 FF fluorescent 8x 01 04 35 09 FF...
  • Page 27 Command type function command Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon (0~0x0E) Reset 8x 01 04 0D 00 FF 8x 01 04 0D 02 FF Bright Setting CAM_Bright Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon (0~0x1B)
  • Page 28 Command type function command CAM_ZoomSpeed Zoom Speed 8x 01 04 D1 00 00 0p 0q FF Pq: Zoom speed 0x01~0x07 8x 01 06 C2 02 FF CAM_ZoomDisplay 8x 01 06 C2 03 FF CAM_IRaddress IR address 8x 01 06 D8 0p FF p: IR address 1~4 CAM_Gamma Gamma set...
  • Page 29 Command type function command On/Off 8x 01 06 08 10 FF 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF Upleft...
  • Page 30 CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AEModeInq 8x 09 04 39 FF y0 50 0A FF Shutter priority y0 50 0B FF Iris priority y0 50 0D FF Bright...
  • Page 31 0z 0z 0z 0z FF zzzz: Tilt Position pqrs: Column (x size) y0 50 0p 0q 0r 0s 0m 0n mnxy: Line (y size) 8x 09 04 C2 00 MainstreamResolutionInq 0x 0y FF only support:1920*1080,1280*720, 1024*576 y0 50 0p 0q 0r 0s 0m 0n 8x 09 04 C2 01 MainstreamRateInq pqrsmnxy: bitrate (1024~16384)

  • Page 32: Pelco-D Protocol

    PELCO-D PROTOCOL COMMAND LIST Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 33: Pelco-P Protocol

    Position Query Zoom Value Low Position 0xA0 Address 0x00 0x5D Value High Byte 0xAF Byte Response Warranty Thank you for your interest in the products of AVIPAS Inc. This Limited Warranty applies to HD Conference Camera purchased from AVIPAS Inc.
  • Page 34 This Limited Warranty covers any defect in material and workmanship under normal use within the Warranty Period. AVIPAS Inc. will repair or replace the qualified products at no charge. AVIPAS Inc. provides a two (2)-year warranty (from the date of purchase) for this HD Conference Camera.
