Model: AV-1364
HD-SDI Auto-Tracking Camera
User Manual
V1.1
(English)
Please read this User Manual
throughout before using.
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-1364 and is the answer not in the manual?

Questions and answers

Related Manuals for Avipas AV-1364

Summary of Contents for Avipas AV-1364

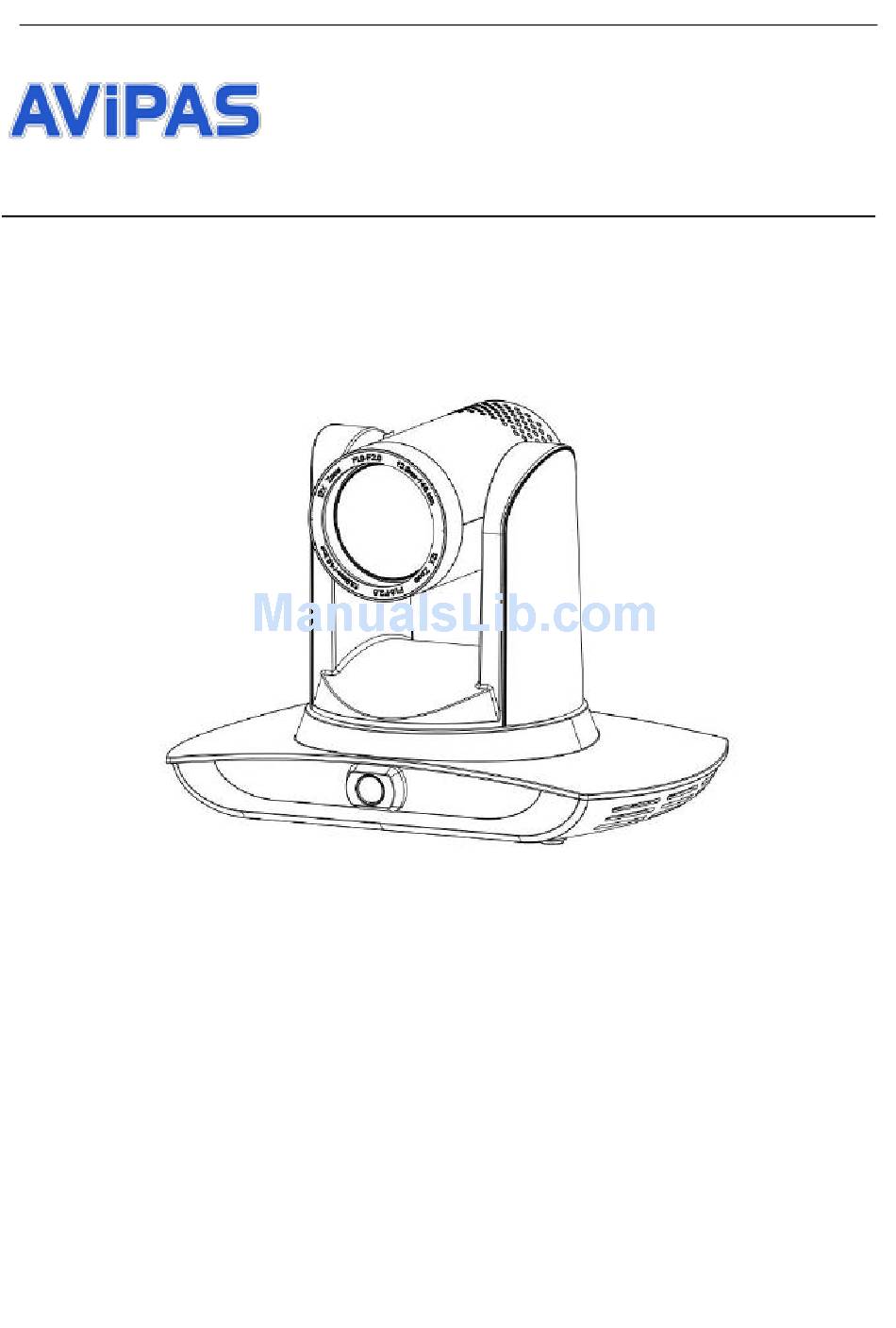

  • Page 1 [Type here] Model: AV-1364 HD-SDI Auto-Tracking Camera User Manual V1.1 (English) Please read this User Manual throughout before using. www.avipas.com...
  • Page 2 [Type here] Preface Thank you for using this SDI Auto-tracking Camera. This manual introduces the functions, installation process and operation of this camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ◼...
  • Page 3 [Type here] Attentions • Electric safety Installation and operation must be in accord with electric safety standard. • Caution to transport Avoid stress, vibration or soakage during transport, storage and installation. • Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.

  • Page 4: Table Of Contents

    [Type here] Contents 1. Fast Installation ................................. 1 1.1 Camera Interface Illustration .......................... 1 1.2 Power On ................................ 2 1.3 Video Output ..............................3 1.4 Bracket Mounting ..................Error! Bookmark not defined. 2. Product Overview ..............................5 2.1 Product Introduction ............................5 2.2 Main Features ..............................

  • Page 5: Fast Installation

    SDI output 1 (panorama lens) SDI output 2 (close-up lens) RS232 control port DEFINITION Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signa Ground IR OUT IR Command Signal No Connection Figure 1.3 AV-1364 RS-232 Pin Definition...

  • Page 6: Power On

    1.2 Dimensions 1.3 Power On 1) Power on: connect DC12V power supply adapter with NO.9 showed in Figure1.2. 2) Initialization: power on with power indicator light on and remote control receiver light blinking. Camera head moves from bottom left to the central bottom, and then go to HOME position (intermediate position of both horizontal and vertical), while the camera module initializes.

  • Page 7: Video Output

    2) HD-SDI video output a. HD-SDI video cable connection: AV-1364- No.4(panorama) and No.5(close-up) in Figure1.2. b. Connect the camera and the monitor via SDI video cable; video output will be available after initialization.
  • Page 8 6mm panoramic lens is recommended). Teacher-tracking camera should be installed close to the central axis of the classroom as much as possible to get the best result of video. 2) System wiring: The AV-1364 provides a smart solution with only one camera for educational use. Customers can adjust their system accordingly.

  • Page 9: Product Overview

    AV-1364 SDI Auto-Tracking Camera is a dedicated smart camera solution in educational information industry. It can be used alone, or be easily integrated into any smart-room system according to user settings. AV-1364 features a built-in high-speed processor and advanced image processing and analysis algorithms, to detect and track target accurately and quickly.

  • Page 10: Technical Specifications

    Multiple network protocol: supports ONVIF, RTSP, RTMP protocols and RTMP push mode; easy to connect to streaming media server (Wowza, FMS, etc.). 2.3 Technical Specifications Model AV-1364 Tracking Camera Parameter Optical Zoom 20X, f = 4.7~94mm, F1.6~3.5 1/2.8” high quality HD CMOS sensor Sensor 16: 9 2.07 megapixel...

  • Page 11: Interface Instructions

    HD IP Interface 100M IP port(100BASE-TX), Support Visca protocol control through IP port Network Protocol RTSP, RTMP, ONVIF, GB/T28181 Power Interface HEC3800 outlet (DC12V) PTZ Parameter Pan Rotation -170°~+170° Tilt Rotation -30°~+90° Pan Control Speed 0.1~100°/sec Tilt Control Speed 0.1~45°/sec Preset Speed Pan: 100°/sec, Tilt: 45°/sec Preset Number...

  • Page 12: Application Instructions

    3. Application Instructions 3.1 Remote Control 3.2.1 Key Illustrations Before using the remote to control AV-1364, the user needs to log in via IP first and turn off the tracking mode (will be instructions in 4. Configuration Tools). • Standby key After 3-sec long press, the camera will enter the standby mode.
  • Page 13 3) 【*】+【#】+【9】: Flip switch 4) 【*】+【#】+ 【AUTO】: Enter the aging mode 5) 【*】+【#】+【3】: Set menu language to Chinese 6) 【*】+【#】+【4】: Set menu language to English 7) 【*】 + 【#】 + 【MANUAL】 : Restore the default user 8) 【#】 +【#】+【0】: Switch the video format to name, password, and IP address 1080P60 9) 【#】...
  • Page 14 Zoom-in: press 【ZOOM+】key Zoom-out: press【ZOOM-】key Press and hold the key, the camera will keep zooming in/out. It stops as soon as the key is released. 4) Focus Control Focus (near): press 【FOCUS+】(valid only in manual focus mode) Focus (far): press 【 FOCUS-】 (valid only in manual focus mode) Auto focus: support Manual focus: support...

  • Page 15: Menu Settings

    3.3 Menu Settings 3.3.1 Main Menu In normal working mode, press【MENU】to display the menu. The user can scroll the arrow to point at or highlight the selected item. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English (Setup) (Camera) (P/T/Z) (Video Format) (Version) (Restore Default) [←...
  • Page 16 SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baud rate 9600 [← →]Change Value [↑↓]Select [Menu]Back [← →]修改 [↑↓]选择 [菜单]返回 Protocol: VISCA/ Pelco-P/ Pelco-D/ Auto Visca Address: VISCA=1~7/ Pelco-P=1~64/ Pelco-D =1~64 Visca Address Fix: On/Off Baud rate: 2400/4800/9600/115200 3.3.3 Camera settings Move the pointer to the 【Camera】...
  • Page 17 1) Exposure Settings Move the pointer to 【Exposure】 in the Main Menu, click 【Home】 to enter the Exposure Setting menu as shown below. EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz G.Limit [↑↓]Select [← →]Change Value [Menu]Back Mode: auto/ manual/ shutter priority/ iris priority/ brightness priority. EV: exposure compensation setting, ON/ OFF (valid in Auto mode) Compensation Level: -7~7 (valid when EV is ON) BLC: ON/ OFF (valid in Auto mode)
  • Page 18 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity [← →]Change Value [↑↓]Select [Menu]Back WB Mode: auto/ 3000K/ 4000K/ 5000K/ 6500K/ manual/ one-key white balance. RG Tuning: red gain tuning, -10~10 (valid when white balance mode is Auto) BG Tuning: blue gain tuning, -10~10 (valid when white balance mode is Auto) RG: red gain, 0~255 (valid when white balance mode is Manual) BG: blue gain,0~255 (valid when white balance mode is Manual)
  • Page 19 Brightness: 0~14 Contrast: 0~14 Sharpness: 0~15 Flip-H: horizontal flip, On/Off Flip-V: vertical flip, On/Off B&W mode: color/ black&white Gamma: default/ 0.45/ 0.50/ 0.55/ 0.63 DZoom: digital zoom, On/ Off DCI: dynamic contrast: Off/ 1～8 4) Focus Move the pointer to the 【Focus】in the Main Menu, click 【Home】to enter the Focus Settings menu as shown below.
  • Page 20 3.3.4 P/T/Z Move the pointer to【P/T/Z】in the Main Menu, click 【Home】to enter the P/T/Z settings menu as shown below. P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Image Freezing Acc Curve Slow [← →]Change Value [↑↓]Select [Menu]Back Speed by zoom: only effective with remote control, On/Off. Press 【zooming+】, PT running speed decreases proportionally Zoom speed: set the zoom speed with remote control, 1~8 Image Freezing: On/Off...
  • Page 21 powering off/on. 3.3.6 Version Move the pointer to 【Version】 in the Main Menu, click 【Home】 to enter the Version menu as shown below. Note: version information could be different according to different models and manufacture dates. VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 2.0.0.15 2015-12-18 Camera Version 2.0.0.13 2015-12-18 AF Version...

  • Page 22: Network Connection

    4. Configuration Tools 4.1 Set IP address of the tracking camera Connect the camera to a hub via Ethernet cables, then connect the computer. Open IVESmart configuration tool. Click Settings -> IP address -> Search successively (Figure 4.1-1), the configuration interface will display all valid devices in the LAN, check the type of device to be configured and click Confirm.
  • Page 23 Figure 4.1-1 IP Configuration Interface...

  • Page 24: Ie Log In

    4.2 System Configuration 4.2.1 Flowchart of the process Stop tracking Set Panoramic & Close-up (Podium) presets Set tracking & shielding areas (Podium) Set tracking parameters Start tracking Podium Position: The “Podium Position” is set to the default start point of tracking. Adjust zoom and focus so that when the teacher is standing at the podium, he/she appear the appropriate size and height in the close-up image.
  • Page 25 4.2.2 Configuration Interface 【↑↓← →】 PTZ and zoom settings. Click the arrow keys to control the PTZ movement of the tracking camera; Press 【HOME】 and the tracking camera will return to the center position; Click 【+】/【-】to zoom in/out. 【Start】Start tracking. When the camera stops tracking the target, or after configuration, click 【Start】 to start tracking again.
  • Page 26 4.2.3 Parameter Setup 1) Close-up/ Tracking view configuration (the left half of the interface) In the box indicated by the arrow (see the interface below), there are 4 buttons which are used to set preset positions for both close-up and panoramic view. Click 【View Platform/Panoramic Position】, then adjust 【↑↓←...
  • Page 27 Tracking area: Tracking area means scope of tracking teacher. When the tracking target goes out of the tracking area, it will be considered tracking target losing. The tracking area can be set into polygon according to certain environment conditions, or set student area outside of tracking area.
  • Page 28 3. Set tracking parameters Target lost: when target loses, the close-up lens will return to designated preset position. This preset position can be panoramic preset, platform preset or maintain original position. Tracking settings: Auto zoom: In open mode (checked), during tracking, the camera will zoom automatically according to target distance;...
  • Page 29 Advance parameters: Action sensitivity: In teacher tracking mode, it is the action range required to trigger tracking camera when the tracking target changes from stationary state to motion state. The higher the action sensitivity, the smaller movement of tracking target that will trigger camera’s tracking motion.
  • Page 30 For settings of action code, refer to “7 Description of connecting recording and broadcasting host”. After setting, click Save Parameter. It allows to entering advance parameter settings column to change configuration value to obtain the best result subject to specific scenes and customer demand.
  • Page 31 1) Local configuration Video Preview Mode: user can choose real-time priority or fluency priority. The delay will be smaller when under real time priority mode, and fluency will be better when under fluency priority mode. Setting based on user’s need (default value: real time best (1), real time normal (2), fluency normal (3), fluency good (4) and fluency best (5)).
  • Page 32 Host Port: server port number (default 1935, other options: 0-65535). Host Address: server IP addresses (default 192.168.5.11). Stream Name: choose a different stream name (live/av0, other options: live/av1). User: set the user name. Password: set the password. Click "Save". Settings will take effect after the message "saved successfully" shows. RTSP obtaining path: rtsp: // device IP address: 554 / live / av0 (av0 main stream;...
  • Page 33 Red Gain: set the red gain, effective when it is under manual mode (default: 145, other options: 0-255). Blue Gain: sets the blue gain, effective when it is under manual mode (default: 56, other options: 0-255). d. Image: brightness, contrast, sharpness, black and white mode, gamma, DCI, horizontal flip, vertical flip and digital zoom can be set.
  • Page 34 Click "Save". Settings will take effect after the message "saved successfully" shows. 4.2.6 Network configuration 1) Network Port Data Port: set the data port. Device will restart automatically after the port setting being changed (default: 3000, other options: 0-65535). Web Port: set the web port. Device will restart automatically after the port setting being changed (default: 80, other options: 0-65535).
  • Page 35 Administrative Regions: users can add their own. Alarm Zone: users can add their own. Equipment Installation Address: users can add their own. Local SIP Port: default: 5060, other options: range: 0-65535. GB28181 Server Address: IP address of the computer. Server SIP Port: default: 5060, other options: range: 0-65535. Server ID: 34020000002000000001 Click "Save".
  • Page 36 can only operate preview, playback, or logoff. 4) Version Upgrade MCU version V2.0.0.16 2015-12-18 Camera version V2.0.0.16 2015-12-18 Focus version V2.0.0.6 2015-12-11 Version information above is read-only for users. It is consistent with the menu version and cannot be modified. Different type of the machine has different information.

  • Page 37: Serial Communication Control

    after restart. 2) WiFi Hot Link Click “search” to search for the WIFI hotspot. Double-click the dialog box after searching WIFI hotspot, then input the WIFI password. It is connected successfully after “successful connect” window shows. 3) Wireless WiFi Login Page If DHCP is not checked on the configuration page (automatically obtain IP), then open the browser, enter the wireless network IP address in the address bar (default 192.168.1.250), press Enter to login to the construction page;...
  • Page 38 CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF CAM_Zoom Tele(Variable) 8x 01 04 07 2p FF...
  • Page 39 8x 01 04 0D 02 FF Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpCopm...
  • Page 40 CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF) 8x 01 04 06 06 02 FF Turn on the menu screen SYS_Menu 8x 01 04 06 06 03 FF Turn off the menu screen 8x 01 06 08 02 FF IR (remote commander)receive IR_Receive...
  • Page 41 5.1.3 Inquiry command Command Function Command packet Note y0 50 02 FF CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby) CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position CAM_FocusAFMod y0 50 02 FF Auto Focus 8x 09 04 38 FF...

  • Page 42: Pelco-D Protocol Command List

    y0 07 7D 01 04 00 FF Power ON/OFF y0 07 7D 01 04 07 FF Zoom tele/wide y0 07 7D 01 04 38 FF AF ON/OFF IR_ReceiveReturn y0 07 7D 01 04 33 FF Camera _Backlight y0 07 7D 01 04 3F FF Camera _Memery y0 07 7D 01 06 01 FF Pan_titleDriver...

  • Page 43: Pelco-P Protocol Command List

    Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 Focus Far 0xFF Address 0x00 0x80 0x00 0x00 Focus Near 0xFF Address 0x01 0x00 0x00 0x00 Stop 0xFF Address 0x00 0x00 0x00 0x00 Set Preset 0xFF Address 0x00 0x03 0x00 Preset ID Clear Preset 0xFF Address...

  • Page 44: Camera Maintenance And Troubleshooting

    Response 6. Camera Maintenance and Troubleshooting 6.1 Camera Maintenance 1. If the camera will be idle for a long time, please turn off the power switch and disconnect AC power cord from outlet. 2. Use soft cloth or tissue to clean the camera (lens cleaning not recommended). 3.
  • Page 45 a. check whether the camera serial protocol, baud rate, and address are consistent. b. check whether the control cable is connected properly. c. check whether the camera working mode is set to the normal operating mode (see Table 1.2 and Table 1.3). 6) Web Pages Cannot Log In a.
  • Page 46 This Limited Warranty does not cover problems including but not limited to: improper handling, malfunction or damage not resulting from defects in material. To receive warranty service, please contact AVIPAS Inc. first. We will decide whether a repair or replacement is needed and will advise you of the cost of such repair or replacement.
  • Page 47 VER: 2017-04-19 (EN) Manufacturer: Distributed by: AViPAS Inc. SWIT Electronics USA, LLC www.avipas.com www.swit.us 4300 Stevens Creek Blvd. Suite 230 3350 Scott Blvd. 61-02 San Jose, CA 95129 Santa Clara, CA 95054 (408) 983-0866 1-844-228-4727 (408) 228-8438...
