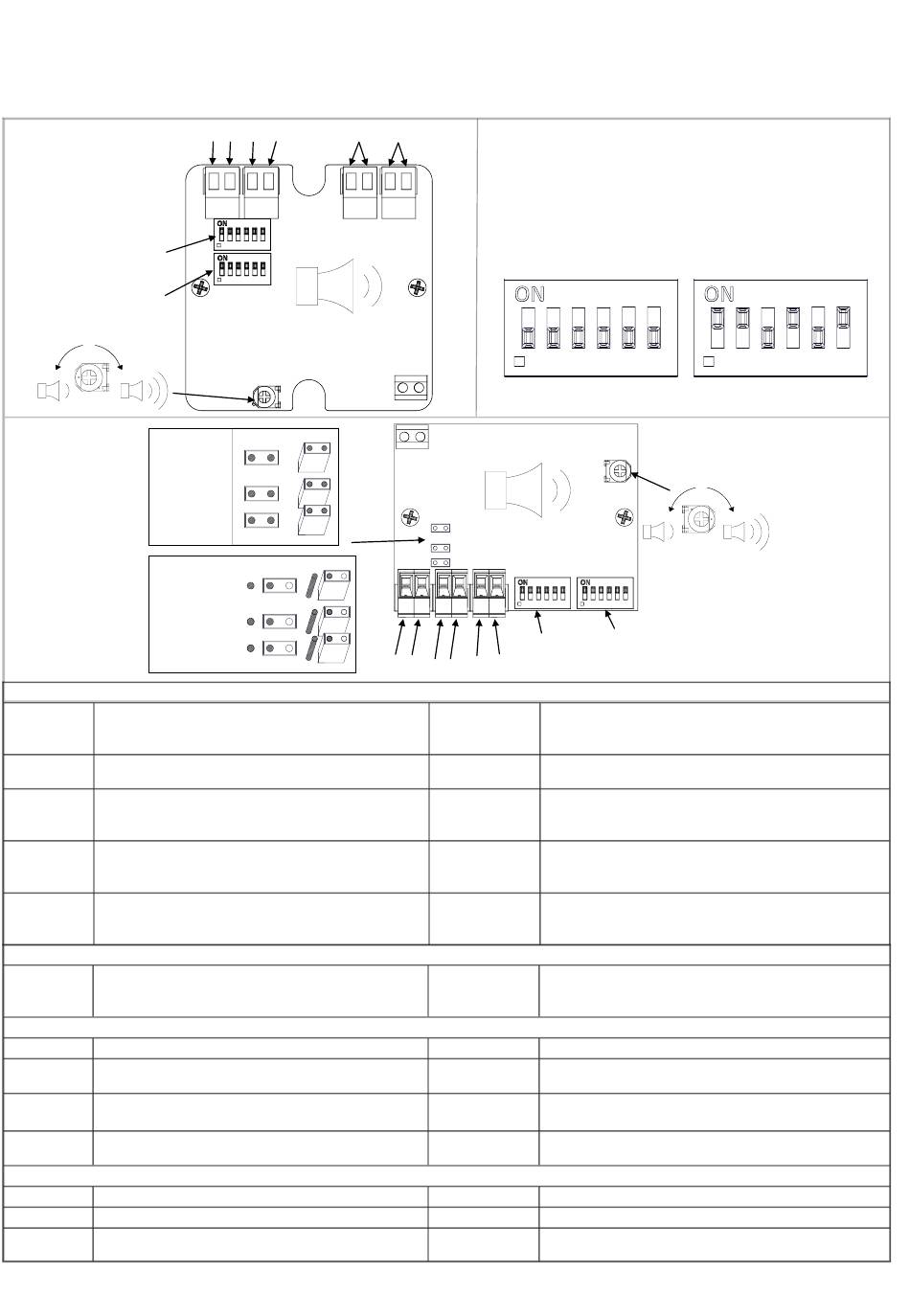

E2S AlertAlarm D105 Instructions/Service Manual page 2

AC
(See D218-06-005)
S2
S1
DC
(See D218-06-001)
+ve
switching
-ve
switching
(Default)
Stage Alarm tone selection
See above
Tone table D221-95-001-IS
Stage 1 Use Switch 1 to select Stage 1 alarm tone
Stage 2 Use Switch 2 to select Stage 2 alarm tone
Stage 3 Pre-determined by Stage 1 selection - see Tone
table D221-95-001-IS
Stage 4 Pre-determined by Stage 1 selection - see Tone
table D221-95-001-IS
Stage Alarm tone selection
See above
Common positive (negative switching) mode (Default) Tone table D221-95-001-IS
Stage 1 Use Switch 1 to select Stage 1 alarm tone
Stage 2 Use Switch 2 to select Stage 2 alarm tone
Stage 3 Pre-determined by Stage 1 selection - see Tone
table D221-95-001-IS
Stage 4 Pre-determined by Stage 1 selection - see Tone
table D221-95-001-IS
Common negative (positive switching) mode - Tone table D218-95-001-IS
Stage 1 Use Switch 1 to select Stage 1 alarm tone
Stage 2 Use Switch 2 to select Stage 2 alarm tone
Stage 3 Pre-determined by Stage 1 selection - see Tone
table D218-95-001-IS
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
E E S3 S2 N/-
P9
P9
P7
P8
P7
P8
P9
P7
P8
P9
P7
P8
L/+
Default Switch 2
P9
P7
P8
S2
+ + - - S2 S3
AC Units
Wiring Method of operation as shown in wiring diagram
Schematic D218-06-005
Config. No.
1a Connect Stage 1 Live to terminal 'L/+' and Stage 1
Neutral to terminal 'N/-'
1b Connect Stage 1 Live to terminal 'L/+' and Stage 1
Neutral to terminal 'N/-' & connect terminal 'S2' to
Stage 1 Live
1b Connect Stage 1 Live to terminal 'L/+' and Stage 1
Neutral to terminal 'N/-' & connect terminal 'S3' to
Stage 1 Live
1b Connect Stage 1 Live to terminal 'L/+' and Stage 1
Neutral to terminal 'N/-' & connect both terminals
'S2' & 'S3' to Stage 1 Live
DC Units
Wiring Method of operation as shown in wiring diagram
Schematic D218-06-001
Config. No.
1a Apply +ve to terminal '+' & -ve to terminal '-'
1b Apply +ve to terminal '+' & -ve to terminal '-' and also
link terminal S2 to terminal '-'
1c Apply +ve to terminal '+' & -ve to terminal '-' and also
link terminal S3 to terminal '-'
1c Apply +ve to terminal '+' & -ve to terminal '-' and also
link S2 and S3 to terminal '-'
2a Apply +ve to terminal S2 & -ve to terminal '-'
2b Apply +ve to terminal S3 & -ve to terminal '-'
2c Apply +ve to terminal '+' & -ve to terminal '-'
Sheet 2 of 4 e2s.com
AC & DC (–ve switching), See
D221-95-001
DC (+ve switching) see
Default Switch 1
(ON = 1, OFF = 0)
S1
D172-00-001-IS Issue 4 31/07/2024
