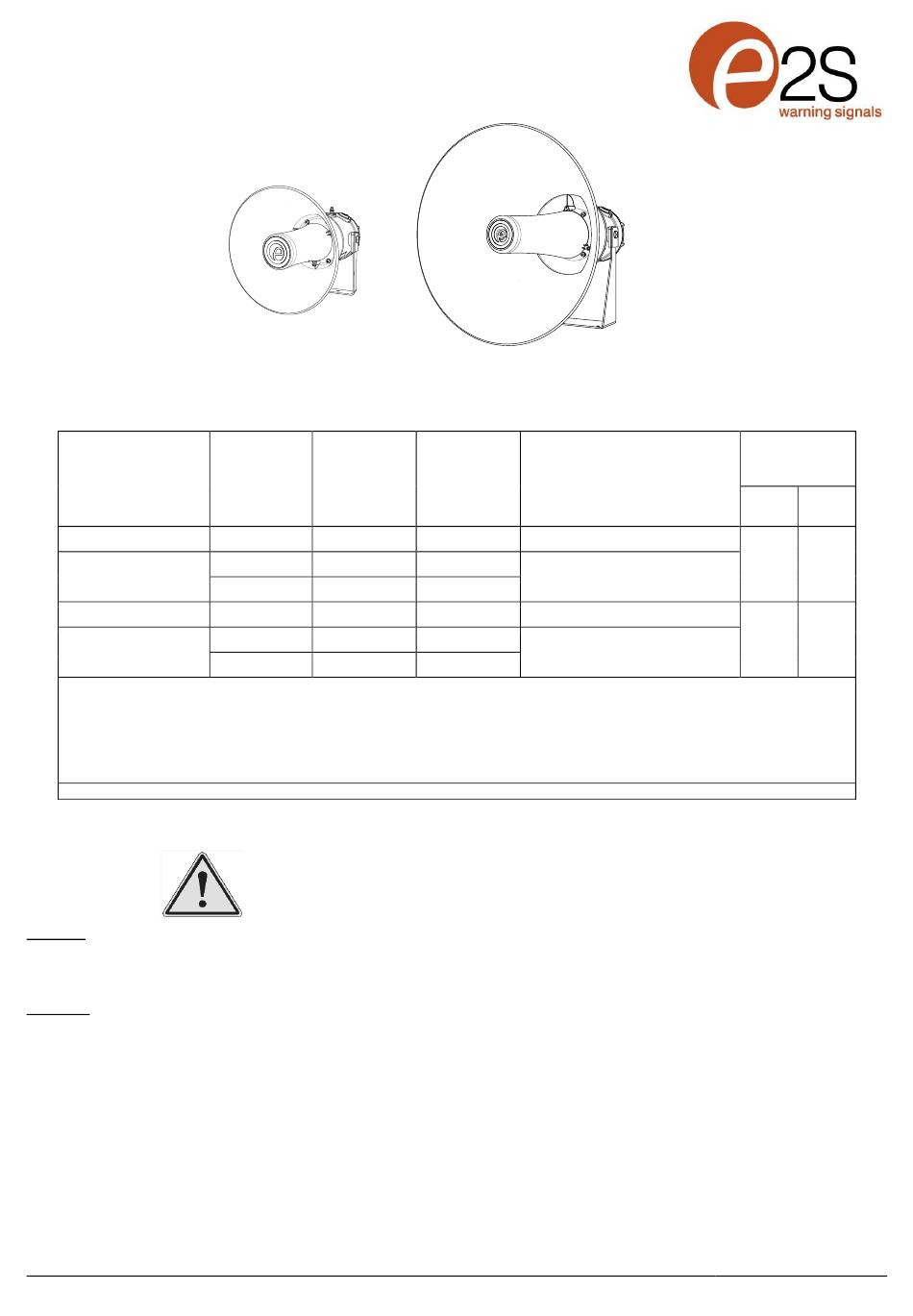

INSTRUCTION MANUAL
D1xS2

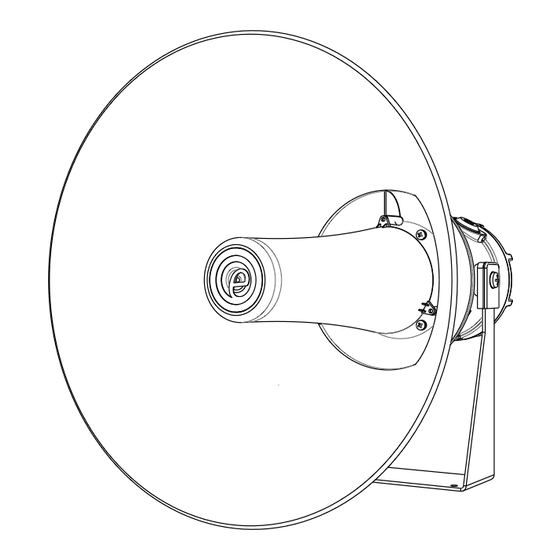

Alarm Horn Sounder with relay / telephone initiation
For use in Flammable Gas and Dust Atmospheres
1. Product Table
Unit Type Code
D1xS2FDC024-T
D1xS2FAC230-T
D1xS2HDC024-T
D1xS2HAC230-T
*Max = Tone 4
†
Nom. = Tone 44
The table shows the input current taken by the various sounders.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage.
*Special 12Vdc version is available – Contact E2S Sales.
Table 1: Electrical Ratings.
2.
Warnings
CAUTION
TO REDUCE THE RISK OF IGNITION OF HAZARDOUS
ATMOSPHERES:
DISCONNECT FROM SUPPLY BEFORE OPENING.
KEEP TIGHTLY CLOSED WHEN IN OPERATION.
WARNING
FIT SEALING FITTING IN CONDUIT RUNS WITHIN 18 INCHES
FROM ENCLOSURE.
EQUIPMENT MUST NOT BE INSTALLED WITH THE HORN FACING
UPWARDS OF HORIZONTAL
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT
DO NOT OPEN WHEN ENERGISED
POTENTIAL ELECTROSTATIC CHARGING HAZARD - CLEAN
ONLY WITH A DAMP CLOTH
ENCLOSURE ENTRIES: TWIN M20 X 1.5 / SINGLE 1/2" NPT
IF TEMPERATURE EXCEEDS 70°C AT ENTRY OR 80°C AT
BRANCHING POINT USE SUITABLE RATED CABLE AND GLANDS
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D190-00-691-IS
D1xS2F
Nominal
Nominal
Input Voltage
Current P2
24Vdc
324mA
115Vac
125mA
230Vac
78mA
24Vdc
324mA
115Vac
125mA
230Vac
78mA
Issue 1
15-11-2023
D1xS2H
Nominal
Voltage Range
Current P3
740mA
11.5-54Vdc
282mA
100-240Vac 50/60Hz
167mA
740mA
11.5-54Vdc
282mA
100-240Vac 50/60Hz
167mA
www.e2s.com
Sound
Pressure Level
dB(A)
.†
Max*
Nom
P2/P3
P2/P3
120/123 115/118
124/127 119/122
Tel: +44 (0)208 743 8880
Sheet 1 of 7
