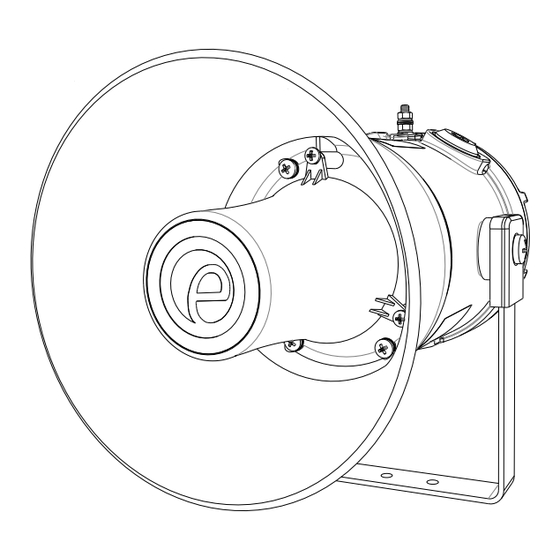

E2S D1xS1RDC024-S Instruction Manual

Alarm horn sounder – sil2 class i, zone 1, 2, 21 & 22

Hide thumbs

page of 22

/ 22
Bookmarks

Quick Links

Download this manual

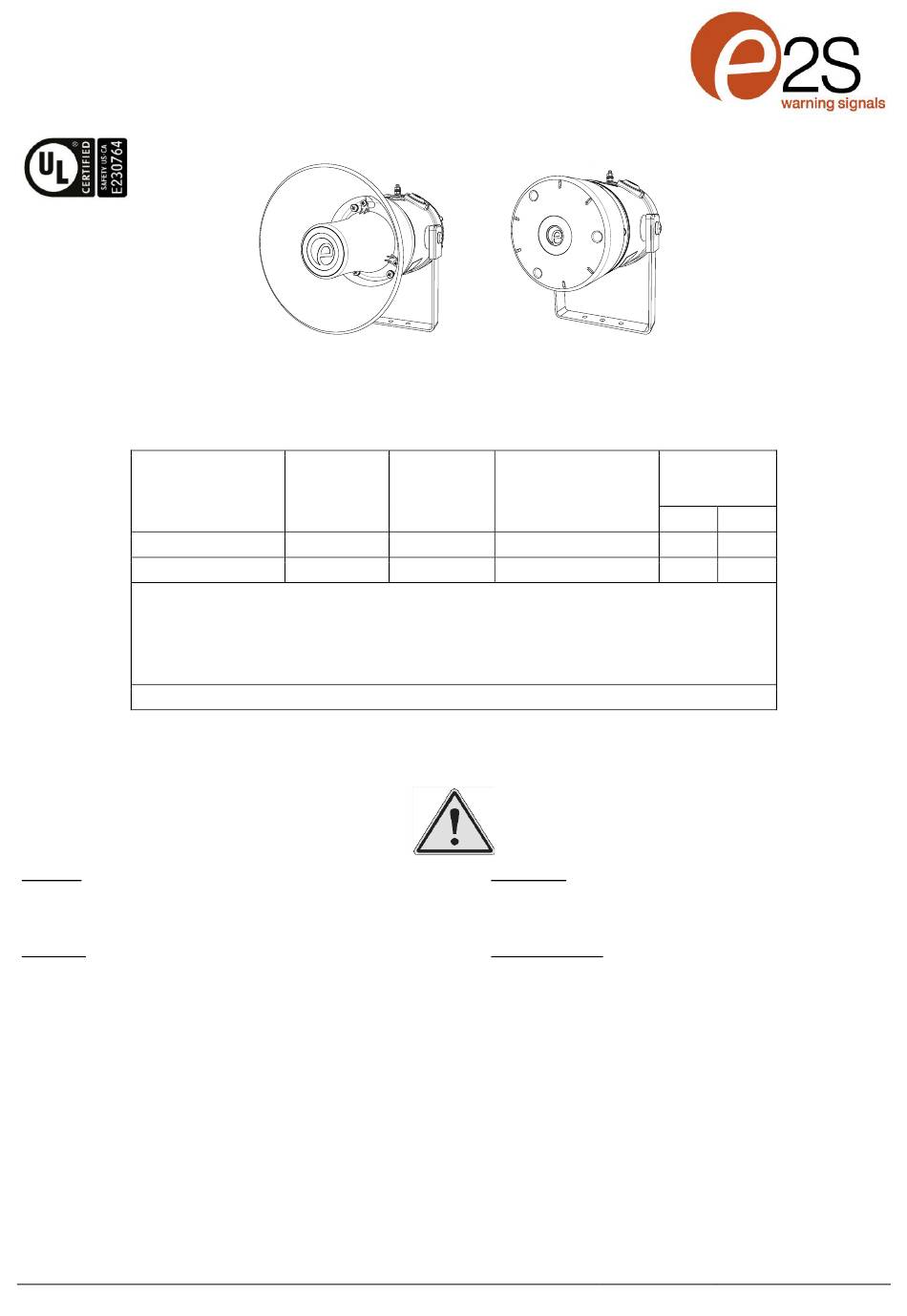

INSTRUCTION MANUAL

D1xS1FDC024-S & D1xS1RDC024-S

Alarm Horn Sounder – SIL2

Class I, Zone 1, 2, 21 & 22

Product Table

Model Number

D1xS1FDC024-S

D1xS1RDC024-S

*Max = Tone 4

†

Nom. = Tone 44

The table shows the input current taken by the various sounders.

The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.

Nominal current at nominal voltage.

Table 1: Electrical Ratings.

Warnings

CAUTION

TO REDUCE THE RISK OF IGNITION OF HAZARDOUS

ATMOSPHERES:

DISCONNECT FROM SUPPLY BEFORE OPENING.

KEEP TIGHTLY CLOSED WHEN IN OPERATION.

WARNING

FIT SEALING FITTING IN CONDUIT RUNS WITHIN 18 INCHES

FROM ENCLOSURE.

EQUIPMENT MUST NOT BE INSTALLED WITH THE HORN

FACING UPWARDS OF HORIZONTAL

DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS

PRESENT

DO NOT OPEN WHEN ENERGISED

POTENTIAL ELECTROSTATIC CHARGING HAZARD - CLEAN

ONLY WITH A DAMP CLOTH

ENCLOSURE ENTRIES: TWIN M20 X 1.5 / SINGLE 1/2" NPT

ATEX/IECEx & UKEx INSTALLLATIONS: IF TEMPERATURE

EXCEEDS 70°C AT ENTRY OR 80°C AT BRANCHING POINT USE

SUITABLE RATED CABLE AND GLANDS

European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH

Document No. D190-00-651-IS

D1xS1FDC024-S

Nominal

Input Voltage

Input Current

24Vdc

185mA

24Vdc

185mA

Issue 2

06-03-2023

D1xS1RDC024-S

Voltage Range

20-28Vdc

ATTENTION

POUR

REDUIRE

RISQUE

ATMOSPHÈRES DANGEREUSES :

COUPER L 'ALIMENTATION AVANT OUVERTURE.

CONSERVER FERMÉ PENDANT LE FONCIONNEMENT.

AVERTISSEMENT

CONDUITS DOIVENT ETRE SCELLES EN MOINS DE 18

POUCES.

ÉQUIPEMENT NE DOIT PAS ETRE INSTALLE AVEC LE KLAXON

TOURNEE VERS LE HAUT DE HORIZONTAL.

NE PAS OUVRIR UN PRESENCE D'ATMOSPHERE EXPLOSIVE

NE PAS OUVRIR ENERGIE

DANGER

POTENTIEL

CHARGE

NETTOYER UNIQUEMENT AVEC UN CHIFFON HUMIDE

ENTRÉES DE BOÎTIER: 2 x M20 X 1.5 / 1 x 1/2" NPT

ATEX/IECEx & UKEx INSTALLATIONS : SI LA TEMPÉRATURE

DÉPASSE 70 °C À L'ENTRÉE OU 80 °C AU POINT DE

BRANCHEMENT, UTILISER UN CÂBLE ET DES JOINTS

D'ÉTANCHÉITÉ APPROPRIÉS

www.e2s.com

Sound

Pressure Level

dB(A)

.†

Max*

Nom

115

110

105

D'INFLAMMATION

ÉLECTROSTATIQUE

Tel: +44 (0)208 743 8880

Sheet 1 of 15

DES

Need help?

Do you have a question about the D1xS1RDC024-S and is the answer not in the manual?

Questions and answers

Summary of Contents for E2S D1xS1RDC024-S

Page 1 INSTRUCTION MANUAL D1xS1FDC024-S & D1xS1RDC024-S Alarm Horn Sounder – SIL2 Class I, Zone 1, 2, 21 & 22 D1xS1FDC024-S D1xS1RDC024-S Product Table Sound Pressure Level Nominal Nominal Model Number Voltage Range dB(A) Input Voltage Input Current .† Max* D1xS1FDC024-S 24Vdc...
Page 2 D1xS1R-DC024-S 100ºC Class Zone Ratings for Canada (CEC) 85ºC Rating Model No: (D1xS1FDC024-S/D1xS1RDC024-S up to 70°C ambient) Class I Zone 1 IIC T5 Ta -55°C to +85°C D1xS1F-DC024-S / Class I Zone 1 IIC T6 Ta -55°C to +75°C D1xS1R-DC024-S...
Page 3 D1xS1R temperature at least as stated below: Minimum Ratings of Cables & Cable Glands Max Ambient Temp (°C) D1xS1FDC024-S/D1xS1RDC024-S Min. Rating (°C) Table 2: ATEx/IECEx & UKEx Min. Ratings of Cables & Cable Glands. NEC / CEC Installations: The cable entries have two M20 x 1.5 – 6H entry thread and a D1xS1F single ½”...
Page 4 This is particularly important when using cables with large cross-sectional areas such as 2.5mm². European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D190-00-651-IS Issue 2...
Page 5 NOTE: Max supply is 33V DC – if higher DC voltage is required, use options. Negative switching. Figure 6: Stage Switching Polarity. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D190-00-651-IS Issue 2 06-03-2023...
Page 6 6V. A monitoring voltage greater than 6V may activate the alarm horn sounder and the 2nd, 3rd or 4th stages. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D190-00-651-IS...
Page 7 *Max Operating current for worst-case input voltage; Nominal current at nominal voltage and Tone 12 Table 4: UL General Signaling Electrical ratings European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D190-00-651-IS...
Page 8 Power relay RLY1-1 will close whilst SIL 2 relay RLY1-2 will of the main two operational modes. become open be circuit between terminals 1 & 2. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D190-00-651-IS Issue 2...
Page 9 If the hard reset process does not correct the latched fault the alarm horn sounder may require further investigation, please contact your local E2S representative. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
Page 10 16-1 as a 4 – Wire System. SIL 2 APPROVED TONE SELECTION D1xS1FDC024-S/D1xS1RDC024-S sounders need to be set to one off the SIL 2 approved tones to work correctly with the automated sounder check on pattern generation and signal output checks.
Page 11 If multiple SIL 2 alarm horn sounders are to be cabled in series the monitoring connections differ from that of a single alarm horn sounder. For more information see manual D197-00-651-IS available from the E2S website. 16-2) SIL 2 system wiring for fault detection in standby mode only – 2 wire installation Cabling is required to the positive '+' and negative '-' power input terminals only.
Page 12 If multiple SIL 2 alarm horn sounders are to be cabled in series the monitoring connections differ from that of a single alarm horn sounder. For more information see manual D197-00-651-IS available from the E2S website. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com...
Page 13 5 seconds. Power down the unit for 30 seconds and then move the header pin back to Position A. The unit has now been reset. If the hard reset process does not correct the latched fault the alarm horn sounder may require further investigation, please contact your local E2S representative.
Page 14 Table 6: SIL 2 Failure Rate Synchronised Operation All D1xS1FDC024-S/D1xS1RDC024-S alarm horn sounders connected to the same power supply and set to the same alarm tone will provide a synchronised output when activated. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com...
Page 15 The alternative 2-wire configuration requires an EOL resistor to be fitted. The EOL resistor can be specified during ordering and factory fitted or selected and fitted during the alarm horn sounder installation. See section 9 for EOL resistor location and wattage requirements. E2S recommends a value of 2.2K Ohm. If an alternative value is required, please see section 16-2.
Page 16 2400Hz Motor Siren 0 1 1 1 1 1 1450Hz 0.25s 1 1 1 1 1 1 Simulated Bell 0.69ms E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH sales@e2s.com e2s.com Page 1 of 1 D221-95-651-IS_Issue_C - 09/03/2023...
Page 17 STExS2 SIL 2 DC SOUNDER WIRING DIAGRAMS STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER ALTERNATIVE MATERIAL AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET APPROVED DATE WWW.E2S.COM D190-06-651 NTS 1 19/09/2022 R.N.POTTS...
Page 18 19/09/2022 B.ISARD STExS2 SIL 2 DC SOUNDER WIRING DIAGRAMS STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE WWW.E2S.COM D190-06-651 19/09/2022 R.N.POTTS...
Page 19 Notified Body No.: 2813 quality assurance of the production process (Module D): Unit 6, Hawarden Industrial Park, Hawarden, Deeside, CH5 3US, UK Quality Assurance Notification (Module D): SIRA 05 ATEX M342 Provisions fulfilled by the equipment: II 2G Ex db IIC T6…T3 GB II 2D Ex tb IIIC T82 ̊ C …145 ̊ C Db Standards applied: EN 60079‐0:2018 EN 60079‐1:2014 EN60079‐31:2014 Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC) Standards applied: EN 61000‐6‐1:2007 EN 61000‐6‐2:2005 EN 61000‐6‐3:2007 / A1:2011 / AC: 2012 EN 61000‐6‐4:2007 / A1: 2011 Directive 2014/35/EU: Low Voltage Directive (LVD) Standards applied: EN 60947‐1:2007 + A2:2014 Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) The product and all the components contained within it are free from substances of very high concern. Other Standards and Regulations EN 60529:1992+A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐067_Issue_H (D1x).docx ‐ Page 1 of 2 ‐ QAF_252_Issue_5...
Page 20 EU Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐067_Issue_H Quality Assurance Manager Date and Place of Issue: London, 10/02/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐067_Issue_H (D1x).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
Page 21 Notified Body No.: 0518 quality assurance of the production process (Module D): Rake Lane, Eccleston, Chester CH4 9JN, UK Quality Assurance Notification (Module D): CSAE 22UKQAN0046 Provisions fulfilled by the equipment: II 2G Ex db IIC T6…T3 GB II 2D Ex tb IIIC T82 ̊ C …145 ̊ C Db Standards applied: EN 60079‐0:2018 EN 60079‐1:2014 EN60079‐31:2014 Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC) Standards applied: EN 61000‐6‐1:2007 EN 61000‐6‐2:2005 EN 61000‐6‐3:2007 / A1:2011 / AC: 2012 EN 61000‐6‐4:2007 / A1: 2011 Directive 2014/35/EU: Low Voltage Directive (LVD) Standards applied: EN 60947‐1:2007 + A2:2014 Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) The product and all the components contained within it are free from substances of very high concern. Other Standards and Regulations EN 60529:1992+A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐097_Issue_A (D1x UKCA).docx ‐ Page 1 of 2 ‐ QAF_252_Issue_5...
Page 22 UKCA Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐097_Issue_A Quality Assurance Manager Date and Place of Issue: London, 24/02/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐097_Issue_A (D1x UKCA).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
