DoorKing 1600 Quick Start Manual

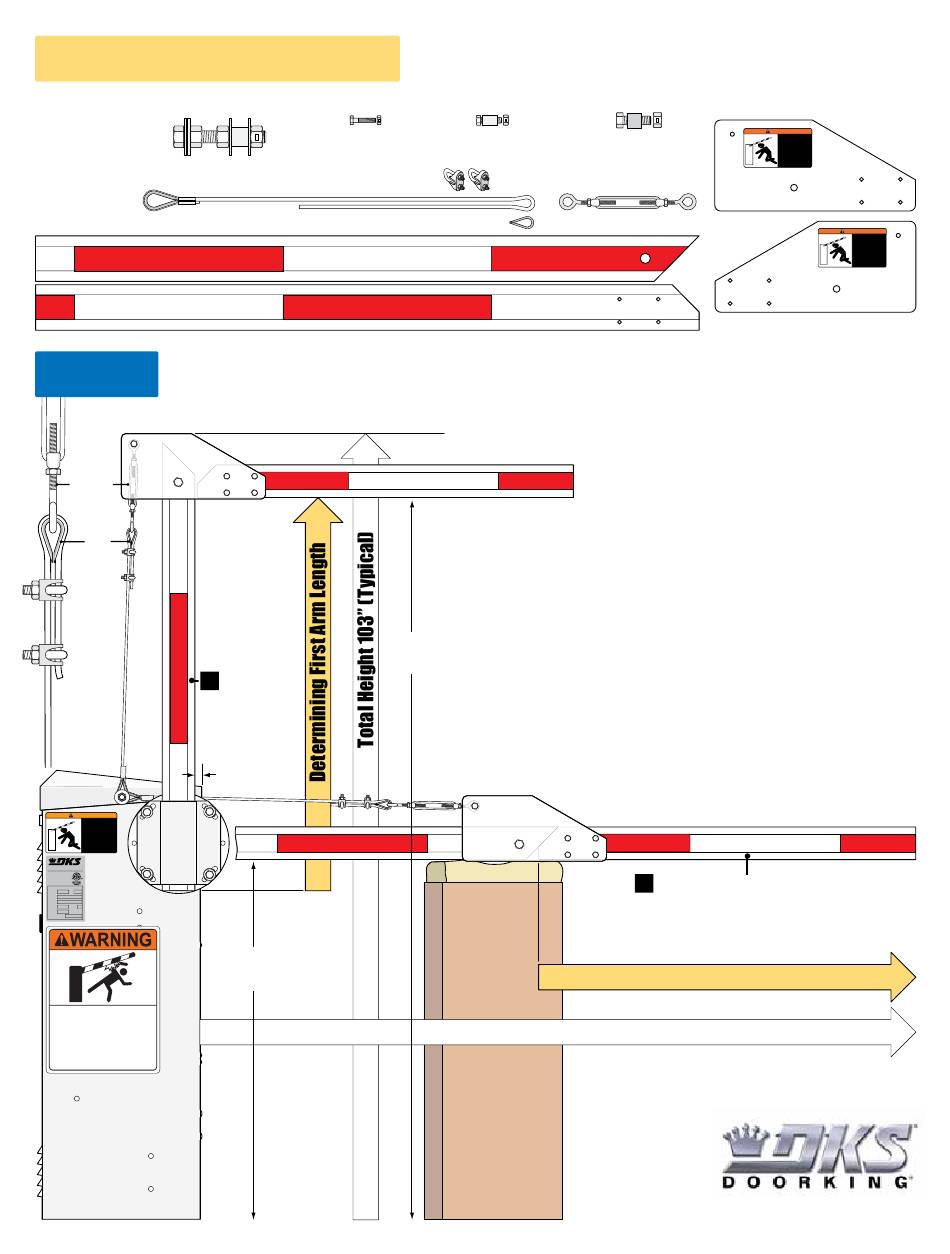

WOOD FOLDING ARM KIT
This kit is designed for the 1600 model barrier gate operators only. Recommended for low headroom applications.
Kit Includes:
Cable Attachment Assembly
Pre-Crimped Eyelet
2 Wood Arms
Layout
IMPORTANT: Cable MUST be clamped as shown.
Turnbuckle
Cable
Eyelet
Cable
Clamps
U-Bolt
Nut
1
WARNING
MOVING ARM can
cause vehicle damage,
severe injury or death.
STAY CLEAR
of arm
at all times.
NO: Pedestrians
Bicycles
Motorcycles
®
D O O R K I N G
®
Inglewood, CA 90301
CONFORMS TO:
ANSI/CAN/UL 325
Suitable for
Outdoor Use
VEHICULAR GATE OPERATOR
CLASS HP
MODEL
SERIAL
VOLTS PHASE
AMPS 60 Hz
MAX GATE LOAD
Moving Gate Can Cause
Severe Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
1601-267-G-10-24
4 Bolts with
Locknuts (Small)
Cable
Cut Arms to Length
96 3/8"
Typical
Cut this arm
first for the
height
limitations.
3/4"
33"
Typical
Bolt with Bushing Bolt with Brass Bushing
and Locknut (Medium) and Locknut (Large)
Cable Clamps
Locking Turnbuckle
Cable Eyelet
Note: Completed folding arm
assembly shown in the UP position
to illustrate the total height.
Packing Material
Determining Second Arm Length
Total Length 132" (Typical)
Note: Completed folding arm assembly will be
12 ft in length when using typical measurements.
Support arms
until arm cable
has been installed.
DoorKing Part Number
WARNING
MOVING ARM can
cause vehicle damage,
severe injury or death.
STAY CLEAR
of arm
at all times.
NO: Pedestrians
Bicycles
Motorcycles
2 Hinge Plates
Note: Completed folding arm assembly
shown in the DOWN position to illustrate
the total length.
2 Cut this arm second for the
traffic lane width.
Note: Second arm can be a
different size than the first.
120 S. Glasgow Avenue
Inglewood, California 90301
1601-384
WARNING
MOVING ARM can
cause vehicle damage,
severe injury or death.
STAY CLEAR
of arm
at all times.
NO: Pedestrians
Bicycles
Motorcycles
U.S.A.
