DoorKing 1601 Quick Start Manual

ALUMINUM ROUND ARM FOLDING KIT
This kit is designed ONLY for the 1601 and 1603 model barrier gate operators.
Recommended for low headroom applications.

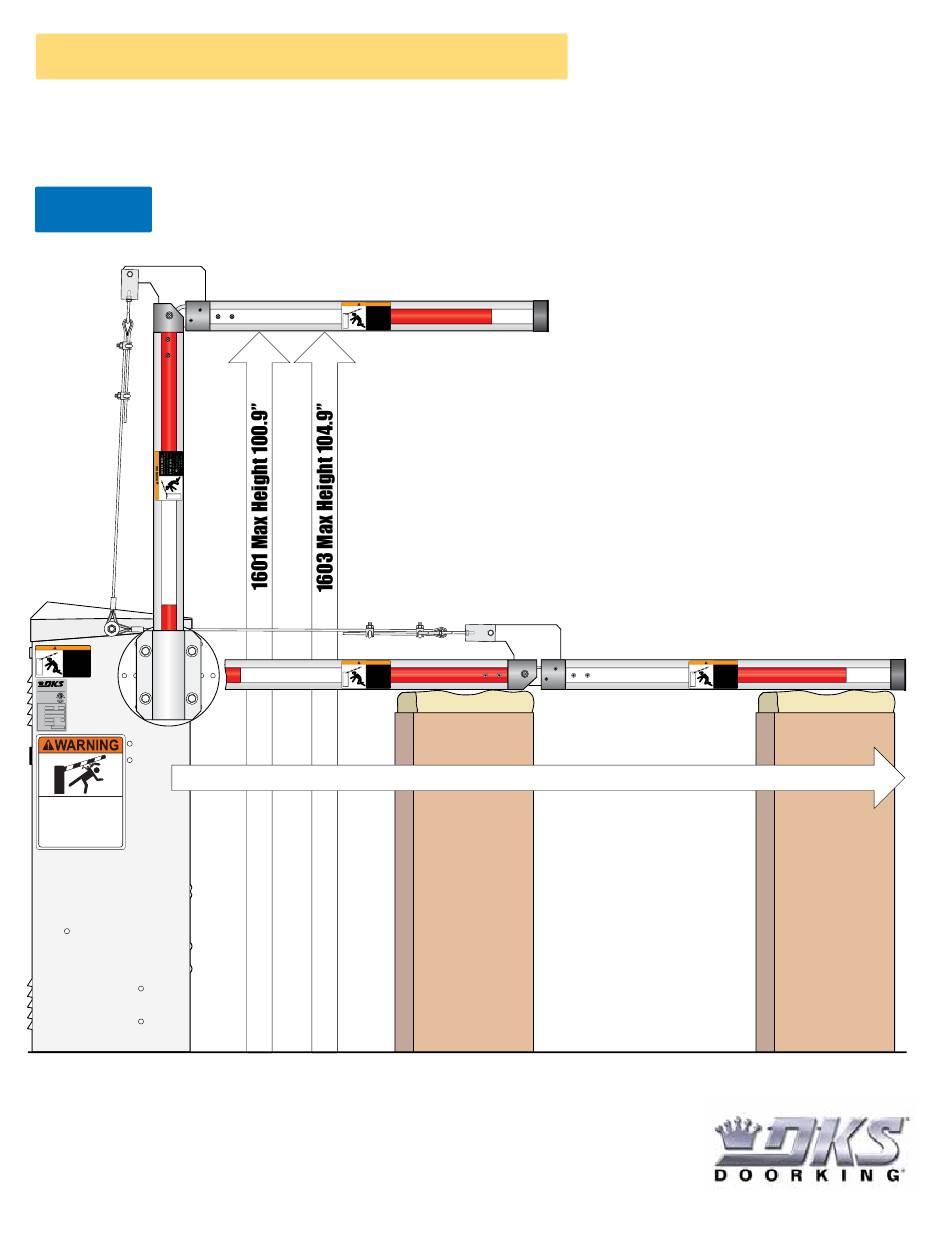

Layout
WARNING
MOVING ARM can
cause vehicle damage,
severe injury or death.
STAY CLEAR of arm
at all times.
NO:
Pedestrians
Bicycles
Motorcycles
®
D O O R K I N G
®
Inglewood, CA 90301
CONFORMS TO:
ANSI/CAN/UL 325
Suitable for
Outdoor Use
VEHICULAR GATE OPERATOR
CLASS HP
MODEL
SERIAL
VOLTS PHASE
AMPS 60 Hz
MAX GATE LOAD
Moving Gate Can Cause
Severe Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
1601-265-K-10-24
WARNING
MOVING ARM can
cause vehicle damage,
severe injury or death.
STAY CLEAR
of arm
at all times.
NO:
Pedestrians
Bicycles
Motorcycles
Adjust cable with eyebolt and cable clamps to level outer arm in DOWN position ONLY.
IMPORTANT: DO NOT adjust cable too tight or it will bind when operating.
Cable Eye
Clamps Bolt
WARNING
MOVING ARM
can
cause vehicle damage,
severe injury or death.
STAY CLEAR of arm
at all times.
NO: Pedestrians
Bicycles
Motorcycles
Inner Arm
Packing Material
Max Length 143.5"
Support arms
until arm cable
has been installed.
®
Copyright 2024 DoorKing , Inc. All rights reserved.
DoorKing Part Number:
1601-610
Folding Arm
Drawings not to scale
WARNING
MOVING ARM
can
cause vehicle damage,
severe injury or death.
STAY CLEAR of arm
at all times.
NO: Pedestrians
Bicycles
Motorcycles
Outer Arm
Packing Material
Support arms
until arm cable
has been installed.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
