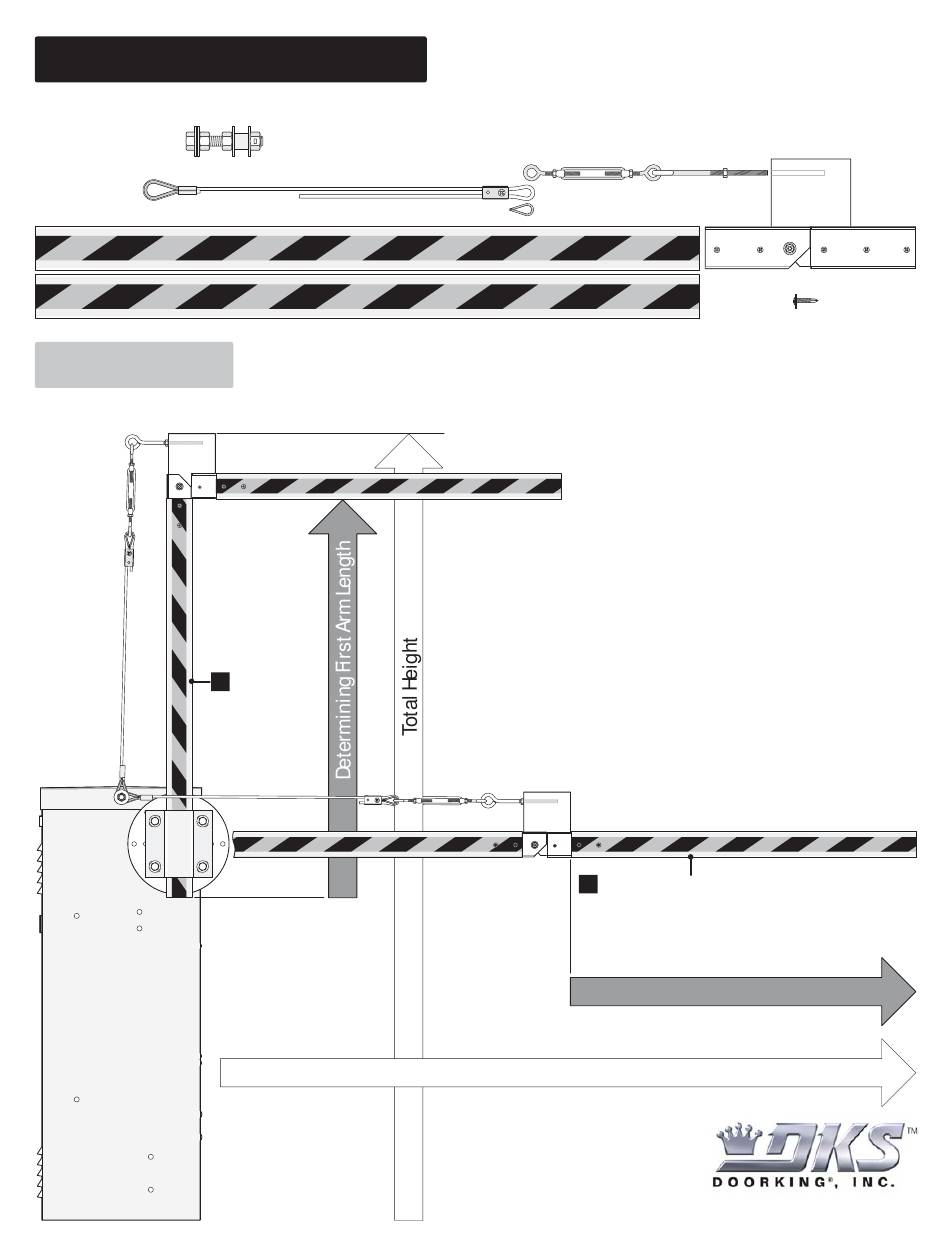

PLASTIC FOLDING ARM KIT
This kit is designed for the 1600 model barrier gate operators only. Recommended for low headroom applications.
Kit Includes:
Cable Attachment Assembly
Pre-Crimped Eyelet
2 Plastic Arms
Installation
www.leedan.com info@leedan.com Toll-Free: 800-231-1414
Cable
Cut Arms to Length
1
Cut this arm
first for the
height
limitations.
Locking Turnbuckle
Cable
Clamp
(Connected)
Cable Eyelet
Note: Completed folding arm
assembly shown in the UP position
to illustrate the total height.
Note: Completed folding arm assembly
shown in the DOWN position to illustrate
traffic lane width.
2
Cut this arm second for the
traffic lane width.
Note: Second arm can be a
different size than the first.
Determining Second Arm Length
Traffic Lane Width
DoorKing Part Number
1601-083
Locking Eye Bolt
Arm Hinge
8 Self Tapping Screws
120 Glasgow Avenue
Inglewood, California 90301
U.S.A.
Advertisement
Related Manuals for DoorKing 1601-083
Summary of Contents for DoorKing 1601-083
- Page 1 Toll-Free: 800-231-1414 DoorKing Part Number PLASTIC FOLDING ARM KIT 1601-083 This kit is designed for the 1600 model barrier gate operators only. Recommended for low headroom applications. Kit Includes: Locking Turnbuckle Locking Eye Bolt Cable Cable Attachment Assembly...
- Page 2 Make sure that cable assembly is not binding Side View of or twisting and everything moves freely. Operator Housing Important: Do not adjust cable too tight or it will bind. 120 Glasgow Avenue Copyright 2009 DoorKing, Inc. All rights reserved. Inglewood, California 90301 1601-266-A-2-09 U.S.A.
