ARCTIC CAT WILDCAT 1000
Plow Mount

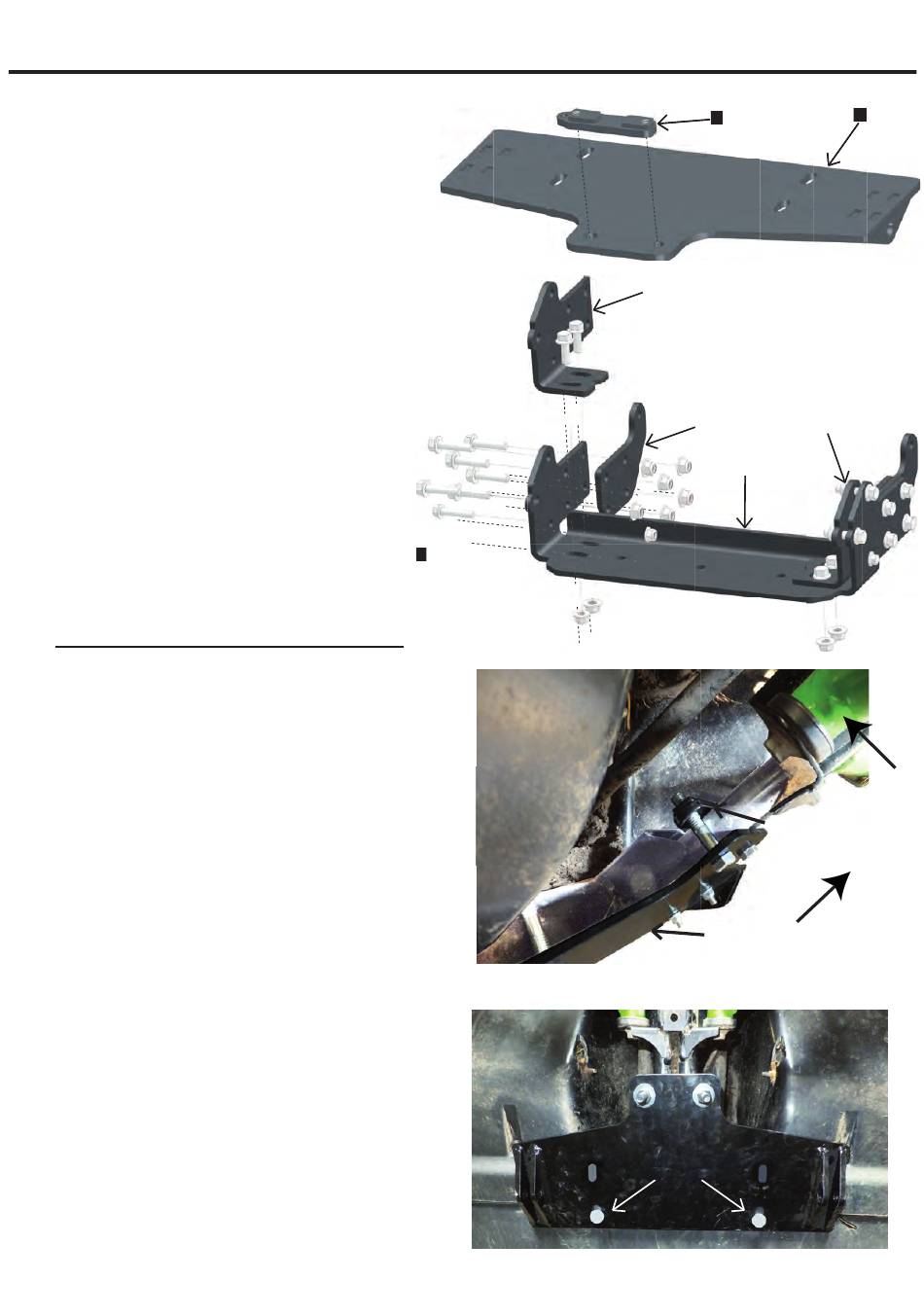

Kit Components:
Qty.
Part Description
1................. Plow Mount Plate (A)
1................. Bolt Plate (B)
1................. Plow EXT Mount (C)
2................. Tab Plate EXT Mount (D)
1................. DR Side Inner Tab Plate (E)
1................. PASS Side Inner Tab Plate (F)
12............... 3/8"-16 x 1 1/2" Hex Flange Bolt
16............... 3/8"-16 Hex Flange Nylok Nut
4................. 3/8"-16 x 1" Hex Flange Bolt
2................. 3/8"-16 x 2" Hex Flange Bolt
2.................
5/16"-18 x 1 1/2" Hex Flange Bolt
4................. 5/16"-18 Hex Flange Nylok Nut
2.................
5/16"-18 1 7/8" x 2 3/4" x 1 1/2" U-Bolt
5/16"-18 1 7/8" x 2 3/4" x 1 1/2" U-Bolt
INSTALLATION INSTRUCTIONS:
1. Loosely attach your Plow Mount (A) with the Bolt
Plate (B) and 3/8"-16 x 2" bolts on each side of the
frame behind the A-arms. (As shown in fi gure 2)
2. Using the Plow Mount as a template, align the rear
slots on either side of the frame tube to mark drill
locations in the skid plate where U-Bolts will be
installed.
3. Drill holes in the skid plate where marked. See
Figure 3
PART # 105655
Hardware Kit: HK-158
©2015 Copyright Kappers Fabricating, Inc. All rights reserved
Drill Locations
1
B
B
F
D
C
B
Front
A
"
"
Figure 2
"Figure 3"
A
A
E
Front
A-Arm

Advertisement

loading
Need help?

Need help?

Do you have a question about the 105655 and is the answer not in the manual?

Questions and answers

Summary of Contents for KFI 105655

  • Page 1 ARCTIC CAT WILDCAT 1000 Plow Mount PART # 105655 Hardware Kit: HK-158 Kit Components: Qty. Part Description 1....Plow Mount Plate (A) 1....Bolt Plate (B) 1....Plow EXT Mount (C) 2....Tab Plate EXT Mount (D) 1....DR Side Inner Tab Plate (E) 1....
  • Page 2 ARCTIC CAT WILDCAT 1000 INSTALLATION INSTRUCTIONS CONTINUED: 4. Align the mount so you can push the U-bolts through the holes and slots in the mount. Thread the 5/16” nuts onto the U-bolts as shown in figure 4. 5. Tighten down all Bolts and Nuts, make sure U-Bolt ends are even.
  • Page 3 EXT MOUNT INSTALLATION INSTRUCTIONS: EXT MOUNT INSTALLATION INSTRUCTIONS: 8. Attach the Plow EXT Mount to your Push Tube. (Complete steps 9-12 on both sides of your Push Tube) 9. Place the Plow EXT Mount around the outside of your Push Tube mounting tabs. (as shown in Figure 4) “Figure 4”...
