KFI 105250 Manual

Kawasaki teryx plow mount

Plow Mount

Kit Components:

Qty.

Part Description

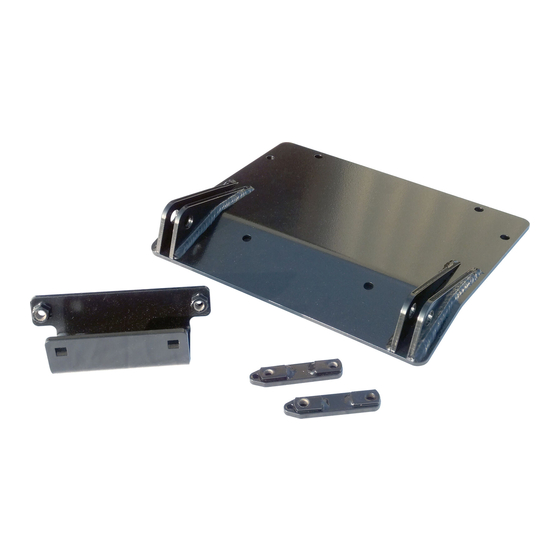

1................. Plow Mount Plate

1................. Plow Mount Plate Bracket

2................. Bolt Plate

4................. 3/8"-16 x 3 3/4" Bolt

6................. 3/8" Split Lock Washer

2................. 3/8"-16 Hex Flanged Nylock Nut

2................. 3/8"-16 x 1" Carriage Bolt

2................. 3/8"-16 x 1 1/4" Bolt

1................. 12" Soft Loop Strap

1. Install Mount Plate Bracket as shown in

Figure 3 using the holes (A) shown in

Figure 2. Secure Plate using the

3/8"-16 x 1" Carriage Bolts and Nuts.

See Page 2 for continuation of instructions.

KAWASAKI TERYX

PART # 105250

Hardware Kit: HK-104

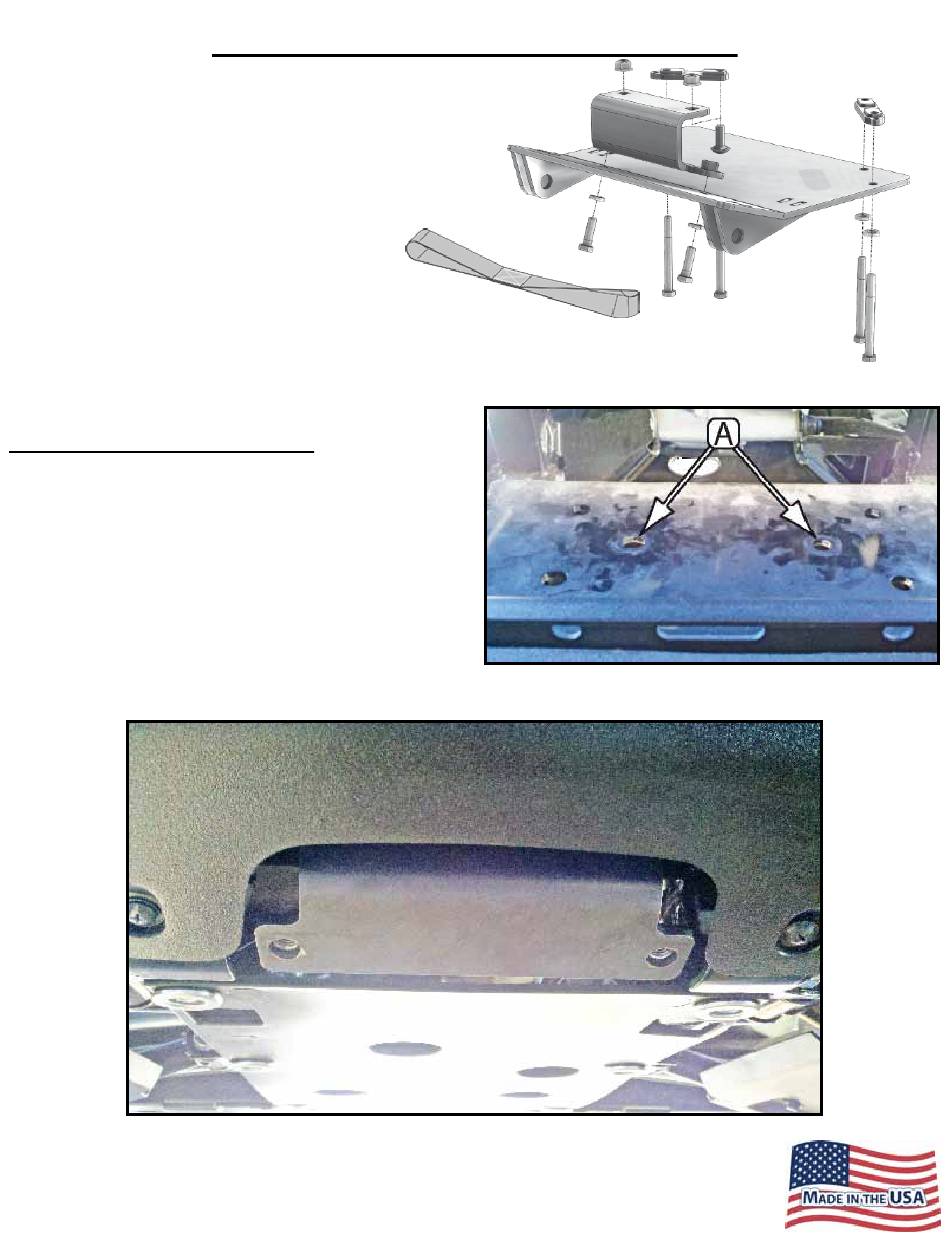

"Figure 3" Mount Plate Bracket Install

"Figure 2" Mount Plate Bracket Bolt Locations

Table of Contents

Do you have a question about the 105250 and is the answer not in the manual?

Page 1 KAWASAKI TERYX Plow Mount PART # 105250 Hardware Kit: HK-104 Kit Components: Qty. Part Description 1....Plow Mount Plate 1....Plow Mount Plate Bracket 2....Bolt Plate 4....3/8”-16 x 3 3/4” Bolt 6....3/8” Split Lock Washer 2....3/8”-16 Hex Flanged Nylock Nut “Figure 1”...
Page 2 2. Place Mount Plate up to Mount Plate Bracket and install using the 3/8”-16 x 1 1/4” Bolts and Lock Washers (B) as shown in Figures 4&6. 3. Using the Mount Plate as a template, drill out the inside rear holes (C) for 3/8” hardware. “Figure 4” Skid Plate Drill Pattern 4. Install the Bolt Plate using the 3/8”-16 x 3 3/4” Bolts and Lock Washers (D) as shown in Figures 5&6. 5. Tighten down all bolts. “Figure 5” Bolt Plate Location 6. See UTV Plow Tube System instruction manual for tube attachment. “Figure 6” Mount Plate Final Install ©2011 Copyright Kappers Fabricating, Inc. All rights reserved...
