KFI 105200 Quick Start Manual

KAWASAKI BRUTE FORCE 650/
Plow Mount
Kit Components:
Qty. Part Description
1................. Plow Mount Plate
4................. 5/16" X 1-3/8" X 2" U-BOLT
8................. 5/16" FLANGED NYLOCK NUT
INSTALLATION INSTRUCTIONS:
Note: This mount is made to fit a couple Kawa-
sakai ATV's with different frames. Make sure you
read and understand instructions before you start.
1. Remove the four bolts holding the skid plate to
the frame and remove. Shown in Figure 3. If
you prefer to leave your skid plate attached
you may drill holes for U-bolts and continue
to step 2.
2. Place four U-bolts (B) on ATV frame. For
650/700 Brute Force/Prairie locations refer to
Figure 4. For 360 Prairie the mounting proce-
dure is the same, only use bolt holes shown if
Figure 2.
©2010 Copyright Kappers Fabricating, Inc. All rights reserved
PRAIRIE 360/650/700
PLOW MOUNT
PART # 105200
Hardware Kit: HK-112
A

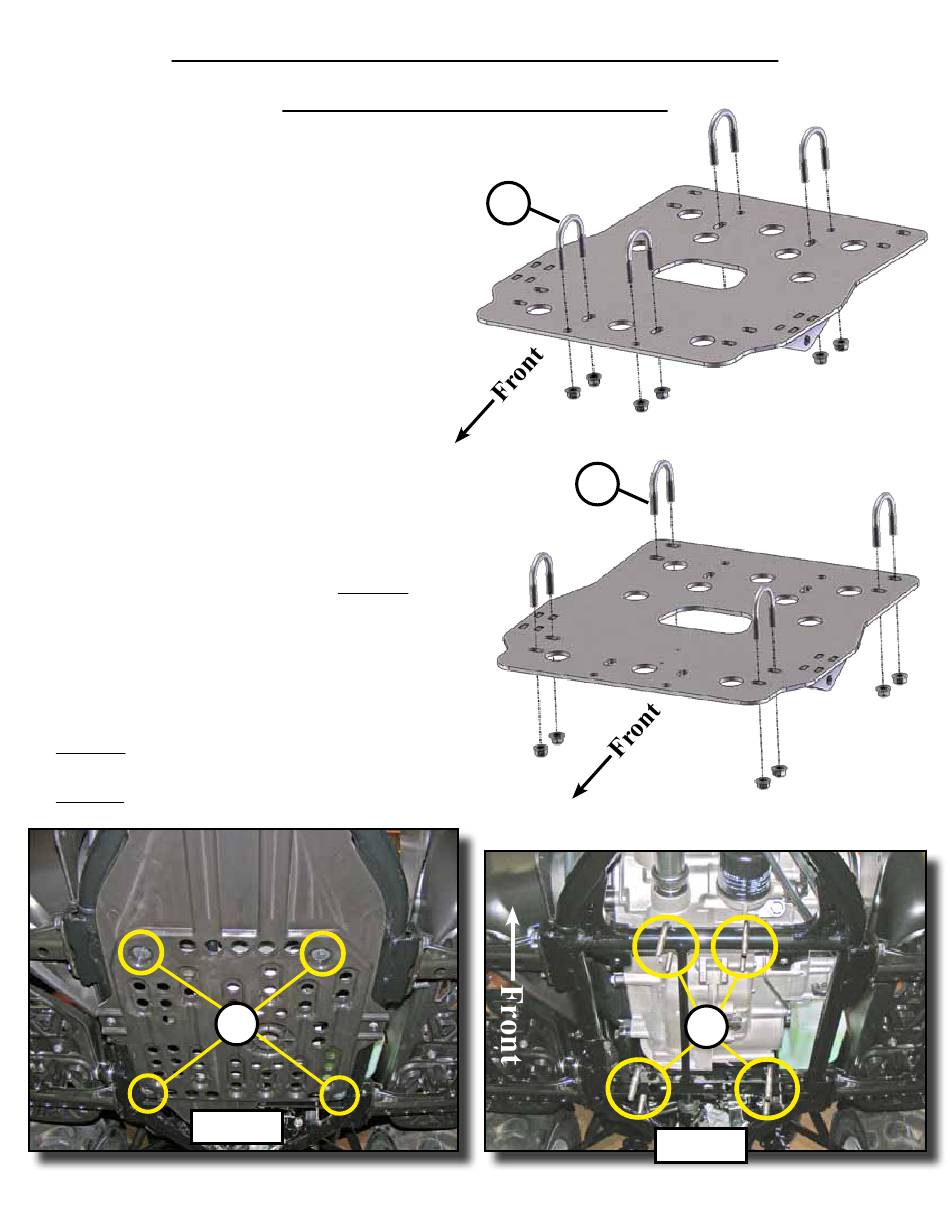

Figure 3
B
"Figure 1" 650-700 Brute Force/Prairie
B
"Figure 2" 360 Prairie
Figure 4
B
Page 1
