KFI HK-329 Manual

2017 kawasaki mule sx winch mount

Advertisement

Quick Links

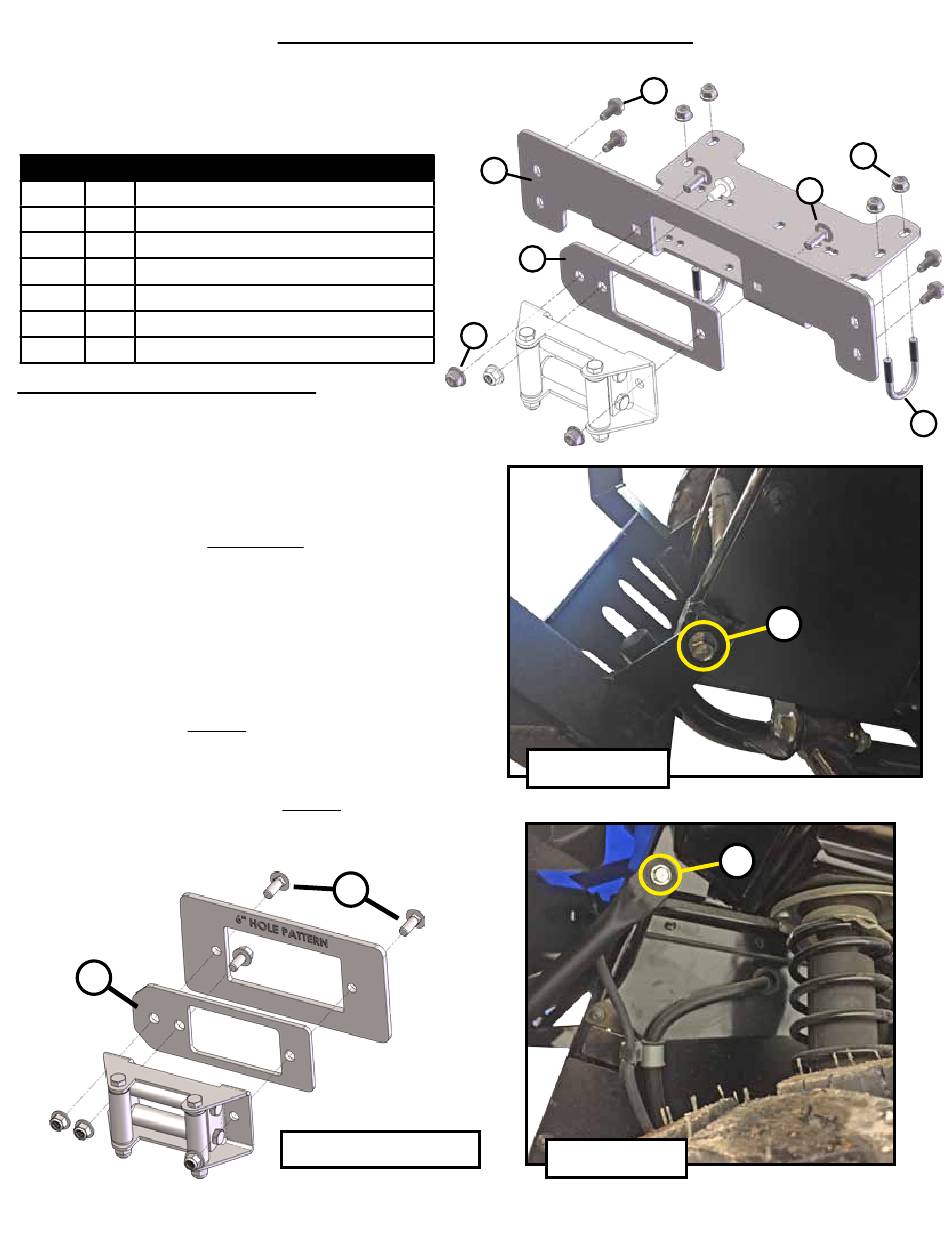

PART # 101380
Hardware Kit: HK-329
Kit Components:
Item # Qty. Description
1
1
Winch Mount
2
1
Winch Converter Bracket
3
4
M8-1.25 X 20mm Thread Forming Bolt
4
2
5/16-18 X 1-1/4 X 2 X 1 U-Bolt
5
4
5/16-18 Nylock Nut
6
2
3/8-16 X 1" Hex Flange Carriage Bolts
7
2
3/8-16 Hex Flange Nylock Nut
INSTALLATION INSTRUCTIONS:
Note: Make sure that all of the hardware needed to complete
this mount are in the package. Read through and understand
the instructions before installing.
1. Remove bolts (A) & (B) on both sides holding the
front bumper onto the machine. Set the bumper aside
for now. Shown in Figures 2 & 3.
2. Note: If you have a wide winch with a bolt pattern
of 6.60" X 3" discard the converter bracket (2), and
mount your fairlead roller like normal. If you have a
two hole, or a standard winch with a bolt pattern of
4.875" X 3" you will need the converter bracket (2).
Attach your fairlead rollers to the converter bracket
and onto the mount using the two supplied carriage
bolts. Shown in Figure 4.
3. Note: Read Before Continuing the Installation! If
you have a 4500lb winch or larger attach it loosely
to the mount at this time. See Figure 5. With most
4500lb winches you will not be able to fit it inside
after mounting the bumper back on. It will also
require cutting some plastic fascia.
2
©2023 Copyright Kappers Fabricating, Inc. All rights reserved
2017 Kawasaki Mule SX
Winch Mount
6
"Figure 4" Example
1
2
7
"Figure 2"
"Figure 3"
3
6
"Figure 1"
A
B
5
4
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HK-329 and is the answer not in the manual?

Questions and answers

Summary of Contents for KFI HK-329

  • Page 1 2017 Kawasaki Mule SX Winch Mount PART # 101380 Hardware Kit: HK-329 Kit Components: Item # Qty. Description Winch Mount Winch Converter Bracket M8-1.25 X 20mm Thread Forming Bolt 5/16-18 X 1-1/4 X 2 X 1 U-Bolt 5/16-18 Nylock Nut 3/8-16 X 1” Hex Flange Carriage Bolts...
  • Page 2 4. Set the mount Item (1) inside the machine. Loosely attach the rear of the mount to the frame tubing using the U-Bolts Item (4) Shown in Figures 6. 5. With the mount in place re-attach the front bumper the same way it was removed. 6. Line up the front of the winch mount Item (1) to the OEM holes on the back side of the bumper. Shown in Figure 7. 7. Attach the winch mount Item (1) to the front bumper (C) using the four M8 Self Threading Bolts Item (3) into the OEM holes. 8. Evenly tighten down the U-Bolts in the back of the mount. 9. Attach the winch to the mount using the hardware provided with your winch. If you have already installed you winch you will tighten it down at this time. “Figure 5” “Figure 7” “Figure 6” ©2023 Copyright Kappers Fabricating, Inc. All rights reserved Page 2...
  • Page 3 WIRING INFORMATION Battery 1. The battery location is under the seat on the driver’s side. 2. We recommend mounting the contactor on the outside of the battery tray. You will have to drill 1/4” holes using the contactor as a template. Then route the winch wires up to the front of the machine through the wire tray.
