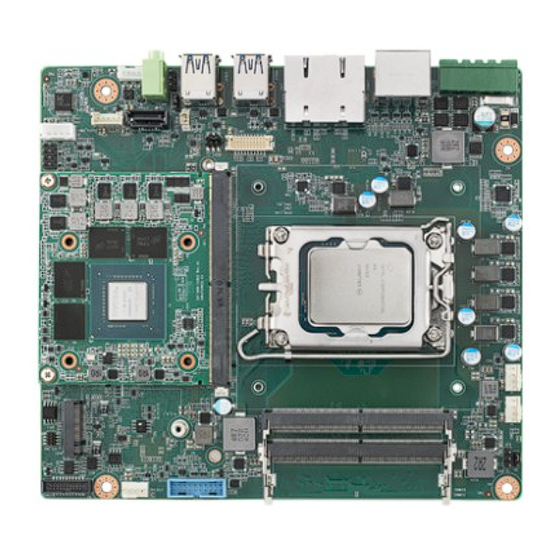

1u thin motherboard with 12th gen intel core processor (lga1700) and mxm gpu integration
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
AIMB-288E
1U THIN Motherboard with 12th
Gen Intel® Core™ Processor
(LGA1700) and MXM GPU
Integration

Advertisement

loading
Need help?

Need help?

Do you have a question about the AIMB-288EH-00A1 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech AIMB-288EH-00A1

Summary of Contents for Advantech AIMB-288EH-00A1

  • Page 1 User Manual AIMB-288E 1U THIN Motherboard with 12th Gen Intel® Core™ Processor (LGA1700) and MXM GPU Integration...

  • Page 2: Product Warranty (2 Years)

    No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.

  • Page 3: A Message To The Customer

    Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 4 Alder Lake 2P+2E/4T SRL6Q G6900TE Alder Lake 2P+2E/2T SRL6P Memory Compatibility Category Speed Capacity Vendor Chip P/N ADVANTECH P/N SQR- DDR5 4800 32 GB Advantech IVA45 D8BNJ SD5N32G4K8MNAB SQR- DDR5 4800 16 GB Advantech 2AA45 D8BNJ SD5N16G4K8MNAB AIMB-288E User Manual...

  • Page 5: Initial Inspection

    M.2 SSD Compatibility Bandwidth Vendor Dimension Interface Vendor Model ADVANTECH P/N Performance Category M.2 B+M NVMe 2280 PCIe v3.1 Advantech SQF-C8BV4-2TDEDC SQF-C8BV4-2TDEDC PCIe SSD M.2 M- NVMe 2242 PCIe v3.1 Advantech SQF-C4MV4-2TDEDC SQF-C4MV4-2TDEDC PCIe SSD M.2 B+M 2280 SATA3 Advantech SQF-SM8V4-1TCSBC SQF-SM8V4-1TCSBC M.2 M-...
  • Page 6 AIMB-288E User Manual...

  • Page 7: Table Of Contents

    Contents Chapter General Introduction ......1 Introduction ....................2 Features ....................2 Specifications .................... 2 1.3.1 System ..................2 1.3.2 Memory ..................2 1.3.3 Input/Output .................. 2 1.3.4 Graphics..................2 1.3.5 Ethernet LAN ................3 1.3.6 Industrial Features ................ 3 1.3.7 Mechanical and Environmental Specifications......
  • Page 8 2.16 MXM Connector (MXM1) ................ 19 2.17 COM Port Pin Header #1/#2 (COM12) ........... 22 2.18 DDR5 SODIMM Socket A1 / B1 (DIMMA1/B1)........23 2.19 CPU FAN Connector (CPUFAN1) ............23 2.20 System Fan #1 Connector / System Fan #2 Connector (SYSFAN1/2)... 23 2.21 SIM Card Socket (SIM1) .................

  • Page 9: Chapter 1 General Introduction

    Chapter General Introduction...

  • Page 10: Introduction

    Introduction AIMB-288E is designed to accommodate the Intel® H610E PCH and NVIDIA Quadro GPU to accelerate edge AI deployment. The motherboard supports desktop Intel® Core i9/i7/i5/i3/Pentium®/Celeron® processors, with up to 30MB SmartCache, and 2 x DDR5 4800MHz SODIMM, up to 64GB in two 262-pin SODIMM sockets. There is also multiple I/O connectivity with 2 x serial ports, 6 x USB 3.2 (Gen1), 2 x GbE LAN, 1 x SATA III, 1 x M.2 B-Key, and 1 x M.2 M-Key connector.

  • Page 11: Ethernet Lan

    1.3.5 Ethernet LAN Supports dual 10/100/1000 Mbps Ethernet port(s) via PCI Express x1 bus which  provides 500MB/s data transmission rates. Controller:  – GbE LAN1: Intel® i219LM – GbE LAN2: Intel® i226V 1.3.6 Industrial Features Watchdog timer: The watchdog timer can generate a system reset. It is pro- ...

  • Page 12: Jumpers And Connectors

    Jumpers and Connectors Connectors on the AIMB-288E motherboard link it to devices such as hard disk drives and a keyboard. In addition, the board has a number of jumpers used to con- figure the system for your application. The tables below list the function of each of the board jumpers and connectors. Later sections in this chapter give instructions on setting jumpers.

  • Page 13: Board Layout: Jumper And Connector Locations

    Board Layout: Jumper and Connector Locations Figure 1.1 Jumper and Connector Locations (Top Side) Figure 1.2 Jumper and Connector Locations (Bottom Side) AIMB-288E User Manual...

  • Page 14: Aimb-288E Board Diagram

    AIMB-288E Board Diagram Figure 1.3 AIMB-288E Board Diagram Safety Precautions Warning! Always completely disconnect the power cord from the chassis when- ever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sud- den power surges.

  • Page 15: Jumper Settings

    Caution! There is danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer’s instructions.

  • Page 16: Watchdog Timer Output And Obs Beep (Jwdt1+Jobs1)

    1.8.3 Watchdog Timer Output and OBS Beep (JWDT1+JOBS1) Table 1.3: Watchdog Timer Output and OBS Beep (JWDT1+JOBS1) Function Jumper Setting Watchdog Timer Output (2-3) OBS BEEP(4-5) (Default) (2 and 3)+(4 and 5) Watchdog Timer Disable (1-2) OBS BEEP(4-5) (Default) (1 and 2)+(4 and 5) 1.8.4 ATX/AT Mode Selection (PSON1) Table 1.4: ATX/AT Mode Selection (PSON1)

  • Page 17: Com1 Ri# Pin Ri# / 5V/12V Select (Jsetcom1_V1)

    1.8.6 COM1 RI# Pin RI# / 5V/12V Select (JSETCOM1_V1) Table 1.6: COM1 RI# Pin RI# / 5V/12V Select (JSETCOM1_V1) Function Jumper Setting Jumper position for RI# (default) Jumper position for +5V Jumper position for +12V System Memory AIMB-288E has two sockets for a 262-pin DDR5 SODIMM. These sockets use a 1.2V unbuffered double data rate synchronous DRAM (DDR SDRAM).

  • Page 18: Processor Installation

    1.12 Processor Installation The AIMB-288E is designed to support 12th Gen Intel® Core™ i9/Core™ i7/ Core™ i5/Core™ i3, Pentium®, Celeron® (LGA1700) processors. AIMB-288E User Manual...

  • Page 19: Chapter 2 Connecting Peripherals

    Chapter Connecting Peripherals...

  • Page 20: Introduction

    Introduction You can access most of the connectors from the top of the board as it is being installed in the chassis. If you have a number of cards installed or have a packed chassis, you may need to partially remove the card to make all the connections. DC Input Connector (DCIN1) Signal 19V ~ 24V...

  • Page 21: Lan1/2 (Rj-45)

    LAN1/2 (RJ-45) Signal MDI0+ MDI0- MDI1+ MDI2+ MDI2- MDI1- MDI3+ MDI3- USB 3.1 Gen1 1/2/3/4 (USB12/34) Signal Signal VBUS VBUS RX1- RX2- RX1+ RX2+ TX1- TX2- TX1+ TX2+ AIMB-288E User Manual...

  • Page 22: Hd Audio Interface (Line-Out) (Audio1)

    Signal Signal VBUS VBUS RX1- RX2- RX1+ RX2+ TX1- TX2- TX1+ TX2+ HD Audio Interface (Line-Out) (Audio1) Signal LINE OUT - L LINE OUT - R Front Panel Audio Header (JFPAUD1) Signal Signal MIC-L MIC-R AGND Jack Detect AIMB-288E User Manual...

  • Page 23: Amplifier Connector (Amp1)

    Amplifier Connector (AMP1) Signal USB 3.1 Gen1 5/6 (USB56) Signal Signal VBUS RX1- RX1+ TX2+ TX1- TX2- TX1+ RX2+ RX2- VBUS 2.10 Serial ATA Interface Connector #1 (SATA1) Signal AIMB-288E User Manual...

  • Page 24: Serial Ata Interface Power Connector (Satapwr1)

    2.11 Serial ATA Interface Power Connector (SATAPWR1) Signal +12V 2.12 Embedded DisplayPort Connector (EDP1) Signal Signal TX0- TX3- TX0+ TX3+ TX1- TX1+ AUX- AUX+ TX2- TX2+ +VDD_EDP +VDD_EDP 2.13 EDP Backlight Inverter Power Connector (INV1) Signal +V12 Enable backlight Brightness control AIMB-288E User Manual...

  • Page 25: Ngff M.2 M-Key Connector For 2280 Module (M2M1)

    2.14 NGFF M.2 M-Key Connector for 2280 Module (M2M1) Signal Signal +3.3V +3.3V PCIE_RX- PCIE_RX+ PCIE_TX- +3.3V PCIE_TX+ +3.3V +3.3V PCIE_RX- +3.3V PCIE_RX+ PCIE_TX- PCIE_TX+ PCIE_RX- PCIE_RX+ PCIE_TX- PCIE_TX+ DEVSLP PCIE_RX0- / SATA_RX+ PCIE_RX0+ / SATA_RX- PCIE_TX0- / SATA_TX- PCIE_TX0+ / SATA_TX+ PLTRST# CLKREQ# PCIE_CLK-...

  • Page 26: Ngff M.2 B-Key Connector For 3042 Module (M2B1)

    2.15 NGFF M.2 B-Key Connector for 3042 Module (M2B1) Signal Signal CFG3 +3.3V +3.3V FULL_CARD_OFF# USB_D+ W_DISABLE1# USB_D- LED1# CFG0 WAKE_WWAN# W_DISABLE2# USB3_RX- UIM_RESET USB3_RX+ UIM_CLK UIM_DATA USB3_TX- UIM_PWR USB3_TX+ DEVSLP PCIERX- / SATARX+ PCIERX+/SATARX- PCIE_CLK- PCIE_CLK+ PLTRST# CLKREQ# AIMB-288E User Manual...

  • Page 27: Mxm Connector (Mxm1)

    PCIE_CLKREQ# PCIE_WAKE# PCIE_WAKE# LAA_TXEN WLAN_TXEN SIMDET RESET# SUSCLK CFG1 +3.3V +3.3V +3.3V CFG2 2.16 MXM Connector (MXM1) Signal Signal +12V +12V PRESENT# PCIE_WAKE# MXM_PWRGD MXM_PWR_LEVEL MXM_TH_OVERT# MXM_TH_ALERT# SMB_DAT SMB_CLK AIMB-288E User Manual...
  • Page 28 PCIE_TX0- PCIE_RX0- PCIE_TX0+ PCIE_RX0+ PCIE_TX1- PCIE_RX1- PCIE_TX1+ PCIE_RX1+ PCIE_TX2- PCIE_RX2- PCIE_TX2+ PCIE_RX2+ PCIE_TX3- PCIE_RX3- PCIE_TX3+ PCIE_RX3+ PCIE_TX4- PCIE_RX4- PCIE_TX4+ PCIE_RX4+ PCIE_TX5- PCIE_RX5- PCIE_TX5+ PCIE_RX5+ PCIE_TX6- PCIE_RX6- PCIE_TX6+ PCIE_RX6+ PCIE_TX7- PCIE_RX7- PCIE_TX7+ PCIE_RX7+ PCIE_TX8- PCIE_RX8- PCIE_TX8+ PCIE_RX8+ PCIE_TX9- PCIE_RX9- PCIE_TX9+ PCIE_RX9+ PCIE_TX10- PCIE_RX10- PCIE_TX10+...
  • Page 29 PCIE_RX14+ PCIE_TX15- PCIE_RX15- PCIE_TX15+ PCIE_RX15+ MXM_CLKREQ# PCIE_CLK- MXM_RST# PCIE_CLK+ +3.3V AIMB-288E User Manual...

  • Page 30: Com Port Pin Header #1/#2 (Com12)

    +3.3V +3.3V +3.3V MXM_PRSNT# 2.17 COM Port Pin Header #1/#2 (COM12) Signal Signal COM1_DCD# COM1_DSR# COM1_SIN COM1_RTS# COM1_SOUT COM1_CTS# COM1_DDTR# COM1_RI# COM2_DCD# COM2_DSR# COM2_SIN COM2_RTS# COM2_SOUT COM2_CTS# COM2_DDTR# COM2_RI# AIMB-288E User Manual...

  • Page 31: Ddr5 Sodimm Socket A1 / B1 (Dimma1/B1)

    2.18 DDR5 SODIMM Socket A1 / B1 (DIMMA1/B1) Please see JEDEC STANDARD 2.19 CPU FAN Connector (CPUFAN1) Signal FAN SPEED 2.20 System Fan #1 Connector / System Fan #2 Connector (SYSFAN1/2) Signal FAN SPEED AIMB-288E User Manual...

  • Page 32: Sim Card Socket (Sim1)

    2.21 SIM Card Socket (SIM1) Signal UIM_PWR UIM_RESET UIM_CLK UIM_VPP UIM_DATA SIM_DET 2.22 LED Port 80 Connector (LED_P80) Signal LED_A LED_B LED_C LED_D LED_E LED_F LED_G DGH0# DGL0# AIMB-288E User Manual...

  • Page 33: Voltage Selection For Edp1 Connector (Jedp1)

    2.23 Voltage Selection for EDP1 Connector (JEDP1) Signal Signal +V12 +VDD_EDP +V3.3 2.24 CMOS Battery Connector (BAT1) Signal +VBAT 2.25 RTC Reset Pin Header (JCMOS1) Signal N.C. RTC RESET# 2.26 PWRBTN# / RESET# / HDD LED / SM Bus (JFP1) Signal Signal HDD_LED+...

  • Page 34: Power Led Pin Header (Jfp2)

    2.27 Power LED Pin Header (JFP2) Signal PWR_LED+ N.C. PWR_LED- 2.28 AT/ATX Mode Selection (PSON1) Signal VCCAT +3.3V VCCATX AIMB-288E User Manual...

  • Page 35: Bios Operation

    Chapter BIOS Operation...

  • Page 36: Introduction

    Fan2 to “Smart Fan” mode as the default. BIOS-2 (A288000H260VXXX.BIN) configures the AIMB-288E System Fan2 to “Manual” mode at full speed. BIOS-1 (A288000H160VXXX): Supports Advantech T1000/A2000/A500 smart fan control (Fan controlled by AIMB-288E System Fan2). BIOS-2(A288000H260VXXX): Supports VEGA-X110 (Fan controlled by AIMB-288E System Fan2).

  • Page 37: Main Menu

    3.2.1 Main Menu Press <Del> to enter the AMI BIOS CMOS Setup Utility. The Main Menu will appear on the screen. Use the arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured.

  • Page 38: Advanced Bios Features

    3.2.2 Advanced BIOS Features Select the Advanced tab from the AIMB-288E setup menu to enter the Advanced BIOS setup page. Users can select any item in the left frame of the screen, such as CPU configuration. Select an Advanced BIOS setup option by highlighting the text using the <Arrow>...
  • Page 39 3.2.2.1 CPU Configuration Advanced → CPU Configuration Efficient-core Information Advanced → CPU Configuration → Efficient-core Information AIMB-288E User Manual...
  • Page 40 Performance-core Information Advanced → CPU Configuration → Performance-core Information CPU SMM Enhancement Advanced → CPU SMM Enhancement AIMB-288E User Manual...
  • Page 41 3.2.2.2 Power & Performance Advanced → Power & Performance CPU – Power Management Control Advanced → Power & Performance → CPU – Power Management Control AIMB-288E User Manual...
  • Page 42 Current Turbo Settings Advanced → Power & Performance → CPU – Power Management Control → View/ Configure Turbo Ratio AIMB-288E User Manual...
  • Page 43 Turbo Ratio Limit Options Advanced → Power & Performance → CPU – Power Management Control → View/ Configure Turbo Ratio → Turbo Ratio Limit Options AIMB-288E User Manual...
  • Page 44 CPU VR Settings Advanced → Power & Performance → CPU – Power Management Control → CPU VR Settings   AIMB-288E User Manual...
  • Page 45 Acoustic Noise Settings Advanced → Power & Performance → CPU – Power Management Control → CPU VR Settings → Acoustic Noise Settings Core/IA VR Settings Advanced → Power & Performance → CPU – Power Management Control → CPU VR Settings → Core/IA Settings AIMB-288E User Manual...
  • Page 46 GT VR Settings Advanced → Power & Performance → CPU – Power Management Control → CPU VR Settings → GT VR Settings AIMB-288E User Manual...
  • Page 47 RFI Settings Advanced → Power & Performance → CPU – Power Management Control → CPU VR Settings → RFI Settings   AIMB-288E User Manual...
  • Page 48 Custom P-state Table Advanced → Power & Performance → CPU – Power Management Control → Cus- tom P-state Table CPU Lock Configuration Advanced → Power & Performance → CPU – Power Management Control → CPU Lock Configuration AIMB-288E User Manual...
  • Page 49 GT – Power Management Control Advanced → Power & Performance → GT – Power Management Control 3.2.2.3 PCH-FW Configuration Advanced → PCH-FW Configuration AIMB-288E User Manual...
  • Page 50 Firmware Update Configuration Advanced → PCH-FW Configuration → Firmware Update Configuration   PTT Configuration Advanced → PCH-FW Configuration → PTT Configuration AIMB-288E User Manual...
  • Page 51 FIPS Configuration Advanced → PCH-FW Configuration → FIPS Configuration   ME Debug Configuration Advanced → PCH-FW Configuration → ME Debug Configuration AIMB-288E User Manual...
  • Page 52 SMBIOS Type 130 OEM Capabilities Advanced → PCH-FW Configuration → ME Debug Configuration → SMBIOS Type 130 OEM Capabilities   Anti-Rollback SVN Configuration Advanced → PCH-FW Configuration → Anti-Rollback SVN Configuration AIMB-288E User Manual...
  • Page 53 OEM Key Revocation Configuration Advanced → PCH-FW Configuration → OEM Key Revocation Configuration 3.2.2.4 Trusted Computing Settings Advanced → Trusted Computing AIMB-288E User Manual...
  • Page 54 3.2.2.5 ACPI Settings Advanced → ACPI Settings 3.2.2.6 NCT6126D Super IO configuration Advanced → NCT6126D Super IO Configuration AIMB-288E User Manual...
  • Page 55 Serial Port 1 Configuration Advanced → NCT6126D Super IO Configuration → Serial Port 1 Configuration   Serial Port 2 Configuration Advanced → NCT6126D Super IO Configuration → Serial Port 2 Configuration AIMB-288E User Manual...
  • Page 56 3.2.2.7 NCT6126D HW Monitor Advanced → NCT6126D HW Monitor   Smart Fan Function Advanced → NCT6126D HW Monitor → Smart Fan Function AIMB-288E User Manual...
  • Page 57 3.2.2.8 S5 RTC Wake Settings Advanced → S5 RTC Wake Settings AIMB-288E User Manual...
  • Page 58 3.2.2.9 Serial Port Console Redirection Advanced → Serial Port Console Redirection   Legacy Console Redirection Settings Advanced → Serial Port Console Redirection → Legacy Console Redirection Set- tings AIMB-288E User Manual...
  • Page 59 3.2.2.10 USB Configuration Advanced → USB Configuration 3.2.2.11 Network Stack Configuration Advanced → Network Stack Configuration AIMB-288E User Manual...
  • Page 60 3.2.2.12 NVMe Configuration Advanced → NVMe Configuration 3.2.2.13 TLS Auth Configuration Advanced → TLS Auth Configuration AIMB-288E User Manual...
  • Page 61 3.2.2.14 Driver Health Advanced → Driver Health AIMB-288E User Manual...

  • Page 62: Chipset Configuration Settings

    3.2.3 Chipset Configuration Settings Select the chipset tab from the BIOS setup screen to enter the Chipset Setup screen. Users can select any item in the left frame of the screen, such as PCI Express Con- figuration, to go to the sub-menu for that item. Users can display a Chipset Setup option by highlighting it using the <Arrow>...
  • Page 63 3.2.3.1 System Agent (SA) Configuration Chipset → System Agent (SA) Configuration Memory Configuration Chipset → System Agent (SA) Configuration → Memory Configuration AIMB-288E User Manual...
  • Page 64 Graphics Configuration Chipset → System Agent (SA) Configuration → Graphics Configuration External Gfx Card Primary Display Configuration Chipset → System Agent (SA) Configuration → Graphics Configuration → External Gfx Card Primary Display Configuration   AIMB-288E User Manual...
  • Page 65 LCD Control Chipset → System Agent (SA) Configuration → Graphics Configuration → LCD Con- trol DMI/OPI Configuration Chipset → System Agent (SA) Configuration → DMI/OPI Configuration AIMB-288E User Manual...
  • Page 66 DMI Advanced Menu Chipset → System Agent (SA) Configuration → DMI/OPI Configuration → DMI Advanced Menu AIMB-288E User Manual...
  • Page 67 PCI Express Configuration Chipset → System Agent (SA) Configuration → PCI Express Configuration MXM 3.1 (3D) Controller Chipset → System Agent (SA) Configuration → PCI Express Configuration → MXM 3.1 (3D) Controller AIMB-288E User Manual...
  • Page 68 3.2.3.2 PCH-I/O Configuration Chipset → PCH-IO Configuration AIMB-288E User Manual...
  • Page 69 ErP Support Note Chipset → PCH-IO Configuration → ErP Support When ErP is enabled, restore AC power loss & the below features are not supported. [USB: S3/S4] [PCIE Wake] Connect to PCIe slots depending on add-on card driver behavior. [RTC: S5] [WOR: S5] [WOL: depends on LAN chip and driver behavior (GBE)] Supports S3/S4/S5 (with I219 &...
  • Page 70 PCI Express Configuration Chipset → PCH-IO Configuration → PCI Express Configuration   PCIe EQ Settings Chipset → PCH-IO Configuration → PCI Express Configuration → PCIe EQ Settings AIMB-288E User Manual...
  • Page 71 M.2 B-Key Chipset → PCH-IO Configuration → PCI Express Configuration → M.2 B-Key AIMB-288E User Manual...
  • Page 72 RENESAS (PCIE to USB) Chipset → PCH-IO Configuration → PCI Express Configuration → RENESAS (PCIE to USB) AIMB-288E User Manual...
  • Page 73 LAN2 Chipset → PCH-IO Configuration → PCI Express Configuration → LAN2 AIMB-288E User Manual...
  • Page 74 M.2 M-Key Chipset → PCH-IO Configuration → PCI Express Configuration → M.2 M-Key AIMB-288E User Manual...
  • Page 75 SATA Configuration Chipset → PCH-IO Configuration → SATA Configuration AIMB-288E User Manual...
  • Page 76 Security Configuration Chipset → PCH-IO Configuration → Security Configuration HD Audio Subsystem Configuration Settings Chipset → PCH-IO Configuration→ HD Audio Subsystem Configuration Settings AIMB-288E User Manual...

  • Page 77: Security

    3.2.4 Security Administrator Password  Select this option and press <ENTER> to access the sub-menu, and then type in the password. Set the administrator password. User Password  Select this option and press <ENTER> to access the sub-menu, and then type in the password.

  • Page 78: Boot Settings

    Secure Boot Security → Secure Boot 3.2.5 Boot Settings AIMB-288E User Manual...

  • Page 79: Save & Exit Configuration

    Setup Prompt Timeout  User the <+> and <-> keys to adjust the number of seconds to wait for the setup activation key. Bootup NumLock State [Off]  Set the power to the On or Off state for the NumLock. Quiet Boot [Disabled] ...
  • Page 80 Save Changes and Reset  When users have completed system configuration, select this option to save changes, exit the BIOS setup menu, and reboot the computer for changes to take effect. 1. Select Save Changes and Reset from the Save & Exit menu and press <Enter>.

  • Page 81: Software Introduction & Service

    Chapter Software Introduction & Service...

  • Page 82: Introduction

    Introduction The mission of Advantech Embedded Software Services is to "Enhance quality of life with Advantech platforms and Microsoft® Windows® embedded technology." We enable Windows® Embedded software products on Advantech platforms to more effectively support the embedded computing community. Customers are freed from the hassle of dealing with multiple vendors (hardware suppliers, system integrators, embedded OS distributors) for projects.
  • Page 83 Backlight The Backlight API allows a developer to control the backlight (screen) on/off in embedded devices. 4.2.1.3 Monitor Watchdog A watchdog timer (WDT) is a device that performs a specific operation after a certain period of time if something goes wrong and the system does not recover on its own.

  • Page 84: Software Utility

    4.2.2 Software Utility BIOS Flash The BIOS Flash utility allows customers to update the flash ROM BIOS version, or use it to back up the current BIOS by copying it from the flash chip to a file on a customer’s disk.

  • Page 85: Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 86: Before You Begin

    To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the AIMB-288E are located on the Advantech support website: http://support.advantech.com/support. The driv- ers on the support website will guide and link you to the utilities and drivers under a Windows system.

  • Page 87: Vga Setup

    Chapter VGA Setup...

  • Page 88: Introduction

    Introduction The AIMB-288E is embedded with an integrated Nvidia T1000 MXM GPU card. You need to install the T1000 driver to enable the function. Optimized integrated graphics solution: the Intel® Flexible Display Interface supports versatile display options and a 32-bit 3D graphics engine. Dual independent displays include enhanced display modes for widescreen flat panels for extended, twin, clone, and dual display modes, and optimized 3D support delivers an intensive and realistic visual experience.

  • Page 89: Lan Configuration

    Chapter LAN Configuration...

  • Page 90: Introduction

    Introduction The AIMB-288E has two Gigabit Ethernet LANs via dedicated PCI Express x1 lanes. Intel® i226V and I219LM (Phy) both offer bandwidth of up to 500 MB/sec, eliminating the bottleneck of network data flow and incorporating Gigabit Ethernet at 1000 Mbps. Features Integrated 10/100/1000 Mbps transceiver ...

  • Page 91: Windows® 10 Driver Setup (Intel® I219Lm & Intel® I226V)

    Windows® 10 Driver Setup (Intel® i219LM & Intel® i226V) Download the driver from the support website to your computer and decompress the file. Select “Autorun”, then navigate to the directory for your OS. Note! Before installing this driver, make sure the CSI utility has been installed in your system.
  • Page 92 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. ©Advantech Co., Ltd. 2024...
