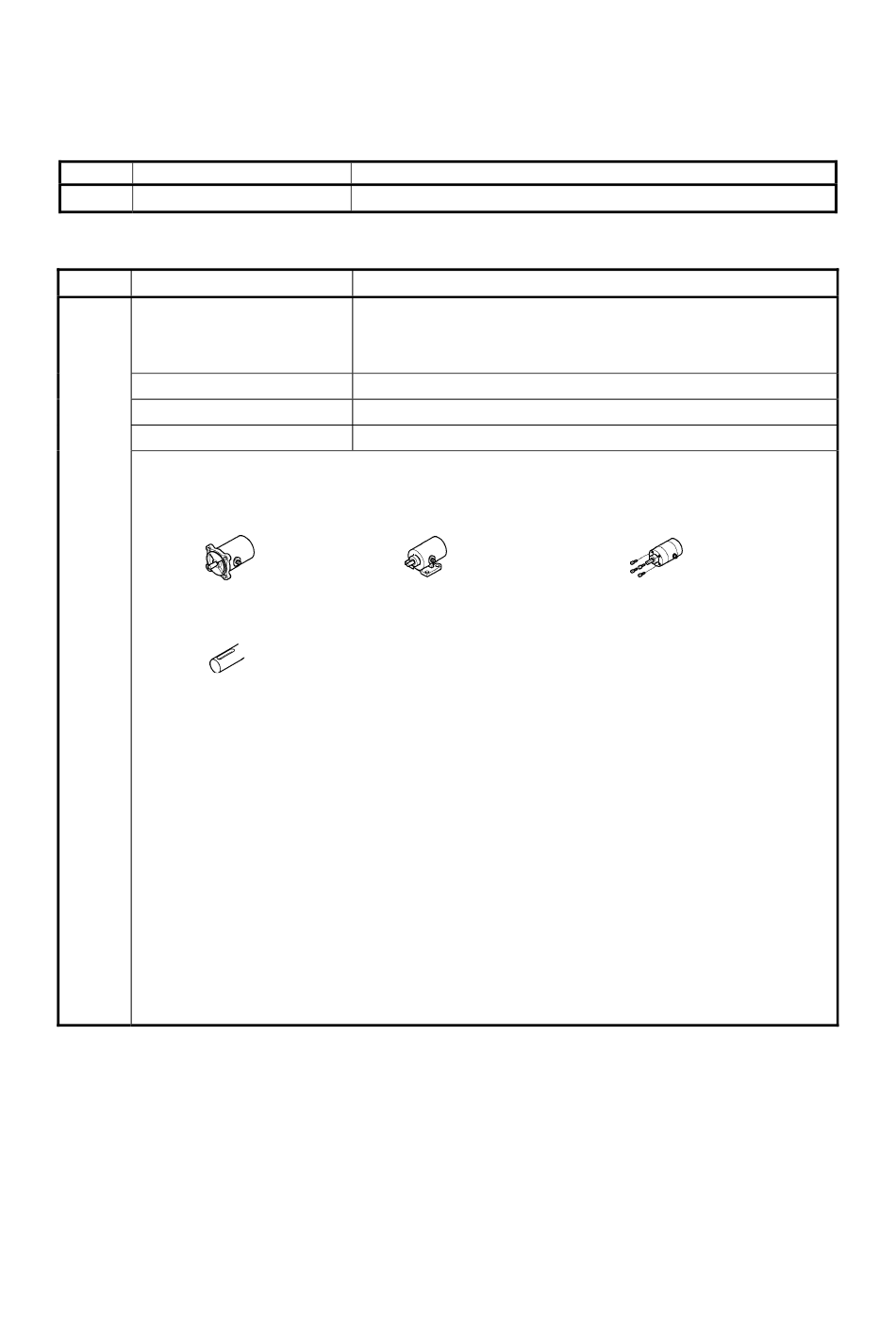

●Model List
◆ Converter
No.
(1) NCV-220HFEV1R
◆ ABSOCODER sensor
No.
VRE-P061FK[2]
VRE-P074[1]K[2][L][-G]
VRE-P097[1]K[2][L][-G]
VRE-P101[1]K[2][L][-G]
[1]: Mounting format
F: Flange-mount type
K: Input shaft (sunk key)
(2)
[2]: Connector type
B: Standard connector for the NSD special cable
(NJW-2012PM8, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
P: Large connector for JKPEV-S cable
(NWPC-4012-Ad12, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
R: Crimping terminals for JKPEV-S cable and the NSD special cable (R1.25-4)
[L]: Interconnecting sensor cable length (m)
2: 2m, 5: 5m, 10: 10m, 20: 20m
[-G]: Silicon oil
-G :Silicon oil injected
no code: no oil injected
Model
For single-turn type ABSOCODER sensor
Model
General environment type
Mounting format: Flange-mount type
With Interconnecting cable 2m
Compact size heavy duty type, SUS
Heavy duty type, spheroidal graphite iron castings
Heavy duty type, SUS
L: Base-mount type
Descriptions
Descriptions
M: Face-mount type
(Only available for VRE-P074)
