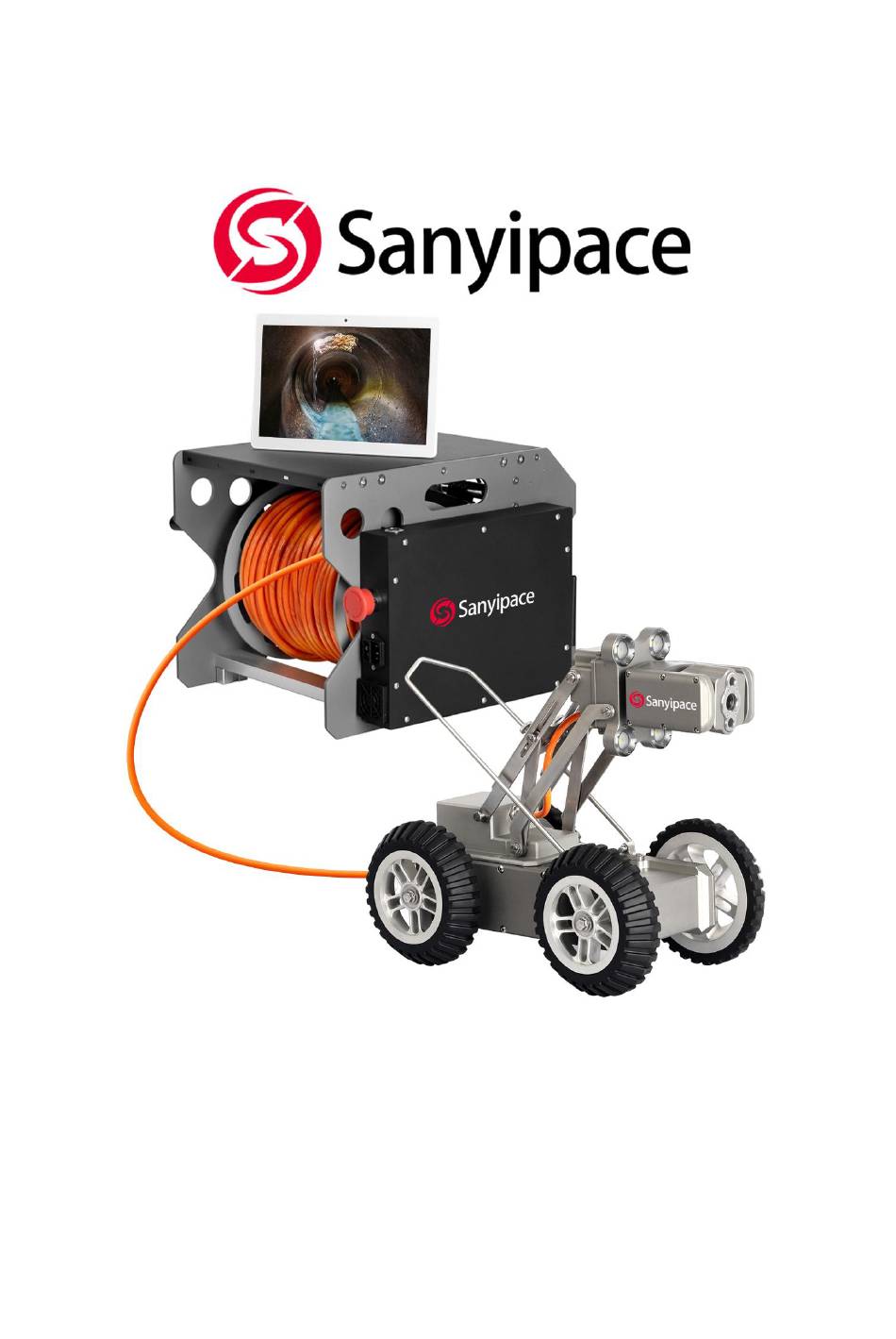

Crawler Robot Sewer Camera
User Manual
Model No:U99360
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
Website After-sale: service@sanyipace.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U99360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanyipace U99360

  • Page 1 Crawler Robot Sewer Camera User Manual Model No:U99360 ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product Website After-sale: service@sanyipace.com...
  • Page 2: Table Of Contents

    Catalog 1. Notice ......................1 2. Scope of Product Use ................1 3. Product Specification ................2 4. Specifications ..................3 5. Tablet WIFI Connection and Control ..........4 6. How to Use .....................7 7. How to Connect The System ...............8 8. Structure & Accessories ..............13 9.
  • Page 3: Notice

    Notice Dear users: Thank you for choosing this product. For your safety and for your correct use of the robot to give full play to its various functions and performance, please read this manual carefully before using the product, and operate by the relevant installation, maintenance, and precautions in this manual.
  • Page 4: Product Specification

    Product Specification ---Robot Sewer Camera Body---  All-metal anti-oxidation and corrosion-resistant body, IP68 waterproof.  Four motor-driven wheels, all-time stand-by and powerful. The driving speed of the machine can be adjusted in high, medium, and low three levels.  Special-shaped non-skid tires, designed according to the force in the pipeline, are suitable for all kinds of wet and slippery scenes.
  • Page 5: Specifications

    Specifications Part Item Specifications Material High Strength Alloy Material Motoring Mode Four-wheel Motoring Moving Mode Four-wheel Crawling 6.6ft-82ft/min Speed 3 levels of adjustable speed Motor Power 100W Camera Pixel 2 Megapixel Robot Sewer 360 Degrees Constant Speed Lens Rotation Angle Infinite Rotation Camera Lens Flip Angle...
  • Page 6: Tablet Wifi Connection And Control

    Tensile, Scratch and Cable Material Corrosion Resistant Cable Wire Winding Mode Automatic Wire Winding Wire Frame Meter Count Mode Electronic Counter Power Supply 110V-220V 400mm*444.7mm*300mm Wire Frame Size (standard) Wire Frame Weight 15.8KG (standard) ---Operating Environment and Conditions--- Pipe diameter: >300MM(12 in) Temperature: -10 °...
  • Page 7 2. Enter the original password: 12345678, and connect to WIFI. 3. Enter the interface: open the icon of the installed robot program and click GO to enter the control interface.
  • Page 8 4. Interface function Recording Function: ①Video Play ②Album ⑤Video Recording ⑥Photography Light Control: ④Rear Light Switch ⑦Front Light Brightness Adjustment Switch ⑧Front Auxiliary Camera Light Brightness Adjustment Switch...
  • Page 9: How To Use

    180°Rotation Function of Camera: ③Front/Rear Camera ⑪Front Camera Left Rotation ⑫ Front Camera Upward Rotation ⑬Front Camera Right Rotation ⑭Front Camera Downward Rotation ⑮Front Camera Reset Moving Function: ⑳Turning Left ⑰Forward ⑲Backword ⑱Turning Right ⑯High/Medium/Low Level Switch Distance Count Function: ⑩Meter Counter Reset Cable Meter Display ○...
  • Page 10: How To Connect The System

    image requirements. 4. After the cable transmission is normal, the vehicle speed can be adjusted according to the detective's requirements. 5. During the process, pay close attention to the state of various parameters, especially the information on the vehicle's tilt state, to prevent the vehicle from overturning.
  • Page 15: Structure & Accessories

    Structure & Accessories...
  • Page 17 Package List...
  • Page 18: Trouble & Troubleshooting

    Trouble & Troubleshooting...
  • Page 19 Trouble Troubleshooting 1. Check whether the power is correctly connected. 2. Check whether the main switch indicator is steady No power on or whether the plug is in good contact. 3. Whether the emergency stop button is locked. 1. Check whether the interface is locked. The robot can walk, 2.
  • Page 20: Warranty

    If the fault cannot be solved, do not disassemble by yourself. Please get in touch with our after-sales Note service email service@sanyipace.com. How to Care and Maintenance: 1. Daily maintenance and care: The machine must be kept clean and tidy, and shall not be placed in places with volatile or corrosive substances.
