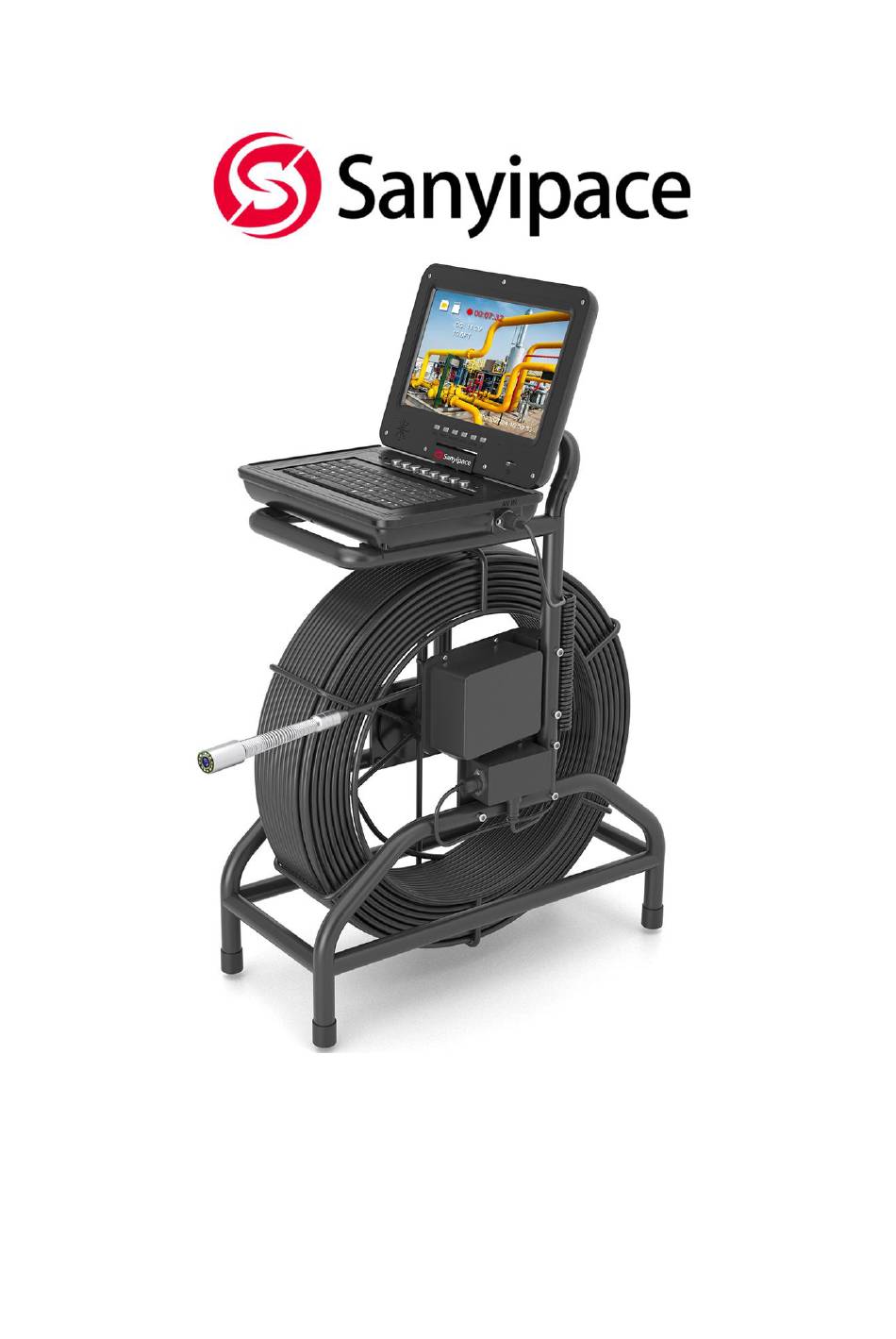

Pipe Inspection Camera System
User Manual
Model No：S810ASMKT
NOTE: Please unlock the cable coil lock before pulling the cable!
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
Amazon After-sale: support@sanyipace.com
Website After-sale: service@sanyipace.com
Advertisement
Table of Contents
Related Manuals for Sanyipace S810ASMKT
Summary of Contents for Sanyipace S810ASMKT
- Page 1 Pipe Inspection Camera System User Manual Model No：S810ASMKT NOTE: Please unlock the cable coil lock before pulling the cable! ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product Amazon After-sale: support@sanyipace.com Website After-sale: service@sanyipace.com...
- Page 2 ● Scan this QR code to get the electronic version of the instruction in English. ● Scannen Sie diesen QR -Code, um die elektronische Version der Anweisung auf Deutsch abzurufen. ● Scannez ce code QR pour obtenir la version électronique de l'instruction en Français.
-
Page 3: Table Of Contents
Catalog 1. Notice ....................1 2. Scope of Product Use ..............1 3. Product Specification ...............1 4. Monitor Buttons Operation ..............3 5. Cable Coil and Distance Counter ..........5 6. Control Panel & Keyboard Input ............ 6 7. Camera with Self-leveling Function & 512Hz Transmitter ..7 8. -
Page 4: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. e. - Page 5 Camera pipe pulley: 4.25in*1.8in/108mm*45mm Cable diameter and material: 0.28in/7mm diameter Semi-rigid Cable;164ft/50m, 230ft/70m and 328ft/100m of length optional ---Monitor Screen--- Size: 10.1-inch Camera/monitor picture: IPS LCD color Function: Video recording, Audio recording, Speaker, capture photos, 5X digital zoom, Battery voltage display, Distance counter, 512Hz transmitter, self-leveling, keyboard input (support English), etc.
-
Page 6: Monitor Buttons Operation
4. Monitor Buttons Operation TF card: including 16GB, maximum support 128GB card Built-in microphone and speaker Display Operation : - Turn On Connect the camera head to the cable coil, connect the connection cable to the monitor and screw it, turn on the on/off switch on the control panel and press the power button on the monitor, and the system starts. - Page 7 - How to Take Photos: Press ">/PHOTO" to capture a photo, press one at a time. - How to Zoom the Image While Recording: Press "<" to zoom in 0-5 times, press the 6th time to return to normal (0). - How to Delete Pictures or Videos: Press "PLAY/+"...
-
Page 8: Cable Coil And Distance Counter
5. Cable Coil and Distance Counter 7mm/0.28inch semi-rigid cable was coiled in the cable reel (with 47cm/18.5inch diameter). it is easy to operate, just pull to release cable and push back to coil the cable. but PLEASE LOOSEN THE SCREW ON THE CABLE COIL CENTRE BEFORE YOU PULL THE CABLE. -
Page 9: Control Panel & Keyboard Input
6. Control Panel & Keyboard Input ① OFF/ON Switch: battery on/off switch (Note: please turn off the switch when not in use) ② LED brightness adjustment (0-5 gear) ③ Counter reset button/ meter and feet switch button ④ Low Battery Indicator：it flashes when low battery ⑤... -
Page 10: Camera With Self-Leveling Function & 512Hz Transmitter
7. Camera with Self-leveling Function & 512Hz Transmitter Camera probe size details: The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m... -
Page 11: Battery & Charger
Self-leveling can be defined as the ability of any instrument to level itself regardless of the angle of inclination. Camera probe is equipped with a self-leveling gravity bearing on the camera probe that could automatically adjust direction and level when taking videos/pictures to deliver upright pictures all time, helping users to position. - Page 12 The steps of charging are as follows: a. Take out the DC adapter from the box. b. Connect the DC adapter port to the charging port (on the back of the monitor). c. Plug the DC adapter into 100-240V AC, when the indicator light is in red, it means it is charging.
-
Page 13: Device Installation
9. Device Installation a. Connect the video cable to the AV/IN port on the side of monitor box and tighten. b. Connect the camera head to the cable coil end tighten. c. Push the ON/OFF button on the control panel to turn on the battery, then press the power button on the monitor to turn on the screen. -
Page 14: Structure & Accessories
10. Structure & Accessories ①Monitor and keyboard *1 ②16GB SD Card*1 ③User manual * 1 ④Metal Bracket * 1 ⑤Fibreglass Cable coil * 1 ⑥Camera head * 1 ⑦4.5in/108mm Pipe Pulley*1 ⑧1.5in/38mm Protective Cover*1 ⑨ DC Adapter*1 ⑩Screwdriver*1 11. Trouble & Troubleshooting Trouble Troubleshooting a. -
Page 15: Warranty
Use a voltage tester to test all connectors, find out the damaged part and contact Sanyipace to deal with it. 12. Warranty We provide a one-year product quality warranty from the date of purchase and provide free lifetime product technical support.
