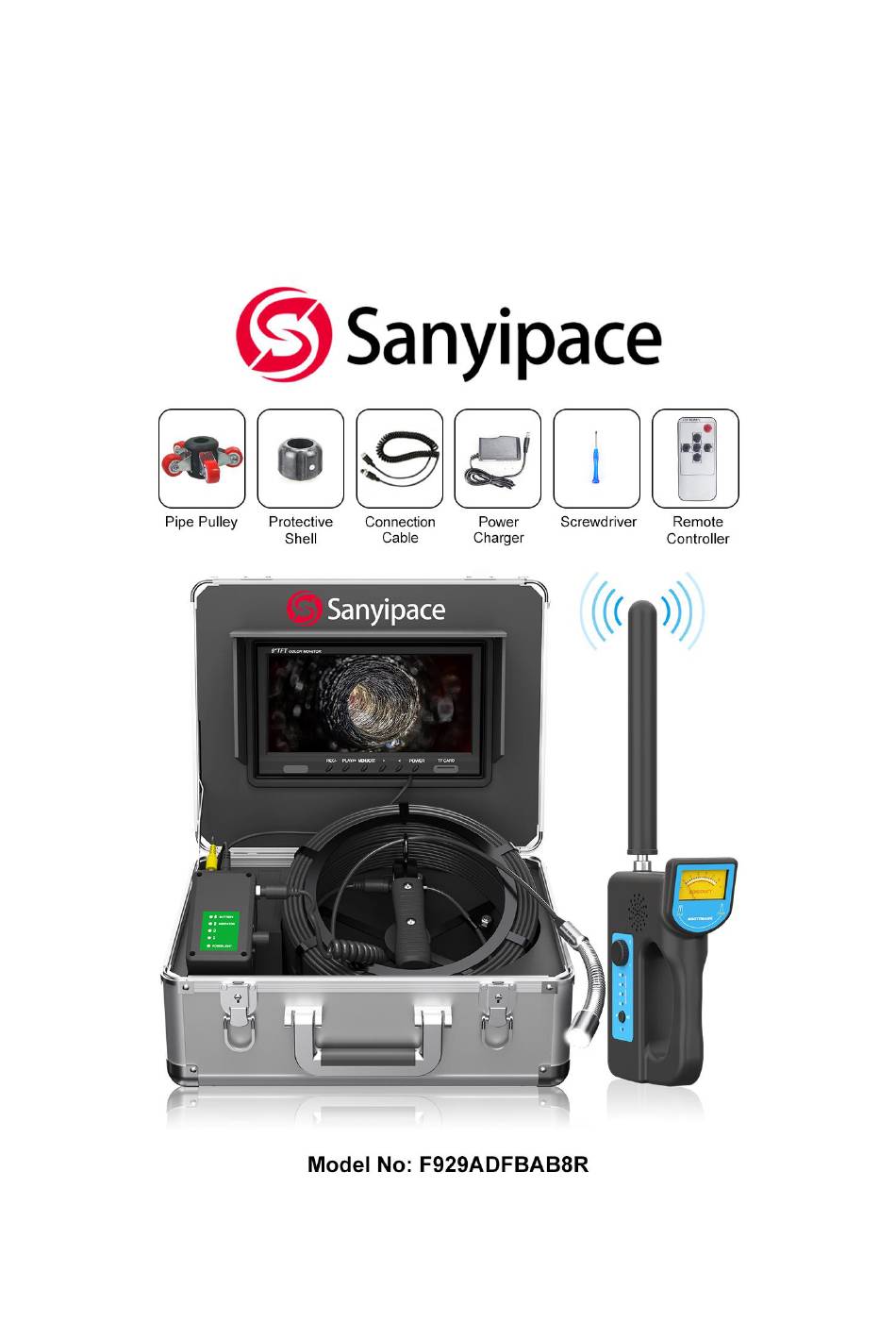

- Page 1 Sewer Camera with 512Hz Transmitter and Detector Locator User Manual ---------------------------------------------------------------------------------------------------------------------- Please contact us at the first time if you got issues with the product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Notice ....................1 2. Range of Product Use ..............1 3. Product Specification ..............1 4. 9’’ LCD Monitor Operation ............2 5. 4500mAh Battery ................4 6. Power Charger ................5 7. Cable Coil ..................5 8. Remote Controller ................ 6 9. -
Page 3: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. -
Page 4: Lcd Monitor Operation
Camera diameter: 0.9in/23mm (built-in 512Hz transmitter, self-leveling) Camera light source: 12pcs 1W high white LED (adjustable) Camera material: stainless steel, sapphire lens, IP68 waterproof Camera protective cover size: 1.5in*1.1in/38mm*28mm Camera pipe pulley: 5.1in*1.1in/130mm*28mm Cable Length: 100ft/30m, 164ft/50m (optional) Cable diameter and material: 0.2in/5mm high elastic cable ---Monitor Screen--- Size: 9-inch Camera/monitor picture: IPS LCD color... - Page 5 Display Operation : -Turn on Connect each component, turn on the switch button on battery and press the power button on screen, the system starts working -Menu setting (need to exit the REC mode) Press MENU to enter, Press "<" ">" to select, press “Rec/- ” to confirm your selection, Press EXIT to back.
-
Page 6: 00Mah Battery
-How to delete the picture or video press “PLAY/+” to enter photo/video viewing, press “>” to choose one of the pictures or videos, press “MENU” and “>” to enter selection of delete or delete all, press “REC” to confirm the selection, press “PLAY/+”... -
Page 7: Power Charger
6. Power Charger When the battery is low power (< 20% ), please recharge it, the charging time is about hours. Working time is 6-8 hours after full charging Note: To make sure the battery has longer use age, please recharge it timely;... -
Page 8: Remote Controller
8. Remote Controller Please be noted that the transparent insulating card protects the battery, you need to remove it before use. VIDEO SELECT: function same with the screen button “PLAY/+” MODE SELECT: function same with the screen button “REC/-” ◀ : function same with the screen button “<” ▶... -
Page 9: Camera With Self-Leveling Function & 512Hz Transmitter
9. Camera with Self-leveling Function & 512Hz Transmitter Camera probe size details: The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m Self-leveling can be defined as the ability of any instrument to —... -
Page 10: 2Hz Locator Detector
level itself regardless of the angle of inclination. Camera probe is equipped with a self-leveling gravity bearing on the camera probe that could automatically adjust direction and level when taking videos/pictures to deliver upright pictures all time, helping users to position. 10. - Page 11 Detector Locator Technical Parameters： Receiver Frequency: 512Hz Detect Distance: about 16.4ft/5m Battery: 3.7V 3000MAH built-in lithium battery Charger: 5V 0.5A Charger time: about 6 hours Battery Indicator: 4 gear, it is flashing when battery is low Battery working time: about 10 hours Signal strength: 6 gear Speaker: support Detect Mode: Far/ Near...
-
Page 12: Wire Diagram
b. Set it as far mode to detect first. When the signal light is on, it means that you have entered into the 512Hz locator position within 16.4ft/5m. c. Then move forward to the direction of the signal, keep finding and moving to the strongest signal, and try slowly reducing sensitivity, until finding out the position which is the strongest signal when sensitivity is weakest. -
Page 13: Failure And Diagnosis
12. Failure and Diagnosis Common problems / Solutions faults a. Check whether each interface is connected correctly; No power b. Check whether the battery is out of power, check the power display. a. Whether the SD card is inserted correctly; b. -
Page 14: Warranty
If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Go to our website to download the user manual or view more products: https://www.sanyipace.com Website After-sale: service@sanyipace.com Amazon After-sale: sanyimrchan@gmail.com Facebook: Sanyipace WhatsApp: +86 137 1399 9105 — 12 —...
