Summary of Contents for Sanyipace F9C13

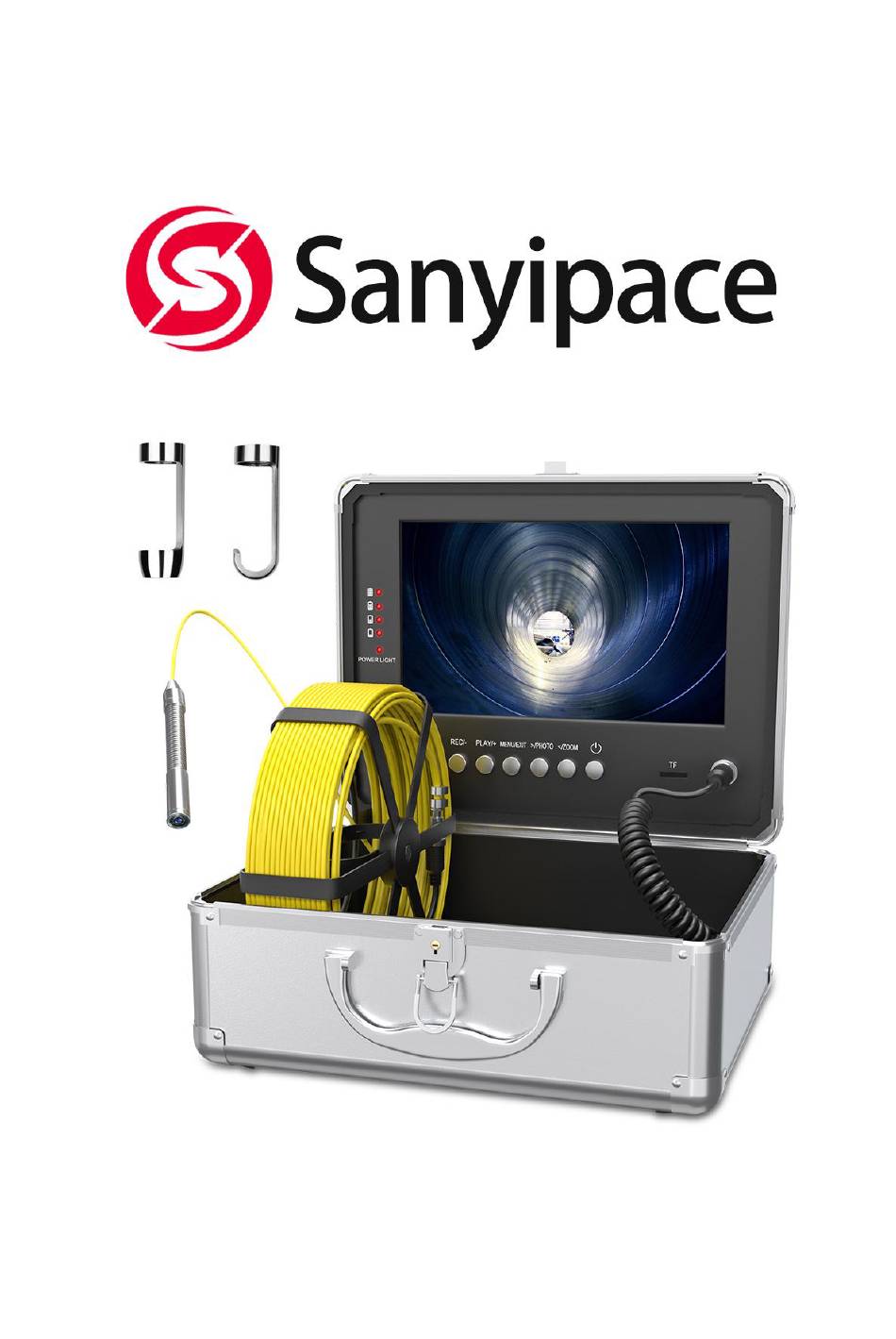

- Page 1 Sewer Inspection Camera User Manual Model No.: F9C13 ----------------------------------------------------------------------------------------------------------------------------------- Please contact us the first time if you got any issues with the product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Notice ..................1 2. Application ................1 3 . Specification ................. 1 (1) Camera and Cable ...............1 (2) LCD Monitor ............... 2 4. Operation ................3 (1) Monitor Operation ............. 3 (2) Camera Probe ..............4 (3) Cable Coil ................5 5. -
Page 3: Notice
1. Notice 1. Please read the manual carefully before using it. 2. Handle it carefully during operation, avoid throwing down or pressing it heavily. 3. If the users disassemble or deliberately damage the machine, it will beyond the warranty. 4. Please turn off the display and pull out all the connection joints after using it. 5. -
Page 4: Lcd Monitor
Cable Length: 33ft/10m, 66ft/20m, 92ft/28m fiber tube optional LED: 6pcs White LED View Angle: 90-degree Camera Material: stainless steel, sapphire lens, IP68 waterproof Accessories: Magnet & Hook Protective Cover: 0.9in*0.8in/23mm*20mm (2) LCD Monitor Size: 9-inch IPS Function: Video record/audio record/photo/power display Camera/Monitor Image: Color Monitor Input Voltage: DC 12V TF Card: Max support 128GB card (include 16GB card) -
Page 5: Operation
4. Operation Whole System: 2600mAh Rechargeable Battery was built into the box cover (1) Monitor Operation TF card: Support up to 128GB micro SD card (includes a 16GB SD card), press it to pop out. — 3 —... -
Page 6: Camera Probe
1. Turn On: Connect all cables, turn on the machine, and the system is starting up. 2. Menu Setting (It needs to exit the record mode): Press MENU/EXIT button to enter the menu setting, press >/PHOTO </ZOOM to select, press REC/- to confirm, press MENU/EXIT to exit, can do time setting/playback setting/display setting/record setting/system setting. -
Page 7: Cable Coil
(3) Cable Coil (10m 20m 30m optional) Put the cable on the hook, pull to release or push back to coil the cable. 5. Accessories List ①Aluminum Box * 1 (Built-in Battery) ②Power Adapter * 1 ③Camera Probe * 1 ④Cable Reel and Cable * 1 ⑤User Manual * 1 ⑥Camera Protective Cover * 1... -
Page 8: System Install
6. System Install — 6 —... -
Page 9: Charger
7. Charger When the battery is under low power (< 20% ), please recharge it, the charging time is about hours. Working time is 4-6 hours after full charging. Notes: To make sure the battery has longer use age, please recharge it timely; otherwise, the battery may be damaged. -
Page 10: Warranty
-----Contact Us----- Go to our website to download use manual or check more Products: http://www.sanyipace.com Technology Support/After Sale Email: SanyiMrchan@gmail.com Facebook:...
