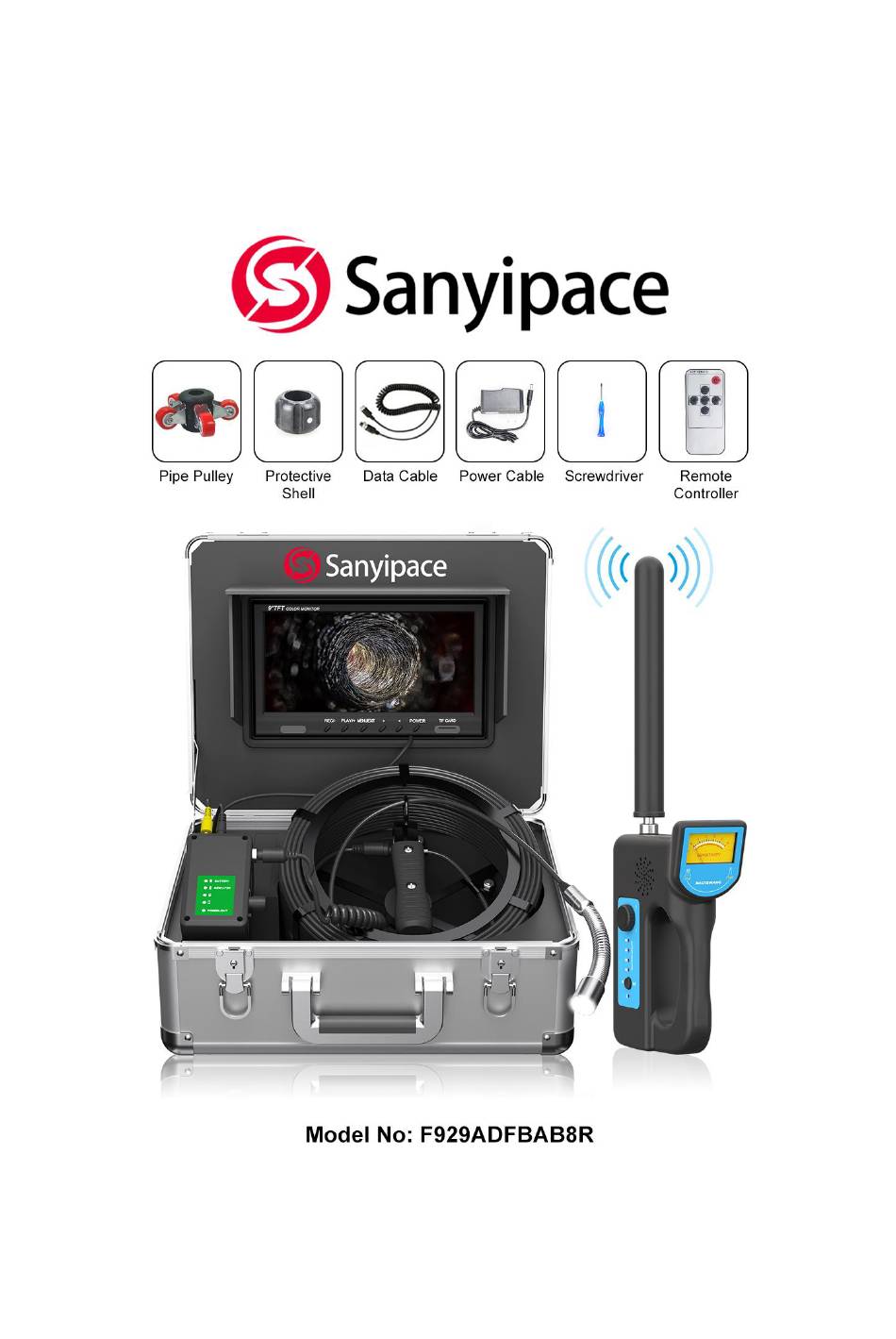

- Page 1 HD Sewer Inspection Camera with 512hz Locator and Receiver Set User Manual ------------------------------------------------------------------------------- Please contact us at first time when you got issue with product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Notice................page 1 2. Application..............page 1 3. Product Specification..........page 1 4. LCD Monitor Operation ..........page 2 5. Battery.................page 3 6. Charger................page 3 7. Cable Operation............page 4 8. Remote Control............page 4 9. Camera Lens..............page 6 10. 512hz Receiver/Detector...........page 7 11. Wire Diagram.............page 8 12. -
Page 3: Product Specification
1. Note 1：Please read this user manual carefully before using this product . 2：Do not throwing or pressure with strength . 3：Do not dismantle the machine without permission. 4：Please copy the information of the memory card before connecting it to device 5：Do not suddenly cut off the power during recording and playing, which may cause damage to product and video files. -
Page 4: Lcd Monitor Operation
4. 9’’ LCD Monitor Operation (Built-in microphone and speaker) Display Operation : -Turn on Connect each component, turn on the switch button on battery and press the power button on screen, the system starts working -Menu setting (need to exit the REC mode) Press MENU to enter, Press "<"... -
Page 5: Battery
-How to revise the video duration: The recorded video will be divided into fixed-duration video packages and stored on the memory card, the default duration is 3 mins, you can revise to up to10 mins. press "Menu" and ">" to choose "Video Menu" and press "REC/-" to revise it to 5mins, 10mins, 1mins or 3mins, at last press "Menu"... -
Page 6: Cable Operation
7. Cable Operation put the cable on the hook, pull to release or push back to coil the cable. 8. Remote Controller *Please be noted that the clear insulating card protects battery, need to remove it before VIDEO SELECT: function same with the screen button “REC/-” MODE SELECT: function same with the screen button “PLAY/+”... - Page 7 9. Self Leveling Camera Built-in 512hz Locator Waterproof level: IP68 It transmit a special frequency signal through the built-in chip Transmit frequency∶512HZ Output wave∶Sine wave Transmit Distance: about 5 Meter *The camera lens inside adjusts itself to the horizontal direction under the action of gravity, no matter how the camera shell rotates, the picture always keep upright —...
-
Page 8: 2Hz Receiver/Detector
10. 512HZ Receiver The 512hz detector has a built-in induction coil to receive the magnetic signal from the camera transmitter. the induction coil generates an current to calculate the direction and position of the transmitter. device has two detection modes: Far (note: about 5M) and Near (note: about 1 meter). -
Page 9: Wire Diagram
11. Wire Diagram 12. Warranty We provide one year warranty for the product, and free replacement within 7 days for any quality problems. From the day you purchased, we provide free maintenance for the normal breakdown, but for the damage caused by operation against the manual, we will charge for the cost fee for the spare parts to maintain even if product is under the warranty. - Page 10 3. Use voltage tester pen to test all the connector, find out the broken part and contact seller for free replace -----Contact Us----- Go to our website to download use manual or check more Products: https://www.sanyipace.com/ Our Email: SanyiMrchan@gmail.com We support spare parts replacing, please contact us at the first time when you got issues with our product.
