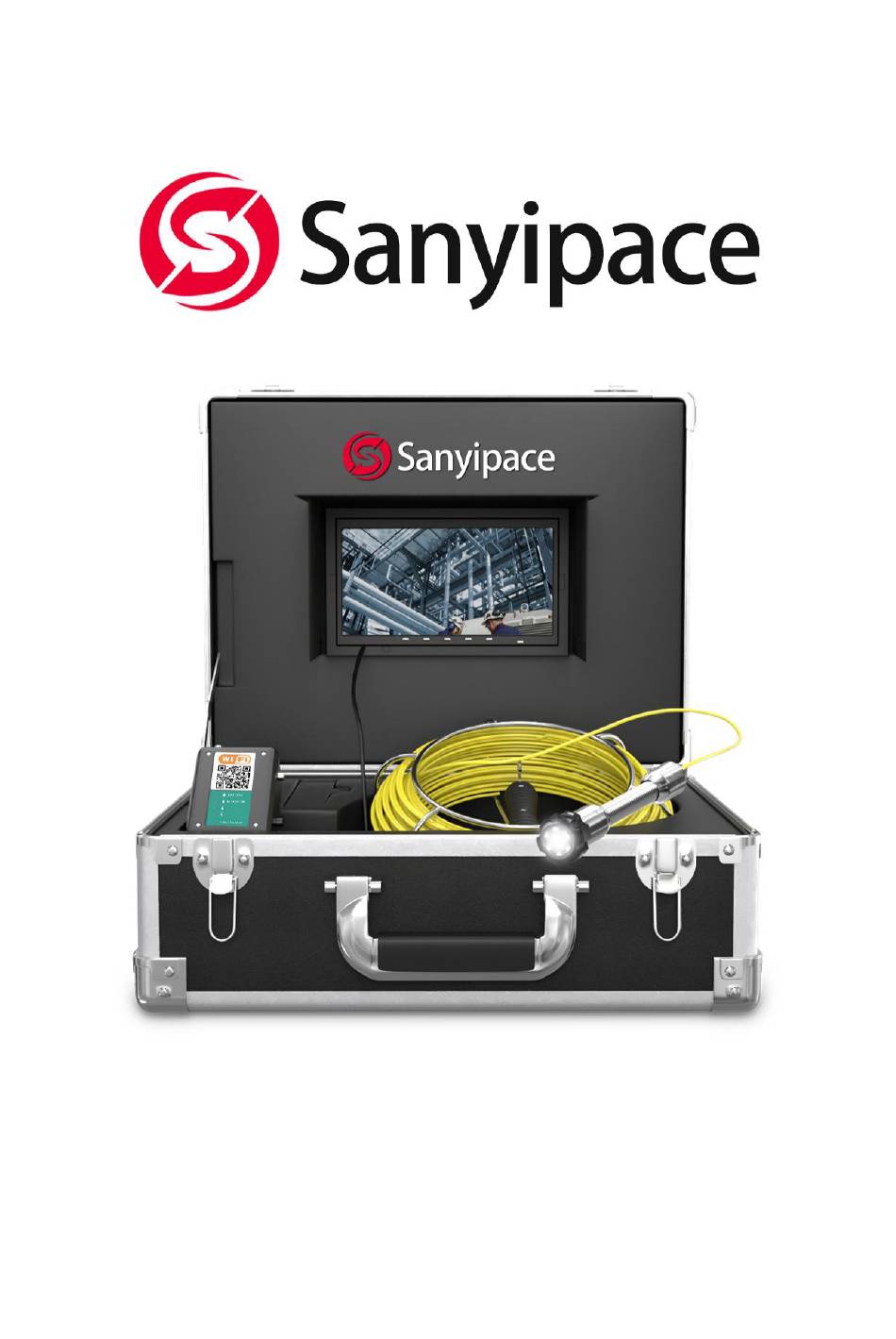

- Page 1 Wireless Sewer Camera User Manual Model No.: F9723WF ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Notice .......................... 1 2. Scope of Product Use ....................1 3. Product Specification ....................1 4. Product Parts Details ....................2 (1) 7-inch Screen ..................... 2 (2) 4500mAh Battery ....................3 (3) Camera (Waterproof Level IP68) ..............3 (4) Cable Coil ......................4 5. -
Page 3: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. If the user disassembles or damages the machine intentionally, it will not be covered by the warranty. d. -
Page 4: Product Parts Details
Camera protective cover size/material: 1.5in*1.1in/38mm*28mm plastic steel ---Monitor Screen--- Size: 7-inch Camera/monitor picture: color Monitor input voltage: DC 12V SD card: package includes 16GB card, support max 16GB Display resolution: 16:9, 960*480 TFT Menu Language: Chinese/English Screen operation: press buttons Video format: AVI with Year,Month,Date,Time and Seconds Photo format: JPG Working temperature: -4~140℉/-20~60℃... -
Page 5: 4500Mah Battery
press MENU exit. (2) Contrast setting: press MENU button twice enter contrast setting, press +/- to set, then press MENU exit. (3) Color setting: Press MENU three times to enter settings, press +/- to set,then press MENU exit. (2) 4500mAh Battery (3) Camera Probe (Waterproof Level IP68) -
Page 6: Cable Coil
(4) Cable Coil Put the cable on the hook, pull to release or push back to coil the cable. 5. Accessories list ①Aluminum Box*1 ③Camera Head*1 ④Cable Coil*1 ②Charger*1 ⑥ User Manual*1 ⑦Camera Protective Cover*1 ⑤Battery*1 ⑧Camera Pulley*1 ⑩Mini Screwdriver*1 ⑨Screen*1 ⑪Connection Cable*1... -
Page 7: Device Install
6. Device Install Connect the device according to the wiring diagram, then turn on and using. 7. APP Installation & Operation * WIFi Signal Receive Distance: Max to 100 meters. Compatible with Android & IOS APP download: Scan the QR code on the battery pack (search “fish camera”... - Page 8 2. Connecting all the parts and turn on the power supply. 3. After about 15 seconds, Click the “WLAN” setting on your mobile device, find the WLAN named “ fish_*** ”, click it and enter the initial password (default password: 12345678), select "Connect". (If APP connecting successful between device and mobile phone,it will appear “connected”) 4.
-
Page 9: Charger
8. Charger When the battery is low power (power is less than 20% ), please recharge it, the recharge time is about 4-5 hours. Notes: To make sure the battery has longer use age, please recharge it timely; otherwise, the battery may be damaged. 9. -
Page 10: Warranty
24 hours a day. If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Go to our website to download the user manual or view more products: https://www.sanyipace.com Website After-sale: service@sanyipace.com Amazon After-sale: sanyimrchan@gmail.com Facebook: Sanyipace WhatsApp: +86 137 1399 9105...
