Sanyipace F929DJTX User Manual

Sewer camera with5 12hz transmitter and detector locator set

Advertisement

Quick Links

Sewer Camera with
512Hz Transmitter and Detector Locator Set
User Manual
Model No:F929DJTX
-------------------------------------------------------------------------------------------------------------------------------------------
Please contact us at first time if you got issues with the product
SanyiMrchan@gmail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F929DJTX and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanyipace F929DJTX

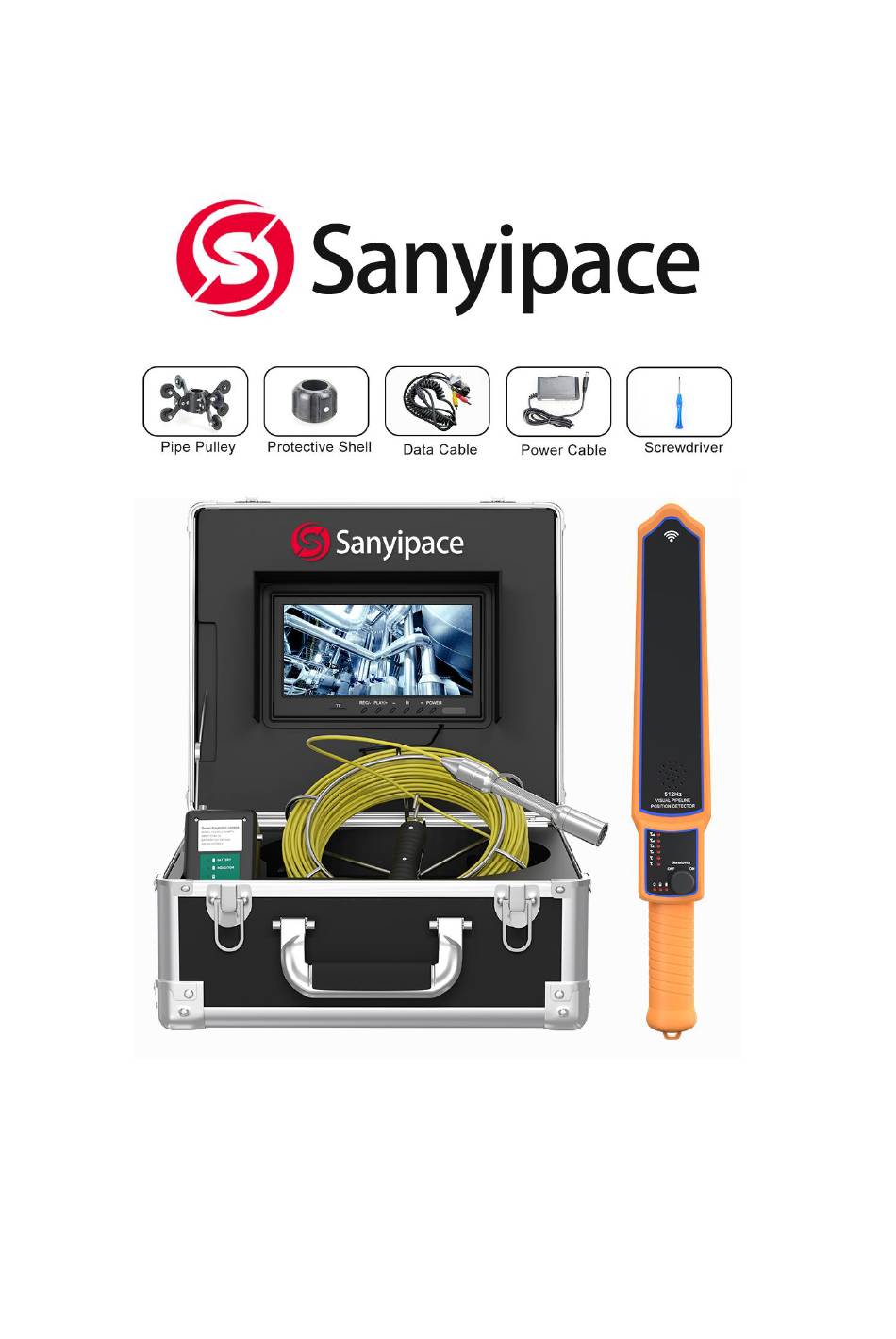

  • Page 1 Sewer Camera with 512Hz Transmitter and Detector Locator Set User Manual Model No:F929DJTX ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product SanyiMrchan@gmail.com...
  • Page 2: Table Of Contents

    Catalog 1. Notice .......................... 1 2. Scope of Product Use ....................1 3. Specification .......................1 4. LCD Monitor Operation .................... 2 5. Counter Function .......................3 6. Camera Probe with 512Hz Transmitter ..............4 7. 512HZ Detector Locator ..................5 8. Device Charger ......................6 9.
  • Page 3: Notice

    1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. If the user disassembles or damages the machine intentionally, it will not be covered by the warranty. d.
  • Page 4: Lcd Monitor Operation

    ---Monitor Screen--- Size: 9-inch Camera/monitor picture: TFT LCD color Monitor input voltage: DC 12V SD card: package includes 16GB card, support max 32GB Display resolution: 960*480 TFT Menu language: Chinese/English Screen port: power input/video Screen operation: press buttons Video format: AVI Photo format: JPG Working temperature: -4~140℉/-20~60℃...
  • Page 5: Counter Function

    Button Functions TF: Insert TF memory card REC/-: (a) Press it to start or stop recording video; (b) In system setting mode, press it to confirm the selection. PLAY/+: Press it to start or pause video playback, and press "-" to play the next video.
  • Page 6: Camera Probe With 512Hz Transmitter

    6. Camera Probe with 512Hz Transmitter The Camera probe has a built-in 512Hz transmitter, which transmits a 512Hz frequency signal through a built-in chip, compatible with any 512Hz pipe locator. Transmit Frequency: 512Hz Output Waveform: sine wave Transmit Distance: about 16.4ft/5m...
  • Page 7: 2Hz Detector Locator

    7. 512HZ Detector Locator The detector locator has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the direction and position of the transmitter. The detector locator has two detecting modes: far mode and near mode. Firstly, open the sensitivity to the strongest gear, and switch to far mode (about 16.4ft/5m) to detect and find the signal source, adjust the sensitivity knob, \when its signal is up to the full strongest signal position (far mode),...
  • Page 8: Device Charger

    Detect Mode: far/ near How to Use Detector Locator to Detect Camera Position: a. Turn on the detector, set the sensitivity knob to the strongest gear. b. Set it as far mode to detect first. When the signal light is on, it means that you have entered into the 512Hz locator position within 16.4ft/5m.
  • Page 9: Battery

    9. Battery 10. Wire Diagram...
  • Page 10: Cable Operation

    11. Cable Operation Put the cable on the hook, pull to release, or push back to coil the cable. 12. Trouble & Troubleshooting Trouble Troubleshooting a. Check whether each interface is connected correctly; No power b. Check whether the battery is out of power, check the power display.
  • Page 11: Warranty

    The battery is going to out of power, recharge battery and try again; d. Use a voltage tester to test all connectors, find out the damaged part and contact Sanyipace to deal with it. 13. Warranty We provide a one-year product quality warranty from the date of purchase and provide free lifetime product technical support.
