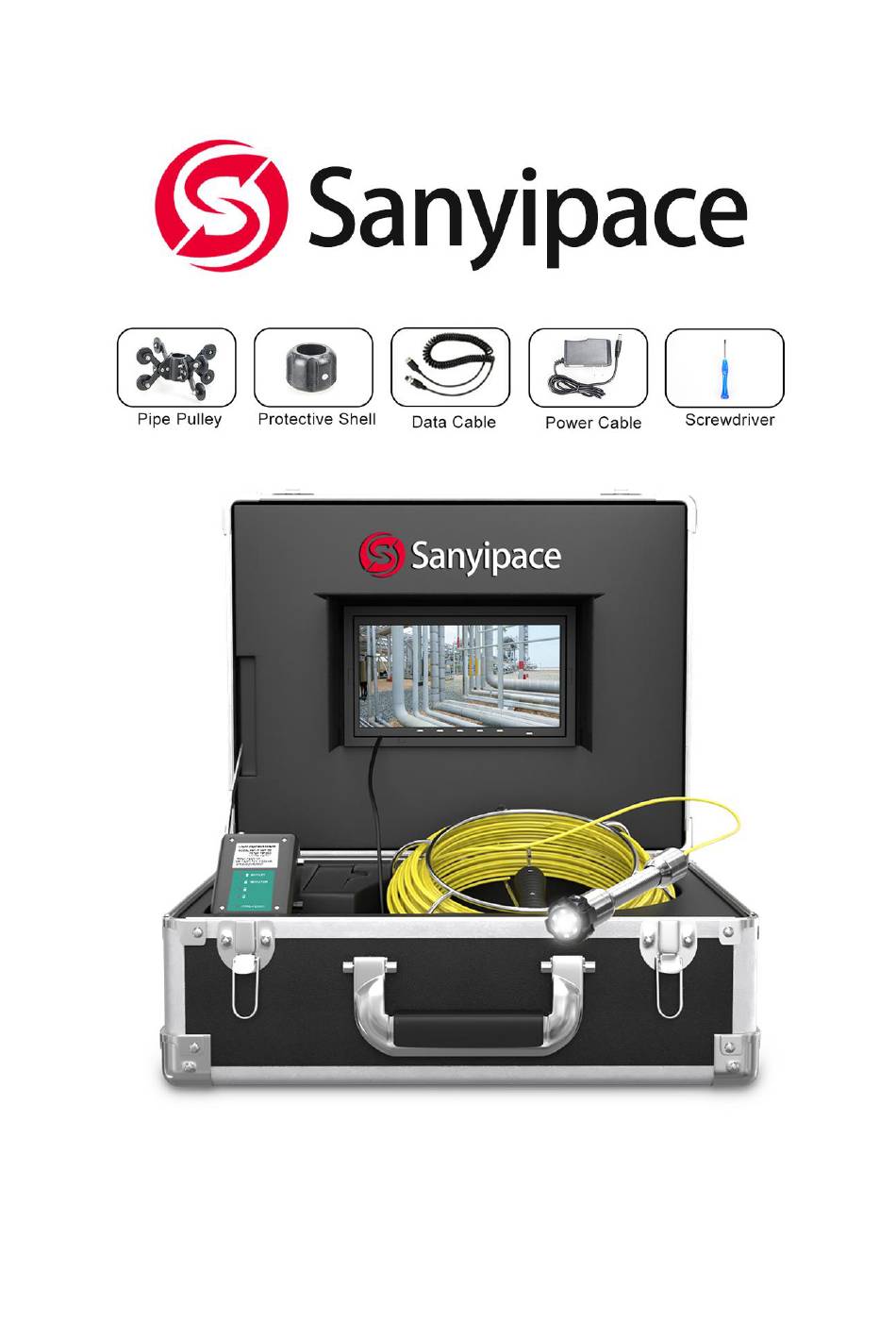

- Page 1 Pipe Sewer Pipeline Inspection Camera User Manual Model No.: 9723D ----------------------------------------------------------------------------------------------------------------------- Please contact us at the first time if you got any issue with the product SanyiMrchan@gmail.com — 1 —...
-
Page 2: Table Of Contents
Catalog Note…………………………………………………….……..page 3 Range of product use……………………..…….......page 3 Product specification……………………………………....page 3 Product parts details ……………..…………………..……..page 4 Accessories list…………………………..…………....page 7 System install ……………………..…………..……....page 8 Recharge............……....page 8 Failure and diagnosis.........……....page 9 Warranty..............……....page 9 Attention:The illustrations and screenshots of this manual are to explain product's operation, which may be little different from actual products due to the products' version upgrades and different production batches. -
Page 3: Note
1：Note 1. Please read the manual carefully before using products. 2. Handle it carefully during operation, Do not drop or push it hard 3. Do not dismantle the machine without permission. 4. Please turn off the display and disconnect the device after using it. 5. -
Page 4: Product Parts Details
---Display--- Size：7 inch Camera /monitor picture : color SD card : max support 32GB,factory standard 8GB . Display resolution：7 inch ,16：9, 960*480. Menu ：Chinese /English optional . Display video format: AVI with Year,Month,Date,Time and Seconds Display operate : button . Working temperature : -20-60 ℃. - Page 5 Display operation: 1.turn on Connect the connectors, turn on the battery switch, press the power button on the screen, and the system will start to work 2.setting Press MENU enter, after selecting Set, press “Play/+ ” or “Rec/- ” to confirm, Can set language/image/storage/clock .
- Page 6 (2) 4500mah Battery It takes about 4-5 hours for fully charged. Charging voltage is DC12.6V, with power battery display on battery. (3) Camera (Waterproof Level IP68) — 6 —...
-
Page 7: Accessories List
(4) Cable Coil Put the cable on the hook, pull to release or push back to coil the cable. 5: Accessories list 1：Aluminum box * 1 2：Charger * 1 3：Camera Probe * 1 4: Cable coil * 1 5：Battery * 1 6：User Manual * 1 7：Camera Protective Cover*1 8：Pipe Pulley * 1... -
Page 8: System Install
6：System install (as below picture) 7: Recharge When the battery is low power (< 20% ), please recharge it, the recharge time is about hours. Working time is 6-8 hours after full charging Notes: To make sure the battery has longer use age, please recharge it timely; otherwise, the battery may be damaged. -
Page 9: Failure And Diagnosis
-----Contact Us----- Go to our website to download use manual or check more Products: https://www.sanyipace.com/ Our Email: SanyiMrchan@gmail.com We support spare parts replacing, please contact us at the first time when you got issues with our product.
