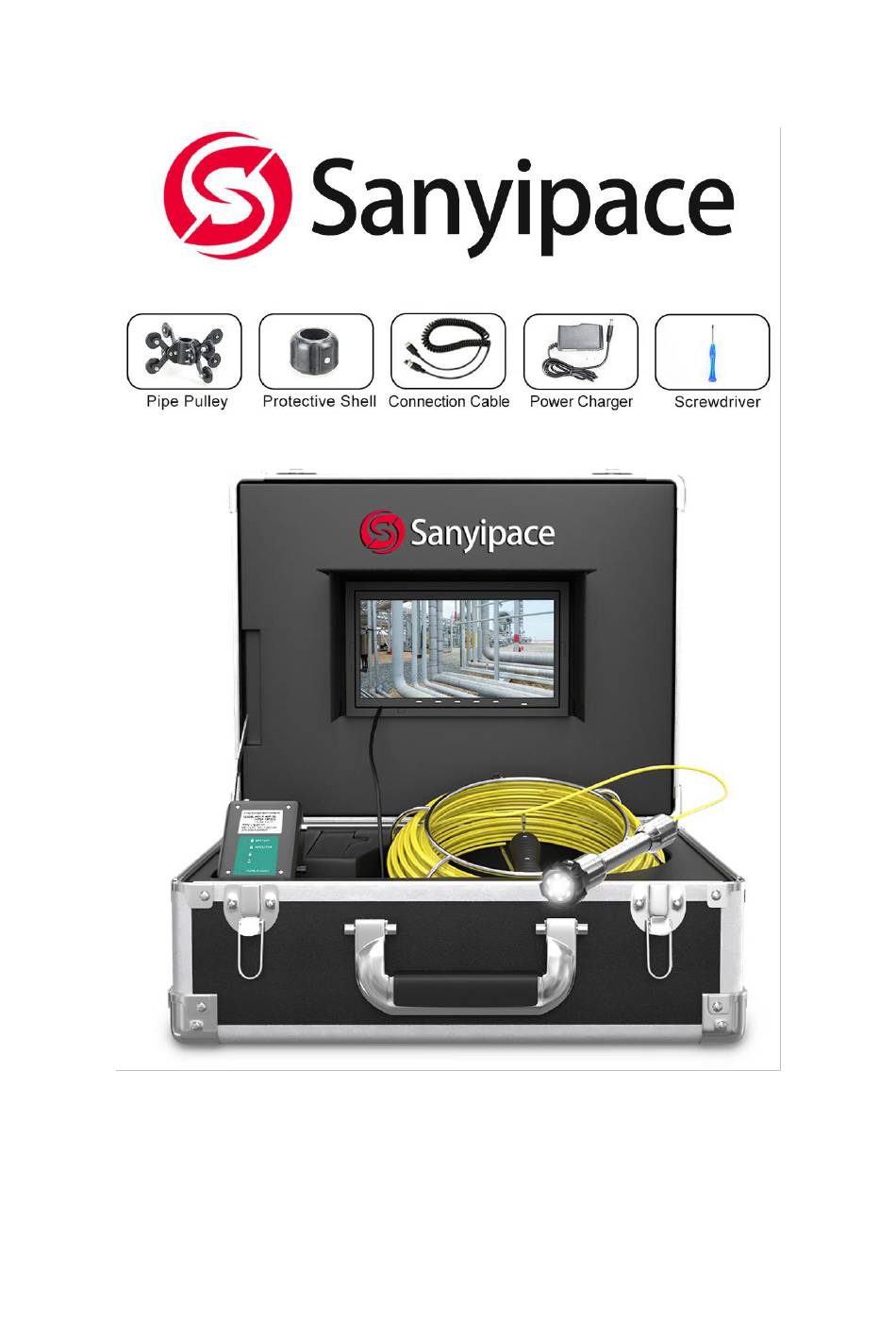

- Page 1 Pipe Sewer Pipeline Inspection Camera User Manual Model No.：9723D ------------------------------------------------------------------------------------------------------------------------------------------- Please contact us at first time if you got issues with the product SanyiMrchan@gmail.com...
-
Page 2: Table Of Contents
Catalog 1. Notice ................1 2. Scope of Product Use ............1 3. Product Specification ............1 4. Device Parts Details ............2 (1) Screen Operation ............2 (2) 4500mAh Battery ............4 (3) Camera Probe (Waterproof Level IP68) ...... 5 (4) Cable Coil ..............5 5. -
Page 3: Notice
1. Notice a. Please read the manual carefully before using the product. b. Handle the device with care when operating, do not drop or push hard. c. Do not dismantle the machine without permission. d. Please turn off the monitor and disconnect the device after use. e. -
Page 4: Device Parts Details
Camera angle and clarity: 145-degree/1000TVL Camera shell material: stainless steel/IP68 waterproof Camera protective cover size: 1.5in*1.1in/38mm*28mm Camera protective cover material: plastic steel ---Monitor Screen--- Monitor Screen: 7-inch TFT color monitor SD card: includes 16GB SD card, max support 16GB Display resolution: 16:9, 960*480 Menu Language: Chinese/English optional Display video format: AVI, marked with Year,Month,Date,Time and Seconds Display operation: button... - Page 5 a.Turn On Connect the connectors, turn on the battery switch, press the power button on the screen, and the system will start to work. b.Setting Press MENU enter, after selecting Set, press “Play/+ ” or “Rec/- ” to confirm, Can set language/image/storage/clock . c.Video Recording Press “Rec/- ”...
-
Page 6: 4500Mah Battery
There is an SD card slot on the left side of the screen, press it to pop out 4500mAh Battery It takes about 4-5 hours to be full. The charging voltage is DC 12.6V, and the battery power is displayed on the battery. —... -
Page 7: Camera Probe (Waterproof Level Ip68)
Camera Probe (Waterproof Level IP68) Cable Coil Put the cable on the hook, pull to release, or push back to coil the cable. — 5 —... -
Page 8: Accessories List
5. Accessories List ①Aluminum Box * 1 ②Power Charger * 1 ③Camera Probe * 1 ④Cable Coil * 1 ⑤Battery * 1 ⑥User Manual * 1 ⑦Camera Protective Cover*1 ⑧Pipe Pulley * 1 ⑨16GB SD card * 1 ⑩LCD Monitor * 1 ⑪Mini Screwdriver * 1 ⑫Connection Cable * 1 6. -
Page 9: Power Charger
7. Power Charger When the battery is low power (< 20% ), please recharge it, the charging time is about hours. Working time is 6-8 hours after full charging Note: To make sure the battery has longer use age, please recharge it timely; otherwise, the battery may be damaged. -
Page 10: Warranty
24 hours a day. If you encounter any problems during use, please feel free to contact us. ----Contact Us---- Go to our website to download the user manual or view more products: https://www.sanyipace.com Website After-sale: service@sanyipace.com Amazon After-sale: sanyimrchan@gmail.com Facebook: Sanyipace WhatsApp: +86 137 1399 9105 — 8 —...
