Chapter 2: Jumpers and Connectors

Internal I/O Interfaces

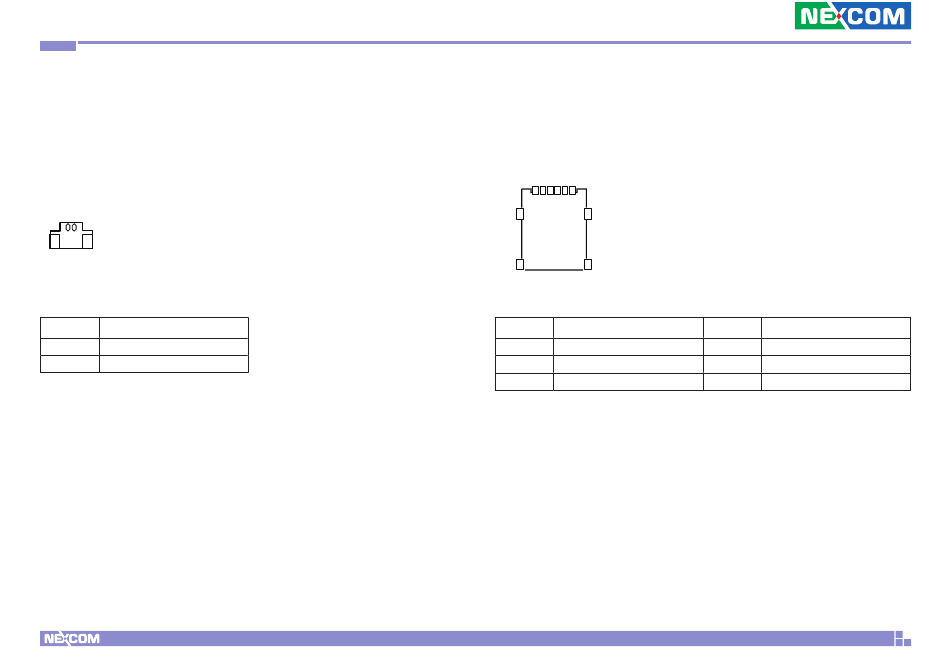

System Reset Button

Connector type: 1x2-pin header, 1.0mm pitch
Connector location: RESET_BTN
1 2
Pin Definition
1 GND
2 RESET #
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

SIM Card Connector

Connector type: Nano SIM Card connector
Connector location: SIM
C1 C7
Pin Definition
C1 VCC
C2 RST
C3 CLK
20
Pin Definition
C5 GND
C6 VPP
C7 I/O
