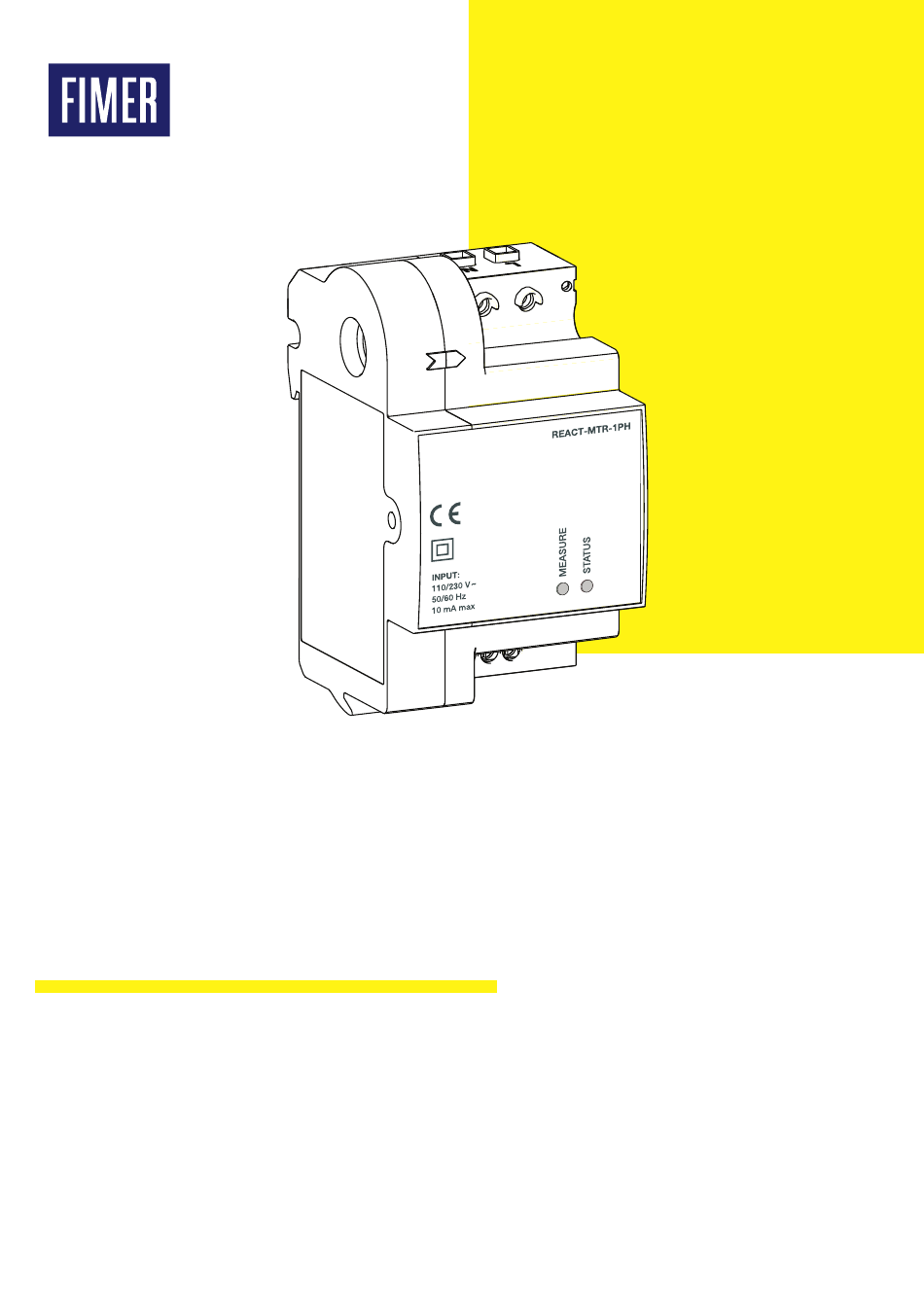

  • Page 1 Solar Inverters REACT-MTR-1PH Quick Installation Guide...
  • Page 2: Main Components

    1. Main components The main components of the REACT-MTR-1PH are shown in the figure and described in the following table: Main components Current sensor Power supply terminals Status LED Fixing spring for DIN rail RS485 line connection terminals 2. Supplied component list...
  • Page 3: Operating Diagram

    The very high performance of this device is ensured by the latest technology. The information provided by the REACT-MTR-1PH is used by the REACT inverter to coordinate all the energy flows in the home.
  • Page 4 4. Assembly Instructions The REACT-MTR-1PH is designed to be assembled on a DIN rail (UNI EN 50022) using the special snap-on device (04) on the back of the unit. For correct assembly of the REACT-MTR-1PH on the DIN rail follow the procedure below: •...
  • Page 5 It is recommended that the input voltage sensing is protected by fuses rated 6A (gL–gG type) or by circuit breakers rated 6A (B/C type) installed near the meter. The REACT-MTR-1PH power supply must respect the following characteristics: Nominal voltage 230 V AC...
  • Page 6 6. RS485 line connection The REACT-MTR-1PH is equipped with an RS485 line that allows communication with the REACT system to maximise the system's self-sufficiency and self-consumption. To connect the RS485 line it is necessary to use the connectors (05) located on the lower part of the device and a shielded cable with three conductors.
  • Page 7 7. Commissioning For energy readings to be taken, the phase cable coming from the distribution grid and going to the home must go through the current sensor reading hole (01). WARNING – Make sure that the AC line has been correctly isolated and check that no voltage is present using a multimeter.
  • Page 8: Characteristics And Technical Data

    For more information orders, the agreed particulars shall parties or utilization of its contents please contact your prevail. FIMER does not accept – in whole or in parts – is forbidden local FIMER any responsibility whatsoever for without prior written consent of...
