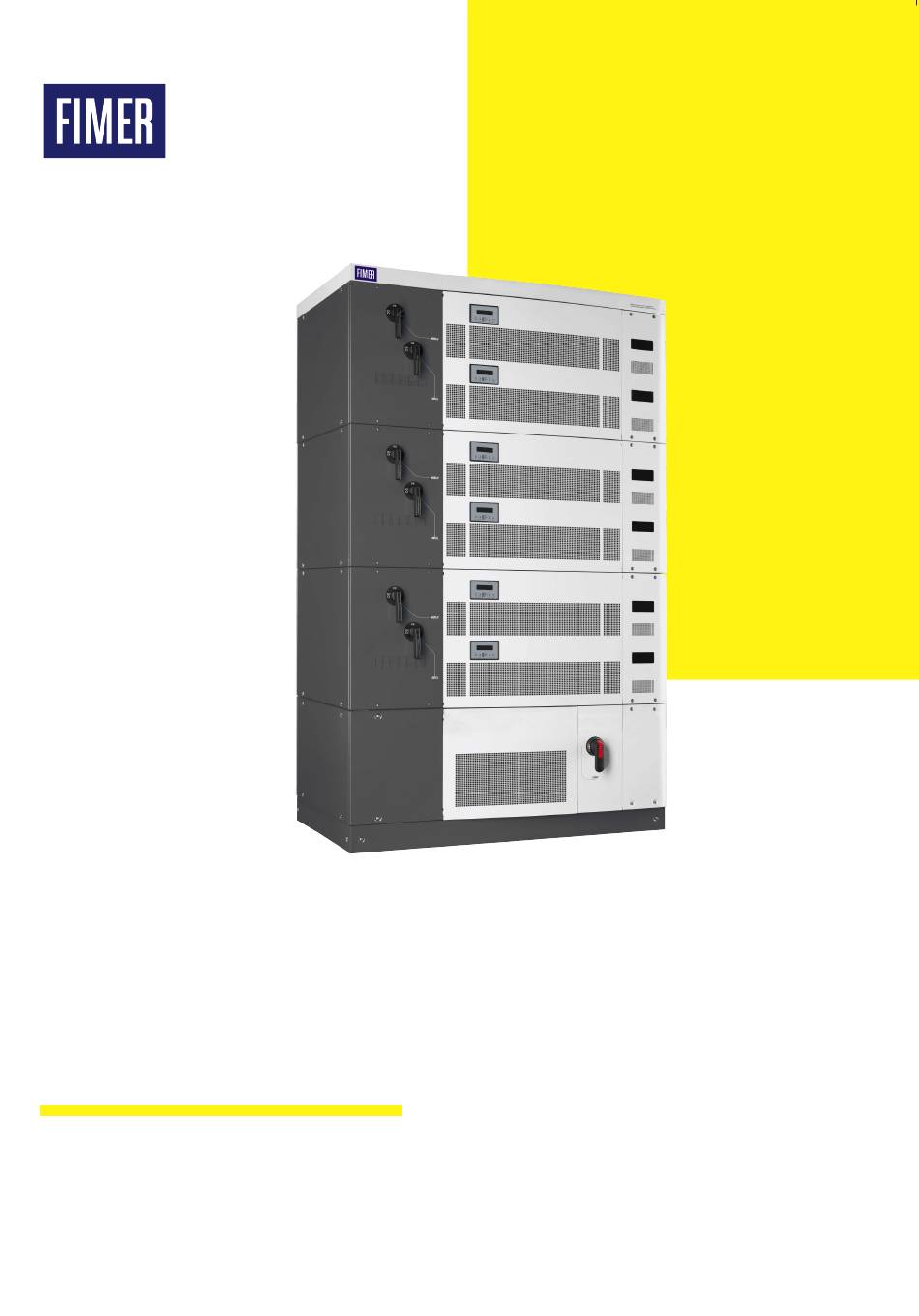

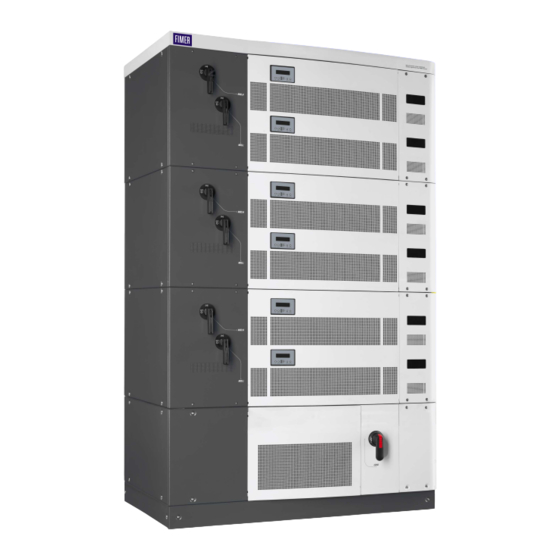

  • Page 1 Solar Inverter Plus; Plus-HV Product Manual...
  • Page 2 The manual must always accompany the equipment, even when it is transferred to another user. Operators are required to read this manual and scrupulously follow the indications reported in it, since FIMER cannot be held responsible for damages caused to people and/or things, or the equipment, if the warranty conditions...

  • Page 3: Further Information

    Further information For more information on FIMER products and services for solar applications, navigate to www.fimer.com.

  • Page 4: Product Manual

    3 - Safety and accident prevention 4 - Lifting and transport 5 - Installation 6 - Instruments 7 - Operation 8 - Maintenance PLUS;PLUS-HV-Product manual EN Rev C (M000012BG) EFFECTIVE 20/02/2014 © Copyright 2024 FIMER. All Rights Reserved. - 3 -...
  • Page 5 - 4 -...

  • Page 6: Ntroduction And General Information

    FIMER accepts no liability for failure to comply with the instructions for correct installation and will not be held responsible for systems upstream or downstream the equipment it has supplied.

  • Page 7: Table Of Contents

    Reference number index ........................10 Graphical representation of references .....................11 General view: PLUS (TL, transformerless) ................11 General view: PLUS (with transformer) ................11 General view: PLUS (with external transformer) ..............12 General view: PLUS-HV .......................12 General view: Framework .....................13 General view: Transformerless AC BOX ................14 General view: AC BOX with transformer ................15...
  • Page 8 Operating diagram with Medium Voltage connection ............42 Connection of many inverters among themselves ...............42 Notes on the system sizing ....................42 Topographic diagram for transformerless (-TL) PLUS and PLUS-HV models .....43 Topographic diagram for PLUS models with transformer.............44 Main components of the equipment ....................46 Transformerless AC BOX ......................47...
  • Page 9 1- Introduction and general information DC connections ............................71 Preliminary operations ......................71 Connection of the DC cables coming from the photovoltaic system ........71 Connection of the protective earthing (PE) cable ................73 Connection of the AC output cables ....................74 Transformerless AC BOX - AC output connection ..............74 AC BOX with transformer - AC output connection..............75 External transformer BOX - AC output connection ...............76 Connection of the auxiliary power supply ..................78...
  • Page 10 1- Introduction and general information aintenance ........................... 106 General conditions ..........................106 Routine maintenance ......................107 Cleaning the air filters ......................108 Torque checks and visual inspections ................109 Checking the AC and DC protection devices ..............110 Troubleshooting ........................112 Alarm Messages .........................112 Removal and insertion of a conversion module ..............117 Removal and insertion of the DC fuse drawer ..............118 Removal and insertion of the AC extractable drawer (transformerless models only) ..119 Storage and dismantling ........................120...

  • Page 11: Reference Number Index

    1- Introduction and general information eference number index Transformerless (TL) AC BOX Positive input bars Framework AC cables toroid kit AC front panel AC overvoltage surge arresters fuses 55kW conversion module display AC overvoltage surge arresters DC front panel Interface protection system safety fuses AC BOX with transformer ModBus converter power supply (optional) 67kW conversion module display...

  • Page 12: Graphical Representation Of References

    1- Introduction and general information raphical representation of references eneral view: PLUS (TL, transformerless) PVI-330.0-TL PVI-275.0-TL PVI-220.0-TL PVI-165.0-TL PVI-110.0-TL PVI-55.0-TL eneral view: PLUS (with transformer) PVI-220.0 PVI-165.0 PVI-110.0 PVI-55.0 - 11 -...

  • Page 13: General View: Plus (With External Transformer)

    1- Introduction and general information eneral view: PLUS (with external transformer) PVI-330.0 PVI-275.0 eneral view: PLUS-HV PVI-400.0-TL PVI-334.0-TL PVI-267.0-TL PVI-200.0-TL PVI-134.0-TL PVI-67.0-TL - 12 -...

  • Page 14: General View: Framework

    1- Introduction and general information eneral view: Framework - 13 -...

  • Page 15: General View: Transformerless Ac Box

    1- Introduction and general information eneral view: Transformerless AC BOX - 14 -...

  • Page 16: General View: Ac Box With Transformer

    1- Introduction and general information eneral view: AC BOX with transformer MODBUS - 15 -...

  • Page 17: The Document And Who It Is For

    1- Introduction and general information he document and who it is for urpose and structure of the document This operating and maintenance manual is a useful guide that will enable you to work safely and carry out the operations necessary for keeping the equipment in good working order.

  • Page 18: Symbols Ad Signs

    1- Introduction and general information ymbols ad signs In the manual and/or in some cases on the equipment, the danger or hazard zones are indicated with signs, labels, symbols or icons. Table: Symbols This points out that it is mandatory to consult the manual or original do- cument, which must be available for future use and must not be dama- ged in any way.

  • Page 19: Field Of Use, General Conditions

    1- Introduction and general information ield of use, general conditions FIMER shall not be liable for any damages whatsoever that may result from incorrect or careless operations. You may not use the equipment for a use that does not conform to that provided for in the field of use.

  • Page 20: Haracteristics

    Characteristics eneral conditions A description of the characteristics of the equipment is given so as to identify its main components and specify the technical terminology used in the manual. Technical terminology and the fast retrieval system for information, are supported by: •...

  • Page 21: Models And Range Of Equipment

    It is mandatory to specify such needs upon ordering, as they determine the hardware and software configuration to be set by FIMER before the final despatch. The available configurations are...

  • Page 22: Multi-Master Configuration

    Example: a PLUS PVI-330.0kW-TL or PLUS-HV PVI-400.0kW-TL inclu- des 6 conversion modules, thus 6 different MPPTs (as shown in the figure).

  • Page 23: Master/Slave Configuration (With A Single Master)

    “Commissioning” of the inverter. This PLUS and PLUS-HV inverter configuration is only allowed if 3 or more conversion modu- les are installed on the inverter (with power ratings of respectively 165.0 / 200.0kW).

  • Page 24: Identification Of The Equipment And Manufacturer

    2 - Characteristics dentification of the equipment and manufacturer The technical data provided in this manual does not substitute the data supplied on the labels affixed to the equipment. The labels affixed to the equipment must NOT be removed, damaged, stained, hidden, etc., for any reason whatsoever.
  • Page 25 Inverter configuration type (Multi- is not displayed, otherwise master, Master-Slave or Multima- the TL code is indicated ster-Slave) Inverter power rating Country of installation FIMER Inverter Part Number PVI-XXX.X-YY-ZZ Inverter Serial Number composed of: manufactu- P/N: PPPPPPPPPPP re year (Y), manufacture...

  • Page 26: Characteristics And Technical Data

    2 - Characteristics haracteristics and technical data Table: Technical Data PVI-55.0 PVI-55.0-TL PVI-110.0 PVI-110.0-TL Input Absolute Maximum Input Voltage 1000 V (Vmax,abs) MPPT DC Voltage Range (VMPPTmin ... 485...950 V Linear derating from MAX to 31.8% [800<VMPPT<950V] VMPPTmax) MPPT DC Voltage Range (VMPPTmin... 485...850 V VMPPTmax)@ Pacr and Vacr Number of Independent Multi-Master...
  • Page 27 18 kHz Communication Wired Local Monitoring PVI-USB-RS232_485 (opt.) Remote Monitoring PVI-AEC-EVO (opt.) / VSN700 Data Logger (opt.) FIMER String Combiner PVI-STRINGCOMB (opt.) User Interface Display LCD 16 characters x 2 lines for each module Environmental Room Temperature -10...+ 60°C / +14...140°F with derating above 50°C/122°F Relative Humidity 0...95% w/o condensation...
  • Page 28 2 - Characteristics Table: Technical Data PVI-165.0 PVI-165.0-TL PVI-220.0 PVI-220.0-TL Input Absolute Maximum Input Voltage 1000 V (Vmax,abs) MPPT DC Voltage Range (VMPPTmin ... 485...950 V Linear derating from MAX to 31.8% [800<VMPPT<950V] VMPPTmax) MPPT DC Voltage Range (VMPPTmin... 485...850 V VMPPTmax)@ Pacr and Vacr Number of Independent Multi-Master MPPTs Number of Independent Multi - Master/...
  • Page 29 18 kHz Communication Wired Local Monitoring PVI-USB-RS232_485 (opt.) Remote Monitoring PVI-AEC-EVO (opt.) / VSN700 Data Logger (opt.) FIMER String Combiner PVI-STRINGCOMB (opt.) User Interface Display LCD 16 characters x 2 lines for each module Environmental Room Temperature -10...+ 60°C / +14...140°F with derating above 50°C/122°F Relative Humidity 0...95% w/o condensation...
  • Page 30 2 - Characteristics Table: Technical Data PVI-275.0 PVI-275.0-TL PVI-330.0 PVI-330.0-TL Input Absolute Maximum Input Voltage 1000 V (Vmax,abs) MPPT DC Voltage Range (VMPPTmin ... 485...950 V Linear derating from MAX to 31.8% [800<VMPPT<950V] VMPPTmax) MPPT DC Voltage Range (VMPPTmin... 485...850 V VMPPTmax)@ Pacr and Vacr Number of Independent Multi-Master MPPTs...
  • Page 31 18 kHz Communication Wired Local Monitoring PVI-USB-RS232_485 (opt.) Remote Monitoring PVI-AEC-EVO (opt.) / VSN700 Data Logger (opt.) FIMER String Combiner PVI-STRINGCOMB (opt.) User Interface Display LCD 16 characters x 2 lines for each module Environmental Room Temperature -10...+ 60°C / +14...140°F with derating above 50°C/122°F Relative Humidity 0...95% w/o condensation...
  • Page 32 2 - Characteristics Table: Technical Data PVI-67.0-TL PVI-134.0-TL PVI-200.0-TL PVI-267.0-TL PVI-334.0-TL PVI-400.0-TL Input Absolute Maximum Input Voltage 1000 V (Vmax,abs) MPPT DC Voltage Range 570...950 V Linear derating from MAX to 30,6% [800<VMPPT<950V] (VMPPTmin ... VMPPTmax) MPPT DC Voltage Range (VMPPTmin...VMPPTmax)@ Pacr 570...850 V and Vacr...
  • Page 33 18 kHz Communication Wired Local Monitoring PVI-USB-RS232_485 (opt.) Remote Monitoring PVI-AEC-EVO (opt.) / VSN700 Data Logger (opt.) FIMER String Combiner PVI-STRINGCOMB (opt.) User Interface Display LCD 16 characters x 2 lines for each module Environmental Room Temperature -10...+ 60°C / +14...140°F with derating above 50°C/122°F Relative Humidity 0...95% w/o condensation...

  • Page 34: Calculating

    (V MPPmin grid By construction, the PLUS and PLUS-HV inverters vary the minimum in- put voltage value depending on the grid voltage. The graph below shows the trend of the variation of V...

  • Page 35: Characteristics Of The Lv-Mv/Lv-Lv Transformer For -Tl Models

    If multiple inverters must be connected to the same transformer, all the inverters may be connected on the same secondary low voltage winding. Unlike conventional inverters, centralised FIMER inverters do not require gal-vanic isolation between low voltage windings. A standard double winding transformer may be used (1 primary medium voltage winding, and 1 se-condary low voltage winding).

  • Page 36: Overall Dimensions

    2 - Characteristics verall dimensions The overall dimensions are expressed in mm and inches Table: Plus overall dimensions (TL models and models with Transformer) 1250 mm 1675 mm 850 mm 55.0 49.2’’ 69.5’’ 33.5’’ 1250 mm 1077 mm 850 mm 55.0-TL...

  • Page 37: Efficiency Curves

    Graphs of the efficiency curves of all models of inverter described in this manual are shown below. The efficiency curves are linked to technical parameters that are continually being developed and improved and should therefore be considered approximate. PLUS PVI-55.0÷330.0 Models with transformer PVI-55.0 PVI-110.0...
  • Page 38 2 - Characteristics PLUS PVI-55.0/330.0-TL PVI-55.0÷330.0-TL Transformerless models 100,00 99,00 98,00 97,00 485Vdc 96,00 95,00 500Vdc 94,00 550Vdc 93,00 92,00 91,00 90,00 100% Pac / Pnom [%] PLUS-HV PVI-67.0/400.0-TL PVI-67.0÷400.0-TL Transformerless models 100,00 99,00 98,00 97,00 585Vdc 96,00 95,00 600Vdc...

  • Page 39: Power Derating

    Example: input voltage, grid voltage and power available from the photovoltaic field. The inverter can therefore reduce the power during certain periods of the day according to the value of these parameters. PLUS Derating Pout Vs Ambient temperature PVI-55.0÷330.0 Models with transformer PVI-55.0÷330.0-TL...

  • Page 40: Power Reduction Due To The Altitude Of The Installation

    2 - Characteristics ower reduction due to the altitude of the installation The graphs show the automatic reduction of supplied power as a function of the altitude of the installation. PLUS Derating Pout Vs Altitude PVI-55.0÷330.0 Models with transformer PVI-55.0÷330.0-TL...

  • Page 41: Characteristics Of A Photovoltaic Generator

    2 - Characteristics haracteristics of a photovoltaic generator A PV generator consists of an assembly of photovoltaic panels that tran- sform solar radiation into DC electrical energy and can be made up of: Strings: X number of PV panels connected in series Array: group of X strings connected in parallel trings and Arrays In order to considerably reduce the cost of installing a photovoltaic sy-...

  • Page 42: Description Of The Equipment

    “AC” alternate current. This conversion, known as inversion from DC to AC, is done in an effi- cient way by the inverter FIMER, without using any rotary elements, rather only via static electronic systems.

  • Page 43: Operating Diagram With Low Voltage Connection

    A configuration program that can help to correctly set the size of the pho-tovoltaic system is available on the FIMER (www.fimer.com) Web site. - 42 -...

  • Page 44: Topographic Diagram For Transformerless (-Tl) Plus And Plus-Hv Models

    SUPPLY CONTROL CIRCUIT The diagram refers to the transformerless inverter PLUS and PLUS-HV models with the hi- ghest power rating in the available range. The lower power inverter models only differ by the number of conversion modules installed on the equipment.

  • Page 45: Topographic Diagram For Plus Models With Transformer

    PV ARRAY 2 (-) CONTROL CIRCUIT The diagram refers to the inverter PLUS and PLUS-HV models with transformer, with 220kW power rating. The lower power inverter models only differ by the number of conversion mo- dules installed on the equipment.
  • Page 46 For these inverters models, the transformer is installed in an external box. The diagram refers to the inverter models PLUS and PLUS-HV with transformer and with the highest power rating in the available range. The 275kW inverter model only differs by the number of conversion modules (5) installed on the equipment.

  • Page 47: Main Components Of The Equipment

    The installed conversion modules are numbered starting from the bottom (number 1). The final number depends on the inverter PLUS model (in the 400kW model, for instance, the numbering spans from 1 to 6). The module numbering is not to be confused with the serial number of each individual modu- le.

  • Page 48: Transformerless Ac Box

    2 - Characteristics ransformerless AC BOX This part of the inverter is composed of three main zones: A. DC cables connection zone for cables coming from the photovoltaic system. Located on the left of the ”transformerless AC BOX”, it compri- ses a positive and a negative connection bar.

  • Page 49: Ac Box With Transformer

    2 - Characteristics C BOX with transformer This part of the inverter is composed of three main zones: A. DC cables connection zone for cables coming from the photovoltaic system. Located on the left of the ”AC BOX with transformer”, it compri- ses a positive and a negative connection bar.

  • Page 50: External Transformer Box

    2 - Characteristics xternal transformer BOX For inverter PLUS models with transformer and power rating of 275.0 and 330.0 kW, the isolating transformer is installed in an external BOX 09 that complements the inverter. The AC output connections can be accessed by removing the front panel.

  • Page 51: Framework

    The disconnector switches for the DC disconnect switches are installed on the removable DC front panel. B. Conversion modules zone - This is the main part of the inverters PLUS and PLUS-HV, where two DC/AC conversion modules are connected, capable of converting the photovoltaic energy into electrical energy su- itable to be fed into the distribution grid.

  • Page 52: Protective Devices

    - Thermal-magnetic circuit breaker on the auxiliary power grid input. - Thermal-magnetic circuit breaker on the distribution grid input. Inverters PLUS and PLUS-HV measure the unbalance of the insulation resistances between the input terminals, therefore, if required by the local regulations, a device must be installed that is ca- pable of performing absolute measurements of the photovoltaic generator insulation resistance.

  • Page 53: Safety And Accident Prevention

    FIMER accepts no liability for failure to comply with the instructions for correct installation are cannot be held responsible for the systems upstream or downstream of the equipment it has supplied.

  • Page 54: Hazardous Areas And Operations

    These conditions are reported on the thecnical data and on installation chapter. FIMER CANNOT be held responsible for disposal of the equipment: displays, cables, batteries, accumulators, etc., and therefore the customer must dispose of these substances, which are potentially harmful to the environment, in accordance with the regulations in force in the country of installation.

  • Page 55: Thermal Hazard

    FIMER has eliminated sharp edges and corners, but in some cases it is not possible to do anything, and we therefore advise wearing the clothing and personal protective devices provided by the employer.

  • Page 56: Residual Risks

    3 - Safety and accident prevention esidual risks Despite the warnings and safety systems, there are still some residual risks that cannot be eliminated. These risks are listed in the following table with some suggestions to prevent them. able of residual risks RISK ANALYSIS AND DESCRIPTION SUGGESTED REMEDY Noise pollution due to installation in unsuitable environments or where...

  • Page 57: Ifting And Transport

    During handling, do not make any sudden or fast movements that can create dangerous swinging. ifting FIMER usually stores and protects individual components by suitable means to make their transport and subsequent handling easier, but as a rule it is necessary to turn to the experience of specialized staff in change of loading and unloading the components.

  • Page 58: Mode Of Lifting

    4 - Lifting and transport ode of lifting All PLUS and PLUS-HV models must not be tilted during lifting and transport. Lifting can be done in 2 modes: - lifting with packaging - lifting without packaging in both cases, it is possible to use forks and fork-lift trucks (with recep- tacle on the rear longitudinal side) or cables provided with suitable fork balances for pulling vertically.
  • Page 59 1000 / 2205 400.0-TL 1150 / 2535 The inverters PLUS PVI-275.0 and PVI-330.0 are equipped with an external transformer box (with associated inverter connection cables), contained in a second packaging, for which the same lifting rules previously provided remain applicable.

  • Page 60: List Of Components Supplied

    CD-ROM with technical documentation Safety fuses for the auxiliary voltage overvoltage surge arresters (spare parts) Components available for PLUS models: PVI-55.0 / PVI-110.0 / PVI-165.0 / PVI-220.0 Quantity Toroids for AC output cables To be installed only on the ITALIAN version...

  • Page 61: Installation

    Installation eneral conditions Installation of the equipment is carried out based on the system and the place in which the equipment is installed; therefore, its performance depends on the correctness of the connections. Staff authorised to carry out the installation must be specialised and experienced in this job;...

  • Page 62: Environmental Checks

    5 - Installation The installation must be carried out with the equipment disconnected from the grid (power disconnect switch open) and with the photovoltaic panels shaded or isolated. nvironmental checks • Consult the technical data to check the environmental conditions to observe (level of protection, temperature, humidity, altitude, etc.) •...

  • Page 63: Installation Position

    • Comply with the indicated minimum distances. Distances vary depen- ding on whether a FIMER hot air outlet hood is used. In case of multiple inverter installations, the minimum distances must be observed for each individual unit .

  • Page 64: Preparation And Requirements Of The Base

    Input air opening For installations different from those previously shown, the recommended distances may be changed by assessing the type of installation in accordance with FIMER Service. reparation and requirements of the base For optimum installation, the inverter must be securely mounted to a base made of an adequate material capable of supporting the weight.
  • Page 65 47.7 714.5 47.7 67.3 67.3 Dimensions and cable feed areas 350 x 130 for inverter models with transfor- merless AC BOX: PLUS PLUS-HV 350 x 130 PVI-55.0-TL PVI-67.0-TL PVI-110.0-TL PVI-134.0-TL PVI-165.0-TL PVI-200.0-TL PVI-220.0-TL PVI-267.0-TL PVI-2750.0-TL PVI-334.0-TL...
  • Page 66 5 - Installation 47.7 714.5 47.7 67.3 67.3 Dimensions and cable feed areas for inverter models with external transformer BOX: PVI-275.0 PVI-330.0 PLUS models with transformer: 47.7 714.5 47.7 PVI-55.0 67.3 PVI-110.0 67.3 PVI-165.0 PVI-220.0 - 65 -...

  • Page 67: Preparation And Requirements Of The Wall At The Rear Of The Inverter

    The wall at the rear of the inverter must be provided with openings that serve as outlets for the hot air flowing from the conversion modules. PLUS and PLUS-HV inverters can be equipped with a manifold that col- lects the hot air flowing from the conversion modules and conveys it to a single opening.
  • Page 68 5 - Installation MODELS: A. Hot air outlet manifold configuration PVI-55.0 B. Rear hot air outlet (on the framework) configuration PVI-110.0 C. Top hot air outlet configuration 582.7 598.4 262.5 640.5 185.3 124.5 1001 SCREW M5x15 MODELS: A. Hot air outlet manifold configuration PVI-55.0-TL B.
  • Page 69 5 - Installation A. Hot air outlet manifold configuration MODELS: B. Rear hot air outlet (on the framework) configuration PVI-165.0 C. Top hot air outlet configuration PVI-220.0 262.5 640.5 582.7 185.3 SCREW M5x15 124.5 1001 598.4 MODELS: PVI-165.0-TL A. Hot air outlet manifold configuration PVI-220.0-TL B.
  • Page 70 5 - Installation MODELS: PVI-275.0 A. Hot air outlet manifold configuration PVI-330.0 582.7 598.4 In this configuration the transfor- mer box is not equipped with a hot air outlet manifold. An air outlet 124.5 1001 conveyor must be installed on the transformer box to prevent hot air from being released into the in- stallation premises.

  • Page 71: Operations Preparatory To Pv Generator Connection

    5 - Installation perations preparatory to PV generator connection hecking the correct polarity of the strings Using a voltmeter, check that the voltage of each string observes the correct polarity and falls within the input voltage limits accepted by the inverter (see technical data).

  • Page 72: Dc Connections

    5 - Installation C connections reliminary operations Any operation performed not in accordance with what reported below may give rise to dan- gerous conditions for the operator/installer and damage to the equipment. It is absolutely important and advisable, before the connection to the inverter, to isolate the photovoltaic system using upstream DC switches, as there may be possible high voltages posing serious risks.
  • Page 73 3. Connect the cables to the input terminal block observing the correct polarity. The AC BOX may be different depending on the type of the in- verter PLUS. The two possible solutions are shown below. Transformerless AC BOX AC BOX with transformer...

  • Page 74: Connection Of The Protective Earthing (Pe) Cable

    5 - Installation onnection of the protective earthing (PE) cable The grounding resistance of the system is crucial to the system’s safety. Its value must be es- tablished before the first start-up of the system (the Table shows the minimum recommended cross section).

  • Page 75: Connection Of The Ac Output Cables

    AC output cables For the connection to the distribution grid, it is necessary to connect the cables at the inverter AC BOX zone. Depending on the inverter PLUS model, 3 different connection configurations are possible. ransformerless AC BOX - AC output connection 1.

  • Page 76: Ac Box With Transformer - Ac Output Connection

    For the 55 kW-110 kW-165 kW and 220 kW versions with transformer, pass the AC cables through the three supplied toroids before connecting them to the disconnect switch terminals PLUS with transformer PVI-55.0 / PVI-110.0 PVI-165.0 / PVI-220.0 MODBUS Refer to section “Characteristics and technical data”...

  • Page 77: External Transformer Box - Ac Output Connection

    Refer to section “Characteristics and technical data” for information on the dimensions and the tightening torques for the cables. These inverter PLUS versions require earthing, output and auxiliary po- wer connections between the external transformer BOX and the inverter part AC BOX, using the cables contained in the latter (accessible by re- moving the BOX rear panel).
  • Page 78 5 - Installation To connect the inverter part AC BOX, follow the instructions provided in the previous sections on the “Connection of the protective earthing (PE) cable” and “Connection of the AC output cables”, both valid for the tran- sformerless AC BOX model. The auxiliary (Aux) voltage connection cable must instead be connected to the dedicated connector on the extractable AC drawer inside the in- verter part AC BOX:...

  • Page 79: Connection Of The Auxiliary Power Supply

    - Isolate the system if the AC overvoltage surge arresters are being re- placed. 3. For PLUS 275kW and 330kW versions with the transformer housed in an external BOX, ensure to connect the four-way cable (3P+N) con- tained in the external transformer BOX to the appropriate counterpart located in the extractable AC drawer inside the inverter part AC BOX.

  • Page 80: Connection Of The Communication/Alarm/Control Signals

    5 - Installation onnection of the communication/alarm/control signals All inverter PLUS and PLUS-HV versions include a dedicated terminal block for the connection of the following signals: • RS485 serial communication (X20 to X27 terminals) • Modules status (X1 to X6 terminals) •...

  • Page 81: Connection Of Rs485 Serial Communication

    • Connection of the USR2 serial line (Stringcomb) This line is dedicated to the connection of PVI-STRINGCOMB units (FIMER string parallel panel). Each PLUS and PLUS-HV inverter can manage up to 12 FIMER PVI-STRINGCOMB units that may be connected in “daisy-chain” (“in-out”) configuration.

  • Page 82: Serial Monitoring Systems (Usr)

    Equivalent devices found on the market can also be used for the same purpose, but, bearing in mind that they have never been specifically tested, FIMER cannot guarantee correct opera-tion of the connection. Please note that these devices may also require an external termination impedance, whereas this is not necessary with the PVI-USB-RS485_232.

  • Page 83: Setting The Rs485 120 Ohm Termination

    COM/ AUX/REMOTE/GND POW/SYNCRO/CANEXT_B The inverter PLUS are factory supplied with the RS485 communication line 120 ohm termi- nation resistance deactivated (OFF). In case of daisy-chain connection, it is important that the termination is deactivated (OFF) on all frameworks, except for the last module of the last framework in the chain.

  • Page 84: Connection To Conversion Modules Status Relay

    5 - Installation onnection to conversion modules status relay X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X13 X14 The inverter is equipped with an internal relay with configurable switching. X20 X21 X22 X23 X24 X25 X26 X27 It can be connected with normally open contact (being connected betwe- en the NO terminal and the common contact C) and with normally clo- sed contact (being connected between the NC terminal and the common...

  • Page 85: Remote Control Connection

    The selection of the operation mode is possible by accessing the SETTINGS → Service menu (the Service menu access password can be obtained by registering on the https://registration.solar.fimer.com/index.php website and providing the inverter Model, Serial Number and Week of manufacture).

  • Page 86: Connection Of The Crepuscular Sensor

    (by means of an AC contactor) the inverter from the grid during night time hours. Each inverter PLUS equipped with a Crepuscular Relay is provided with a light sensor that must be installed for correct operation. If the sensor is not installed and configured, the inverter will not be able to connect to the AC grid as the AC contactor will stay open.

  • Page 87: Nstruments

    - there are doubts or contradictions between your experience, the manual and/or other operators. FIMER cannot be held responsible for damage to the equipment or the operator if it is the result of incompetence, insufficient qualifications or lack of training.

  • Page 88: Display And Keyboard

    6 - Instruments isplay and keyboard 55kW modules display 67kW modules display The LCD display (with two rows of 16 characters each) is located on the front panel of each conversion module and shows the following informa- tion: • Operating status of the inverter and statistics. •...

  • Page 89: Operation

    Operation eneral conditions Before checking the operation of the equipment, it is necessary to have a thorough knowledge of the INSTRUMENTS chapter and the functions that have been enabled in the installation. The equipment operates automatically without the aid of an operator; operating state is controlled through the instruments.

  • Page 90: Monitoring And Data Transmission

    • Data transmission on the dedicated RS-485 serial line. Data may be collected by a PC (using signal converter PVI-USB-RS485_232) or a data logger with an RS-485 port (PVI-DESKTOP / PVI-AEC-EVO). Con- tact the FIMER support service with any queries about device compatibility. ypes of data available The inverter provides two types of data, which can be retrieved through the special interface software and/or the display.

  • Page 91: Preliminary Operations Before Commissioning

    (L-low), whereas the top switch operates the upper module (H-High). Each framework can contain a maximum of two conversion modules. Based on the inverter PLUS power rating, it is possible that only the lower conversion module and the associated protection devices are installed in a FRAMEWORK.

  • Page 92: Commissioning (Multi Master And Multi Master/Slave Configurations)

    4. Close the DC disconnect switches (position 1), one at a time. 5. Close the output AC disconnect switch (position 1): In the case of inverter PLUS models with transformer PVI-55.0, PVI-110.0, PVI-165.0 or PVI- 220.0, it is necessary to set the crepuscular sensor a.

  • Page 93: Commissioning (Master/Slave Configuration)

    7 - Operation ommissioning (Master/Slave configuration) 1. Ensure the AC disconnect switch is open (position 0). 2. Ensure that the external DC disconnect switch (upstream) and the inverter DC disconnect switches are open (position 0) If the inverter is provided with a pre-charge board, it is not necessary to open (install) the external DC disconnect switch (upstream).
  • Page 94 7 - Operation In both cases the displays will show an alarm for open AC disconnect switch. In this condition, the LEDs have the following aspect: POWER ON LED > flashing ALARM LED > on MISSING GRID LED > on 7.

  • Page 95: Setting The Cooling System Activation

    7 - Operation etting the cooling system activation The inverter contains an internal cooling system that uses fans to direct hot air towards the openings on the rear. • • The activation temperature of the cooling system (50°C by default) can •...

  • Page 96: Advanced Configuration - Aurora Cvi Central Software

    The configuration can be accessed in the “settings menu” directly on the display or through the Aurora CVI Central (User) advanced configuration software available on the www.fimer.com website, together with the user manual. The main software features are:...

  • Page 97: Led Behaviour

    7 - Operation ED behaviour The following table shows the main activation combinations for the con- version module LEDs, in relation to the operating state of the inverter. Legend: Table: LED behaviour = LED Off = LED on LED Status Description = LED Flashing •...

  • Page 98: Display Operating Diagram

    7 - Operation isplay operating diagram During normal operation the data cycles on the display. The screen changes every 5 seconds, or upon manual operation of the UP and DOWN buttons. The activation of cyclic scrolling is indicated by the 2 arrows in the top left corner of the display.

  • Page 99: Description Of The Menus

    7 - Operation escription of the menus The display consists of 2 lines of 16 characters each and allows, using the buttons, to navigate the menus to: - View the operating status of the inverter and the statistical data; - View service messages for the operator; - View the alarm and fault messages;...

  • Page 100: Settings Menu

    7 - Operation ettings Menu The SETTINGS menu allows to change the inverter settings listed in the following table: SETTINGS Password 0000 addr. Rs485 ext 485s Baud rate display set Service New password Cash time language Software ON/OFF trafo type Ext.
  • Page 101 - Serial Number and Week of Production Once a password is obtained, it is possible to set the parameters in the menu following the directives provided by FIMER Service. 5. New Password This section of the menu allows to change the access password for the settings menu (default 0000).

  • Page 102: Info Menu

    7 - Operation nfo menu The INFO menu allows to show on the display the inverter information listed in the following table: INFO Module p/n Module s/n Part. No. Sys. Serial no. Sys. trafo type Firmware Junction Box 1. Module p/n This option shows the conversion module Part Number.

  • Page 103: Statistics Menu

    7 - Operation Pressing ENTER on the selected (Stringcomb) line will show on the di- splay the Monitor JBOX x entry, where x is the Stringcomb number to be displayed. Once the Stringcomb number has been selected, three submenus will be shown: states, fuses, currents.
  • Page 104 7 - Operation 4. Partial This option shows the following information: PT: Total operation time since the last counting reset E: Total energy produced since the last counting reset Val: Earnings since the last counting reset Reset Partial: Allows to zero the parameters of this submenu 5.

  • Page 105: Turning Off The Inverter

    7 - Operation urning off the inverter Some inverter parts may be subject to voltages that could be hazardous for the operator. Before performing any work on the inverter, follow the procedure for turning off the inverter. If work has to be carried out on exposed parts (not protected by panels), opening the AC and DC disconnect switches (position 0) is not enough as a safety measure as the input cables are always live.

  • Page 106: Isolating The Auxiliary Line

    (OFF position) solating the inverter (upstream) Should it be required to move/remove or dismiss the inverter PLUS, or in any case to isolate it from the rest of the system, it is absolutely man- datory to isolate the device on the AC and DC sides, that is from the photovoltaic generator and from the distribution grid.

  • Page 107: Aintenance

    Maintenance eneral conditions Checking and maintenance operations must be carried out by specialized staff assigned to carry out this work. Maintenance operations must be performed with the apparatus disconnected from the grid (power switch open) and the photovoltaic panels obscured or isolated, unless otherwise in- dicated.

  • Page 108: Routine Maintenance

    • If no monitoring system is present, check the alarm and error logs with the Aurora CVI Central software. Annual cleaning • Remove dirt and debris accumulated in front of and around the inverter • Remove and clean the air filters (contact FIMER if replacement parts are nee-ded) - 107 -...

  • Page 109: Cleaning The Air Filters

    To access the air filters it is necessary to remove some of the inverter PLUS front panels. The air filters are made of a plastic material that can be washed with water and industrial soap. Modules zone filter: To clean the modules zone, the protective front panel of the conversion modules must be removed.

  • Page 110: Torque Checks And Visual Inspections

    8 - Maintenance orque checks and visual inspections To perform a torque check it is necessary to open the inverter. Before doing this, it is absolutely essential to switch off and isolate (upstream) the inverter (DC side and AC side). If work has to be carried out on exposed parts (not protected by panels), turning the AC and DC disconnect switches on the 0 position (off) is not enough as a safety measure as the input cables are always live.

  • Page 111: Checking The Ac And Dc Protection Devices

    8 - Maintenance hecking the AC and DC protection devices To perform a torque check it is necessary to open the inverter. Before doing this, it is absolutely essential to switch off and isolate (upstream) the inverter (DC side and AC side). AC BOX checks AC overvoltage surge arresters (AC BOX with transformer): Remove the AC BOX front panels and verify that the inspection windows...
  • Page 112 8 - Maintenance attached to the fuse case, whereas if the fuse has blown the indicator will be vertical. A continuity measurement by means of a multimeter is however recommended to check the status of the fuses. - 111 -...

  • Page 113: Troubleshooting

    MAX position by the manufacturer. b) Check that the module is operational. Try swapping the module with another one from the same rack. If the error persists on the same module, contact FIMER Service. - 112 -...
  • Page 114 Internal module b) Check that the module is operational. fault Try swapping the module with another one from the same rack. If the error persists on the same module, contact FIMER Service. Bulk OV Input voltage E004 a) PV generator a) Check the inverter DC input voltage.
  • Page 115 If the two voltage values measured on the PV generator are ba- lanced, try swapping the module with another one from the same rack. If the error persists on the same module, contact FIMER Service. Under Temp. Tempera-...
  • Page 116 DC contactor (ON/OFF) and using a tester to verify the state change in the connection cables. Try swapping the module with another one from the same rack. If the error persists on the same module, contact FIMER Service. TRAS open Open AC...
  • Page 117 Download the fault log with the Aurora CVI Central software and check the error occurrence. If the error is permanently observed, try swapping the module with another one from the same rack. If the error persists on the same module, contact FIMER Service. Grid df/dt Grid df/dt...

  • Page 118: Removal And Insertion Of A Conversion Module

    8 - Maintenance emoval and insertion of a conversion module Some special maintenance operations may require the removal of a con- version module from the Framework (for instance if the module itself is faulty). The weight of a module cannot be borne by a single person. It is therefore necessary to move the module with the help of another person or a mechanical support to facilitate the extraction and subsequent insertion.

  • Page 119: Removal And Insertion Of The Dc Fuse Drawer

    8 - Maintenance emoval and insertion of the DC fuse drawer Some maintenance operations may require the removal of the DC fuse drawer from its housing in the framework (for instance if a DC fuse needs to be replaced). 1. Isolate the conversion modules from the photovoltaic generator. 2.

  • Page 120: Removal And Insertion Of The Ac Extractable Drawer (Transformerless Models Only)

    8 - Maintenance emoval and insertion of the AC extractable drawer (transformerless models only) Some special maintenance operations may require the removal of the AC drawer from its housing in the transformerless AC BOX (for instance if the AC surge arrester cartridges need to be replaced). 1.

  • Page 121: Storage And Dismantling

    FIMER CANNOT be held responsible for disposal of the equipment: displays, cables, batteries, accumulators, etc., and therefore the customer must dispose of these substances, which are potentially harmful to the environment, in accordance with the regulations in force in the country of installation.

  • Page 122: Further Information

    With regard to purchase orders, the therein. Any reproduction, disclosure to third representative or visit: agreed particulars shall prevail. FIMER does parties or utilization of its contents – in whole not accept any responsibility whatsoever for or in parts – is forbidden without prior written fimer.com...

This manual is also suitable for:

Plus-hvPvi-330.0-tlPvi-275.0-tlPvi-220.0-tlPvi-165.0-tlPvi-110.0-tl ... Show all

Table of Contents
