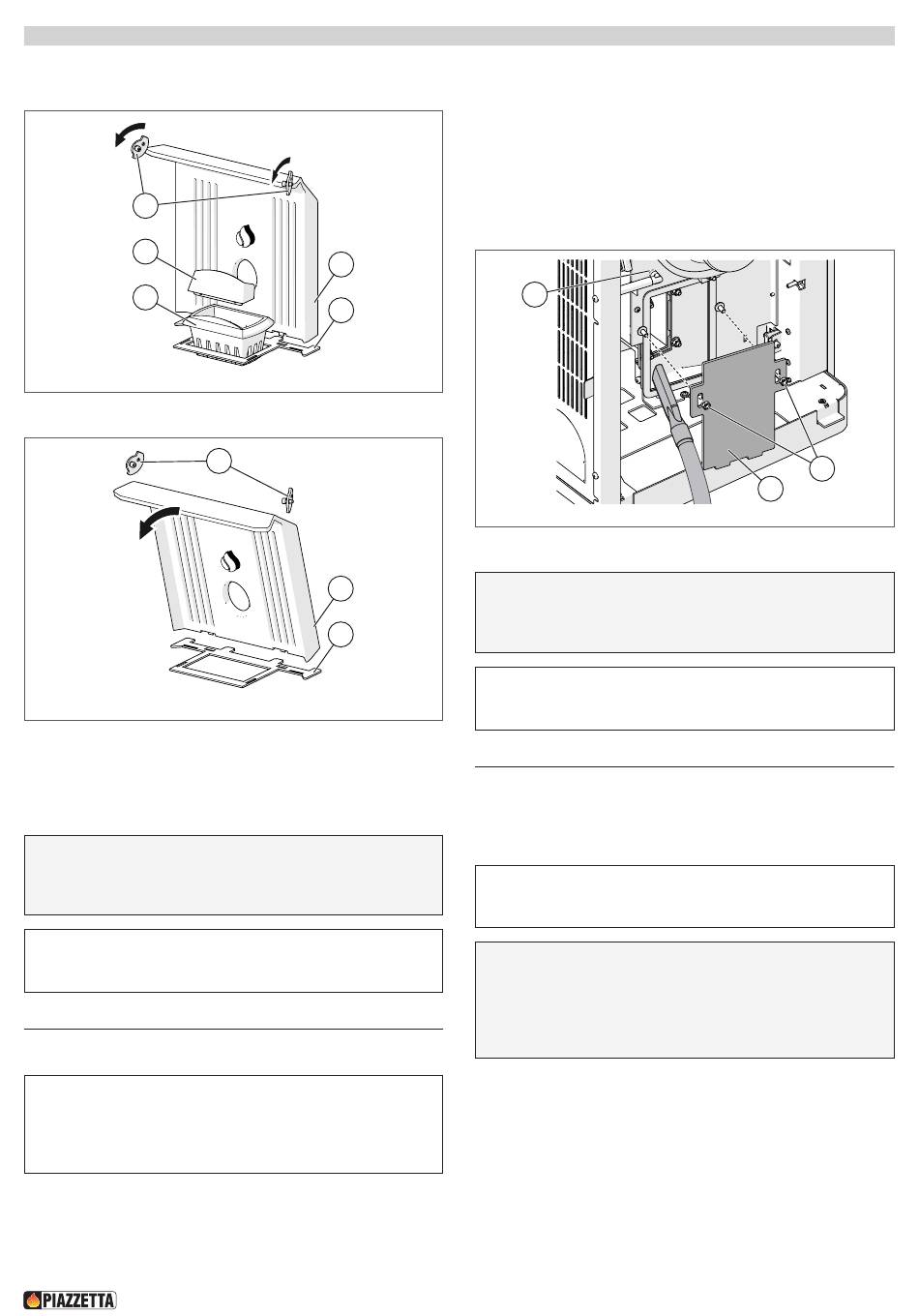

- turn the cams (3) forwards in order to release the back panel (4)
- lift the back panel slightly to release it from the slots(5)
3
1
2
- turn the top part outwards and extract it
- clean the parts which have been removed and then refit them
in the reverse order in which they were removed
- ensure that the back panel is lodged into the housing and se-
cure it using the two cams
- reinsert the grate and the grate deflector.
a
A vacuum cleaner which is suitable for use with ash is
needed when carrying out this type of cleaning oper-
ation.
i
To dispose of the ash, please refer to the section " DIS-
POSAL OF ASHES ".
10.10 CLEANING THE SMOKE CHAMBER
i
Recommended cleaning frequency: refer to the section
" SCHEDULED MAINTENANCE ".
This operation facilitates an optimal heat exchange and
■ ■
better product performance.
4
5
Fig. 35
3
4
5
Fig. 36
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE
Proceed as follows:
- remove the left panel following indications provided in the
CLADDING instructions
- remove the screws (1) which secure the smoke chamber cover
(2)
- use a vacuum cleaner to remove any ash and carbon deposits
which may have accumulated in the smoke chamber, taking
care not to damage the blades of the extractor fan
- check that the hole (3) inside the smoke chamber is always free
of dust and ash. Clean if necessary
3
- close the smoke chamber reversing the order of operations.
a
A vacuum cleaner which is suitable for use with ash is
needed when carrying out this type of cleaning oper-
ation.
i
To dispose of the ash, please refer to the section " DIS-
POSAL OF ASHES ".
10.11 CLEANING THE EXTRACTOR FAN
Any dust or ash deposits on the smoke extractor fan blades may
result in the fans becoming noisy when the appliance is in opera-
tion. It must be cleaned.
i
Recommended cleaning frequency: refer to the section
" SCHEDULED MAINTENANCE ".
a
The fan must be cleaned with the fire out, the appliance
completely cold and with the power cable disconnect-
ed.
The extractor fan is only to be cleaned by a T.A.C. (Tech-
■ ■
nical Assistance Centre) or qualified technician.
DT2002842_H072117UK0_01
1
2
Fig. 37
25
