Summary of Contents for Cylinda TK4570

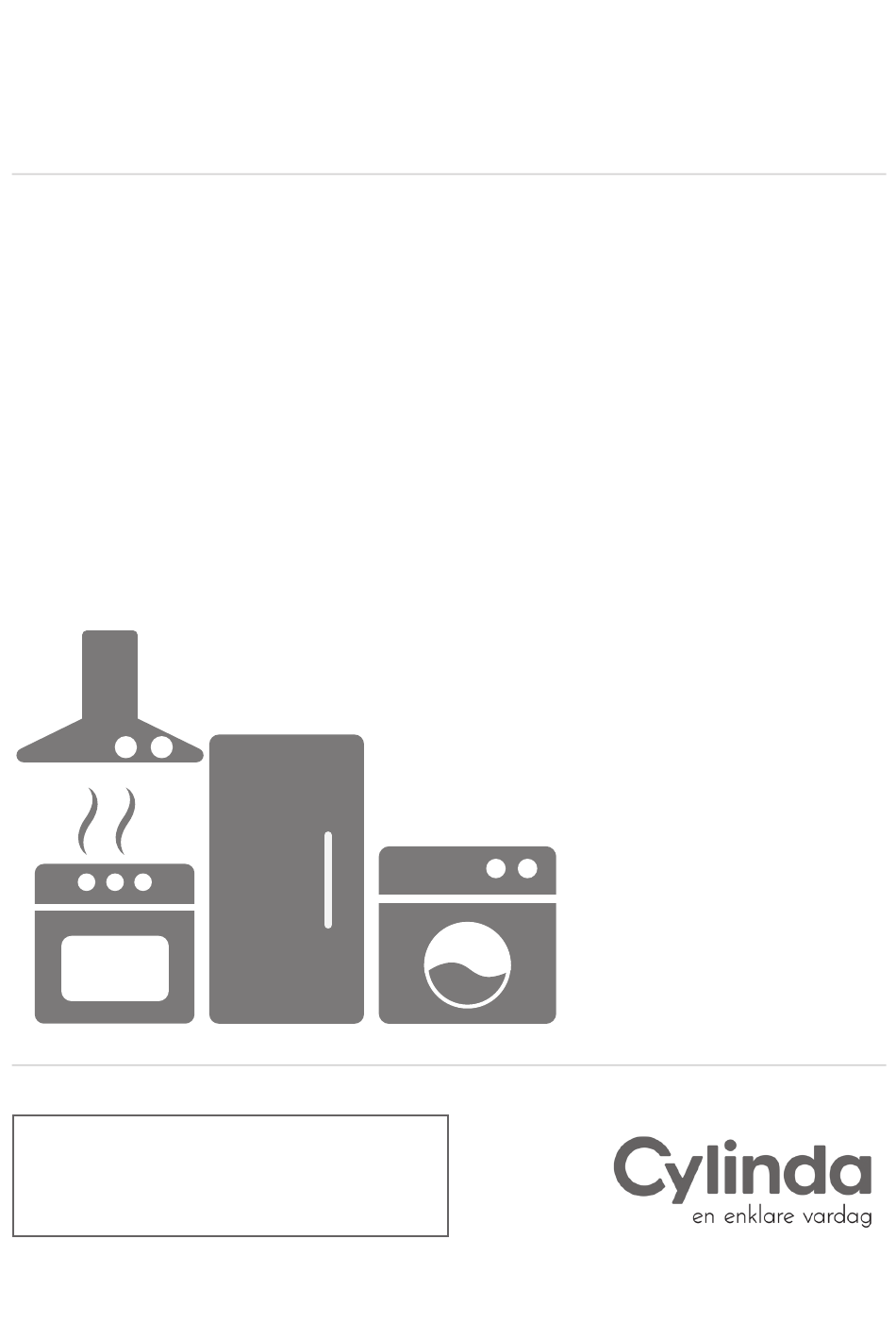

  • Page 1 User manual TK4570...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Caption Description...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ................. 3 1.1. Electrical Safety ....................3 1.2. Children's Safety ..................... 4 1.3. Product Safety ....................5 1.4. Correct Use ..................... 6 1.5. Installing On Top Of a Washing Machine............7 2. INSTALLATION ....................9 2.1. Connection to Water Outlet (with optional drain hose) ........9 2.1.1.
  • Page 4 9. AUTOMATIC FAULT WARNINGS AND WHAT TO DO ........26 10. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION ..27 10.1. Packaging Information ................. 27 10.2. Energy Efficiency ..................27 EN - IV...
  • Page 5 PRIMARY CONSIDERATIONS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 • Before installation, check the product for visible damage. Never install or operate a damaged product. • Keep pets away from the dryer. • Fabric softeners, or similar products, should be used in accordance with the manufacturers instructions. • Remove all objects from pockets such as lighters and matches.

  • Page 7: Safety Instructions

    1. SAFETY INSTRUCTIONS This section contains safety instructions that will help protect you from risk of personal injury or property damage. Failure to follow these instructions will void any warranty. 1.1. Electrical Safety • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

  • Page 8: Children's Safety

    A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel. To avoid the risk or fire or electric shock, do not use extension cords, multi sockets or adapters to connect the dryer to mains power.

  • Page 9: Product Safety

    • Keep cleaning materials out of the reach of children Electrical products are dangerous for children. • Keep children away from the product while it is running. • To prevent children from interrupting the dryer cycle, you can use the child lock to avoid any changes in the running programme.

  • Page 10: Correct Use

    • Operating the dryer in environments that contain flour or coal dust may cause explosion. ATTENTION: Underwear that contains metal reinforcements should not be put in the dryer. The dryer may be damaged if metal reinforcements come loose and break off during drying. 1.4.

  • Page 11: Installing On Top Of A Washing Machine

    • Do not lean against or sit on the door of the dryer. The dryer may tip over. • To maintain a temperature that will not harm the laundry (e.g. to prevent the laundry from catching fire), a cooling process starts after the heating process.
  • Page 12 ATTENTION: The dryer can only be placed on washing machines that have same capacity and above. • To use the dryer on the washing machine, a fixing part must be used between the two products. The fixing part must be attached by an Authorised Service Provider.

  • Page 13: Installation

    2. INSTALLATION 2.1. Connection to Water Outlet (with optional drain hose) • Before contacting the local Authorised In products with a condenser unit, water Service Provider for the installation accumulates in the water tank during of the dryer, check the information in the drying process.

  • Page 14: Adjusting The Feet

    3. OVERVIEW 2.2. Adjusting the Feet • For the dryer to work with less noise and vibration, it must be stable and balanced on its feet. Adjust the feed to ensure that the product is balanced. • Rotate the feet to the right and to the left until the dryer is even and stable.

  • Page 15: Preparing The Laundry

    4. PREPARING THE LAUNDRY 4.1. Sorting the Laundry to be Dried Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates "they can be dried in a dryer". • Do not operate the product with load amounts and laundry types other than those given in 4.3.

  • Page 16: Preparing The Laundry To Be Dried

    4.3. Load Capacity IMPORTANT: Delicate fabrics, embroided fabrics, woolen/silk fabrics, Follow the instructions in the "Programme clothes made of delicate and expensive selection and consumption table". (See: 5.2 fabrics, airtight clothes and tulle curtains Programme selection and consumption are not suitable for drying in the dryer. table).

  • Page 17: Electronic Indicator And Additional Functions

    5. USING THE TUMBLE DRYER 5.1.2. Electronic Indicator and Additional Functions 5.1. Control Panel Display symbols: 1. Programme Selection Knob 2. Electronic indicator and additional Water tank warning indicator functions 5.1.1. Programme Selection Knob Lint filter cleaning warning indicator Use the programme selection knob to select the desired drying programme Heat exchanger cleaning warning indicator...
  • Page 18 Delicate Buzzer Cancel Start and pause Drying Step Display: Drying Iron dry Cupboard dry The electronic display shows the drying steps throughout the program. Every time a program step starts, the relevant drying step light turns on. Once the drying step is complete, the relevant drying step light turns off.

  • Page 19: Programme Selection And Consumption Table

    5.2. Programme Selection and Consumption Table Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the Drying LED will come on. Approximate Washing amount of Duration Programme Load (kg) machine remaining (minutes) spin speed...

  • Page 20: Auxiliary Functions

    5.2.1. Auxiliary Functions The table that summarises the options that can be selected in programmes is given below. Option Description Select the drying target suitable for your laundry to be dried. Select Extra Dry for thick and multilayer laundry that takes time to dry. Select Drying Target Closet Dry for regular, single-layer laundry.

  • Page 21: Starting The Programme

    5.2.2. Starting the Programme The Start/Pause LED will flash during programme selection.Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on. Programme Description This programme dries cotton laundry including bedsheets, pillowcases, pyjamas, Cottons + Cupboard Dry underwear, tablecloths etc.

  • Page 22: Selection Stand By

    5.2.3. Selection Stand By 5.3. Drum Light Information After 15 minutes without user action in • This product includes LED Drum Light.The selection mode, machine goes to energy- light works automatically when youopen saving mode due to decrease energy the door. And closes itself after awhile consumption.
  • Page 23 OPTIONS PROGRAMMES Drying Delay Buzzer Time Drying Child Lock Delicate Anticrease Spin Target Start Cancel Drying Level Cottons + Cupboard Dry Synthetics + Cupboard Dry Delicate Towels Hygiene Drying Time Baby Care Jeans Sport Outdoor Wool Refresh Refresh Express 29' Shirts 12' Not selectable Selectable...

  • Page 24: Cleaning And Care

    6. CLEANING AND CARE After the dryer has been used for a certain period of time, if you encounter a layer that will cause obstruction on the filter surface, IMPORTANT: Do not use industrial wash the filter with warm water to clean the chemicals to clean your dryer.

  • Page 25: Cleaning The Condenser

    6.4. Cleaning the Humidity Sensor IMPORTANT: Never remove the water tank when the programme is running. The water condensed in the water tank is not suitable for human consumption. IMPORTANT: DO NOT FORGET TO EMPTY THE WATER TANK AFTER EACH USE.

  • Page 26: Cleaning The Inner Surface Of The Loading Door

    6.5. Cleaning the Inner Surface of the Loading Door IMPORTANT: DO NOT FORGET TO CLEAN THE INNER SURFACE OF THE LOADING DOOR AFTER EACH DRYING PROCESS. Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth.

  • Page 27: Technical Specifications

    7. TECHNICAL SPECIFICATIONS Brand Cylinda Model name TK4570 Height Min: 845 mm/Max: 855 mm* Width 596 mm Depth 525 mm Capacity (max.) 7 kg** Net weight (with plastic door) 31 kg Net weight (with glass door) 32,5 kg Voltage 220–240 V...

  • Page 28: Troubleshooting

    8. TROUBLESHOOTING Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider.
  • Page 29 PROBLEM REASON SOLUTION Check the care labels on the Clothes have shrunk, felted or The programme used might not be laundry items, select a suitable deteriorated. suitable for the type of laundry. programme for the type of laundry. There might be lint accumulated on Clean the inner surfaces of the the inner surfaces of the loading Water leaking from the loading door.

  • Page 30: Automatic Fault Warnings And What To Do

    9. AUTOMATIC FAULT WARNINGS AND WHAT TO DO Your tumble dryer is equipped with a built-in fault detection system, indicated by a combination of flashing operation lights. The most common failure codes are shown below. ERROR CODE SOLUTION Contact the nearest authorised service agent. Empty the water tank, if problem does not solved, E03 / contact the nearest authorised service agent.

  • Page 31: Environmental Protection And Packaging Information

    10. ENVIRONMENTAL 11. DESCRIBING THE ENERGY PROTECTION AND PACKAGING LABEL AND SAVING ENERGY INFORMATION 11.1. Energy Labelling 10.1. Packaging Information The packaging of this product is made of recyclable materials. Do not dispose of the packaging, waste together with household or other waste. Instead, take it to a packaging collection point defined by your local authority.

  • Page 32: Energy Efficiency

    11.2. Energy Efficiency • You should operate the dryer to full capacity, but make sure that it is not overloaded. • When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.
  • Page 33 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark Cylinda Model name TK4570 Rated capacity (kg) Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic of Non-automatic Automatic Energy Consumption of the standard cotton programme at full load (kWh)
  • Page 34 Service Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00 Declare Model code Serial number Purchase date Problem description Name and address Phone number Contact us www.cylinda.se 52503759-240203-00...
