Danfoss SystemStak DGM 5 Series Technical Information page 26

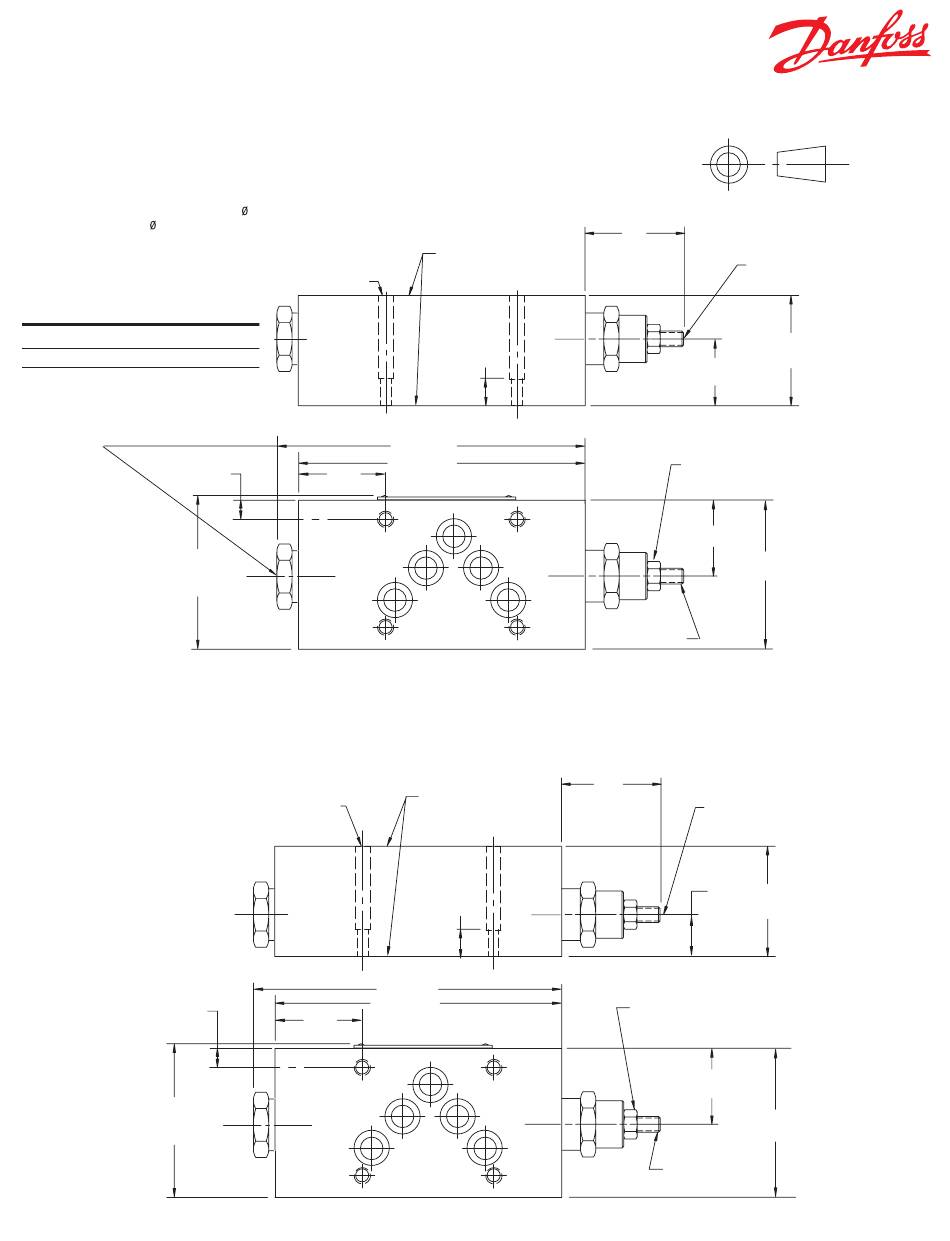

Installation Dimensions
DGMFN-5-X-P & DGMFN-5-Y-A
Single Flow Controls
mm (inches)
4 mounting holes
9,50 (0.37) counterbore 36,5 (1.44) deep
for bolt extenders (order separately)
BKE-6M-50M (M6 metric) or
BKE-4-50M (.2500-20 UNC).
Torque: 1 1,3-14,7 Nm (100-130 lb. in.)
Model A B
DGMFN-5-X-P 60,4 (2.38) 28,4 (1.12)
DGMFN-5-Y-A 52,7 (2.07) 33,2 (1.31)
No hex plug on
DGMFN-5-X-P
models
11,7
(0.46)
71, 6
(2.82)
max.
See page 37 for optional adjustment devices.
See page 38 for interface dimensions.
DGMFN-5-X-A
Single Flow Control
mm (inches)
11,7
(0.46)
71,6
(2.82)
max.
26
6,9 (0.27) through
139 (5.47)
128 (5.04)
37
(1.46)
B
T
B
4 mounting holes
(See above for
specifications)
139 (5.47)
128 (5.04 )
37
(1.46)
B
T
B
"W " models
ISO 4401-AC-05-4- A
(max. ext.)
(NFPA D05)
Mounting surface
13,5
(0.53)
P
A
T
A
Rotate clockwise
to decrease flow
52, 7
(2.07)
ISO 4401-AC-05-4- A
"W " models
(NFPA D05)
(max. ext. )
Mounting surfac e
13, 5
(0.53)
P
A
T
A
3rd angle
projection
A
4 (5/32 ")
Hex key
50
(1.97)
30
(1.18)
13 (1/2 ")
Wrench size
B
69,5
(2.74)
4 (5/32 ")
Hex key
20
50
(0.79)
(1.97)
13 (1/2 " )
Wrench size
33,2
(1.31)
69, 5
(2.74)
Rotate clockwise
to decrease flow
