Danfoss SystemStak DGM 5 Series Technical Information page 23

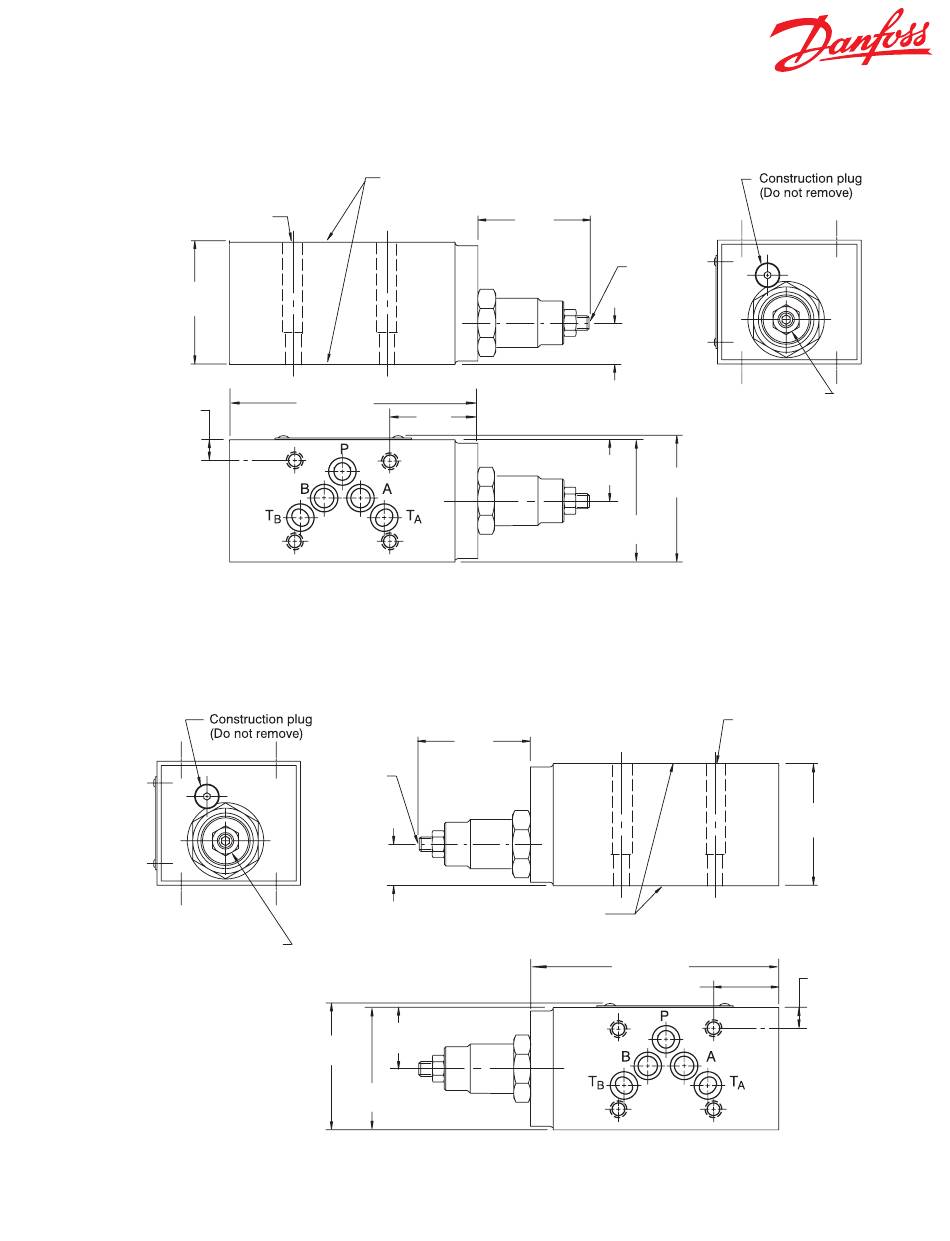

Installation Dimensions
DGMR-5-A*-FW-30
Counterbalance Port A, Piloted from B
mm (inches)
4 mounting holes
(see page 22)
60
(2.36)
11,7
(0.46)
See page 37 for optional adjustment devices.
See page 38 for interface dimensions.
DGMR-5-B*-FW-30
Counterbalance Port B, Piloted from A
13 (1/2 ")
Wrench size
Adjust counterclockwise to
increase pressure setting .
ISO 4401-AC-05-4-A (NF P A D05)
Mounting surface
142,6 (5.61 )
50
(1.97)
65,6
(2.58)
4 (5/3 2 ") "W " models
Hex key
(max. ext.)
21, 5
(0.85)
ISO 4401-AC-05-4-A (NF P A D05)
Mounting surface
33,2
71, 6
(1.31)
(2.82)
69,5
(2.74)
65,6
(2.58)
"W " models
(max. ext.)
4 (5/3 2")
Hex key
21,5
(0.85)
33,2
71,6
(1.31)
(2.82)
69,5
(2.74)
142,6 (5.61)
37 (1.46)
13 (1/2 ")
Wrench size
Adjust counterclockwise to
increase pressure setting.
4 mounting holes
(see page 23)
60
(2.36)
11,7
(0.46)
23
