Caple DI652 Technical Manual

Caple DI652 Technical Manual

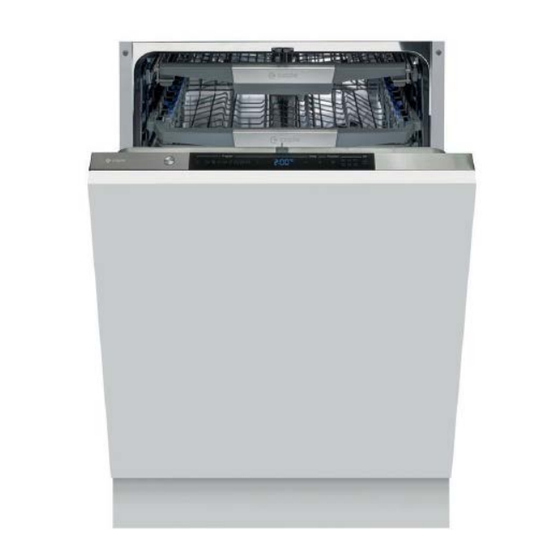

60cm fully integrated dishwasher
Hide thumbs Also See for DI652:

Advertisement

Quick Links

Download this manual
DI652
Caple 60cm Fully Integrated Dishwasher
Technical Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DI652 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple DI652

Summary of Contents for Caple DI652

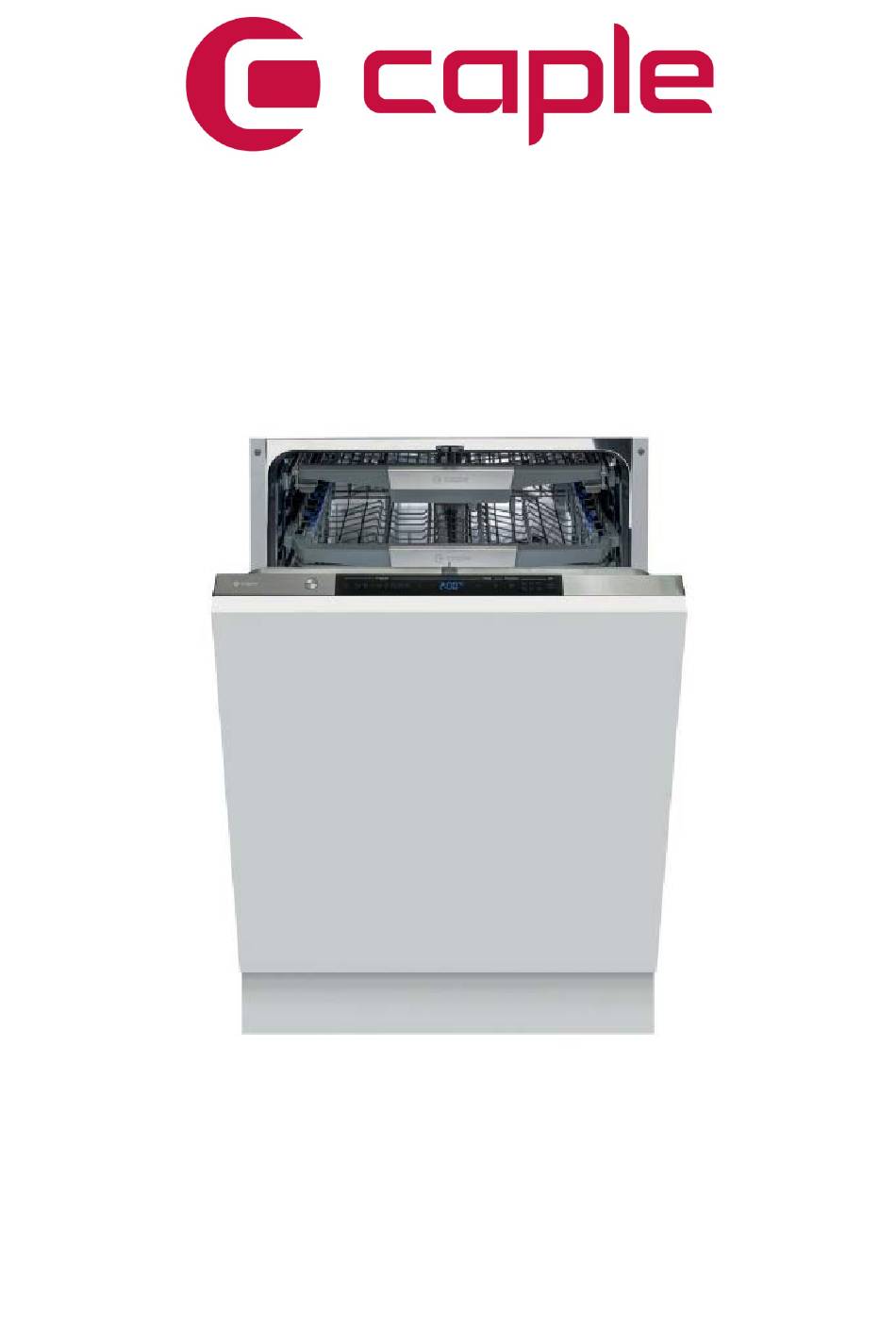

  • Page 1 DI652 Caple 60cm Fully Integrated Dishwasher Technical Manual...
  • Page 2 DI652 Caple 60cm Fully Integrated Dishwasher...
  • Page 3 DI652 Caple 60cm Fully Integrated Dishwasher...
  • Page 4 DI652 Caple 60cm Fully Integrated Dishwasher...
  • Page 5 DI652 Caple 60cm Fully Integrated Dishwasher...
  • Page 6 DI652 Caple 60cm Fully Integrated Dishwasher Item Part Number Description Quantity 12276000A20462 Outer door 12176000025451 Control Panel 12176000025470 Patch 12276000A24312 Control Panel Shell 12276000A25834 Control Panel Shell 17176000025491 Display panel 12176000A41112 Guide Rail Support 12176000A41113 Guide Rail Support 12276000A22088 Inner Door Assembly...
  • Page 7 DI652 Caple 60cm Fully Integrated Dishwasher Item Part Number Description Quantity 12176000008647 Connector 12176000014685 Vent Pipe Assembly 12176000009565 Exhaust Pipe Nut 17476000007542 Power Cord 12176000010640 Softener Cover Assembly 17476000001365 Softener 12976000A00761 Spring 12176000020605 Base Tray Assembly 12176000003085 Base Cover 12676000000138...
  • Page 8 DI652 Caple 60cm Fully Integrated Dishwasher Item Part Number Description Quantity 11001012000010 Brushless Dc Pump 12276000009065 Bracket 12276000010106 Bracket 11203602000295 Filter 12976000000308 Clamp 12676000000947 Drain Hose 17176000012008 Temperature Sensor 17176000000306 Sensor Assembly 17476000000382 Main Wire Harness 12176000A48620 Cutlery Assembly 12976000A02702...
  • Page 9 DI652 Service Manual...
  • Page 10 Electrical supply 220-240V, 50Hz Supply water pressure 0.04MPa-1.0MPa Supply water temperature below 60℃ For the basic operation, please refer to the instruction manual included with each unit.
  • Page 11 -> Function Description Water Circuit Note: This page is for models with aquastop hose.

  • Page 12: Function Description

    -> Function Description Water Circuit Process of water inlet (indicated by magenta route) In this process, regeneration water route is cut off, main water route is open. The water in the main water route is softened when pass through the softener, and then enter in the tub. During this phase, some of inlet water will be stored in the air breaker to be regenerating water.
  • Page 13 -> Theory of parts Location Breaker Washing Pump Heater Pressure Switch Softener Drain Pump Sump Main PCB...

  • Page 14: Theory Of Parts

    -> Theory of parts Printed Circuit Board is the control center of the dishwasher which receives and process signals from components. It sends orders to components and deal with the feedback information, etc. Removing the PCB. The PCB can be removed from the PCB casing in the bottom of machine. 1.
  • Page 15 -> Theory of parts PCB Abbreviations Mark Function Washing Pump Drain Pump Inlet Valve P01/P02 Heating Element Regeneration Valve of Softener Diverter Valve ML-L Lower-speed Washing Pump D/Ed Dispenser BUZ1 Buzzer LIGHT Top light Thermister Door IAQS Overflow detect Rinse detect Flowermeter TURB Turbidity detect...

  • Page 16: Working Principle

    Inlet Valve -> Theory of parts Location of inlet valve Appearance Connection to Terminals inlet water hose To air breaker Electric coil inside Bottom view Working principle The inlet valve is an electromagnetic valve that decides whether water enters or not. Valves are normally closed.

  • Page 17: Inlet Valve

    Inlet Valve -> Theory of parts Access inlet valve 1. Disconnect the power. 2. Remove the water inlet hose. (Note : Be careful of remaining water droplets.) 3. Remove the cover of the bottom board. 4. Disconnect the 2 terminal lugs from the inlet valve. 5.
  • Page 18 Drain Pump -> Theory of parts Location of Drain Pump The work principle Drain pump integrated into sump Bottom view Working principle Drain pump consists of an electrical motor, impeller, inlet and outlet. Drain pump is a kind of pump driven by permanent magnet synchronous motor. The rotor is made with permanent magnet material, the running inertia of rotor is very small, the stator consist of silicon steel stack and coil.

  • Page 19: Drain Pump

    Drain Pump -> Theory of parts Access drain pump 1. Drain away the water in the dishwasher and disconnect the power supply. (Note : Make sure to remove any remaining water in the dishwasher.) 2. Remove the cover of the bottom board. (Note:You should first loosen the top hooks, then the left and right hooks and take care to not break the hooks.)

  • Page 20: Location Of Heater

    Heater -> Theory of parts Location of Heater Bottom view Basic versions Basic Version Operating Voltage for Heater [ V ] Power [ W ] 220V/240V 2040 W 230 V, 1 N∼ Tolerances: 1567 W 220V –6% (206,8V) 2407 W 230V +6% (243,8V) Power range Covered by VDE approval...
  • Page 21 Heater -> Theory of parts The following picture shows the unit: Pump Outlet BLDC motor Safety device + Connector Inlet Connector Motor Heater Location of Washing Pump View ottom...

  • Page 22: Washing Pump

    Washing Pump -> Theory of parts Spray pump The nominal working point of the pump is at 45 l/min at 310 mbar (total pressure difference outlet – inlet). At that point the optimum total efficiency is located. Characteristic Units Value Working points: See 2.1 at nominal voltage 230V, 50Hz and max.

  • Page 23: Pressure Switch

    Pressure Switch -> Theory of parts Working principle The pressure switch consists of a moving diaphragm and disc which activates a change over contact. The contact can be calibrated to trip and reset at the desired pressure levels. The main application is to control the level of water in the appliance and may also provide flood protection.
  • Page 24 -> Theory of parts Location of NTC Working principle Negative Temperature Coefficient Thermistor is integrated into sump, which is used for measuring temperature of water in the tub. Access NTC 1. Remove bottom board. 2. Remove two screws securing the NTC to sump(shown in above picture). 3.
  • Page 25 -> Theory of parts To inspect NTC 1. Open the PCB box and take out the PCB; 2. With the door closed,unplug the RE connector (shown in below picture), then use the multi-meter Ω shelf to test resistance between two blue wires(RE and GND) , the normal resistance is shown in below table.
  • Page 26 Flowmeter -> Theory of parts Location of Flowmeter Working principle Flowmeter is integrated into Air Breaker. Function of Flowmeter is measure how much water has entered the appliance. It consists of an impeller, tongue tube and terminal, etc. When water passes through the flowmeter, moving water rotates the magnetic impeller, the tongue tube can sense the impeller’s magnetism and sends electronic pulses.
  • Page 27 Flowmeter -> Theory of parts Access Flowmeter 1. Remove the baseboard, top panel and left side panel. 2. Remove the plastic nut inside tub, which secures the air breaker to tub. (The flowmeter is integrated into air breaker, replace air breaker if flowmeter has failed. ) 3.

  • Page 28: Safety Hose

    Safety hose -> Theory of parts Location of Safety Hose Electronic Aquastop Hose Working principle Mechanical Aquastop Hose Electronic Aquastop Hose There are two types of Safety Hose, mechanical Aquastop hose and electronic Aquastop hose. Mechanical Aquastop safety hose has two layers. If water leaks and fills the air space between the two layers, the foaming material will expand and lock the hose.
  • Page 29 Safety hose -> Theory of parts Access Safety Hose clamp wire co nnecter ( no nee d to di stinguish positive and ne gative elec trode) clamp r ing 1. Remove baseboard, side baseboard, top panel and left side panel. 2.

  • Page 30: Diverter Valve

    Diverter valve -> Theory of parts Working principle Diverter, also named alternating flow control valve, is used to control the flow of water between the upper and lower spray arms. It can also be used on models to stop the flow of water to the upper spray arm on models equiped with a half load feature.

  • Page 31: Test Programme

    Test Program Test Programme The test programme is designed for the technician to check the operation of the components and check for any failures. How to activate Test Programme Test Program Operation How to activate With door opened, Test Program Program>+ Power Start Test Close the door...
  • Page 32 Test Program Procedure -> Procedure of Test Program (for modelswith flowmeter) Display on Process Description t h e s c r e e n 8:88 Power on, stand by Intialization Open inlet valve and draught fan,the draught fan closed after 10s, 05 or control 3.0L water.

  • Page 33: Error Code

    Error Code Test program -> How to know which error code has occurred To know which error code has occurred, refer to the previous table named Test Program Operation. Take E1 for example, If error 1 has occured, the buzzer would alarm for 30 seconds and “E1”...
  • Page 34 Error Code Test program -> Error codes explained E1 Water filling exceed pre-set time If the inlet valve has been opened for 4 minutes but the water quantity hasn’t reached the desired value(measured by pluses), E1 would occur. When E1 occurs, the drain pump will run until the flowmeter keep motionless for 2 minutes and all the other components will be stopped immediately.
  • Page 35 Error Code Test program -> E7 Short-circuit failure of thermistor In the test program, once short-circuit failure of thermistor is detected by controller, the E7 would occur. When E7 occurs, the drain pump will run until flowmeter keeps motionless for 2 minutes and all the other components will be stopped immediately.
  • Page 36 Inspection E1 tree -> E1 code Longer inlet time Check inlet hose Replace Aquastop No water Failure Is there any AQUASTOP, water in the Tub? (only for dishwashers with AQUASTOP device) Little water Not open Open it Check tap Opened Failure Failure Unblock/unkink...
  • Page 37 E3 tree Inspection -> Longer heating time Check of over heat proof Failure Replace switch Check water temperature in the tub heating Micro-switch. High Check whether the filter is Clear or replace filter jammed or blocked Reconnect the wire of Failure Check heater Heater circuit and check...
  • Page 38 E4 tree Inspection -> Overflow C h e c k Flooding Reconnect the wire of No water Failure Water in base? Flooding Switch circuit solve the problem Switch circuit and check again (normally closed) Still wrong Blocked Some Check whether Flooding Repair or Replace water Switch is blocked or not...
  • Page 39 E6,E7 & E8 tree Inspection -> Open-circuit failure of thermistor Check whether the NTC Reconnect the wire of circuit is correct or not. Flowmeter circuit and solve the problem (mentioned in section 4) check again Still wrong Replace the NTC Short-circuit failure of thermistor Check whether the NTC...
  • Page 40 E9&Ed tree Inspection -> Button activated for a long time Have any foreign Replace display body? board Clean out Communication failure Loose connections between main & Replace the PCB display board? Reconnect...
  • Page 41 EC tree Inspection -> BLDC motor error Check Connections (1-3) Connected Correct connection correctly? Run online Test1 is Change BLDC control board Run online Test1 is Solve the problem Change BLDC pump Run online Test1 is Change the machine...

  • Page 42: Troubleshooting

    Troubleshooting...
  • Page 43 Troubleshooting...
  • Page 44 Troubleshooting...
  • Page 45 Troubleshooting...
  • Page 46 Troubleshooting...
