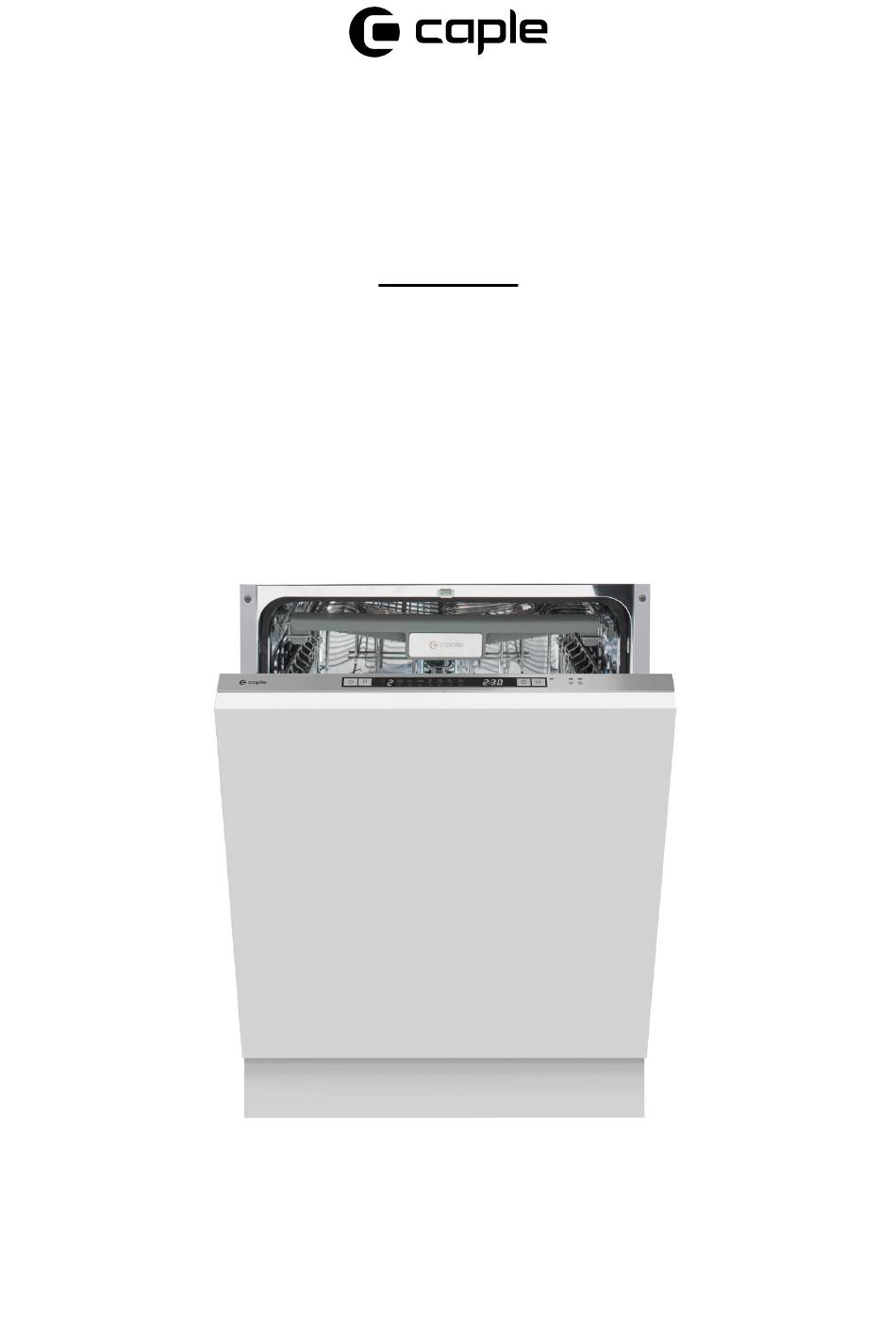

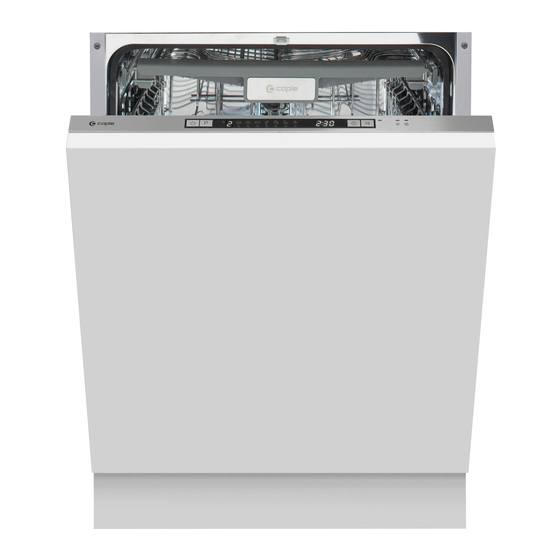

- Page 1 D i s h w a s h e r I n s t r u c t i o n M a n u a l DI64 2 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Loading the Salt into the Softner Rinse Aid Dispenser Detergent Dispenser Loading the Dishwasher Baskets Wash Cycle Table Programming the Dishwasher Auto-open Cleaning and Maintenance Installation Instructions Troubleshooting Technical Information Caple Contact Details Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. - Please unplug before cleaning or performing maintenance on the appliance. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 4 - Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. - Check with a qualified electrician or Caple service representative if you are in doubt whether the appliance is properly grounded.
- Page 5 - The appliance may only be used with correctly adjusted door springs. - If the supply cord is damaged, it must be replaced by Caple, its service agent or a similarly qualified person in order to avoid a hazard. - During installation, the power supply must not be excessively or dangerously bent or flattened.
- Page 6 E L E C T R I C A L C O N N E C T I O N - Ensure the voltage and frequency of the power being corresponds to those on the rating label. Only insert the Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 7 Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 9: Quick Operation Guide
5. Select a programme and run the dishwasher. the dispenser. 4. Fill the dispenser. 5. Select a programme and run the dishwasher. 5. Select a programme and run the dishwasher. the dishwasher. Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 10: Control Panel
For smaller loads, you can choose this function to save energy and water. NOTE: It 4 - Half-load can only be used with Intensive, Universal, ECO, Glass and 90 min. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 11 7 - Warning Indicator SALT If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 12: Product Overview
Before using your dishwasher for the first time: › Set the water softener. › Add 1.5Kg dishwasher salt and then fill the salt container with water. › Fill the Rinse Aid dispenser. › Fill in detergent. Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 13: Water Softener
(GRAM/CYCLE) 0~0.94 6-11 10-20 7-14 1.0-2.0 12-17 21-30 15-21 2.1-3.0 18-22 31-40 22-28 3.1-4.0 23-34 41-60 29-42 4.1-6.0 35-55 61-98 43-69 6.1-9.8 °dH=1.25 °Clarke=1 1.78°fH=0.178mmol/l The manufactory setting: H3 Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 14: Loading The Salt Into The Softner
› Only fill with salt just before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 15 Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. › If salt has spilled, run a soak or quick programme to remove it. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 16: Rinse Aid Dispenser
Close the cap. Pour the rinse aid into the dispenser, Pour the rinse aid into the dispenser, being careful not to overfill. being careful not to overfill. Instruction manual Di642 Please keep this instruction manual for future reference Close the cap. - Page 17 4. If there is no operation for 5 seconds, the setting will be successful. N OT E : Press the power button to cancel the setting. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 18: Detergent Dispenser
Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 19 Be aware that depending on the soiling of water, setting may be different. Please observe the manufacturer's recommendations on the detergent packaging. Instruction manual Di642 Please keep this instruction manual for future reference 3 Close the flap by sliding it to the...
-
Page 20: Loading The Dishwasher Baskets
› Some types of glasses can become dull after a large number of washes. › Silver and aluminium parts have a tendency to discolour during washing. › Glazed patterns may fade if machine washed frequently. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 21 WA R N I N G Items will be hot. To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the programme has ended. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 22 WA R N I N G Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 23 Oval platter Melamine dessert plates Melamine dessert plates Melamine dessert plates Melamine bowls Melamine bowls Glass bowl Melamine bowls Glass bowl Dessert bowls Glass bowl Dessert bowls Dessert bowls Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 24 The information for comparability test in accordance with EN 60436, as follows: › Capacity: 14 settings › Position Upper basket: lower position › Rinse Aid setting: MAX › Softener Setting: H3 › Programme: ECO Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 25 F O L D I N G B A C K T H E R A C K S H E LV E S The spikes are used for holding plates and a platter. They can be lowered to make more room for large items. Raise upwards Fold downwards Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 26 Move the right basket from right to left, two basket are overlapping. This creates more space for the upper basket below, for taller glasses etc. Remove the right basket from the tray. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 27: Wash Cycle Table
Open the door, press the ON/OFF Button Wash(65℃) Rinse(55℃) Rapid Rinse Rinse(40℃) Press the program Button , the wash pro 4/16g Rinse Instruction manual Di642 1.651 18.6 4/16g Rinse(55℃) Intensive->Normal->ECO->90Min->Rap Rapid Rinse Please keep this instruction manual for future reference 1.651... -
Page 28: Programming The Dishwasher
› Close the door. › The dishwasher will start running again. WA R N I N G : It is dangerous to open the door mid-cycle, as hot steam may scald you. Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 29: Auto-Open
It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto the dishes in the lower one. Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 30: Cleaning And Maintenance
The entire filter assembly should be cleaned once a week. Improper replacement of the filter may reduce the performance level of the and damage dishes and utensils. Step 1 Turn the filter in anti-clockwise directi ： Instruction manual Di642 Please keep this instruction manual for future reference... - Page 31 Instruction manual Di642 Instruction manual Di481 Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
- Page 32 5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump. N OT E : If your dishwasher cannot work because of the ice build up, please contact a qualified plumber or serviceman. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 33 This will help the door seals to last longer and prevent odours from forming within the appliance. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 34 One of the factors that causes odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 35: Installation Instructions
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required 10 amp fuse, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 36 AT T E N T I O N : After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 37 H O W TO D I S C O N N E C T T H E S A F E T Y S U P P LY H O S E 1. Turn off the water. 2. Unscrew the safety supply hose from the faucet. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 38 The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 39 N OT E : Door of › Depending on where your electrical outlet is, you may dishwasher need to cut a hole in the opposite cabinet side. Minimum space of 50mm Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 40 › The door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 41 F E E T E X T E N S I O N S : Feet extensions are supplied. These can be fitted by screwing into the base of the existing feet. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 42 › Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws. › Marble or granite work top: fix to the side panel with the screws provided. Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 43 The aesthetic door panel should be processed in accordance with the illustrated dimensions 566 0.2 451 0.2 450 0.2 2 - Ø2( 8) 20 (MAX) 8 - Ø2( 8) 4 - Ø2( 8) Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 44: Troubleshooting
Traces of salt have cutlery adding dishwasher salt. gotten into the wash cycle. The lid of the softer is loose Check the lip. Ensure the fix is fine. Instruction manual Di642 Please keep this instruction manual for future reference... - Page 45 Aluminium utensils have rubbed Use a mild abrasive cleaner to eliminate those marks. on dishes against dishes. Detergent left in Dishes block detergent cups. Re-loading the dishes properly. dispenser cups Instruction manual Di642 Please keep this instruction manual for future reference...
- Page 46 › If overflow occurs, turn off the main water supply before calling a service. › If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Instruction manual Di642 Please keep this instruction manual for future reference...
-
Page 47: Technical Information
550mm (with the door closed) WIDTH: 598mm DEPTH (D1): 550mm (with the door closed) Depth (D2) 1150mm (with the door opened 90 °) DEPTH (D2): 1150mm (with the door opened 90˚) Instruction manual Di642 Please keep this instruction manual for future reference... -
Page 48: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
