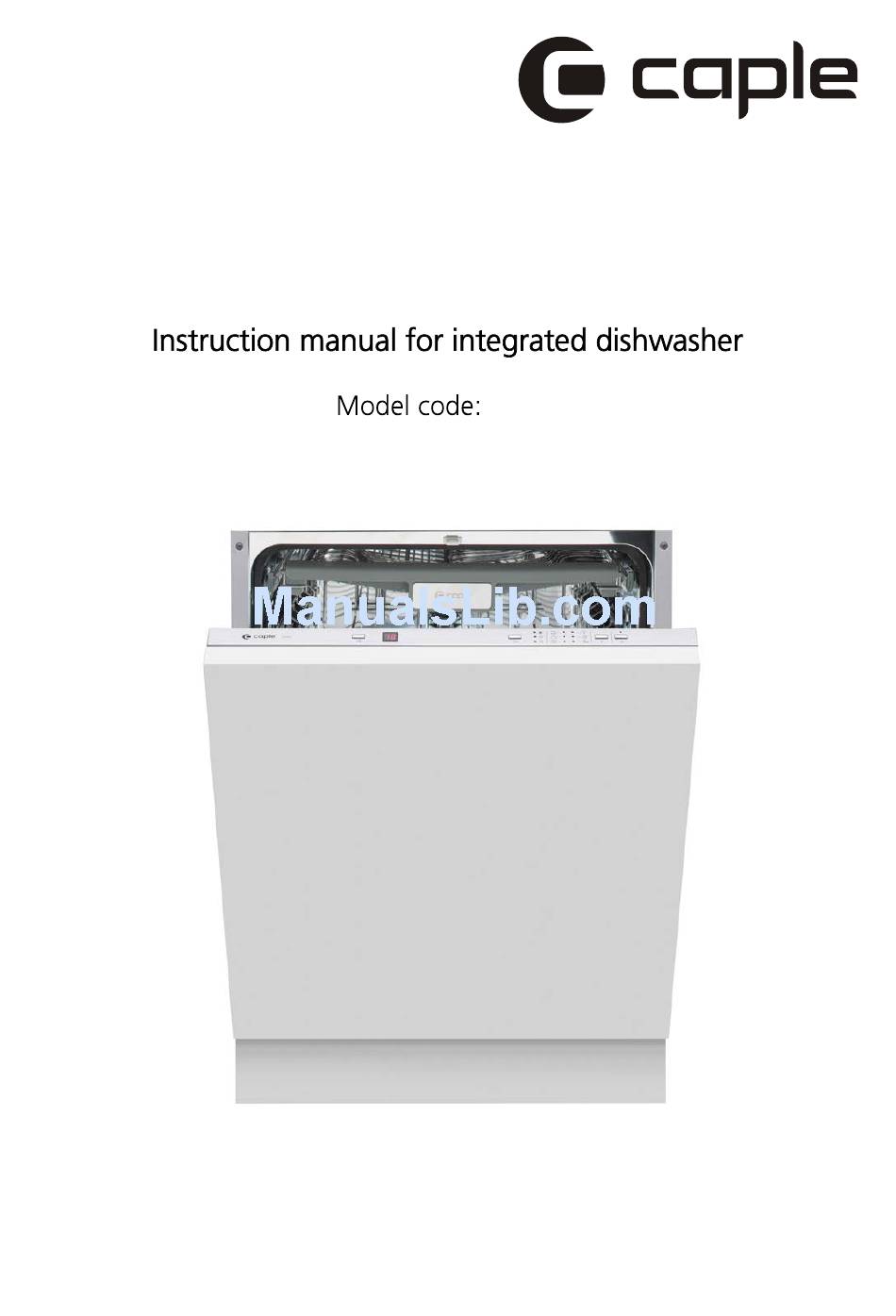

- Page 1 Di627 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Changing the programme.......12 If you can not solve the problems by yourself, At the end of the Wash Cycle......12 please contact Caple Service on 0844 800 3830. Filtering system..........13 Caring for the dishwasher........14 The manufacturer, following a policy of constant Installation p reparation ........ - Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
-
Page 5: Control Panel
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g. - Page 6 For detailed operating methods read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 1. Delay button : Press the button to select delay. 5.Sa lt a nd rinse aid warning lights: To show when the salt container or dispenser ne ed to be 2.
-
Page 8: A Water Softener
Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 9: Rinse Aid Dispenser
Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener. -
Page 10: Adjusting Rinse Aid Dispenser
When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. -
Page 11: Concentrated Detergent
Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when °... -
Page 12: Fill In Detergent
Fill in Detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed or 3in1 tablets if used. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging. - Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
- Page 14 The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty).
-
Page 15: Turning On The Dishwasher
Means: need to fill rinse into the rinse aid dispenser. （ ℃） Prewash 50 ℃） （ Wash 65 Intensive For heaviest soiled crockery, 5/30g Rinse 1.60 and normally soiled pots, 3in1 Rinse pans,dishes etc with dried （ ℃） Rinse 65 on soiling. -
Page 16: Wash Cycle Table
Changing the program A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water. If this is the case , the detergent dispenser mu st be refilled (see the section entitled "... -
Page 17: Filter Assembly
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) and a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain. -
Page 18: Cleaning The Filter
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump. If your dishwasher cannot work because of the ice, please contact Caple service. Cleaning the spray arms It is necessary to clean the spra y arms re gularly fo r hard wate r che micals will clog the sp ray arm jets a nd bearings. -
Page 19: Moving The Appliance
How to keep your dishwasher in good shape After every wash When not in use for long time It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of... -
Page 20: Furntiure Door Dimensions And Installation
Please carefully read the installation instruction. ● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1). - Page 21 Install the hook on the furniture door panel and put the hook into the slot of the outer door of the dishwasher ( see figure 4a). After positioning of the door panel , fix the panel on to the outer door using the screws and bolts (See figure 4b) . 【Figure4a】...
-
Page 22: Tension Adjustment Of The Door Spring
Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If a aesthetic wooden panel is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5). -
Page 23: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Re fer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turn ing in a clockwise motion to tighten the left and right door springs. -
Page 24: Electrical Connection
The dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When levelling the dishwasher, please pay attention not to let the dishwasher tip over. -
Page 25: Positioning The Appliance
The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. 1. - Page 26 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
-
Page 27: Before Calling Caple Service
Some element of dishwasher is leaking. Overflow. If an overflow occurs, turn off the main water supply before calling Caple service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. - Page 28 Height : 815mm Width : 598 mm Depth : 550mm with the door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 14 place settings...
- Page 30 5 position cutlery basket: Mod e 1 Position one: lift the left basket up, both left and right baskets are angled. Mode 2 Position two: adjust the left basket to lower position, left basket is flat and right basket is angled. Mode 3 Position three: lift the right basket up, both left and right baskets are flat.
- Page 31 Technical Data Sheet Sheet of hous ehold d ishwasher according to EU Directive 1059 /2010: Manu facturer CAPLE Type / Description Di627 Standard place settings Energy efficiency class A+ + Annual energy consumption 266 kWh Energy consumption of the standard cle aning cycle 0.93 kWh...
