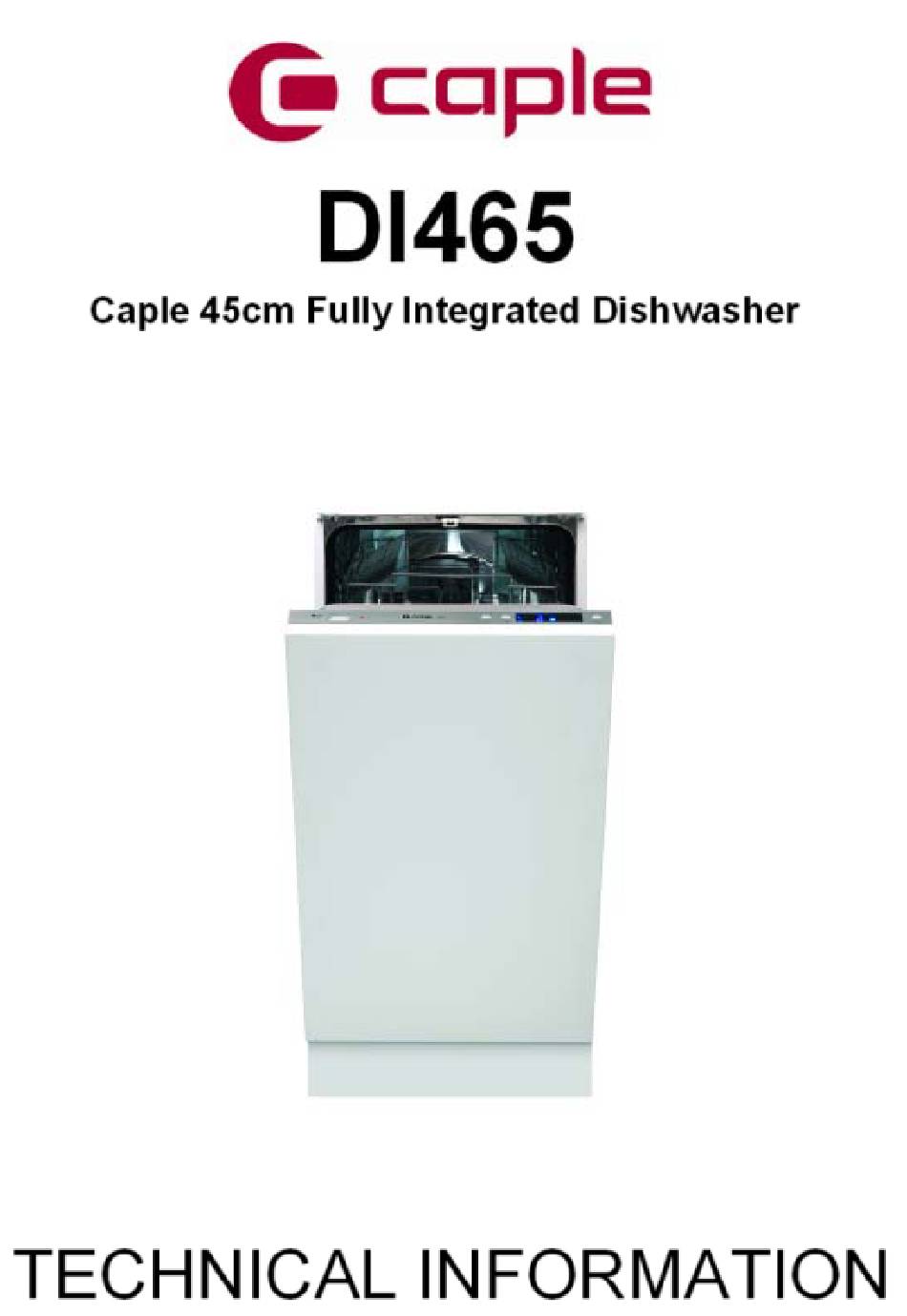

Caple DI465 Technical Information

45cm fully integrated dishwasher
Hide thumbs Also See for DI465:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DI465 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple DI465

Summary of Contents for Caple DI465

  • Page 2 New product information sheet Product name: Di465 Description: Slimline fully integrated dishwasher Product code: Di465 Width 450mm Performance Energy class A Wash class A Drying performance A 7 Programmes: 3 in 1 - normal - 55 ° C 155 minutes intensive -60 °...
  • Page 4 1053...
  • Page 7 DI465 - Caple 45cm Fully Integrated Dishwasher Item Part Code Description 1001 673000900249 External pipe 1002 673001500005 O Ring I 31.5X3.55 1003 673001800364 Guide casing 1004 673001600021 External pipe nut 1005 673001900016 Water dispenser 1006 673000300050 Upper sprayer 1007 673000900171 Upper sprayer pipe...
  • Page 8 DI465 - Caple 45cm Fully Integrated Dishwasher Item Part Code Description 1035 673000900224 Flexible hose 1036 672000700029 Clamp 14.5×1.8 1037 673006200003 Drain hose hook 1038 673001500002 Drain hose holder 1039 673000900186 Drain hose 1042 674000000194 Power cord 1045 673000900270 Inlet hose assembly...
  • Page 9 DI465 - Caple 45cm Fully Integrated Dishwasher Item Part Code Description 1115 674000300079 pressure switch(140/120) 1116 673001400083 power cord clasper pressure switch assembly for 1117 674000300068 heating elements 2001 673002000084 Door edge guard piece 2002 672002200165 Inner door assembly 2003...
  • Page 10 DI465 - Caple 45cm Fully Integrated Dishwasher Item Part Code Description 2039 673002800090 Window 2040 673001800018 Screw sleeve 2041 673000700005 Sleeve cover 2053 673002800041 Control panel cover 2080 672000100012 button spring 2950 673000800906 Power button 2951 673000800905 Program key 3001...
  • Page 11 DI465 - Caple 45cm Fully Integrated Dishwasher Item Part Code Description 3032 673001700010 Tank band bracing block 3033 672001500234 Lower rear crosspiece 3034 672001500118 Middle rear crosspiece 3035 673002200079 Ration spoon 3048 672001100004 Adjust steel rope 3049 672002300002 Adjust nut...
  • Page 12 W QP8- B 9 347A...
  • Page 15 Installation steps Aesthetic panel ¿Ì¶ 1.000...
  • Page 20 W QP8-B9347A...
  • Page 21 Model: DI617 DI465 Control panel Di617 Delay Prog. ON/OFF Button: Will turn on/off the power supply. Display Window: delay time, running indicator, fault codes etc. Power on light: To come on when Power ON/OFF button is pressed down. Half washing button:To select half washing.

  • Page 22: Test Program

    Test Program Procedure -> Test Program Procedure 00: Power on, standby mode Initialization 01: Inlet valve start to work, feeds 3.6 liter water into dishwasher.(45cm appliance feeds 2.8 liter water) Inlet valve Washing pump 02: Washing pump and dispenser will be running for 60s. And dispenser 03: Washing pump and hearting element begin to work, hearting Heating element...

  • Page 23: Error Code

    Error Code Test program -> E1 Longer inlet time If the inlet valve has been opened for 4 minutes but the water quantity hasn’t reached the desired value(measure by pluses), E1 will come on. When E1 happens, the drain pump will run until flowmeter keep motionless for 2 minutes and all the other loads will be cut off immediately.
  • Page 24 Error Code Test program -> E6 Open-circuit failure of thermistor In test program, once open-circuit failure of thermistor is detected by controller, The E6 will come on. When E6 happens, the drain pump will run until flowmeter keep motionless for 2 minutes and all the other loads will be cut off immediately.
  • Page 25 Inspection E1 tree -> E1 code Longer inlet time Make a check of inlet No water Failure Is there any hose of AQUASTOP, Replace it to solve water in the Tub? (only for the dishwasher the problem with AQUASTOP device) Little water Not open Open it to solve the Make a check of Tap...
  • Page 26 E3 tree Inspection -> Longer heating time Make a check of Anti-dry- Failure Check water Replace Switch to heating Pressure temperature in the tub solve the problem Switch.(mentioned below) High Reconnect the wire of Failure Make a check of Heater. Heater circuit and check solve the problem again...
  • Page 27 E4 tree Inspection -> Overflow Make a check of Reconnect the wire of No water Failure Is there any water on Flooding Switch Flooding Switch circuit solve the problem the bottom board? circuit(normally closed) and check again Still wrong Blocked Some Check whether Flooding Repair or Replace it...
  • Page 28 E6&E7 tree Inspection -> Open-circuit failure of thermistor Reconnect the wire of Check whether the NTC Flowmeter circuit and solve the problem circuit is correct or not. check again Still wrong Replace the NTC to solve problem Short-circuit failure of thermistor Reconnect the wire of Check whether the NTC...
  • Page 29 Dishwasher Error Codes...

  • Page 30: Error Codes

    Error Codes ERROR MEANING REMARK CODES Inlet time out (If the water valve continues working for 4 minutes, the dishwasher will start E1 alarm) Draining time out (If the drain pump continues working for Only for 4 minutes, the dishwasher will start E2 alarm) pressure switch Heating time out (If the dishwasher is heating for over 60...
  • Page 31 How do you know the error codes? 1、Only for electronic control dishwasher 2、For the dishwasher with an LED or LCD display. When the dishwasher has something wrong, corresponding Error codes will displayed in the LED or LCD display, for example:...
  • Page 32 How do you know the error codes? 3.1、For dishwashers without an LED or LCD display, different flashing indicator lights mean different error codes, you will find them in the Instruction Manual. Rinse Main Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash...
  • Page 33 How do you know the error codes? 3.2、For dishwashers without LED or LCD display, different flashing indicator lights mean different error codes, you will find them in the Instruction Manual, Rapid Rinse Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash Rinse...
  • Page 34 How do you know the error codes? 3.3、For dishwashers without LED or LCD display, different flashing indicator lights mean different error codes, you will find them in the Instruction Manual. Sock Rapid Glass Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash...
  • Page 35 How do you know the error codes? 3.4、For dishwashers without LED or LCD displays, different flashing indicator lights mean different error codes, you will find them in the Instruction Manual. Rapid Rinse Normal Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash...
  • Page 36 How do you know the error codes? 3.5、For dishwashers without LED or LCD display, different flashing indicator lights mean different error codes, you will find them in the Instruction Manual. 3IN1 Rapid Flash Flash Flash Flash Flash Flash Flash Flash Flash Flash Rapid...
  • Page 37 CONTENT E1 Alarm E6 Alarm E2 Alarm E7 Alarm E3 Alarm Main Electric parts E4 Alarm Installation...
  • Page 38 E1 Alarm theory： If the water valve continues working for 4 minutes, the dishwasher will return an E1 alarm.
  • Page 39 E1 Alarm Analysis1: There is no water flow into the dishwasher Check1.1: The tap does not open...
  • Page 40 E1 Alarm Analysis1: There is no water flow into the dishwasher Check1.2: Water valve circuit fault (cannot open) First check terminal of valve connect well...
  • Page 41 E1 Alarm Analysis1: There is no water flow into the dishwasher Check1.2: Water valve circuit fault (cannot open) then check terminal of PCB connect well Marked with “EV1”...
  • Page 42 E1 Alarm Analysis1: There is no water flow into the dishwasher Only for those controlled Check1.3: Confirm the terminal of Pressure switch and with pressure switch PCB are tightly connected...
  • Page 43 E1 Alarm Analyse1: There is no water flow into the dishwasher Only for those controlled Check1.4: Pressure switch fault with pressure switch When Terminal NC and COM can not open circuit even over work Pressure, It means wrong...
  • Page 44 E1 Alarm Analyse1: There is no water flow into the dishwasher Only for those controlled Check1.5: Confirm the terminal of Flow meter and PCB with Flow meter are tightly connected In PCB, This terminal is marked with “FM”...
  • Page 45 E1 Alarm Analyse2: There is little water flow into the dishwasher Check2.1: Water pressure is very low (＜0.04Mpa)
  • Page 46 E1 Alarm Analysis2: There is little water flow into the dishwasher Check2.2: Drain hose fault...
  • Page 47 E1 Alarm Analysis3: Check3.1: AQUASTOP is at fault (only for the dishwasher with AQUASTOP device) Here is damaged...
  • Page 48 E2 Alarm The Pressure switch control for water inlet Theory： If the dishwasher has continued draining water for 4 minutes the appliance will start E2 alarm.
  • Page 49 E2 Alarm Analysis1: There is water in dishwasher Check1.1: the wiring between drain pump and PCB, and confirm the terminal of PCB and pump are tightly connected.
  • Page 50 E2 Alarm Analysis1: There is water in dishwasher Check1.2: Drain hose is blocked or kinked...
  • Page 51 E2 Alarm Analysis2: There is no water in dishwasher Check2.1: the wiring between pressure switch and PCB, and confirm the terminal of PCB and pressure switch are tightly connected. (only for controlled with pressure switch) • 2. Pressure switch Inspect the wiring between pressure switch and PCB, and confirm the wires are tightly connected and the pressure switch is normally closed.
  • Page 52 E3 Alarm Theory： If the heating element has continued working for 60 minutes but doesn’t reached required temperature, the dishwasher will start E3 alarm.
  • Page 53 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.1: confirm the terminal of PCB and heating element are tightly connected.
  • Page 54 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.2: confirm the terminal of PCB and heating element are tightly connected.
  • Page 55 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.3: confirm the terminal of motor and PCB are tightly connected...
  • Page 56 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.3: confirm the terminal of motor and PCB are tightly connected Here marked with “ML”...
  • Page 57 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.4: confirm the terminal of pressure switch and PCB are tightly connected...
  • Page 58 E3 Alarm Analysis1: Temperature in dishwasher is lower Check1.4: confirm the terminal of pressure switch and PCB are tightly connected Here marked with “P2”...
  • Page 59 E3 Alarm Analysis2: Temperature in dishwasher is high Check2.1: confirm the NTC is in close contact with the bottom of tub. Thermostat is detached, because the bracket is loose in here...
  • Page 60 E3 Alarm Analysis2: Temperature in dishwasher is high Check2.1: confirm the NTC is closely contacted with the bottom of tub. Close contact...
  • Page 61 E4 Alarm The theory: There is a floater device on the bottom tray, If there is any water in the tray, The foam floater will come up to activate the micro-switch, causing the dishwasher to stop running and show E4 alarm.
  • Page 62 E4 Alarm Analysis1: There is water in the bottom tray In this case, you must found out where it is leaking? Check1.1: used bad washing liquid...
  • Page 63 E4 Alarm Analysis1: There is water in the bottom tray In this case, you must find out where is leaking? Check1.2: Drain hose is blocked or kinked...
  • Page 64 E4 Alarm Analysis1: There is water in the bottom tray In this case, you must find out where it is leaking? Check1.3: Confirm terminal of flow meter and PCB are tightly connected. (only for those controlled with a flow meter) Here Marked with “FM”...
  • Page 65 E4 Alarm Analysis1: There is water in the bottom tray In this case, you must find out where it is leaking? Check1.4: some connecting pipes leaking...
  • Page 66 E4 Alarm Analyse1: There is water in the bottom tray In this case, you must find out where it is leaking? Check1.4: some connecting pipes leaking Do as follows: • Remove the side panel; • Remove the water from the bottom tray and make sure there is not any water at the bottom tray.
  • Page 67 E4 Alarm Analysis1: There is water in the bottom tray In this case, you must find out where it is leaking? Check1.4: some connecting pipes for leaking • If any water appears, you will have found out in which areas, such as motor, drain pump, sump, softener, and hoses between them, and also clips at the end of each hose, besides the weld seam at the bottom of the tub.
  • Page 68 E4 Alarm Analysis2: There is no water in the bottom tray Check2.1: float is blocked In this picture, the float is blocked, it will activate the micro-switch.
  • Page 69 E4 Alarm Analysis2: There is no water in the bottom tray Here marked ” with “IAQS Check2.2: Confirm terminal of micro-switch and PCB are tightly connected...
  • Page 70 E6 Alarm The theory: If the PCB detect the NTC circuit is open after dishwasher started, the appliance will start E6 alarm.
  • Page 71 E6 Alarm Analysis1: Check1.1: confirm the terminal of NTC and PCB are tightly connected. Here marked with “RE”...
  • Page 72 E6 Alarm Analysis1: Check1.2: confirm the terminal of PCB and thermostat are tightly connected Here marked with “RE”...
  • Page 73 E7 Alarm The theory: If the PCB detect the NTC is short circuit after dishwasher getting electricity, the appliance will cause the E7 alarm.
  • Page 74 E7 Alarm Analyse1: In this case, you can measure the resistance of NTC that must meet the spec(6KΩ-20KΩ). short circuit of NTC will show that NTC has some malfunction. Replace the NTC to resolve this problem. If it is no problem, then Replace the PCB.
  • Page 75 The end...
