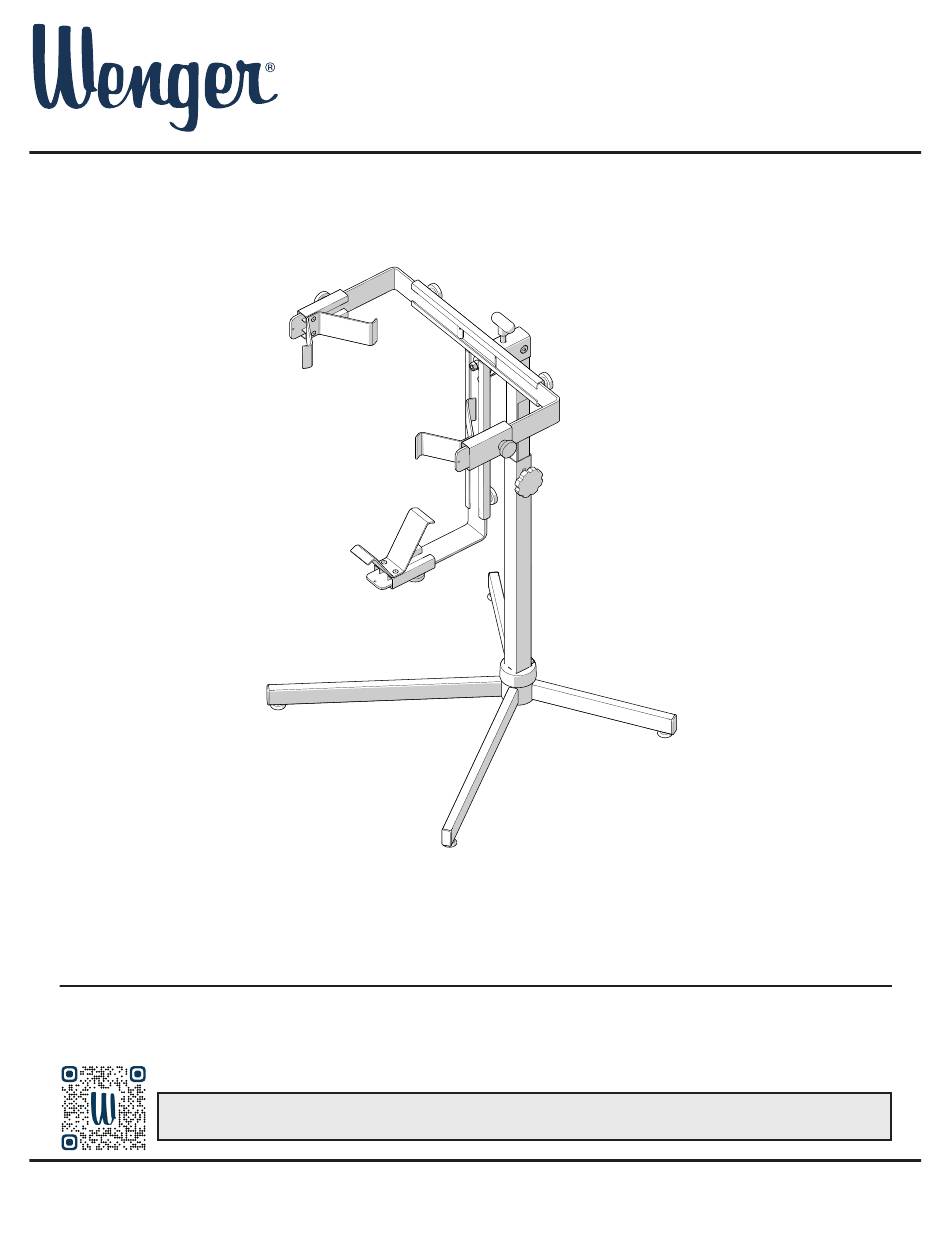

Assembly Instructions
Tuba Tamer
™
Part #049B015-10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger Tuba Tamer
Summary of Contents for Wenger Tuba Tamer
-
Page 1: Table Of Contents
Visit the instrument stands and holders web page at wengercorp.com for more information. Note: Please read and understand these instructions before proceeding� Note: If you need additional information, contact Wenger Corporation using the information below� ©Wenger Corporation 2024 Printed in USA 2024-10 Part #049B015-10 Wenger Corporation, 555 Park Drive, P�O�... -
Page 2: Important User Information
Wenger Corporation� Wenger Corporation does not assume any responsibility for any errors that may appear in these instructions� In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of these instructions�... -
Page 3: Assembly
Assembly 1. Set the base on the floor. 2� Remove both set screws from the base using a 3/16" hex wrench (included)� 3� Slide the cap onto the base, aligning the hole with the set screw holes� Upright Post 4� Lower the upright post into the base with the tab at the bottom facing the same side as the set screw holes�... - Page 4 Assembly (continued) 8� Loosen the three knobs on the t-channel and insert the three arms, bent end first. Tighten the knobs. Knob 9. Slide the three bracket assemblies onto the arms, knob-end first. Tighten the knobs� 10. Make adjustments to properly fit your instrument. See the procedures on the following pages�...
-
Page 5: Adjustment
Adjustment 1� Lower the bottom arm as far down as possible and tighten the knob� 2� Move the left arm as far out as possible and tighten the knob� 3� Move the bracket assemblies to their approximate locations but don't tighten knobs� 8"... - Page 6 Adjustment (continued) 4� Remove the right arm from the t-channel� CAUTION Two people are required for steps 5 through 7. 5� Set the tuba in the stand� NOTICE Be sure long vinyl-coated supports on the bracket assemblies are turned so they extend over small tubing on instrument.
-
Page 7: Removing The Tuba From The Stand
Adjustment (continued) 9� To adjust the height, carefully loosen the height handle Angle Handle and move the stem assembly up or down in the upright post� Retighten the handle� 10. Make any fine adjustments with the angle handle. This is easier to pull bottom arm toward you while turning the handle�... -
Page 8: Replacement Parts
Replacement Parts Item Description Item Description Item Description Complete Base Assembly T-Channel Assembly Connector Nut Joint (qty 2) Plastic Cap Height Adjustment Handle Threaded Rod Upright Post Assembly Arm (qty 3) Fiber Washer Handle Bracket Assembly (qty 3) Clamp Nut Assembly Hex Set Screw (qty 2) Knob (qty 6) Jam Nut...
