USER MANUAL
MERACH MR-E12 ELLIPTICAL MACHINE
Questions or Concerns?
IMPORTANT!
Please read all details before use, and keep this user manual for future reference.
PLEASE CONTACT US BEFORE THE RETURN: Mon-Fri,9:00 am-5:00 pm PST/PDT
support@merach.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR-E12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Merach MR-E12

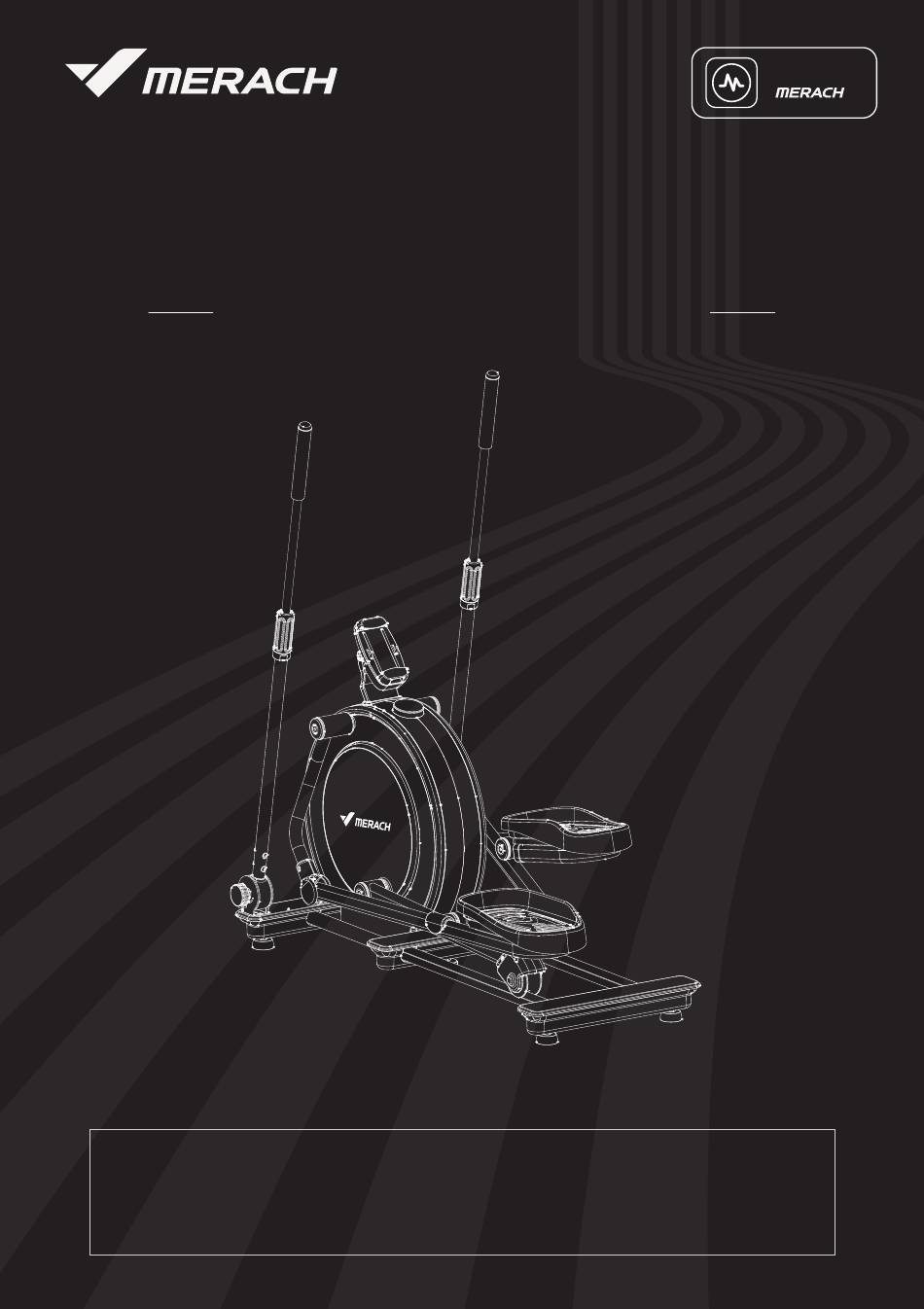

  • Page 1 POWEREDBY USER MANUAL MERACH MR-E12 ELLIPTICAL MACHINE Questions or Concerns? IMPORTANT! Please read all details before use, and keep this user manual for future reference. PLEASE CONTACT US BEFORE THE RETURN: Mon-Fri,9:00 am-5:00 pm PST/PDT support@merach.com...
  • Page 2 WE ARE Our customers aren’t just important; their health, fitness, and pure enjoyment for live is at the core of everything we do at MERACH. From innovative fitness research and cutting-edge product development, to our exceptional purchasing & after-sales service, we are our customers’...
  • Page 3: Table Of Contents

    Specifications ...................03 Parts List ....................04 Assembly Instructions ................05 Usage Instructions ..................08 Instructions for the Monitor ..............09 MERACH APP Setup ................12 KINOMAP APP Setup ................13 Warm-up ....................14 Warranty Information ................15 Please read the entire manual carefully before installing and using the machine,...
  • Page 4: Safety Instructions

    Safety Instructions Please keep this manual in a safe place for future reference. It is very important to read the entire manual thoroughly before installing and using the machine. Safe and effective training can only be achieved if the machine is properly assembled, properly maintained and used.
  • Page 5: Safety Instructions Safety Instructions

    Safety Instructions Safety Instructions If the moving parts are damaged, please do not use the machine until the parts are repaired. Keep the children away from the machine. The equipment is not for children to use or play with. They can injure themselves accidentally. Care &...
  • Page 6: Specifications

    Specifications Electrical Elliptical Machine Product Name: MR-E12 Model: 330lbs (150kg) Recommended Weight Capacity: 99.9lbs (45.3kg) ltem Weight: 46.46*24.8*29.92 inch (1180*630*760mm) ltem Dimensions: 48.82*25.59*25.59 inch (1240*650*650mm) ltem Package Dimensions:...
  • Page 7: Parts List

    #6 Knob X 2 #9 Foot Pad X 2 POWEREDBY USER MANUAL MERACH MR-E12 Elliptical Machine Questions or Concerns? IMPORTANT! Please read all details before use, and keep this user manual for future reference. PLEASE CONTACT US BEFORE THE RETURN: Mon-Fri,9:00 am-5:00 pm PST/PDT support@merach.com...
  • Page 8: Assembly Instructions

    Assembly Instructions Step 1: Assemble the Foot Pad A. Screw the Foot Pad(#9) X 2 into the Rear Cross Tube as shown in Figure, and adjust it with the Cross Spanner(#A) to keep it in balance. Tools:#ACrossSpanner14-17X1 Step 2: Assemble the Right Handrail A.
  • Page 9 Assembly Instructions Step 3: Assemble the Left Handrail A. Take out the Left Handrail(#2), remove the pre-assembled Knob(#6), Flat Washer (#5) and Screw(#3) from the tube firstly. FigureA B. Put the Flat Washer(#5) X 2 on the side of Left Handrail(#2) as shown in Figure A, and then put them into the U-shaped iron sheet on the right side of the Main Frame(#1).
  • Page 10 Assembly Instructions Step 5: Plug in Power Insert one end of the 9V1A Adapter (#8) into the power hole of elliptical machine and the other end into the indoor power outlet as shown below.
  • Page 11: Usage Instructions

    Product Usage Instructions Fixing and Swinging Handrail: A. As shown in Figure, the Handrail fixed B. As shown in Figure, the Handrail could when the Pin(#4) is inserted into the Fix be swayed back or forth when the Pin(#4) is Handrail Hole.
  • Page 12: Instructions For The Monitor

    Instructions for the Monitor 1.1 Main Display Description Item Display window Brief instruction  1. Data rotation, switch every 3 Seconds. 2. Small window digital display "LEVEL" resistance level. 3. Main window digital rotation "Speed/Time/Distance/ Carousel km/h Calories". mode 4. Bluetooth light indicates the Bluetooth connection status, connected light, not connected off...
  • Page 13 Instructions for the Monitor 1.3 Detailed Operating Instructions ① Knob power on, BUZZER long beep, knob display lights up and enters READY state (Figure 1); power on, the resistance automatically reset to "1" gear. 3 minutes of no operation, display all off and enter the standby state (Figure 2) ②...
  • Page 14 Instructions for the Monitor 1.4 Instructions for data display Item No. Project Display window Display instruction Resistance 1 ~ 16 level Display: Indicating that the data will SCAN not be displayed under carousel carousel mode: Indicating that the data are locked Speed 0.0 ~ 999.9 mph Time...
  • Page 15: Merach App Setup

    MERACH APP Setup Download and use of MERACH Ourcustomercangeta180-dayMERACHmembership.Pleasecontactusthrough support@merach.com afterreceivingtheproducttogetanexclusiveredemption code.PleaseincludeyourorderIDandMERACHappUsername. 1.TodownloadtheMERACHapp,scantheQRcodeorsearch"MERACH"intheApple AppStore®orGooglePlayStore. MERACH APP Download APP Connection Guide 2.OpentheMERACHapp.LogInorSignUp. 3.Followthein-appinstructionstosetupyourdevice. USINGYOURELLIPTICALMACHINE Note: 1.UsingtheMERACHappallowsyoutogetfreeworkoutcoursesandaccessadditional functionsandfeatures. 2.CoachingcoursesareonlyavailableinEnglish.
  • Page 16: Kinomap App Setup

    KINOMAP APP Setup Download and use of KINOMAP 1.TodownloadtheKinomapapp,scantheQRcodeorsearch"Kinomap"inthe AppleAppStore®orGooglePlayStore. 2.OpentheKinomapapp.LogInorSignUp. 3.Selectthecorrespondingfitnessequipment 4.TurnonBluetooth,andchooseMerach. 5.Select"Ellipticals",andfindyour"MRK-E12-XXXX". 6.Starttrainingandexploredifferentworkoutmethods.
  • Page 17: Warm-Up

    Warm-up Do stretches before exercising. Warm muscles are easier to stretch, so start with a 5-10 minute warm-up, then do some stretches shown below - 5 times, 10 seconds or more per leg. Do it again after the workout. 1. Stretch down Bend your knees slightly, slowly bend your body forward, relax your back and shoulders, and try to touch your toes with your hands.
  • Page 18: Warranty Information

    Unsupervised use by children under 18 years old. MERACH and its subsidiaries are only responsible for damages caused by the intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses, so the above disclaimer may not apply to you.
  • Page 19 You can enjoy an additional 12-month warranty. Just active your warranty by sending the product's model name via register@merach.com, or log onto merachfit.com/pages/warranty and enter your order number (i.e. Amazon) within the first 14 days of purchase to register your new product for the extended warranty. If you are unable to provide the order number for your product, please type a short note in the order number field along with the date you received your product.
  • Page 20 @merachfit @Merachfit @Merachfit @Merachfit Customer Service: support@merach.com Official Website: merachfit.com...
