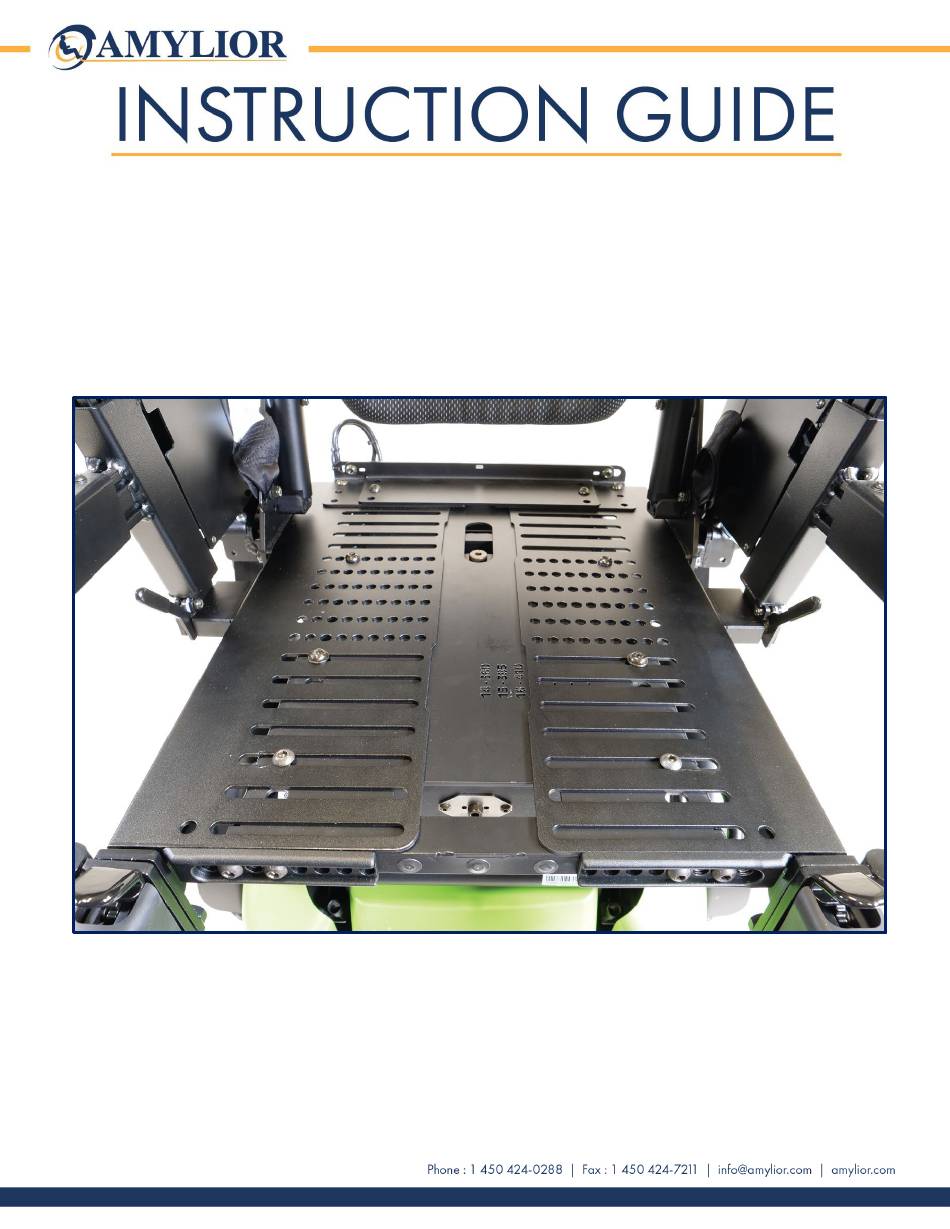

- Page 1 Adjusting SIGNATURE seat pan (cont’d) NEW 2024 SIGNATURE SEAT PAN Adjusting Seat Width, Depth and System Center of Gravity IG︱P-DA20602︱Signature Seat Pan︱R03︱2024-06...
- Page 2 Adjusting SIGNATURE seat pan (cont’d) INTRODUCTION The all-new Signature seat pan simplifies basic adjustments such as seat width, depth and center of gravity by adding slots that allows most bolts to only be loosened instead of fully removed. This will greatly reduce the time needed to make basic adjustments and simplify the process by keeping the two plates in place during adjustment.
- Page 3 Adjusting SIGNATURE seat pan (cont’d) 2. Seat depth Two seat frames are available that allow for depth adjustment. The short frame range is up to 19" (480 mm) deep and the long frame range is up to 24" (610 mm) deep.
- Page 4 If the seat depth needs to be changed and it affects the center of gravity, please contact Amylior •...
