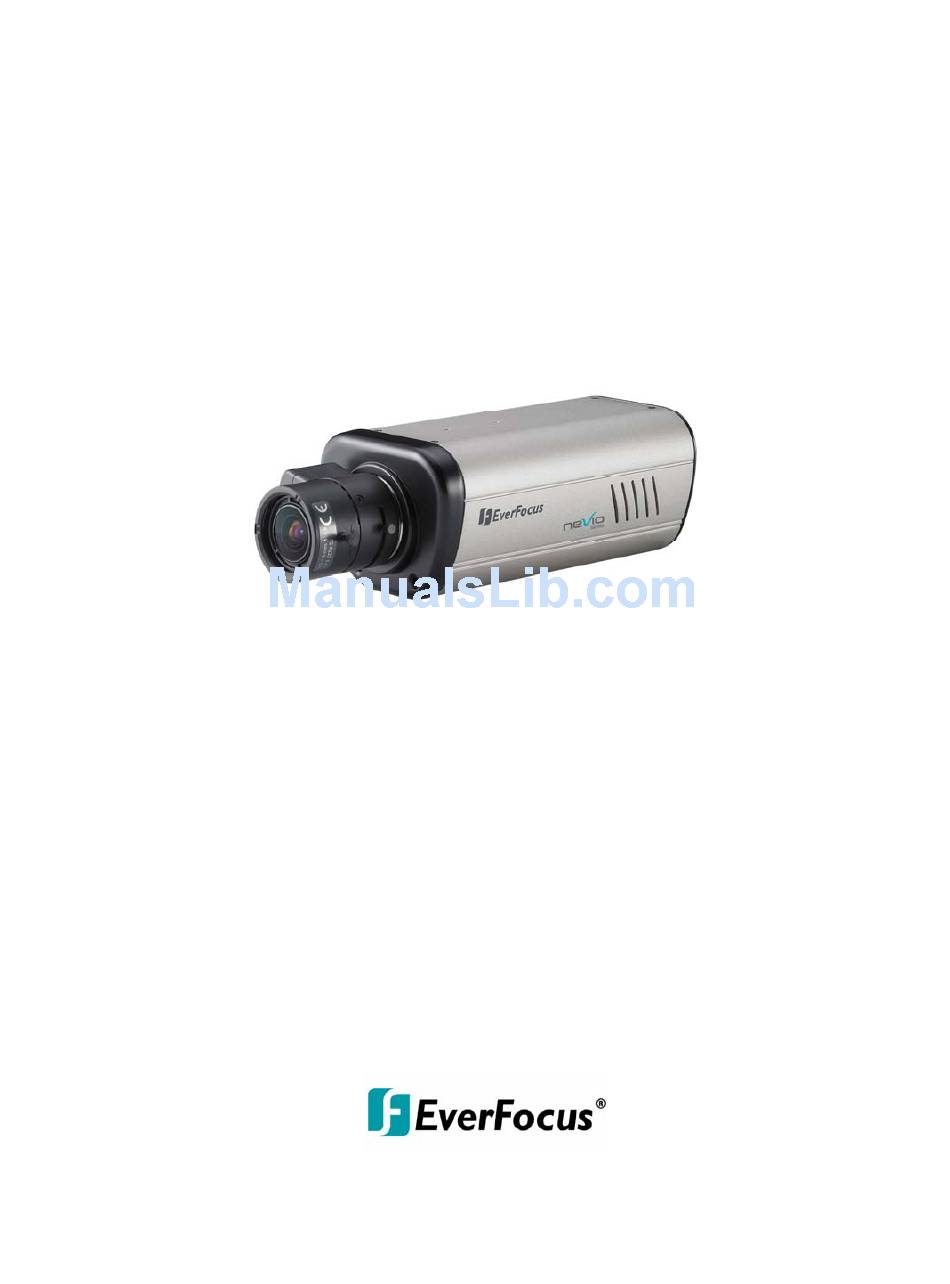

EAN900
User's Manual
Copyright © EverFocus Electronics Corp,
Release: Dec. 2009 Rev.D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAN900 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EAN900

Summary of Contents for EverFocus EAN900

  • Page 1 EAN900 User’s Manual Copyright © EverFocus Electronics Corp, Release: Dec. 2009 Rev.D...
  • Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 3 EAN900 About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
  • Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor...

  • Page 5: Table Of Contents

    EAN900 TABLE OF CONTENTS 1. INTRODUCTION....................6 2. FEATURES ......................6 3. ACCESSING THE CAMERA MENU ..............6 4. SETTING........................10 4.1 S ...................... 11 YSTEM 4.1.1 Information ....................11 4.1.2 Log ......................12 4.2 U ......................13 ONFIG 4.3 N ......................15 ETWORK 4.3.1 Network.......................15 4.3.2 DDNS......................17 4.3.3 Bandwidth ....................18...

  • Page 6: Introduction

    CCD. EAN900 process multi-streaming of H.264 or MPEG-4, MJPEG compression in full megapixel resolution, which allows for optimization both in image quality and bandwidth efficiency. Equipped with a SD card slot, EAN900 offers another way to record and manage your video and can provide uninterrupted recording when network system is down.
  • Page 7 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System]. Please refer to “4. SETTING” for further information. 3. Press button to close EAN900 network page. 4. Video Stream Select Video Stream from Stream 1, Stream 2 and Stream 3. Please refer to “4.4.1...
  • Page 8 EAN900 5. View Size You can select View size to either reduce or enlarge the image to the appropriate view size. Select the view size for live images from: 1280*1024/1280*960/1280*720/640*480/320*240 6. Digital Zoom Press “+” or “-“ button to enlarge / reduce the displayed image. (max. is X10) 7.
  • Page 9 EAN900 11. Manual Control – Trigger Event Press “Trigger Event” button to trigger an event directly from live view page, and event actions will be effective if they have been set in “Event” menu. (Please refer to “4.7.1 Event”) 12. Manual Control – Reset Alarm Press “Reset Alarm”...

  • Page 10: Setting

    EAN900 4. SETTING Click this button to display the setup menu.

  • Page 11: System Info

    EAN900 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab. 4.1.1 Information System Information: Firmware version, MAC address, Video Type, Model number.

  • Page 12: Log

    EAN900 4.1.2 Log System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records.

  • Page 13: User Config

    EAN900 4.2 User Config Live view configuration is to be set by user. Each login user can make his/her own settings for the following items: Text Setting Check the box for text of Machine name, Date/Time or Frame Rate to be displayed on the screen.
  • Page 14 EAN900 Time Format: 24 Hours or 12 Hours. Press Apply to apply the setting changes or Reset to reset without saving the change. Recording/Snapshot Export Setting Enable Event Recording to PC: Allow event video recorded to users' PC if any events have been set to record to PC.

  • Page 15: Network

    EAN900 change. 4.3 Network The network settings and the settings relating to Network, DDNS, Bandwidth, SMTP/FTP and Network Alarm can be configured on this page. The "Network setup" page has 5 tabs of the [Network] tab, the [DDNS] tab, the [SMTP/FTP] tab and the [Network Alarm] tab.
  • Page 16 EAN900 DHCP: Configure the DHCP server not to assign the same IP addresses used for the other network cameras and PCs whose IP address is unique. Refer to the network administrator for the settings of the server. Default: DHCP. Static IP: User can manually set the static IP for network connection.

  • Page 17: Ddns

    EAN900 Press Apply to apply the setting changes or Reset to reset without saving the change. Port Setting HTTP Port Port number for HTTP/WEB communication. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 18: Bandwidth

    ○ www.dyndns.com ○ www.no-ip.com Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: .everfocusddns.com Press button to register or update DDNS account.

  • Page 19: Smtp/Ftp

    EAN900 network. This is a useful function when connecting the camera to busy or heavily loaded networks. The default setting is Unlimited. Max. Client Limit: enter a value here to restrict the number of clients accessing the camera. This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously.
  • Page 20 EAN900 Authentication: Check the box, if the SMTP server requires Authentication (user/ password). User name: Input the login user ID if the SMTP server requires Authentication. Password: Input the password if the SMTP server requires authentication. Receiver Address: Input the e-mail address for receiving e-mail message when the EVENT is enabled and triggered.

  • Page 21: Network Alarm (Reserved For Powercon)

    EAN900 4.3.5 Network Alarm (reserved for PowerCon) Set Network Alarm This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol. 4.4 Video The settings relating video such as streaming, camera OSD can be configured on this page.

  • Page 22: Multi Streaming

    EAN900 4.4.1 Multi Streaming Stream Setting The system can output 3 video streams simultaneously. For each of them, user can set compression format, resolution, quality and frame rate individually. Stream 1 is main steam for live view. Stream 2 is secondary TV stream for TV output. Stream 3 is used for small size view display.

  • Page 23: Camera

    EAN900 Frame Rate: max. 15 fps @ 1280 x 1024 ; max. 15 fps @ 1280 x 960 ; max. 20 fps @ 1280 x 720 ; max. 30 fps @ 640 x 480. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 24: Advanced

    EAN900 Camera setting Brightness: to increase or decrease contrast value of images. It is adjustable from 0~100. Contrast: to increase or decrease contrast value of images. It is adjustable from 0~100. Sharpness: to increase or decrease sharpness value of images. It is adjustable from 0~100.
  • Page 25 EAN900 Advanced Setting Lens Setting LENS: Select DC or Fixed of the lens type used for camera. DC: DC driven Lens Fixed: Manual Lens IRIS Level: to manually adjust IRIS level of Lens when selecting DC driven Lens. It is adjustable from 0~100.

  • Page 26: Audio

    Check Enable Audio box to enable audio function. Audio Input: Audio from an internal microphone or a line source can be connected to the Audio connector of EAN900. The audio source can be selected from Internal Microphone, External Audio Input L and External Audio Input R.

  • Page 27: User

    EAN900 4.6 USER User Information Maximum 10 users can be set for using the IP camera. The user information displays the authorized users and access levels: • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menu and can determine the registration of all other users. However, administrator is not allowed to change supervisor’s account and password.

  • Page 28: Event

    EAN900 4.7 EVENT An event in the camera is when an Event Type is activated and causes certain actions to be performed. The event type is the set of conditions that specifies how and when which actions will be performed.

  • Page 29: Event

    EAN900 4.7.1 Event The settings relating to event occurrences such as settings for the event occurrence, motion, alarm and time mask can be configured on this page. The "Event " page has 4 tabs: [Event] tab, the [Motion] tab, the [Alarm] tab and the [Time Mask] tab.
  • Page 30 EAN900 To change the priority of events, click on the event and it will be highlighted. Press button to move between events. The event that has highest priority will be activated first. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 31: Motion

    EAN900 5. Check “Enable Pre-alarm Buffer” and “Enable Post-alarm Buffer”. For pre-and post alarm buffer setting, please refer to “4.7.3 Alarm”. 6. Check “Enable This Event”. 7. Select “Always” for time mask. For detail about Time Mask, please refer to “4.7.4 Time Mask”.

  • Page 32: Alarm

    EAN900 There are 5 motion trigger areas, which can be distinguished by 5 different colors. Check Enable checkbox to enable event action. For each of them, you can set the event action to be activated. Event action can be set in “Event” section.

  • Page 33: Time Mask

    EAN900 Pre-Alarm Buffer: Image saved internally in the server from the time immediately preceding the trigger. Input the desired length of pre-trigger buffer time. It can be set up to 120 seconds. Post-Alarm Buffer: Image saved internally in the server from the time immediately after the trigger.
  • Page 34 EAN900 Select Always for event action to be taken continuously. Press button to add new time period. Mask name: Input a mask name for the new time period. Check the check box for the day to be scheduled: Sun, Mon, Tue, Wed, Thu, Fri &...

  • Page 35: System

    EAN900 4.8 SYSTEM Date/Time, Daylight Saving, SD card and Maintenance settings can be performed on this page. The "System" page has 4 tabs of the [Date/Time] tab, the [Daylight Saving] tab, the [SD card] tab and the [Maintenance] tab. 4.8.1 Date/Time Machine Name Setting Machine Name: Enter the name of the camera.
  • Page 36 EAN900 Set Date/Time Manually Date: Click the calendar and pick the date. Press << to go previous year, < to go previous month, > to go next month and >> to go next year. Time: Click on Hour, Minute, Seconds, am/pm; then use up arrow to increase value and down arrow to decrease value.

  • Page 37: Daylight Saving

    EAN900 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1 / Last Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday...

  • Page 38: Sd Card

    EAN900 Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.3 SD Card Setup SD Card Notification: Notification will be made via e-mail when the remaining space of the SD memory card reached the value selected from the following.
  • Page 39 EAN900 OFF for not overwriting SD card data. Press Apply to apply the setting changes or Reset to reset without saving the change. SD Card Utility The total size and available size of the SD memory card will be displayed.

  • Page 40: Maintenance

    EAN900 4.8.4 Maintenance Maintenance Server Reboot: The unit is rebooted without changing any of the settings. Use this method by pressing Reboot button if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to the factory default values by pressing Restore button.
  • Page 41 EAN900 the Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EAN900 with the latest firmware. Press Browse button to search firmware file. Press Upgrade button to upgrade the firmware. Note 1: Do not disconnect power to the unit during the upgrade. The unit reboots automatically after the upgrade has completed.

  • Page 42: Specifications

    EAN900 5. SPECIFICATIONS CAMERA Pickup Device 1/3" Progressive scan CMOS 1.3 Megapixel Pixel Effective 1280 (H) x 1024 (V) Sensitivity 0.5 Lux / F=1.2 Day & Night IR cut filter Lens Optional C/CS mount, manual / DD control supported Video Output BNC socket, composite 1 V p-p / 75Ω...
  • Page 43 EAN900 Power Over Ethernet Yes (PoE 802.3af) Power Consumption 4.5W max. (12VDC) PHYSICAL Weight 500 g / 1.102 LBS Dimensions 68 (W) x 57 (H) x 136 (D) mm [146mm (D) with BNC socket] / 2.7" (W) x 2.2" (H) x 5.4" (D) [5.7" (D) with BNC socket] ENVIRONMENTAL Operating Temp.
  • Page 44 2-6 Nakase.Mihama-ku. www.everfocus.com Chiba city 261-7118, Japan TEL: 81-43-212-8188 FAX: 81-43-297-0081 www.everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
