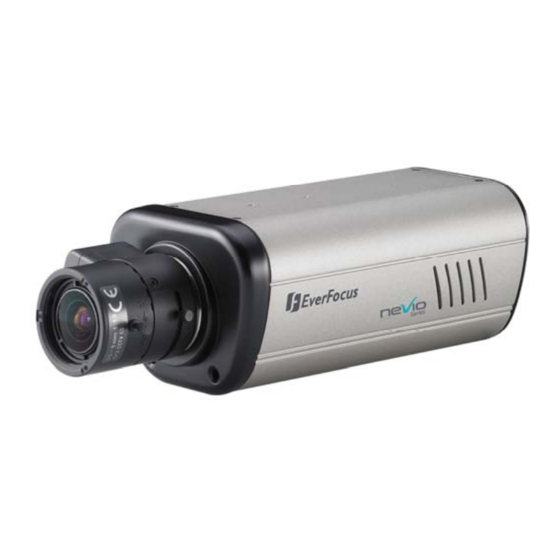

EAN800A/EAN800AW

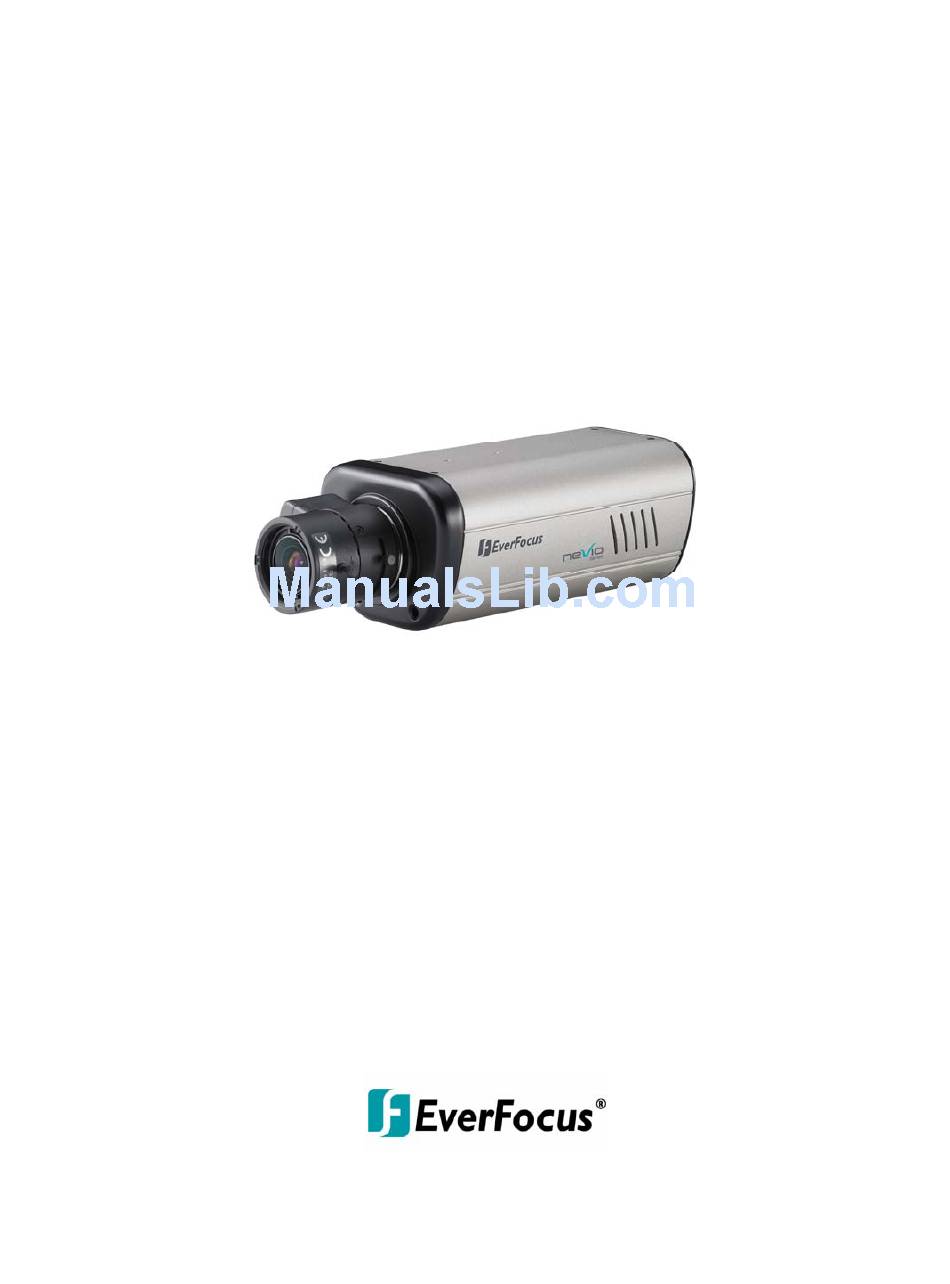

User's Manual
Copyright © EverFocus Electronics Corp,
Release: Dec. 2009 Rev.D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAN800A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EAN800A

Summary of Contents for EverFocus EAN800A

  • Page 1 EAN800A/EAN800AW User’s Manual Copyright © EverFocus Electronics Corp, Release: Dec. 2009 Rev.D...
  • Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 3 EAN800A/EAN800AW complies with CE and FCC. About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
  • Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor...

  • Page 5: Table Of Contents

    4.4.2 Camera ...25 4.5 A ...27 UDIO 4.6 USER ...28 4.7 EVENT...29 4.7.1 Event ...29 4.7.2 Motion...32 4.7.3 Alarm...33 4.7.4 Time Mask ...34 4.8 SYSTEM ...35 4.8.1 Date/Time...35 4.8.2 Daylight Saving ...37 4.8.3 SD Card...38 4.8.4 Maintenance...40 5. SPECIFICATIONS...42 EAN800A/EAN800AW...

  • Page 6: Introduction

    CCD sensor, it can control AGC, BLC, FL, ES, H-Mirror, IRIS Level and Day/Night function through web browser. Built-in IEEE 802.11b/g wireless connection gives you the freedom to place the camera where it's needed. EAN800A/EAN800AW is the most flexible IP solution for all your application needs.

  • Page 7: Accessing The Camera Menu

    Step 1.Start an Internet Explorer browser. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser. (Please refer to EAN800A/EAN800AW Installation Guide for how to find the IP address) Step 3.
  • Page 8 The record button is used to record the current video stream. The location where the image file is saved can be specified in Setting -> User’s Config. Please refer to “4.2 User Config” for further information. EAN800A/EAN800AW button to enter Setting page. In Setting page, there button to close the network page.
  • Page 9 The first icon is for alarm event and rest of the 5 icons are for motion event. The motion event icons which differed by colors correspond to the motion trigger areas you have set in Motion menu. Please refer to “4.7.2 Motion” for detailed information about Motion setup. EAN800A/EAN800AW...

  • Page 10: Setting

    EAN800A/EAN800AW 4. SETTING Click this button to display the setup menu. 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab.

  • Page 11: Log

    System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records. EAN800A/EAN800AW...

  • Page 12: User Config

    Red, Green and Blue until your desire color is obtained. Position: Select the position where the text will be displaying from Upper Left / Lower Right / Lower Left. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...
  • Page 13 Press Apply to apply the setting changes or Reset to reset without saving the change. Language Setting Language: Select the language to be displayed in web page. Default language is English. To add a new language which is not listed in the original configuration, EAN800A/EAN800AW button, then direct to the...

  • Page 14: Network

    The "Network setup" page has 5 tabs of the [Network] tab, the [DDNS] tab, the [SMTP/FTP] tab and the [Network Alarm] tab. 4.3.1 Network The following information is required to configure the network settings. Contact the network administrator or your Internet service provider. • IP Type EAN800A/EAN800AW...
  • Page 15 This field is to set the gateway for your network so the IP camera will be recognized within the network. When DHCP is selected, the DHCP server will assign this value automatically. Primary DNS An IP address of DNS server that is provided by ISP. EAN800A/EAN800AW...
  • Page 16 Press Apply to apply the setting changes or Reset to reset without saving the change. Port Setting HTTP Port Port number for HTTP/WEB communication. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...

  • Page 17: Ddns

    ○ www.dyndns.com ○ www.no-ip.com Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: Press button to register or update DDNS account.

  • Page 18: Bandwidth

    This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously. Subsequent viewers will see a blank image. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...

  • Page 19: Smtp/Ftp

    EAN800A/EAN800AW 4.3.4 SMTP/FTP Set SMTP The settings relating to the mail server used to send the e-mail notification from the camera to predefined addresses via SMTP can be configured. SMTP Server: Enter the IP address or the host name of the SMTP server used to send e-mails SMTP Port: Enter the port number for SMTP.
  • Page 20 Test FTP Server: Press FTP server. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW button to send a testing mail to the assigned button to send a testing file to the assigned...

  • Page 21: Network Alarm (Reserved For Powercon)

    EAN800A/EAN800AW 4.3.5 Network Alarm (reserved for PowerCon) Set Network Alarm This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol.

  • Page 22: Wireless (Ean800Aw)

    “Shared” – allows communication only with other devices with identical WEP settings. Key Length: 64 or 128 bits. Default is 64 bits. Key Format: Hexadecimal or ASCII. Default is HEX. Network Key: Entering a key in either hexadecimal or ASCII format. Confirm Key: Double confirm network key. EAN800A/EAN800AW...

  • Page 23: Video

    Press Apply to apply the setting changes or Reset to reset without saving the change. 4.4 Video The settings relating video such as streaming, camera OSD can be configured on this page. The "Video" page has 2 tabs: the [Multi-streaming] tab and the [Camera] tab. 4.4.1 Multi Streaming EAN800A/EAN800AW...
  • Page 24 Video Stream: Select video recording stream from any enabled stream. Video File format: Recording file will be saved as AVI or ARV, select which file format to be used. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...

  • Page 25: Camera

    IRIS setting: to manually adjust IRIS level of Lens when selecting DC driven Lens. It's adjustable from 0~31. Camera Setting AGC: Select ON or OFF for Auto Gain Control. ON: when illuminance becomes darker, gain will automatically be incremented and screen will become brighter. OFF: Gain will not be incremented. EAN800A/EAN800AW...
  • Page 26 4. If ES is on, IRIS level adjustment takes no effect, ES> IRIS level 5. If using DC driven Lens, BLC and ES should be off. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...

  • Page 27: Audio

    4.5 Audio The EAN800A/EAN800AW camera can transmit audio to other clients using a built-in microphone or connecting to external microphone to play audio received from other clients via connected speakers. This section describes how to configure the basic audio settings.

  • Page 28: User

    • Guest- the lowest level of access, which only allows the user access to the Live View page. Note: Please select Active in Status section to activate user account. Press Apply to apply the setting changes or Reset to reset without saving the change. EAN800A/EAN800AW...

  • Page 29: Event

    The settings relating to event occurrences such as settings for the event occurrence, motion, alarm and time mask can be configured on this page. The "Event " page has 4 tabs: [Event] tab, the [Motion] tab, the [Alarm] tab and the [Time Mask] tab. EAN800A/EAN800AW Manual Motion Schedule...
  • Page 30 EAN800A/EAN800AW Press button to add an event condition. To modify the event list, click on the event and it will be highlighted. Press button to modify the setting. To remove an event from event list, click on the event and it will be highlighted.
  • Page 31 EAN800A/EAN800AW This example describes how to set the camera to upload images to FTP when someone press Manual trigger button: 1. Click button in Event page. 2. Enter an event name for the event, e.g. Event 1 3. Select “Manual Trigger” as event type.

  • Page 32: Motion

    For each of them, you can set the event action to be activated. Event action can be set in “Event” section. Moreover, you can set the Sensitivity level for motion triggered by selecting from 1 (low), 2, 3, 4, 5, 6, 7, 8, 9 to 10 (high). EAN800A/EAN800AW...

  • Page 33: Alarm

    EAN800A/EAN800AW 4.7.3 Alarm Alarm Output Setting Contact Type: Normal Close, Normal Open Duration Time: Select duration time of alarm output from 5 sec, 10 sec, 20 sec, 30 sec, 60 sec, 2 min, 3 min and 5 min. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 34: Time Mask

    EAN800A/EAN800AW Re-trigger Filter Setting Re-trigger Filter: Set a re-trigger filter time, if another event is triggered during this time, this triggered event will be ignored. Press Apply to apply the setting changes or Reset to reset without saving the change.

  • Page 35: System

    4.8 SYSTEM Date/Time, Daylight Saving, SD card and Maintenance settings can be performed on this page. The "System" page has 4 tabs of the [Date/Time] tab, the [Daylight Saving] tab, the [SD card] tab and the [Maintenance] tab. 4.8.1 Date/Time EAN800A/EAN800AW...
  • Page 36 NTP server: Time automatically adjusted by synchronizing with NTP server will be used as the standard time of the camera. Sync. Internal: Select an interval (1 - 24 hours: in 1 hour intervals) of synchronization with the NTP server. EAN800A/EAN800AW...

  • Page 37: Daylight Saving

    EAN800A/EAN800AW Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1...

  • Page 38: Sd Card

    1. When "50%" is selected, e-mail notification will be made each time the remaining space reaches 50%, 20%, 10%, 5%, 2% and 0%. 2. E-mail notification may not always be made at a very moment when the remaining space of the SD memory card reached the selected value. EAN800A/EAN800AW...
  • Page 39 2. Enter the user name whose access level is "1. Administrator" and its password. → Log in the camera. 3. A directory of all saved data will be displayed. You are now ready to obtain images from SD card. EAN800A/EAN800AW button will be shown for user to button.

  • Page 40: Maintenance

    DDNS setting • Default: The Default button should be used with caution. Pressing this button will return all of the camera's settings, including the IP address, to the factory default values. The camera will then have to be re-installed. EAN800A/EAN800AW...
  • Page 41 Press the Browse button to locate the saved config. file (see above) and then click the Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EAN800A/EAN800AW with the latest firmware. Press Browse button to search firmware file. Press Upgrade button to upgrade the firmware.

  • Page 42: Specifications

    SD card, Record video to PC and Network alarm Pre- and Post- alarm Buffer 48MB RAM reserved for pre-alarm record up to 120 sec. LOCAL STORAGE SD Card (Optional) Secure Disk physical layer specification version 2.0 Supports SDHC Host Specification POWER EAN800A/EAN800AW...
  • Page 43 With BNC socket: 68 (W) x 57 (H) x 146 (D) mm / 2.7" (W) x 2.2" (H) x 5.7" (D) With Antenna: 68 (W) x 125 (H) x 167 (D) mm / 2.7" (W) x 4.9" (H) x 6.6" (D) ENVIRONMENTAL Operating Temp. 0°C ~ 40°C ; 32°F ~ 104°F Humidity < 90% not condensing EAN800A/EAN800AW...
  • Page 44 415 Oser Avenue Unit S Hauppauge, NY 11788 Tel: 631-436-5070 : 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
